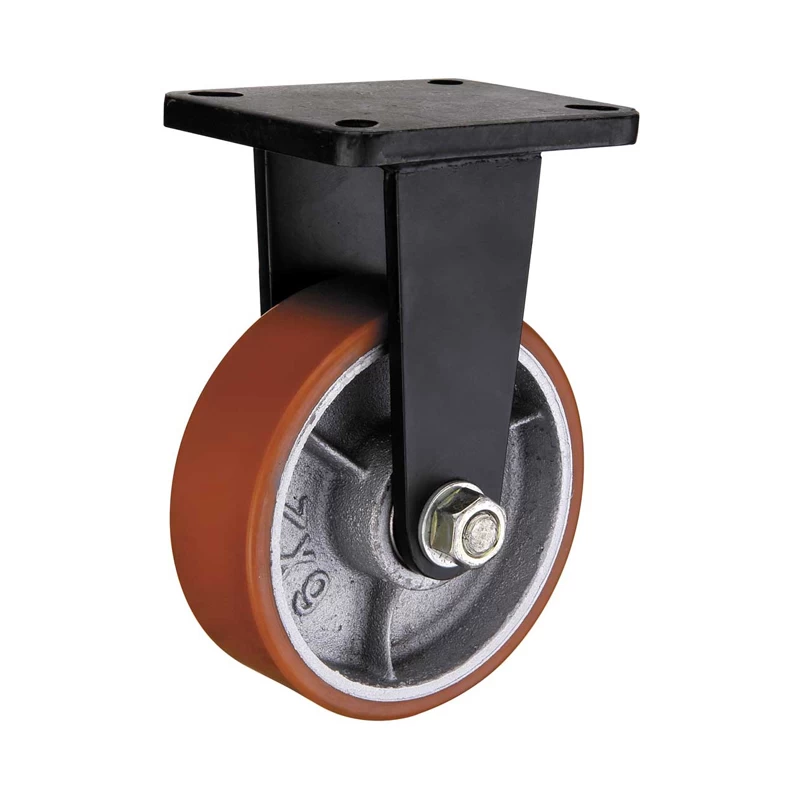

Cast iron polyurethane heavy duty industrial casters
Housing:
Solid steel welded construction
Double ball bearing housing
Black painted
Wheel:
Materials: Cast iron Polyurethane
Bearing type: Precision double ball bearing
Hardness:90±5 Shore A
Temperature range: -20℃～80℃
(mm)
Item No.
|
Wheel Diameter
|
Overall Height
|
Caster Type
|
Top
plate
|
Hole
Distance
|
Hole Dia
|
Wheel
Material
|
Weight Capacity
|
W90100BCPUSW
|
100*50
|
168
|
Rigid
|
135x110x12
|
110/100x80/70
|
19x12
|
PU
|
400 KG
|
W90125BCPUSW
|
125*50
|
191
|
Rigid
|
135x110x12
|
110/100x80/70
|
19x12
|
PU
|
500 KG
|
W90150BCPUSW
|
150*50
|
216
|
Rigid
|
135x110x12
|
110/100x80/70
|
19x12
|
PU
|
800 KG
|
W90200BCPUSW
|
200*50
|
266
|
Rigid
|
135x110x12
|
110/100x80/70
|
19x12
|
PU
|
1000 KG
|
Feature :
-
Plate with four drilled holes for bolting or welding to a flat surface
-
Wheel with PU material and steel core for strength and protection of floor surface
-
400-1000 KG capacity
Similar product :
Heavy duty industrial wheels is widely used in utility trucks, trash containers, production dollies, and other industrial applications
