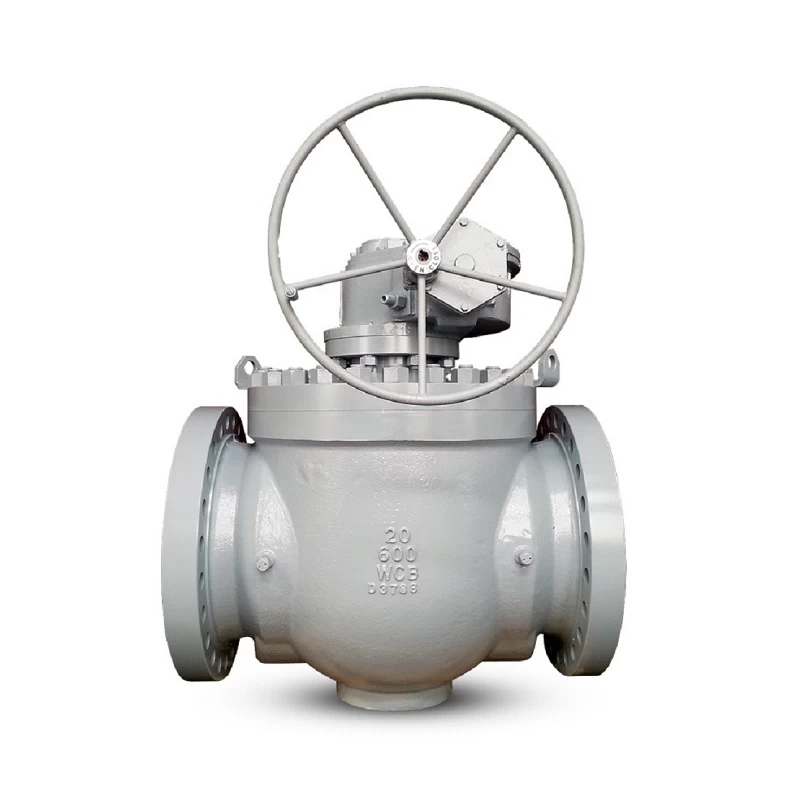

Cast Steel Top Entry Ball Valve
FEIDA cast steel top entry ball valve is designed according to API 6D. The one piece body design ensures that it has enough strength and rigidity under the maximum rated working pressure. And the top entry structure has the online maintenance advantage.
Product Description
Category: BALL VALVE
Design
|
API 6D
|
End Connection
|
RF, RTJ, BW
|
Operation
|
Manual/Pneumatic/Electric
|
Size Range
|
NPS 2"-36"(DN50-DN900)
|
Pressure Rating
|
ASME Class 150~1500(PN16~PN250)
|
Body Material
|
Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
|
Seat Material
|
PTFE, RPTFE, PEEK, NYLON, DEVLON
|
Temperature
|
-46℃ to 250℃
|
