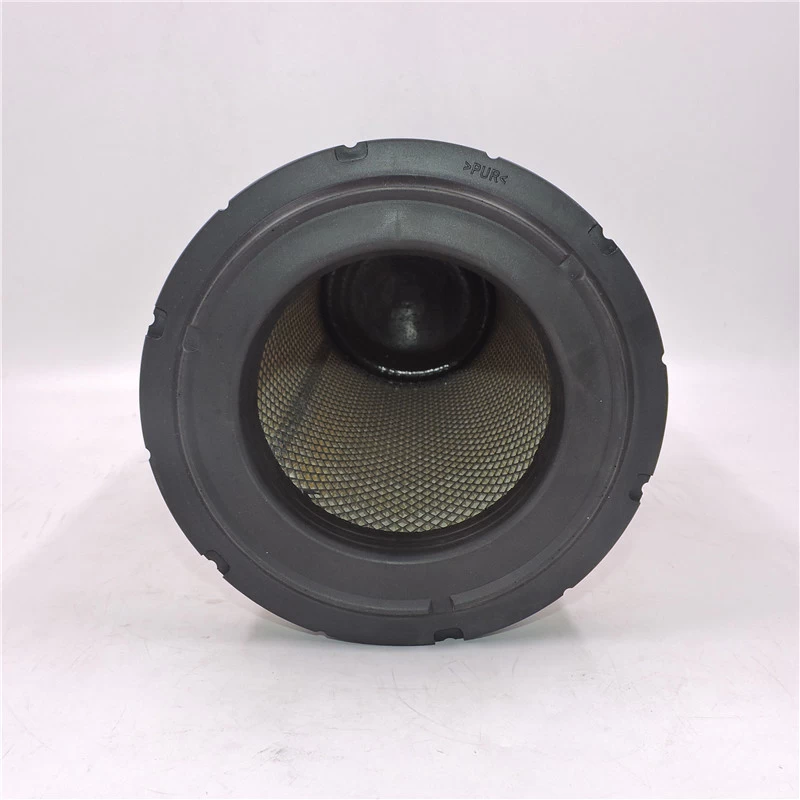

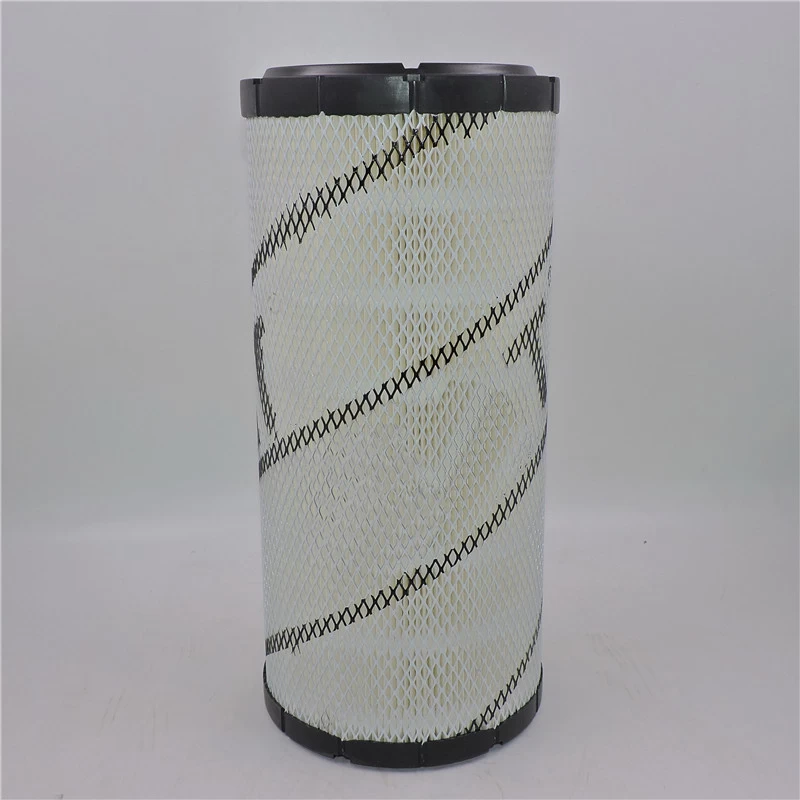

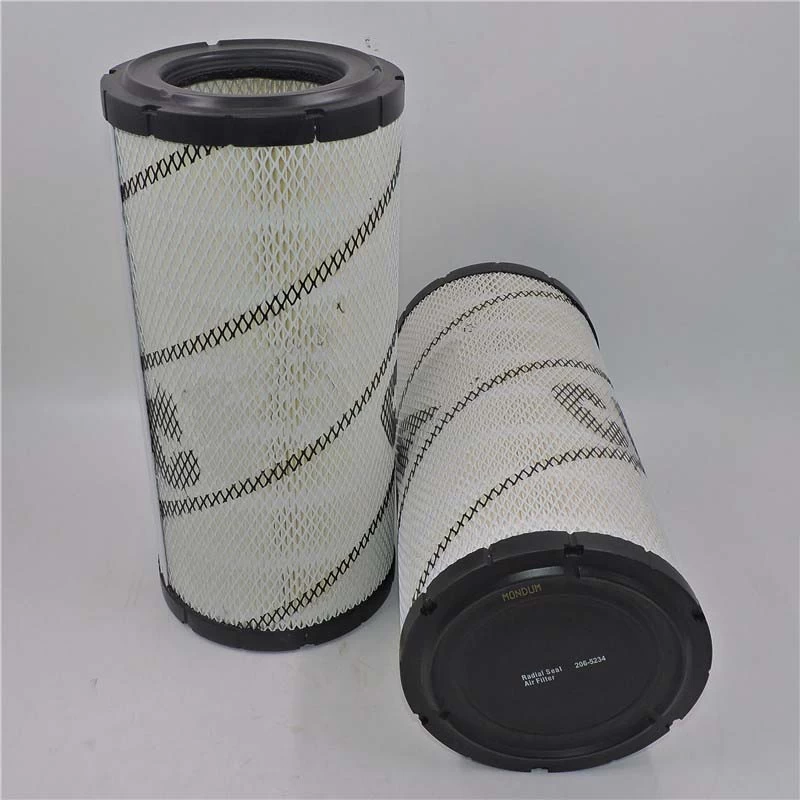

CAT Engine Air Filter 206-5234, 2065234
Cross Reference:
Fleetguard AF25957, Donaldson P780522, Baldwin RS5334, Komatsu 600-185-2510, 600-185-2500
The 206-5234 Parameter：
|
Part Number
|
206-5234, 2065234
|
|
Parts Name
|
Air Filter
|
|
Brand
|
Caterpillar
|
|
Overall Height
|
394.50 mm
|
|
Outer Diameter
|
186.50 mm
|
|
Inner Diameter
|
105.60 mm
|
|
Efficiency Rating
|
Standard Efficiency
|
|
Primary vs Secondary
|
Primary
|
|
Seal Type
|
Radial Seal
|
The 206-5234 Features：
Offering a long service life and exceptional filtration, Cat Air Filter are also environmentally friendly and cost effective. Designed to the exact specifications of your Cat equipment, genuine Cat Filter are a crucial factor in your machine’s ability to use air efficiently. A clean filter element protects internal mechanisms from being damaged by dirt.
Consistently choosing Cat Air Filter is the best choice to ensure long life and optimum performance of your Cat machinery.
The 206-5234 has Two attributes:
1. Quick serviceability
2.Improved contamination control holds particulates during filter change
The 206-5234 Application：
|
Compatible Models
|
|
EXC
315C, 319D 319D L 330C, 318C, 319D LN 319C 315D L
|
|
IENG
C4.4, SPF343C
|
|
EPG
C4.4DE88E0 C4.4XQ100
|
|
TRACK EXCAVATORS
315DL
|
|
TMH
TH330B, TH580B, TH417C, TH314D, TH340B, TH360B, TH560B, TH417D, TH350B, TH355B, TH460B, TH220B
|
|
AP
AP-650B, BG-225C, AP-800D, BG-230D
|
|
COMP
CB-564D, PS-360C, CB-534D, CP-533E, CP-44 CS-44 CB-54 CS-533E, CS-54 CB-64 CP-54
|
