Manufacturers CAT Hydraulic Filter 1R-0722, 1R-0722
Cross Reference:
Fleetguard HF6202, Donaldson P555461, Caterpillar 1R-0774
The 1R-0722 Parameter：
|
Part Number
|
1R-0722,1R0722
|
|
Parts Name
|
Hydraulic Filter
|
|
Brand
|
Caterpillar
|
|
Overall Height
|
280.00 mm
|
|
Outer Diameter
|
130.00 mm
|
|
Inner Diameter
|
85.00 mm
|
|
Efficiency Rating
|
Standard Efficiency
|
The 1R-0722 Advantage：
Cat Standard Efficiency Hydraulic and Transmission Filter are designed to maintain system cleanliness and integrity in most normal and light duty applications. Your first defense against component wear due to oil contamination, Cat Filter deliver quality, consistency and on-machine performance, resulting in superior filtration. Transmission-specific filters are designed to hold more contaminants and offer longer service intervals in these systems, so using the correct filter at appropriate maintenance intervals is critical.

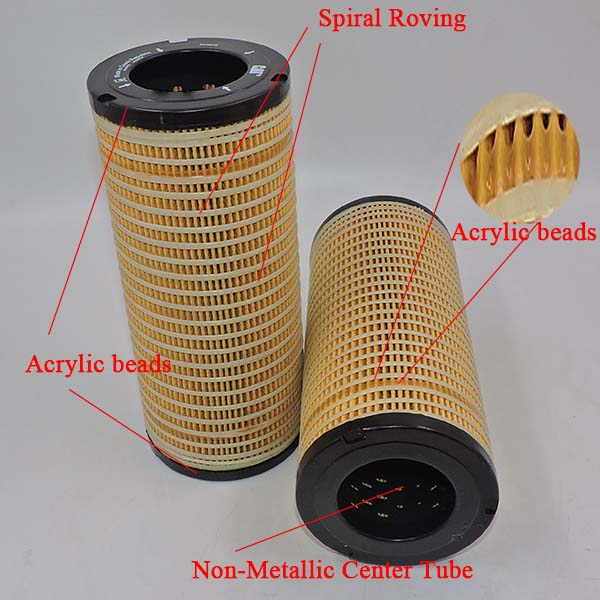

The 1R-0722 has four attributes:
1. Acrylic beads prevent bunching
2. Spiral roving provides greater pleat stability and maximum dirt holding capability
3. Nylon center tube prevents metal contamination
4. Molded end caps prevent leaks
