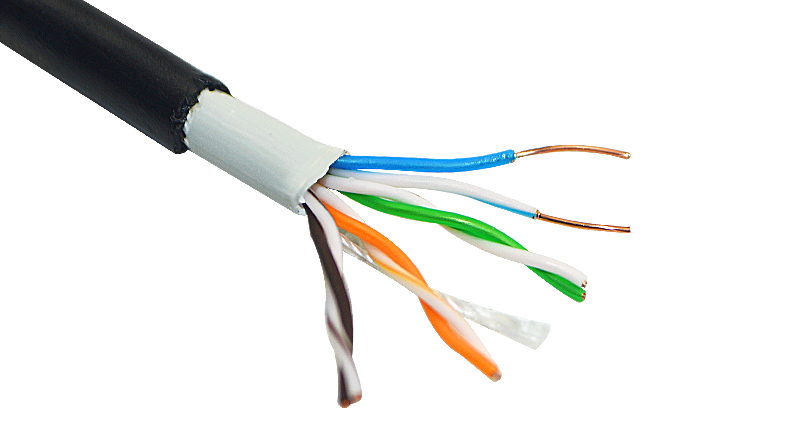

EC-W01 Cat5e UTP Outdoor Solid Network Cable
What is Cat5-e ?
Cat5-e is short for Category 5 Enhanced, Cat-5e network cabling is used as a cabling infrastructure for 10 BASE-T (Ethernet), full duplex 100 BASE-TX (Fast Ethernet) and 1000 BASE-T (Gigabit Ethernet, or GbE) networks. The Cat 5e standard provides performance of up to 100 MHz and can be used up to a maximum length of 100 meters.
As with Category 5 (Cat-5) cables, Cat 5e cables typically consist of four unshielded twisted pairs (UTP) of copper wire terminated by RJ45 connectors. Cat 5e is distinguished from the original Cat 5 standard primarily in its performance requirements.
Cat 5e has stricter specifications in a number of areas, including Near-End Crosstalk (NEXT), Power Sum Equal-Level Far-End Crosstalk (PS-ELFEXT), attenuation and return loss.
What is UTP?
UTP is short for Unshielded Twisted Pair, a popular type of cable that consists of two unshielded wires twisted around each other. Due to its low cost, UTP cabling is used extensively for local-area networks (LANs) and telephone connections. It is commonly used in Wireless Access Points (AP),Bridges or CPE,IP Video Surveillance Cameras etc.
Features:

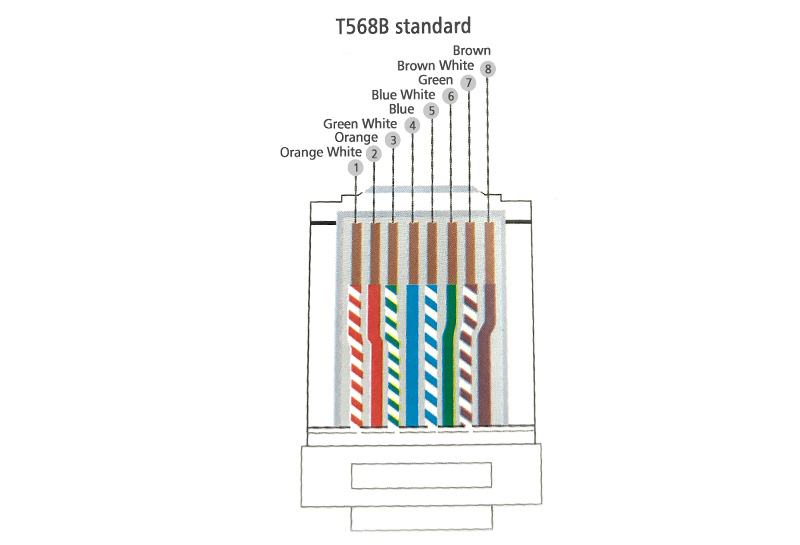

1. T568B Standard
2. 4*2*0.5mm Cable Size

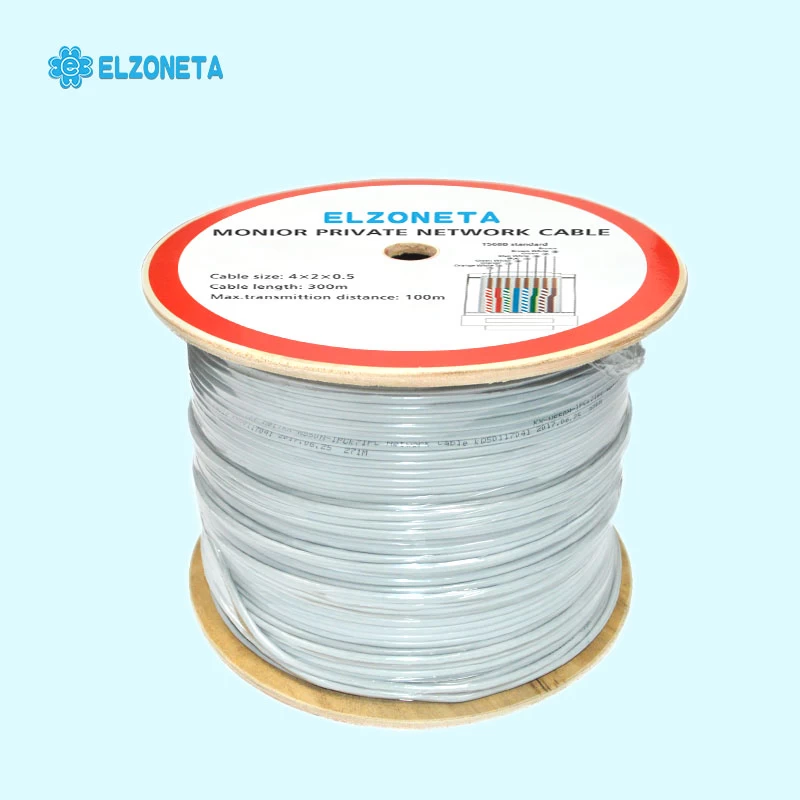

3. 300M Cable Length
4. Max 100M Transmission Distance

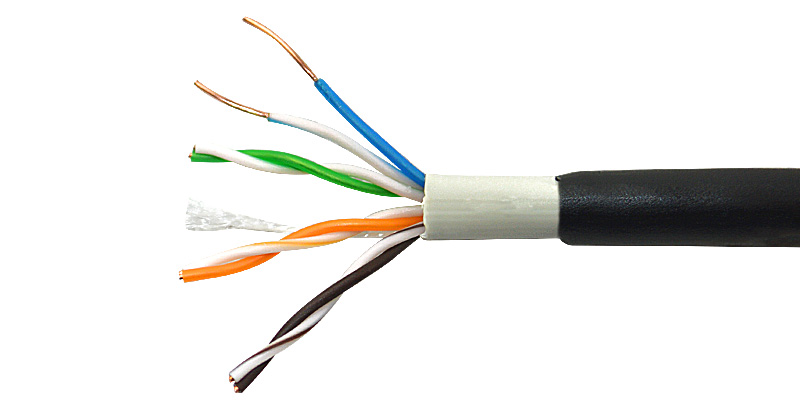

5. Cat5e 4 pairs UTP Solid Cable
