Caterpillar bulldozer bearing 1P3935 1P-3935 for 613

Caterpillar Bulldozer bearing 1P3935 1P-3935

1P-3935 BEARING Caterpillar parts fit : 572R, 572R II, 578, 583R, 583T, 587R, 587T, 613, 613B, 613C, 613C II, 613G931,931B,931C,933,935B,983B.



Caterpillar bulldozer bearing 1P3935 1P-3935

P/N 1P-3935 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Tapered Roller Bearings

Product features:
1. Special bearing for bulldozer
2. It has high radial and axial load carrying capacity at the same time
3. High-strength bearing steel
4. The product has passed the real machine test
Our advantage:
100% factory quality inspection;
Allow small orders;
Effectively solve after-sales problems;
Better quality assurance;
There are many partners at home and abroad; trustworthy
Professional manufacturer of bulldozer bearings. More than 15 years of manufacturing experience

Production Process






Product Photos

1P3935 1P-3935 bearingcaterpillar 1P3935 1P-3935Bearing 1P3935 1P-3935

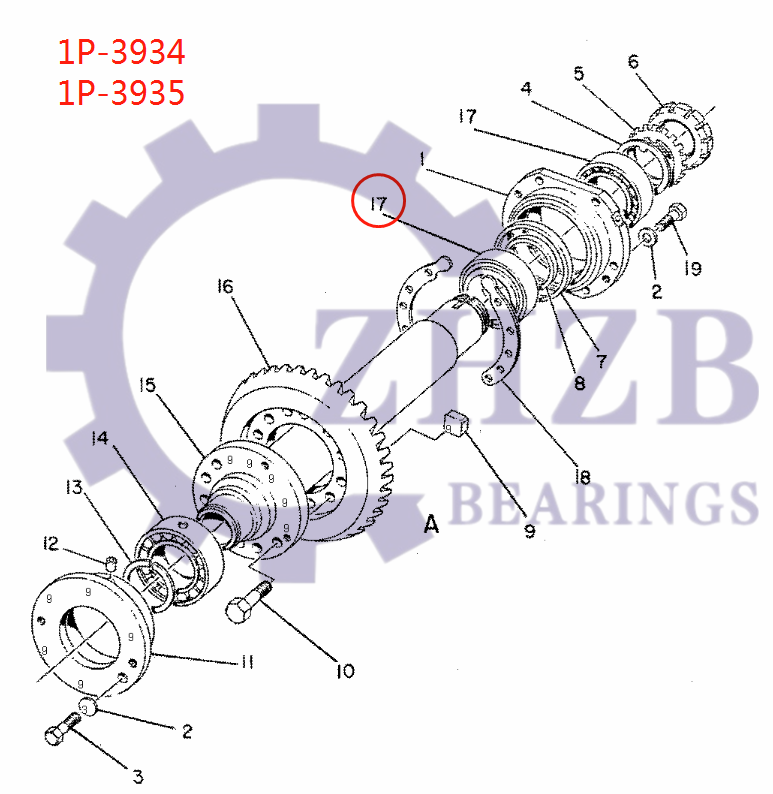

Any other parts for the system you need , pls search from below picture and form list then mark to me , we will quote to you.

Caterpillar PARTS



Pos.

Part No

Qty

Parts name

Comments


1.

9W-1570

[1]

CAGE AS-BEARING






9W-1569

[1]

PLUG-ORIFICE






4B-9880

[1]

BALL




2.

5P-8245

[12]

WASHER-HARD (13.5X25.5X3-MM THK)




3.

7B-3235

[6]

BOLT (1/2-13X1.375-IN)




4.

9P-7072

[1]

WASHER (90.6X115X2.5-MM THK)




5.

6V-2404

[1]

LOCKWASHER-BEARING




6.

1L-6957

[1]

LOCKNUT-BEARING




7.

6T-0364

[1]

RING-RETAINING




8.

9W-8612

[1]

SPACER-BEARING




9.

1S-1860

[12]

NUT-TRACK (3/4-16-THD)




10.

0S-1897

[12]

BOLT (3/4-16X2.25-IN)




11.

7T-9946

[1]

CAGE-BEARING




12.

9G-0832

[1]

DOWEL




13.

6J-3473

[1]

RING-SNAP




14.

4H-0019

[1]

RACE & ROLLER AS (OUTER)






5P-7592

[1]

RACE-ROLLER BEARING (INNER)




15.

7G-6224

[1]

SHAFT-BEVEL GEAR




16.

9P-1925

[1]

GEAR-BEVEL (35-TEETH)(35 TEETH)




17.

1P-3934

[2]

CUP-BEARING






1P-3935

[2]

CONE-BEARING




18.

9P-1478 B

[2]

SHIM PACK (INCLUDES 14-SHIMS)




19.

7B-3235

[6]

BOLT (1/2-13X1.375-IN)




20.

6S-2828

[2]

CUP-BEARING




21.

6S-2829

[2]

CONE-BEARING




22.

9W-3660

[1]

PINION-BEVEL (20-TEETH)(20 TEETH)




23.

7T-3954

[1]

GEAR-TRANSFER (50-TEETH)(50 TEETH)




24.

7T-9135

[1]

CASE AS-TRANSFER






2D-6642

[1]

BALL




25.

5P-8247

[12]

WASHER-HARD (17X32X3.5-MM THK)




26.

9P-1407

[1]

CAGE-BEARING




27.

0L-1169

[12]

BOLT (5/8-11X3.75-IN)




28.

5P-8245

[12]

WASHER-HARD (13.5X25.5X3-MM THK)




29.

9P-1922 B

[1]

SHIM PACK (INCLUDES 14-SHIMS)




30.

9W-2992

[1]

CAGE-BEARING




31.

7B-3235

[12]

BOLT (1/2-13X1.375-IN)




32.

3T-6742

[1]

RETAINER




33.

0S-1569

[1]

BOLT (5/8-11X4-IN)




34.

7T-3953

[1]

GEAR-TRANSFER (43-TEETH)(43 TEETH)




35.

8C-3075

[1]

SEAL-LIP TYPE




36.

2K-2939

[1]

SEAL-O-RING




37.

3T-0405

[1]

CARRIER-SEAL




38.

0S-1594

[6]

BOLT (3/8-16X1-IN)




39.

5M-2894

[6]

WASHER-HARD (10.2X18.5X2.5-MM THK)




40.

9P-1921 B

[1]

SHIM PACK (INCLUDES 14-SHIMS)




41.

7H-7628

[1]

BEARING




42.

8D-1817

[2]

CUP-BEARING






8D-1819

[2]

CONE-BEARING




43.

7T-1474 C

[1]

BRACKET-ROLLER (RH)






7T-1475 C

[1]

BRACKET-ROLLER (LH)




44.

1D-4601 C

[4]

BOLT (5/8-11X8.5-IN)




45.

6T-3853 C

[2]

SLEEVE




46.

6T-3852 C

[2]

ROLLER




47.

1A-5822 C

[2]

BOLT (1/2-13X2.75-IN)




48.

7D-1649 C

[2]

WASHER-HARD (13.5X32X5-MM THK)






B



  USE AS REQUIRED



C



  CHANGE FROM PREVIOUS TYPE



Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!





Packaging



Delivery:

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
