Caterpillar hydraulic pump bearing 247-8713 2478713

CATERPILLAR Hydraulic pump bearing 247-8713 2478713

247-8713 BEARING Caterpillar parts fit: E330D, E336D, E336D2, E340D L, E345C, E345D, E349D L



CATERPILLAR excavator Hydraulic pump bearing 247-8713

P/N 247-8713 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Cylindrical Roller Bearings

Product features:
1. Special bearing for excavator Hydraulic pump
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' Hydraulic pump bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of Hydraulic pump bearings for excavators. Have many years of manufacturing experience

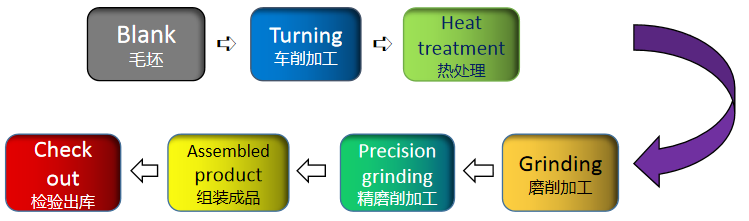

Production Process






Product Photos

247-8713 2478713CATERPILLAR 247-8713 2478713beaing 247-8713 2478713

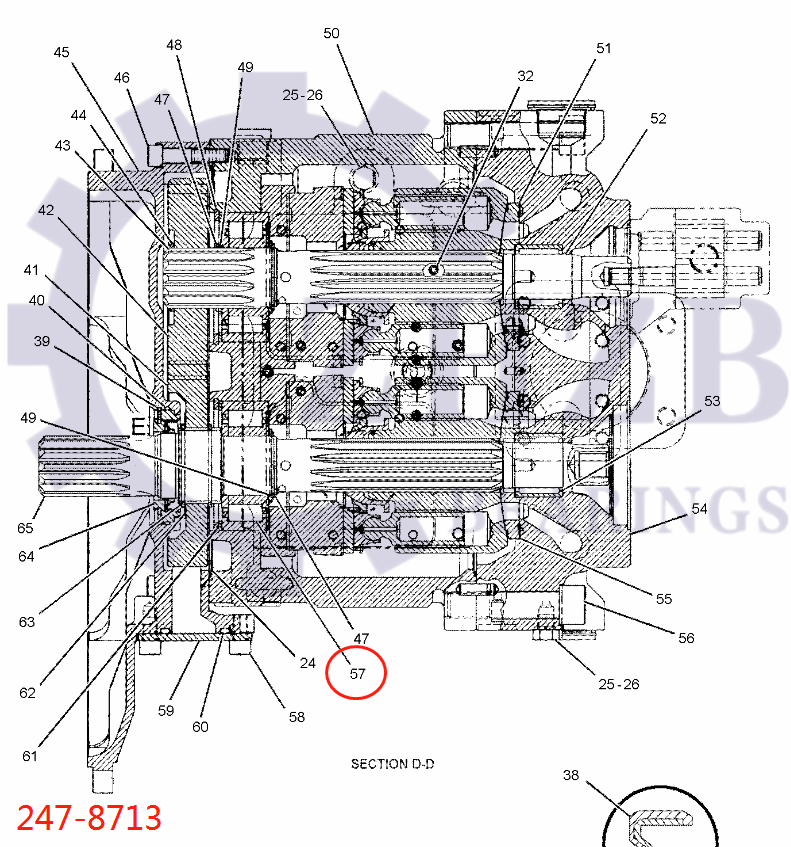

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

CATERPILLAR parts

Pos.

Part No

Qty

Parts name

Comments

1.

342-1882

[1]

PUMP GP-GEAR





246-9867

[1]

SEAL-O-RING





247-8841 M

[2]

BOLT (M10X1.5X30-MM)



2.

252-9167 M

[8]

BOLT-SOCKET HEAD (M8X1.25X30-MM)



3.

247-8985

[4]

DOWEL



4.

247-8729

[2]

COVER



5.

242-6919 M

[2]

SETSCREW (M20X2.5X56-MM)



6.

451-2184 M

[2]

NUT (M20X2.5-THD)



7.

6V-8200 M

[8]

BOLT-SOCKET HEAD (M12X1.75X35-MM)



8.

7I-8166

[2]

STOPPER



9.

109-1296

[2]

SEAL-O-RING



10.

7I-8172

[2]

RING-BACKUP



11.

242-6914

[2]

PISTON-SERVO



12.

247-8712

[2]

PIN AS



13.

7I-8152

[18]

SPRING-CYLINDER



14.

109-1294

[2]

SEAL-O-RING



15.

7I-8171

[2]

RING-BACKUP



16.

242-6915

[2]

STOPPER



17.

095-0965

[11]

PLUG



18.

095-0966

[2]

PLUG



19.

242-6918 M

[2]

NUT (M20X2.5-THD)



20.

200-3292 M

[2]

SETSCREW (M20X2.5X90-MM)



21.

264-8266 M

[1]

BOLT-SOCKET HEAD (M22X2.5X130-MM)



22.

234-4539

[2]

DOWEL



23.

249-1306 M

[10]

BOLT-SOCKET HEAD (M22X2.5X60-MM)



24.

326-4415

[2]

GASKET



25.

110-5525

[4]

PLUG



26.

214-7568

[4]

SEAL-O-RING



27.

295-9656

[2]

PISTON AS



28.

7I-8154

[2]

PLATE



29.

242-6912

[2]

PLATE



30.

242-6913

[2]

RETAINER-BALL



31.

289-8172

[2]

SWASHPLATE AS



32.

7I-8084

[20]

PLUG



33.

311-9548

[4]

PLUG



34.

247-8725

[2]

PLATE



35.

095-0882

[4]

PIN-SPRING



36.

247-8786

[2]

DOWEL



37.

347-6530

[9]

SEAL-RECTANGULAR



38.

295-9695

[1]

SEAL-LIP TYPE



39.

095-0944

[1]

RING-RETAINING



40.

249-6657

[1]

SEAL-O-RING



41.

289-8174

[1]

GEAR-DRIVE



42.

289-8175

[1]

GEAR-DRIVEN



43.

6V-5204

[1]

RING-RETAINING



44.

247-8718

[1]

SPACER (44.5X68X3-MM THK)



45.

289-8173

[1]

FLANGE



46.

8T-0343 M

[11]

BOLT-SOCKET HEAD (M12X1.75X55-MM)



47.

8T-4241

[3]

RING-RETAINING



48.

247-8787

[2]

RING-RETAINING



49.

247-8719

[3]

SPACER (50X64X3-MM THK)



50.

322-8734

[1]

BODY



51.

295-9658

[1]

BARREL AS



52.

259-0832

[1]

SHAFT-DRIVEN



53.

247-8715

[2]

BEARING-NEEDLE



54.

295-9659

[1]

BLOCK-PORT



55.

295-9657

[1]

BARREL AS



56.

249-1307 M

[2]

BOLT-SOCKET HEAD (M22X2.5X95-MM)



57.

247-8713

[2]

BEARING-ROLLER



58.

8T-9080 M

[8]

BOLT-SOCKET HEAD (M12X1.75X20-MM)



59.

295-9512

[1]

COVER



60.

249-6670

[1]

SEAL-O-RING



61.

247-8720

[2]

SPACER (95X110X3.2-MM THK)



62.

247-8717

[2]

SPACER (65X90X1-MM THK)



63.

095-0929

[2]

RING-RETAINING



64.

247-8726

[1]

COVER



65.

259-0831

[1]

SHAFT-DRIVE



66.

206-9291

[2]

SEAL-O-RING



67.

225-4518 Y

[1]

VALVE GP-SOLENOID (PUMP CONTROL)



68.

295-9660 Y

[2]

HEAD GP-PUMP
