CATERPILLAR excavator travel bearing 094-1542
|
P/N
|
094-1542
|
Material:
|
GCR15
|
|
i/d
|
mm
|
O/D
|
mm
|
|
H
|
mm
|
Brand：
|
ZHZB
|
Precision
|
P0 , P6 , P5
|
Structure:
|
Radial needle roller bearings
|
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process

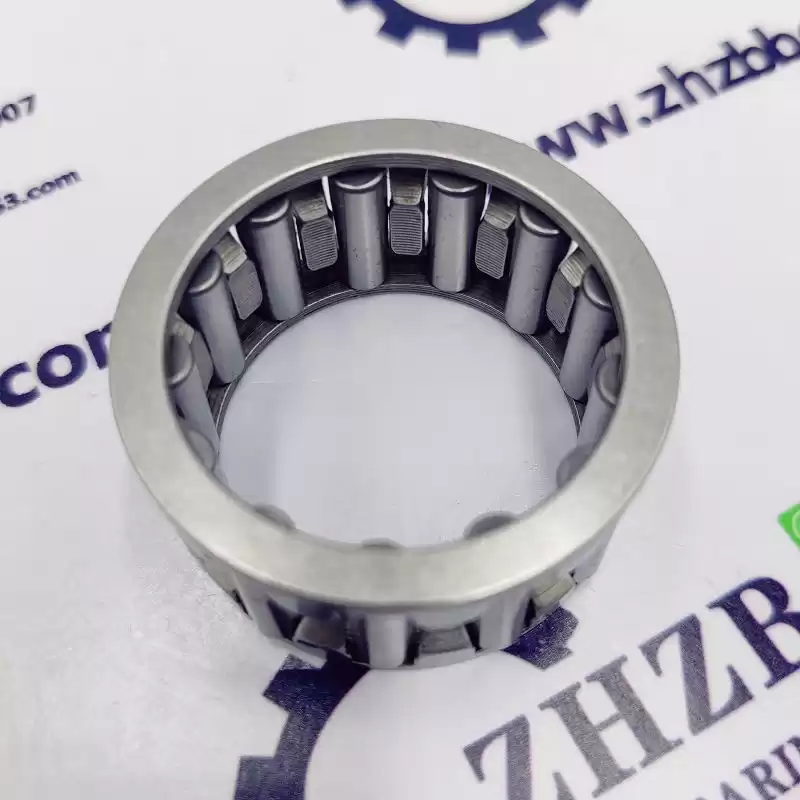

Product Photos

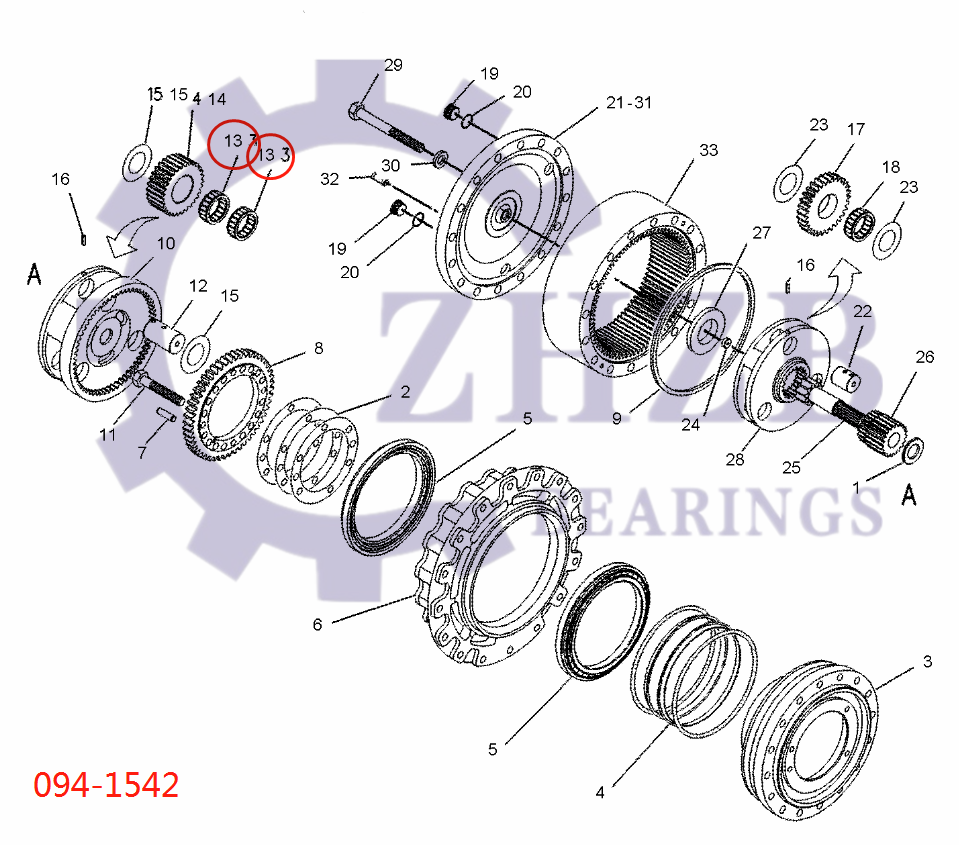

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
|
Part No
|
Qty
|
Parts name
|
Comments
|
|
1.
|
7Y-1434
|
[1]
|
SPACER (40X69.5X6-MM THK)
|
|
|
2.
|
096-1773 B
|
[1]
|
SHIM (0.15-MM THK)
|
|
|
|
096-1774 B
|
[1]
|
SHIM (0.3-MM THK)
|
|
|
|
096-1775 B
|
[1]
|
SHIM (0.4-MM THK)
|
|
|
|
096-1776 B
|
[1]
|
SHIM (0.5-MM THK)
|
|
|
|
096-1777 B
|
[1]
|
SHIM (0.6-MM THK)
|
|
|
|
096-1778 B
|
[1]
|
SHIM (0.7-MM THK)
|
|
|
|
096-1779 B
|
[1]
|
SHIM (0.8-MM THK)
|
|
|
|
096-1780 B
|
[1]
|
SHIM (1-MM THK)
|
|
|
|
096-1781 B
|
[1]
|
SHIM (1.6-MM THK)
|
|
|
3.
|
148-4716
|
[1]
|
HOUSING-MOTOR
|
|
|
4.
|
114-1497
|
[1]
|
SEAL GP-DUO-CONE
|
|
|
5.
|
168-8451
|
[2]
|
BALL BEARING
|
|
|
6.
|
114-1486
|
[1]
|
HOUSING
|
|
|
7.
|
114-1539
|
[6]
|
PIN-DOWEL
|
|
|
8.
|
148-4715
|
[1]
|
GEAR-COUPLING (55-TEETH)
|
|
|
9.
|
6D-0692
|
[1]
|
SEAL-O-RING
|
|
|
10.
|
7Y-1433
|
[1]
|
CARRIER
|
|
|
11.
|
6V-3303 M
|
[14]
|
BOLT (M16X2X60-MM)
|
|
|
12.
|
7Y-0223
|
[3]
|
SHAFT-PLANETARY
|
|
|
13.
|
094-1542
|
[6]
|
BEARING-ROLLER
|
|
|
14.
|
7Y-1431
|
[3]
|
GEAR-PLANETARY (30-TEETH)
|
|
|
15.
|
094-1528 M
|
[6]
|
WASHER (53X84X1-MM THK)
|
|
|
16.
|
095-0891
|
[6]
|
PIN-SPRING
|
|
|
17.
|
7Y-1428
|
[3]
|
GEAR-PLANETARY (32-TEETH)(32 TEETH)
|
|
|
18.
|
094-0616
|
[3]
|
BEARING AS-ROLLER
|
|
|
19.
|
3E-2338
|
[2]
|
PLUG-PIPE
|
|
|
20.
|
7M-8485
|
[2]
|
SEAL-O-RING
|
|
|
21.
|
7Y-1426
|
[1]
|
COVER
|
|
|
22.
|
7Y-0225
|
[3]
|
SHAFT-PLANETARY
|
|
|
23.
|
094-0611
|
[6]
|
WASHER (47.3X76X1-MM THK)
|
|
|
24.
|
094-0580
|
[1]
|
PLATE (10-MM THK)
|
|
|
25.
|
7Y-1427
|
[1]
|
GEAR-SUN (14-TEETH)(11 TEETH)
|
|
|
26.
|
7Y-1430
|
[1]
|
GEAR-SUN (17-TEETH)
|
|
|
27.
|
7Y-1558
|
[1]
|
SPACER (90X119.6X7.5-MM THK)
|
|
|
28.
|
7Y-1432
|
[1]
|
CARRIER
|
|
|
29.
|
7X-2568 M
|
[16]
|
BOLT (M20X2.5X180-MM)
|
|
|
30.
|
8T-4123
|
[16]
|
WASHER (3.62X5.75X0.375-MM THK)
|
|
|
31.
|
1U-8846 B
|
|
SEALANT-GASKET
|
|
|
32.
|
095-1270 M
|
[2]
|
SETSCREW-SOCKET (M12X1.75X30-MM)(M12X1.75 THD)
|
|
|
33.
|
7Y-1631
|
[1]
|
GEAR-RING
|
|
