Caterpillar spare parts 180-6770 1806770 for 330DL

CATERPILLAR Travel motor bearing 180-6770 1806770

180-6770 BEARING Caterpillar parts fit: E325C, E328D L, E330C L, E330D L, E336D, E336D2, E340D.



CATERPILLAR excavator Travel motor bearing 180-6770

P/N 180-6770 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Cylindrical Roller Bearings

Product features:
1. Special bearing for excavator Travel motor
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' Travel motor bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of Travel motor bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

180-6770 1806770CATERPILLAR 180-6770 1806770beaing 180-6770 1806770

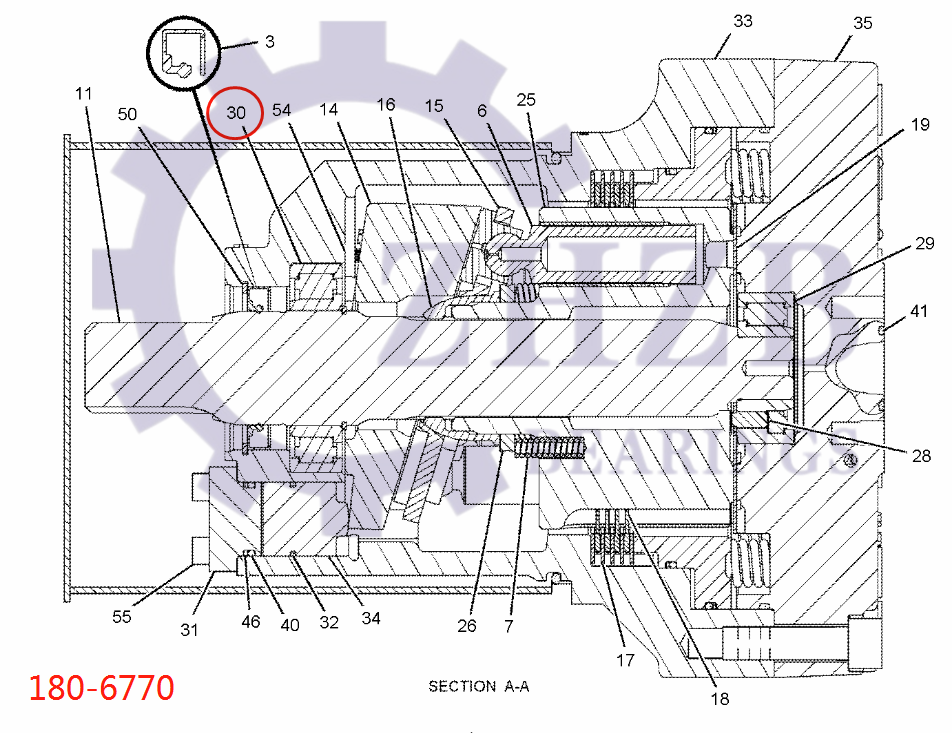

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

CATERPILLAR parts

Pos.

Part No

Qty

Parts name

Comments

1.

1T-0936

[1]

PLUG-ORIFICE



2.

4B-4158

[4]

SCREW-DRIVE (NO 4X0.25-IN)



3.

6V-3382 J

[1]

SEAL-LIP TYPE



4.

8J-2559

[1]

PLATE-WARNING (OIL FILL)



5.

087-4786

[1]

ADAPTER



6.

108-6503

[9]

PISTON AS



7.

118-4057

[9]

SPRING



8.

124-1541

[2]

PIN



9.

124-1561

[20]

SPRING-BRAKE



10.

137-3708

[1]

RETAINER



11.

167-3855

[1]

SHAFT



12.

167-3857

[1]

KEY



13.

167-3858

[1]

KEY



14.

167-3859

[1]

PLATE-CAM



15.

167-3862

[1]

PLATE-RETAINER



16.

167-3863

[1]

BALL



17.

167-3865

[5]

PLATE-SEPARATOR



18.

167-3866

[4]

PLATE-FRICTION



19.

167-3867

[1]

PLATE-PORT



20.

167-3868

[1]

PISTON-BRAKE



21.

167-3872

[1]

SPOOL



22.

170-1612 J

[2]

SEAL



23.

170-1626 J

[1]

RING-BACKUP



24.

170-1627 J

[1]

RING-BACKUP



25.

173-4063

[1]

BARREL AS-MOTOR



26.

173-4066

[1]

SPACER (63.05X79.8X7-MM THK)



27.

175-7436

[1]

VALVE



28.

175-7887

[2]

DOWEL



29.

180-6769

[1]

BEARING AS



30.

180-6770

[1]

BEARING AS



31.

186-5175

[1]

PLUG



32.

193-7901

[1]

BODY AS





124-1555

[4]

PLUG



33.

271-6377

[1]

HEAD AS





096-5916

[2]

SEAT





124-1555

[4]

PLUG



34.

274-4512

[1]

SEAT



35.

274-4513

[2]

RETAINER



36.

345-3744

[1]

PISTON-ACTUATOR



37.

095-1572 J

[2]

SEAL-O-RING



38.

095-1585 J

[1]

SEAL-O-RING



39.

095-1596 J

[1]

SEAL-O-RING



40.

095-1700 J

[2]

SEAL-O-RING



41.

095-7380

[1]

SPRING



42.

096-3978

[1]

SPRING



43.

096-5919 J

[2]

RING-BACKUP



44.

099-7030 J

[1]

RING-BACKUP



45.

170-1616 J

[1]

SEAL



46.

2D-6642

[2]

BALL



47.

2M-9780 J

[1]

SEAL-O-RING



48.

2R-1236

[1]

RING-RETAINING (LOCK, INTERNAL)



49.

3D-2824 J

[2]

SEAL-O-RING



50.

3K-0360 J

[2]

SEAL-O-RING



51.

4K-4284

[1]

RING-RETAINING



52.

6V-5192 M

[4]

BOLT-SOCKET HEAD (M8X1.25X30-MM)



53.

7Y-5219 J

[2]

SEAL-O-RING



54.

8T-2393 M

[8]

BOLT-SOCKET HEAD (M16X2X60-MM)



55.

9S-8005

[2]

PLUG (3/4-16-THD)



56.

9S-8008

[2]

PLUG (1-1/16-12-THD)
