Caterpillar spare parts 191-2685 1912685 for E320C

CATERPILLAR travel bearing 191-2685 1912685

191-2685 BEARING Caterpillar parts fit: E320C, E320D, E322C, E325C, E325D, E329D.



CATERPILLAR excavator travel bearing 191-2685 162685

P/N 191-2685 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Radial needle roller bearings

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process

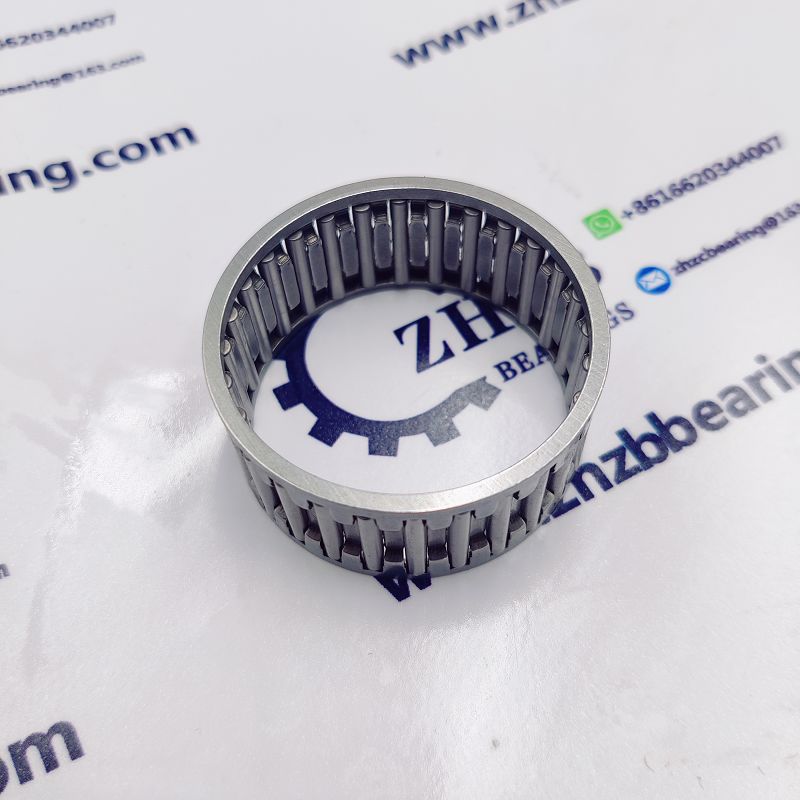

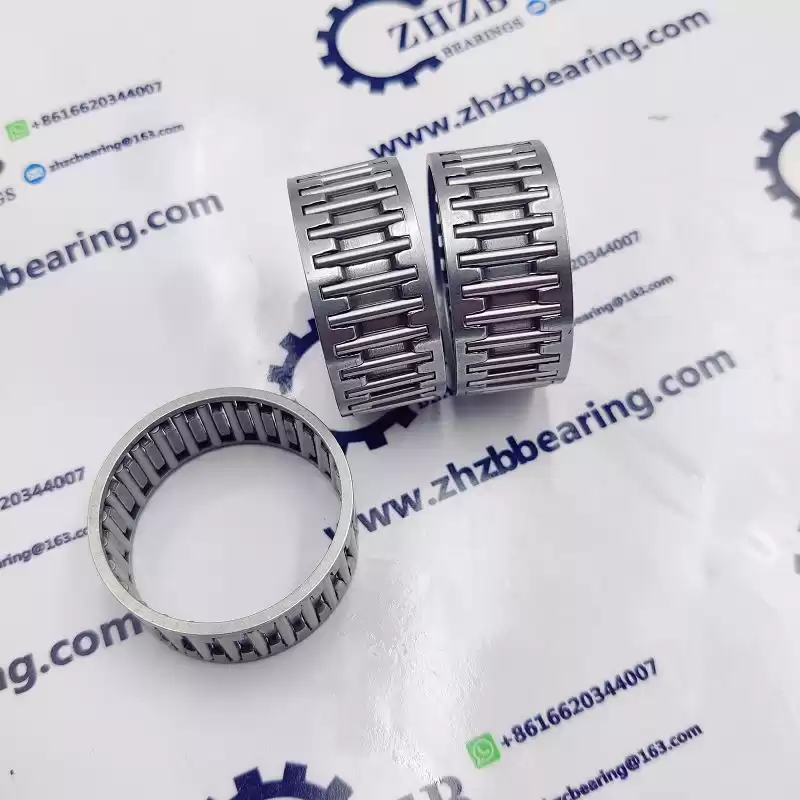

Product Photos

191-2685CATERPILLAR 191-2685 1912685beaing 191-2685 1912685

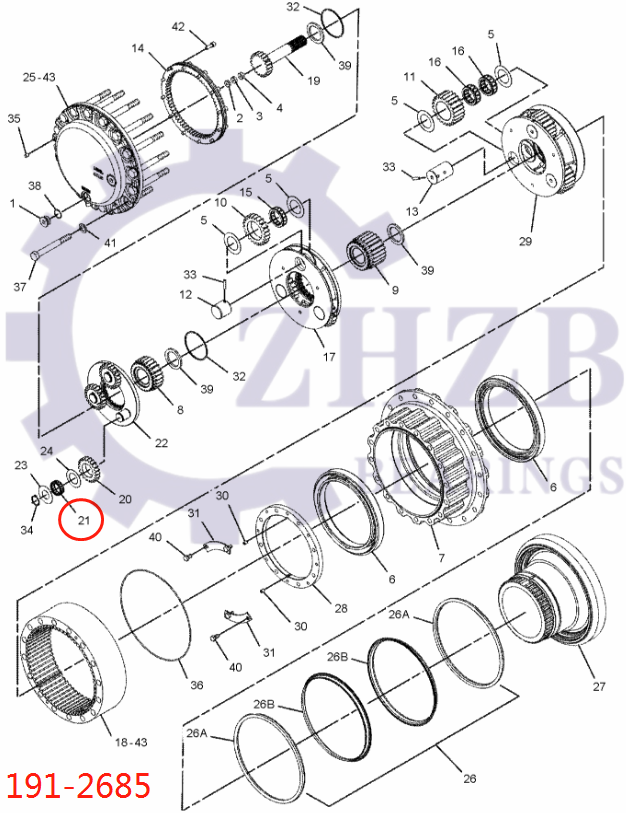

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

CATERPILLAR parts

Pos.

Part No

Qty

Parts name

Comments

1.

3E-2338

[2]

PLUG-PIPE



2.

094-0578 B

[1]

PLATE (8-MM THK)



3.

094-0579 B

[1]

PLATE (9-MM THK)



4.

094-0580 B

[1]

PLATE (10-MM THK)



5.

094-1528

[12]

WASHER (53X84X1-MM THK)



6.

168-8452 J

[2]

BALL BEARING



7.

169-5585 J

[1]

HOUSING



8.

169-5589

[1]

GEAR-SUN (24-TEETH)



9.

169-5590

[1]

GEAR-SUN (24-TEETH)



10.

169-5592

[3]

GEAR-PLANETARY (23-TEETH)



11.

169-5593

[3]

GEAR-PLANETARY (23-TEETH)



12.

169-5601

[3]

SHAFT-PLANETARY



13.

169-5602

[3]

SHAFT-PLANETARY



14.

171-9387

[1]

GEAR-RING (64-TEETH)



15.

191-2569

[3]

BEARING AS (CAGED ROLLER)



16.

191-2570

[6]

BEARING AS (CAGED ROLLER)



17.

191-2571

[1]

CARRIER-PLANETARY



18.

191-2676

[1]

GEAR-RING (72-TEETH)



19.

191-2683

[1]

GEAR-SUN (20-TEETH)



20.

191-2684

[3]

GEAR-PLANETARY (21-TEETH)



21.

191-2685

[3]

BEARING AS



22.

191-2686

[1]

CARRIER AS



23.

191-2689

[3]

WASHER (34X70X1-MM THK)



24.

191-2690

[3]

WASHER (42.3X70X1-MM THK)



25.

199-4503

[1]

COVER



26.

207-1571 J

[1]

SEAL GP-DUO-CONE



26A.

214-3570

[2]

RING-TORIC



26B.

Z

[2]

SEAL-RING

27.

227-6117 J

[1]

HOUSING-MOTOR



28.

227-6118 J

[1]

RETAINER



29.

227-6119

[1]

CARRIER-PLANETARY



30.

227-6123 J

[2]

DOWEL



31.

227-6124 J

[2]

PLATE-WASHER



32.

093-1731

[2]

RING-RETAINING



33.

095-0891

[6]

PIN-SPRING



34.

096-0433

[3]

RING-RETAINING



35.

096-3216 M

[2]

SETSCREW-SOCKET (M12X1.75X12-MM)



36.

171-9298

[1]

SEAL-O-RING



37.

179-8733 M

[16]

BOLT (M20X2.5X170-MM)



38.

7M-8485

[2]

SEAL-O-RING



39.

7Y-0595

[3]

SPACER (58X79.6X6-MM THK)



40.

8T-0293 JM

[4]

BOLT (M12X1.75X20-MM)



41.

8T-4123

[16]

WASHER (3.62X5.75X0.375-MM THK)



42.

9X-6032 M

[12]

BOLT-SOCKET HEAD (M10X1.5X30-MM)



43.

1U-8846 B



SEALANT-GASKET
