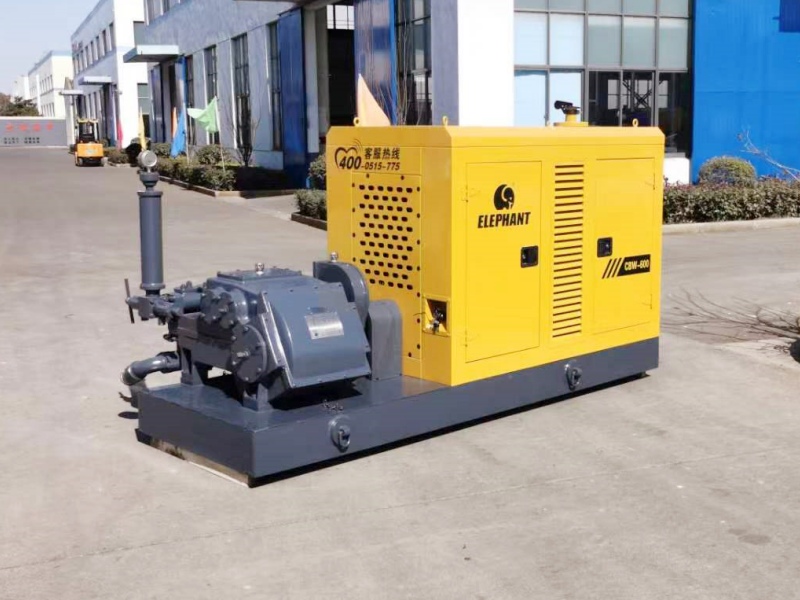

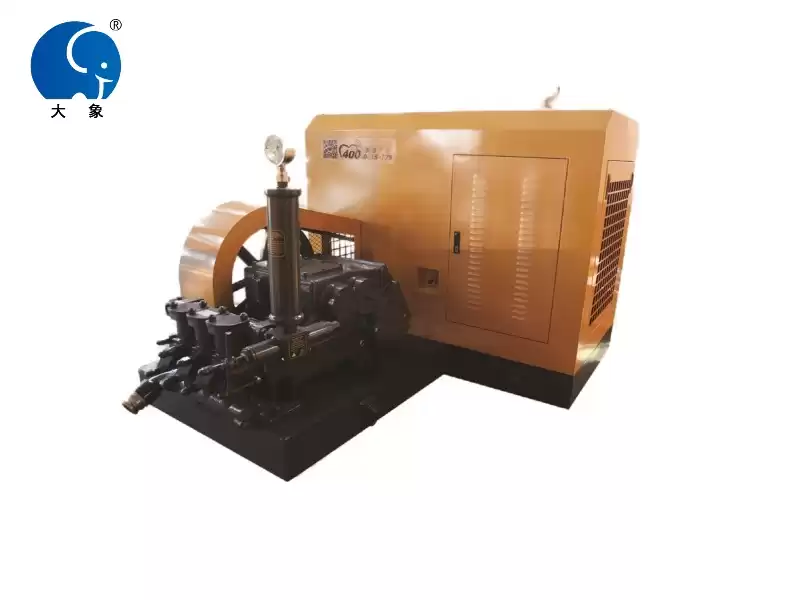

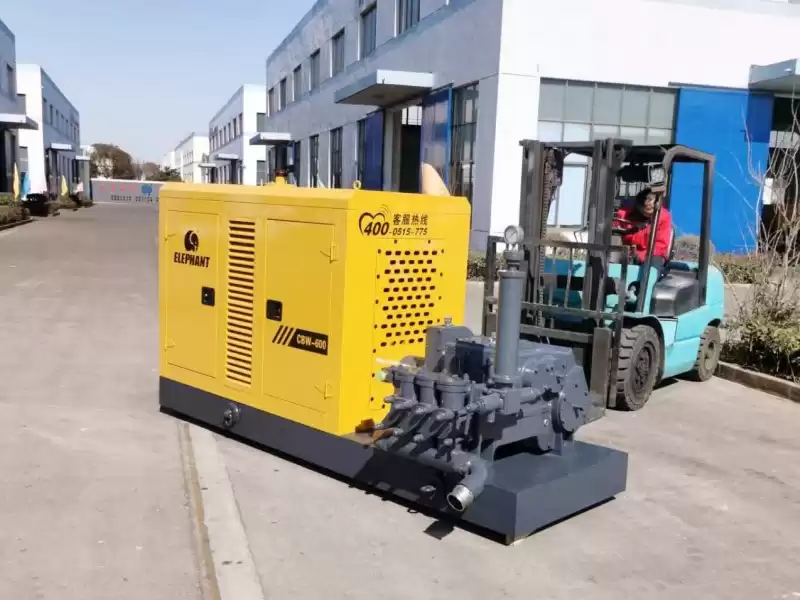

CBW-600 mud pump for drilling wells is a multi-purpose three-cylinder reciprocating single-acting pump with four-speed gear transmission and four-speed flow.
It can not only adapt to the requirements of a variety of new drilling techniques, but also meet the requirements of hydraulic percussion drilling within a hole depth of 1000m, the matching of screw drilling and turbo drilling within a hole depth of 1500m, and the matching of ordinary core drilling within a hole depth of 2500m.
Features:
1. With Cummins diesel engine；
2. Compact structure, small volume, durable service；
3. Easy operation, reliable performance；
4. Good disassembly, easy maintenance and relocation.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
110 |
| Cyclinder Diameter (mm) |
100 |
| Flow (L/min) |
600 415 280 195 |
| Pressure (Mpa) |
3.5 5 7.5 10 |
| Input Speed (r/min) |
550 |
| Dimensions (mm) |
2410*1785*1670 |
| Weight (kg) |
2100 |
| Diesel Model |
R4105ZP |
| Diesel Engine Power (KW) |
60 |
| Rated Speed (r/min) |
1450 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - Top-class heavy equipment company we cooperating：XCMG, GOODENG, SANY, DRILLTO, STETON etc.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
