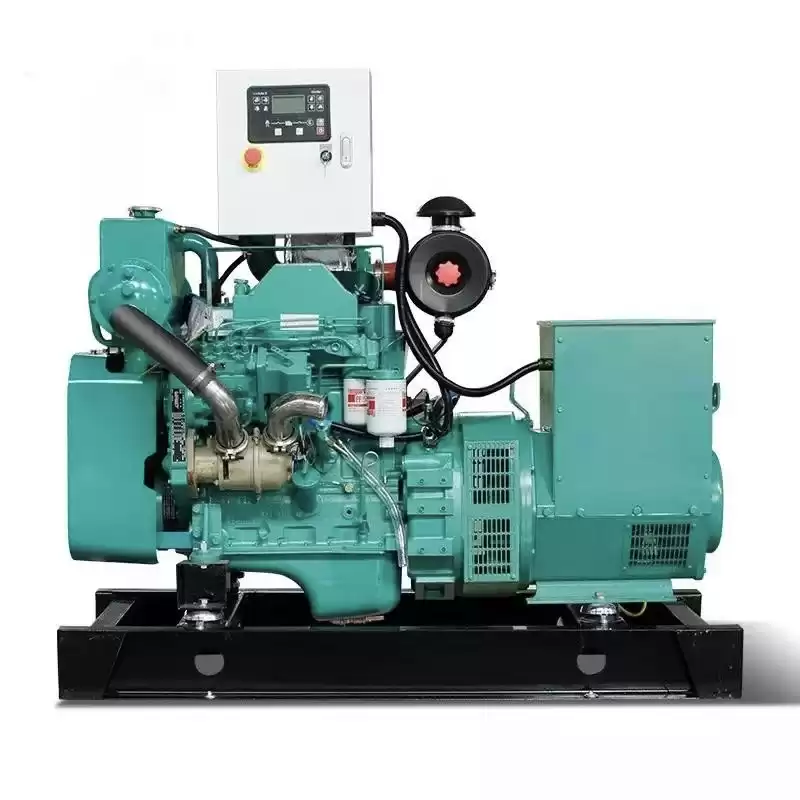

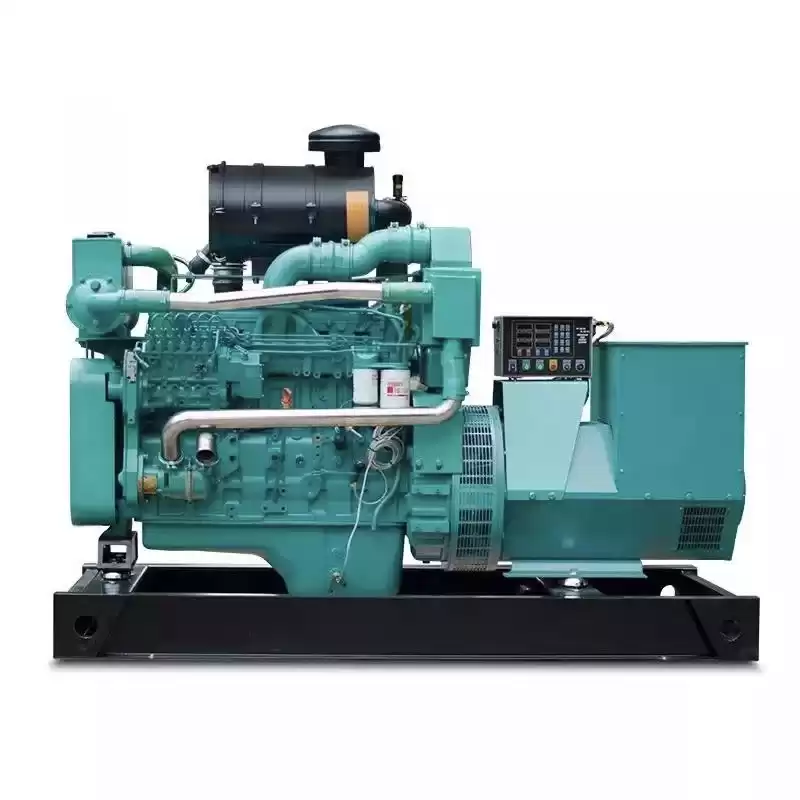

CCS ABS 50kw genset marine diesel generator with heat exchanger
|
|
|
|
|
|
|
|
|
|
|
|
|
Marathon, Stamford, Meccalte
|
Supply scope
• Brand marine engine(class type approval)
• Brand marine alternator(class type approval)
• Base mounting
• Local marine controller with alarm and shutdown protection
• Seawater pump
• Expansion bellow
• Manuals
• standard tools
6CTA8.3-GM155
|
Cummins marine engine Parameters
|
|
Model
|
6CTA8.3-GM155
|
|
Type
|
6 Cylinder inline,4 cycle
|
|
Displacement
|
8.3 L
|
|
Aspiration
|
Turbocharged
|
|
Bore*Stroke
|
114X135 mm
|
|
Prime power/speed
|
155kw/1500rpm
|
|
Governor Type
|
Electronic
|
|
Starting Voltage
|
24V
|
|
Fuel Consumption
|
0.212 L/Kw.h
|
|
Alternator Parameters
|
|
Model
|
Marathon MP-H-120-4
|
|
Optional
|
Marathon,Stamford,Leroy somer,MeccAlte,sutech
|
|
Excited Type
|
Brushless,Self-Excited
|
|
Power Factor
|
0.8
|
|
Voltage Adjust range
|
>5%
|
|
Voltage Regulation
|
<±1%
|
|
Insulation Class
|
H
|
|
Protection Class
|
IP23
|
|
Controller Panel
|
|
Model
|
Cummins original monitor MFKC200AG
|
|
Protection
|
High/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil
|
|
Support
|
RS232,RS485,USB
|
