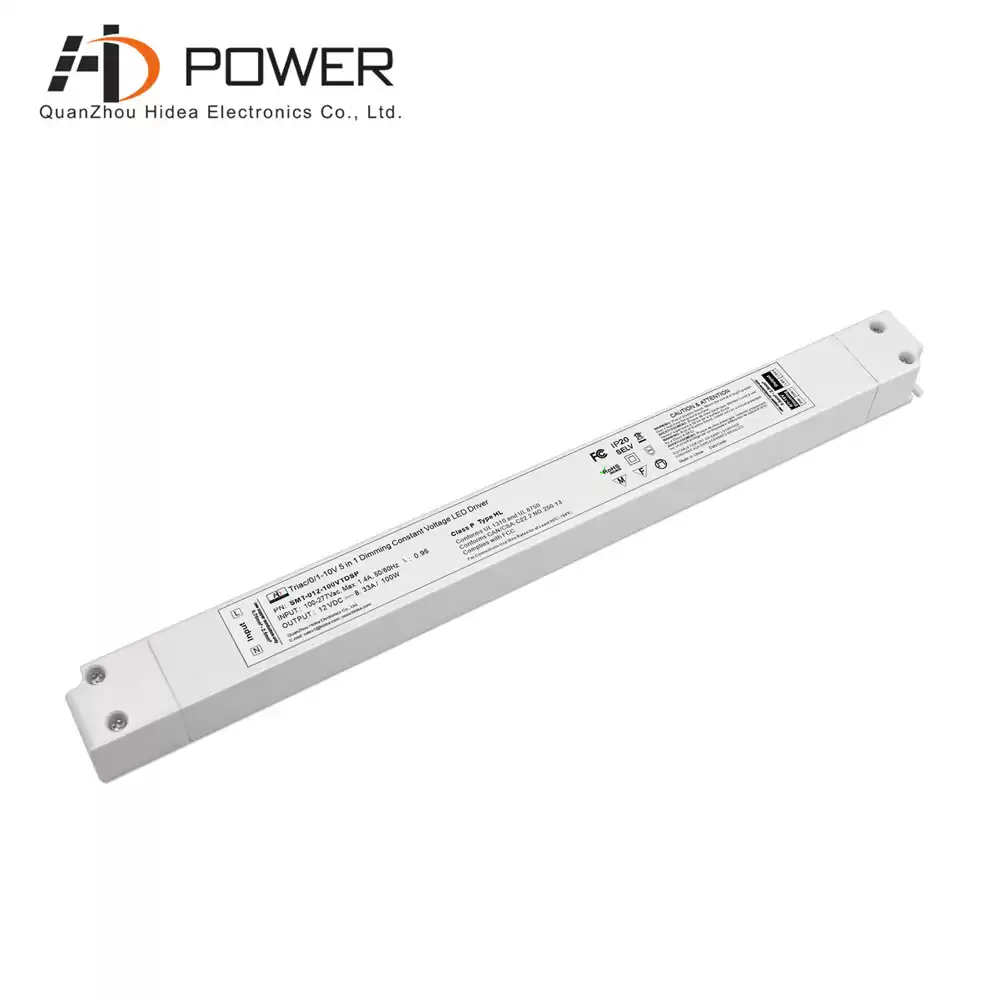

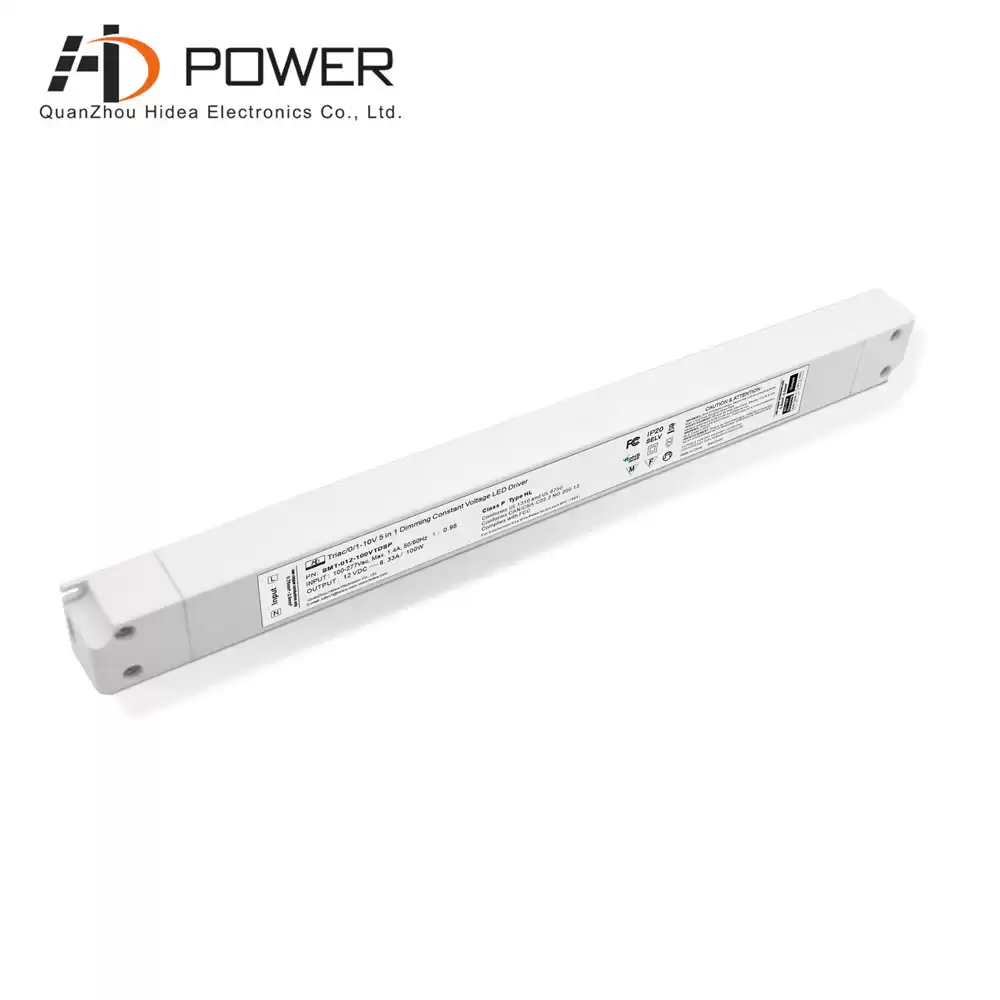

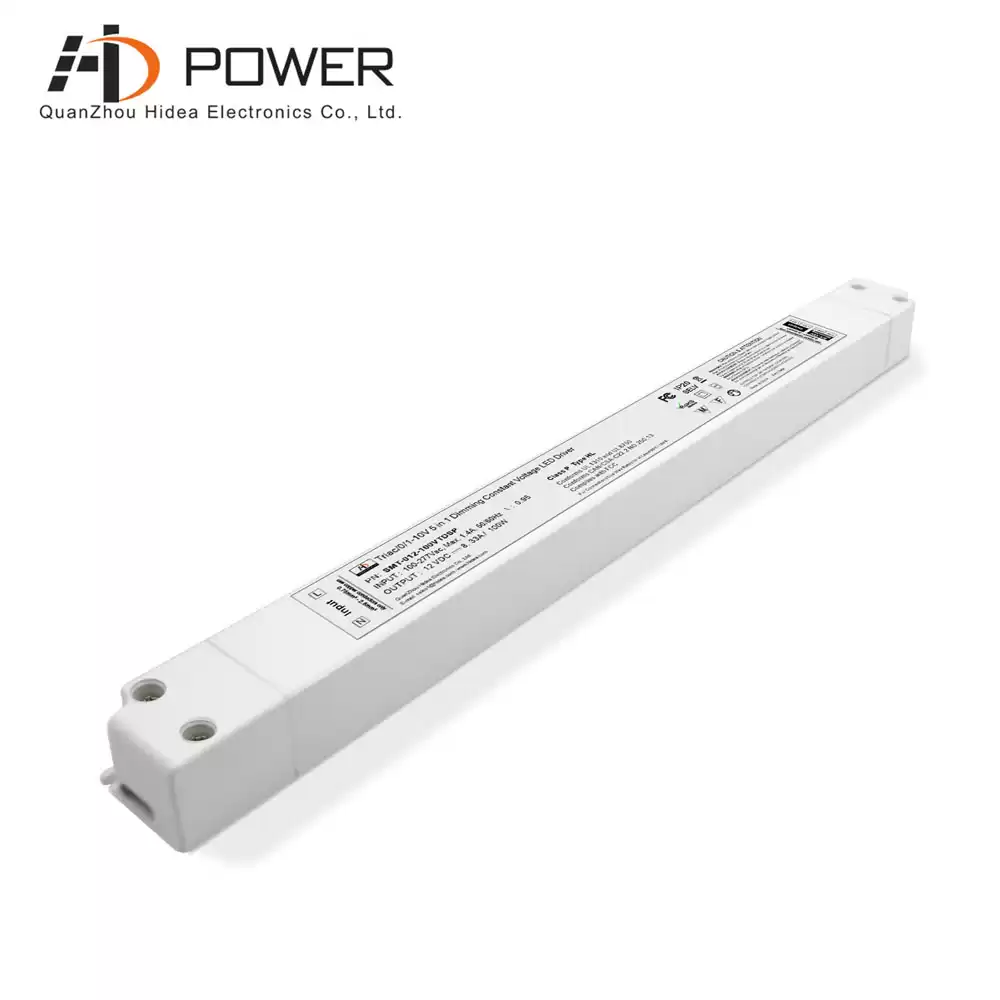

CE 150w 24v triac/0-10v dimmable led driver 12v for the Closet light
This 150w led driver 12v has passed the CE UL certification and is very popular in North America and Europe. It also has a 7-year warranty and quality assurance
Specification
|
model
|
SMT-012-150VTDSP
|
SMT-024-150VTDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
12.5Amp
|
6.25Amp
|
|
Rated power
|
150W
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Power Factor ( Typ.)
|
0.95@120VAC 0.98@277VAC
|
|
Full Load Efficiency(Typ.)
|
91%@120VAC 95%@277VAC
|
92%@120VAC 96%@277VAC
|
|
AC Current(Typ.)
|
1.90A
|
|
Inrush Current(Typ.)
|
59.2A/212us@50%Ipeak
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
0.65Kg
|
|
Size
|
368*30*22.5mm (L*W*H)
|
|
packing
|
50PCS/CTN Carton size: 350*330*145mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The 150W 12V led power supply under the VTDSP series can be used with various dimming dimmers to achieve smooth and flicker-free dimming. The effect is better when matched with e-conolight LED downlight 150W.
Related Products
|

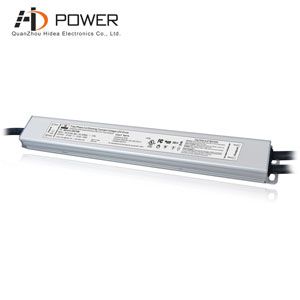

 Triac dimmable 150W 12V LED power supply waterproof ip67
