CE 600w 24v Enclosed switching power supply with fan for Stepper motor drivers

Single output 24V Enclosed Switching power supply 600W for LED lighting and General electronic machinery etc.



CE 600W single output 24v switching power supplies

Description:

This K18C-UP600S model switching power supplies is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.

Features:

1, 600W high efficiency 24v single output power supplies;
2, K18C-UP600S24F model have small size, high efficiency;
3, International universal full voltage input;
4, 600W single output 24v built-in active PFC function;
5, Built-in filter, low noise, high reliability;
6, Overload, short circuit, under voltage, over voltage, over temperature protections and etc.

Parameter
            Item NO K18C-UP600S24F
Output

Output Voltage

+24VDC

Rated Current

25A

Current Range

0-25A

Rated Power

600W

Ripple & Noise

400mVp-p

Adjustable Output Range

22.8~25.2V

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±1%

Set up,Rise,Keep up time

300ms, 20ms, 12ms

Input

Input Voltage Range

100~240V AC

Input Current

3A/230V,6A/115V

Input Frequency

50~60Hz

Efficiency

93%@230VAC, 90%@100VAC
Power Factor

PF0.98/115V  PF0.95/230V

Inrush Current

Cold start 60A@230V

Leakage Current

<0.5mA@240V

Protection

Over Load Protection

105~150%,Hiccup protection,automatic recovery

Short Circuit Protection

Locked protection,return to normal after restart

Output over-voltage protection

120% Shut down,Locked protection,return to normal after restart

Over-temperature protection

TS1 position105℃  it will be protection,then automatic recovery

Environment


Working Temp.,Humidity

-20~60℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES

Safety&EMC Standards


Safety Standards

GB4943,EN60950

Withstand Voltage

I/P-O/P:3KV;I/P-FG:1.8KV;O/P-FG:0.6KV AC 1min

Insulation Resistance

I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms

EMC Standards

EN55022 Class A, EN61000-3-2

Others Dimension

168*82*60mm(L*W*H)

Weight 0.68kg
MTBF

50K hrs MIL-HDBK-217F(25℃)

Fan Supply

12V@0.3A for driving a fan,tolerance±15%

Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

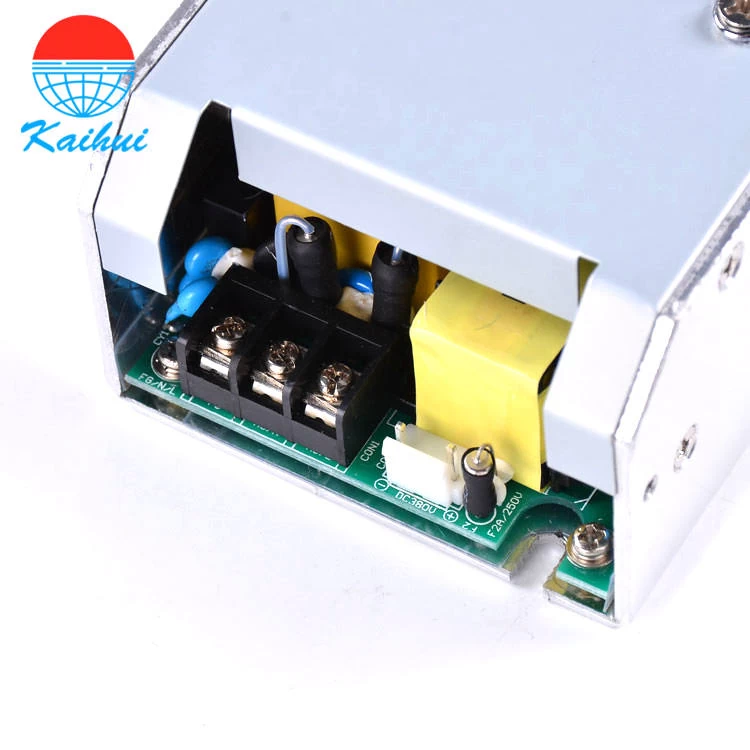

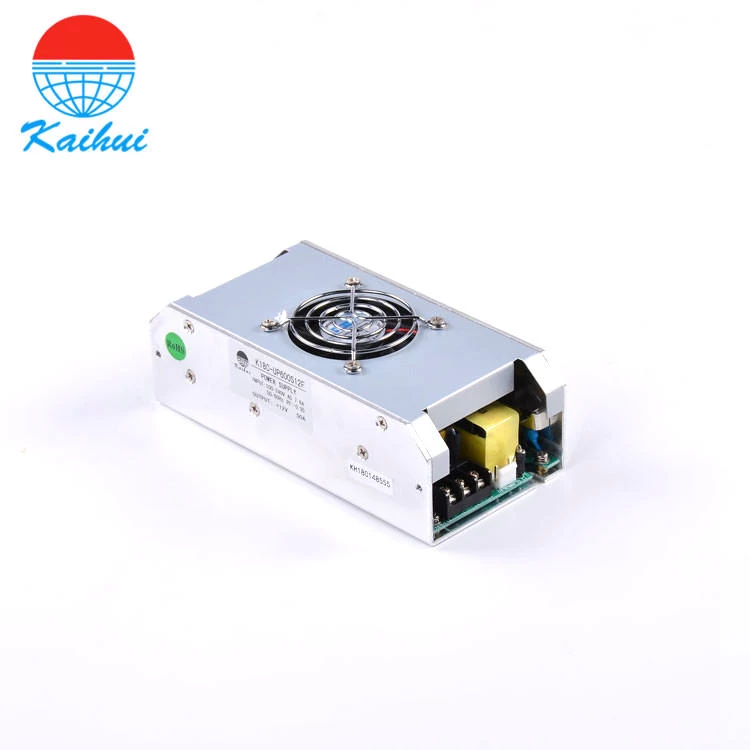

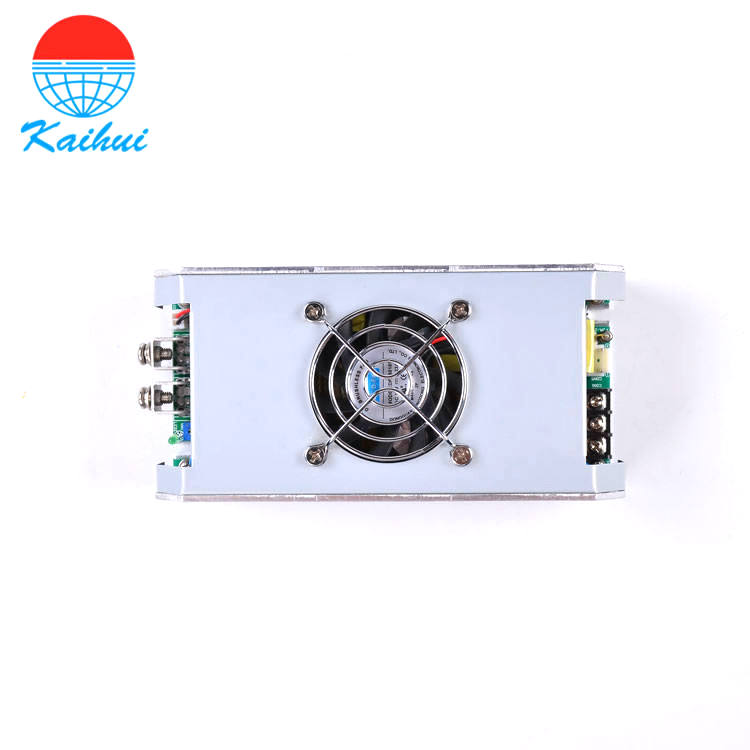

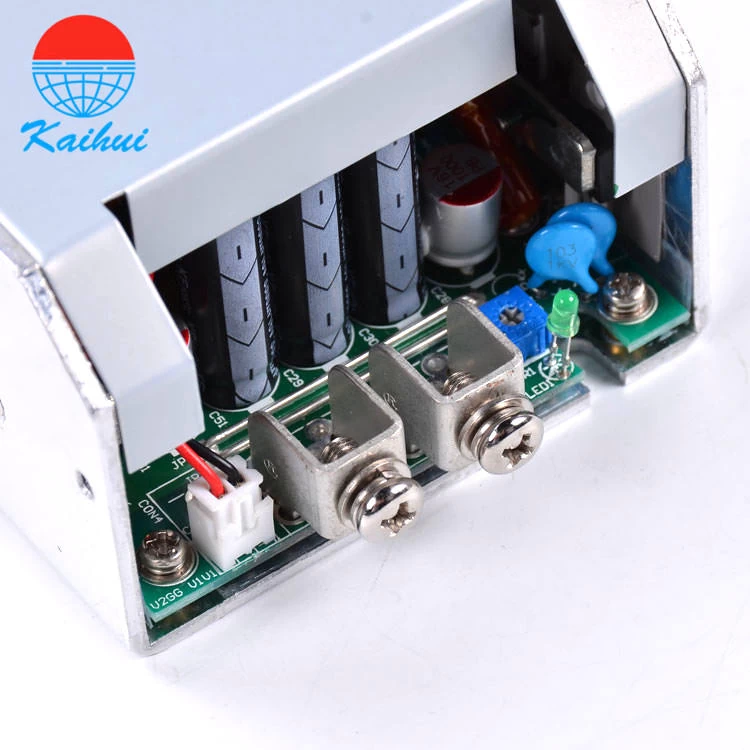

Product picture:
customized 24V 25A 600W switching power supplies




Built-in active PFC function 600W smps

600W 24V wide range of AC input power supply

DC 24V 600W switching power supply

600w 24v Enclosed power supply for Stepper motor drivers

wholesale switching power supply 24v

600W 24V enclosed switching power supply
