Single output 400W 24V switching power supply open frame CE approval
Description:
K18-UP400S single output series 400W 24V 16.7A open frame item switching power supplyis wide range of AC input voltage,built-in active PFC function,high efficiency up to 90%,free air convection for 350W and forced air convection for 400W.
Features:
1, 400W high efficiency 24V single output switching power supply；
2, Built-in active PFC function power supply；
3, 24V 400W power supply with wide range of AC input voltage；
4, It have short circuit, over load, over voltage,over hearting protection;
5, 400W 24V power supply used in LED driver,stage light etc.
|
Parameter
|
|
Item NO.
|
K18-UP400S12
|
K18-UP400S24
|
K18-UP400S28
|
K18-UP400S36
|
K18-UP400S48
|
K18-UP400S60
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+28V
|
+36V
|
+48V
|
+60V
|
|
Rated Current
|
33.4A
|
16.7A
|
14.3A
|
11A
|
8.3A
|
6.7A
|
|
Current Range
|
0-33.4A
|
0-16.7A
|
0-14.3A
|
0-11A
|
0-8.3A
|
0-6.7A
|
|
Rated power (natural air cooling)
|
350W
|
|
Rated power (forced air cooling)
|
400W
|
400.8W
|
400.4W
|
396W
|
398.4W
|
402W
|
|
Ripple
|
200mVp-p
|
240mVp-p
|
280mVp-p
|
360mVp-p
|
480mVp-p
|
600mVp-p
|
|
Adjustable output range
|
±5%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,5ms
|
|
Input
|
Input Voltage range
|
90-264V AC
|
|
Input current
|
3A @ 220V AC
|
|
Input frequency
|
47-63 Hz
|
|
Efficiency
|
90%
|
92%
|
93%
|
93%
|
93%
|
93%
|
|
Power factor
|
>0.99@110V;>0.95@220V
|
|
Inrush current
|
Cold start 15A/115V，30A/230V
|
|
Leakage Current
|
<3.5mA@240V AC
|
|
Protection
|
Overload protection
|
110~200%,Hiccup protection, automatic recovery
|
|
Output overvoltage protection
|
15-18V
|
28-33V
|
32-36V
|
42-46V
|
55-60V
|
70~80V
|
|
Over temperature protection
|
The case temperature is>105°C, the output is off, and the recovery is automatic.
|
|
Others
|
|
|
|
Environment
|
Working temperature, humidity
|
-20~60℃(follow the load shedding curve), 10~90% RH, no condensation
|
|
Storage temperature, humidity
|
-20~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standard
|
GB4943,EN60950-1:2006
|
|
Withstand voltage
|
I/P-O/P:3KVAC；I/P-FG:1.5KVAC；O/P-FG:500VAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standard
|
EN55015 CLASSB; EN61000-3-2
|
|
Others
|
Demension
|
127*82*39mm
|
|
Weight
|
0.6Kg
|
|
Remarks
|
1. All parameters 220V AC input, rated load, ambient temperature 25℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output from 0% to 100% load change load measured.
|

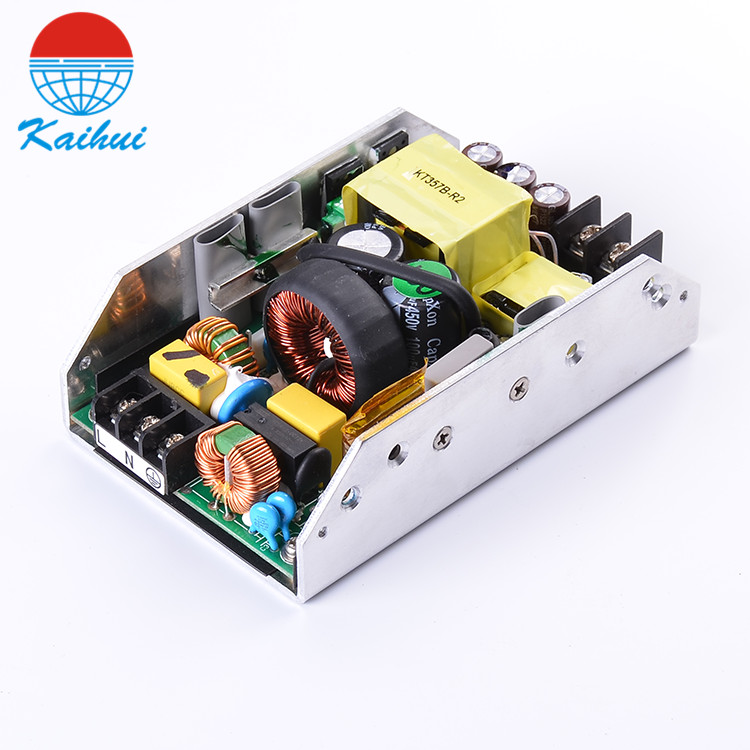

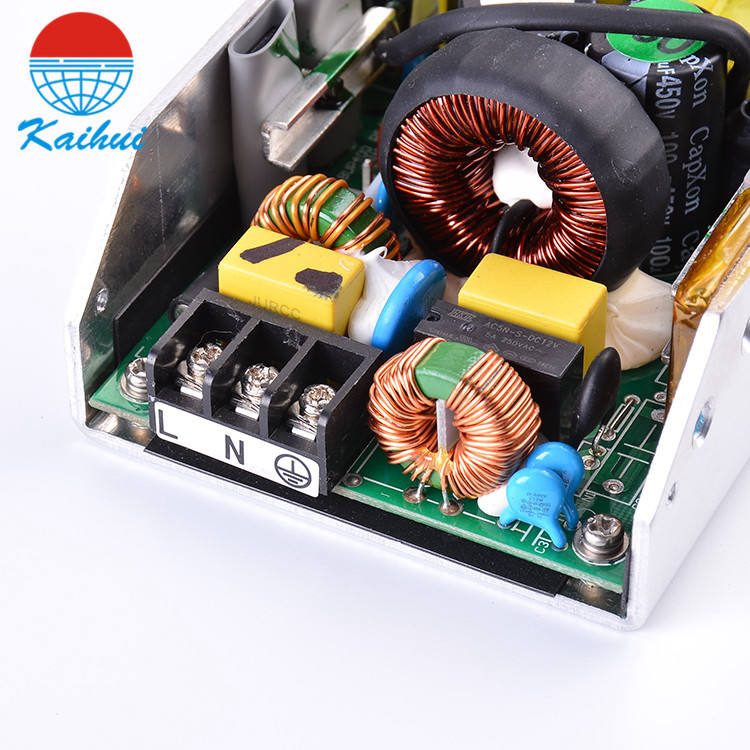

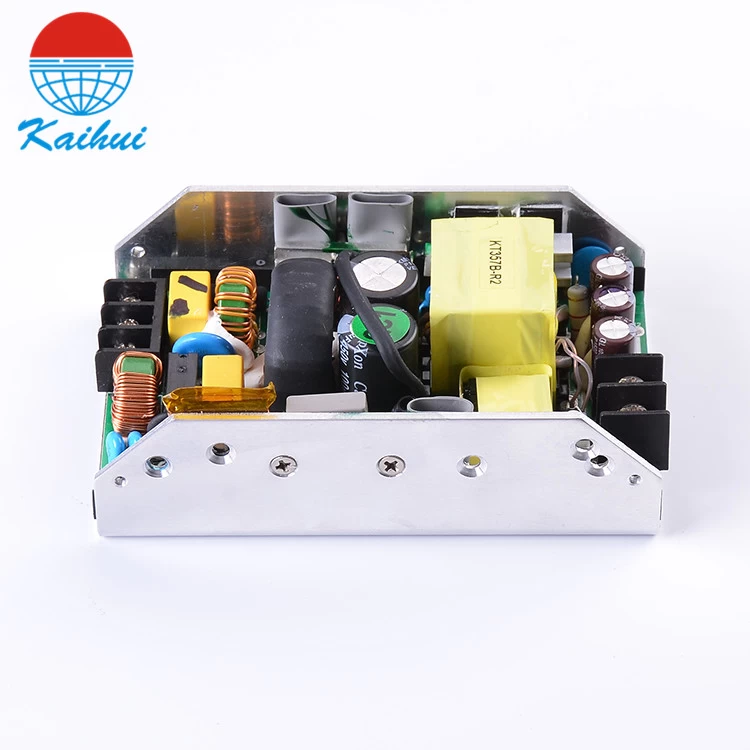

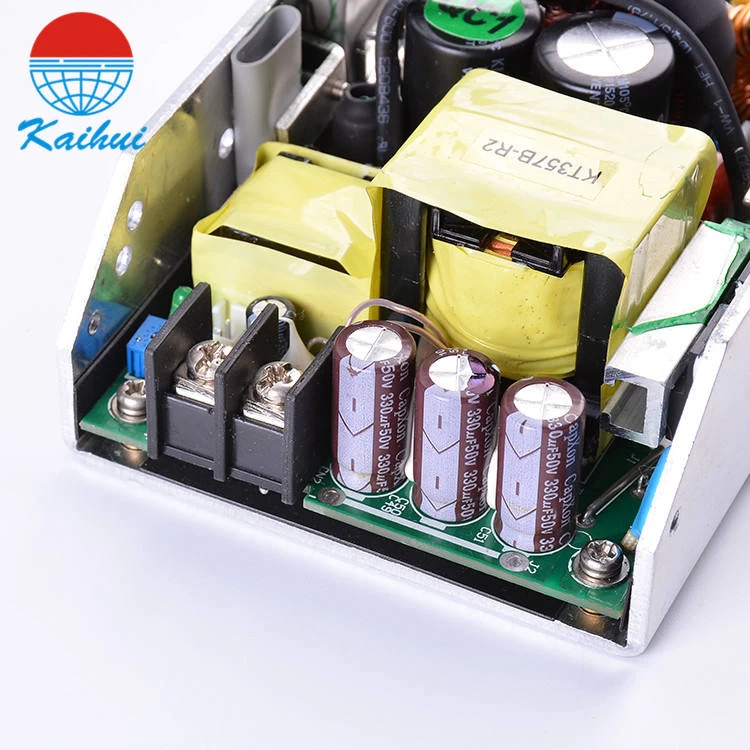

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
