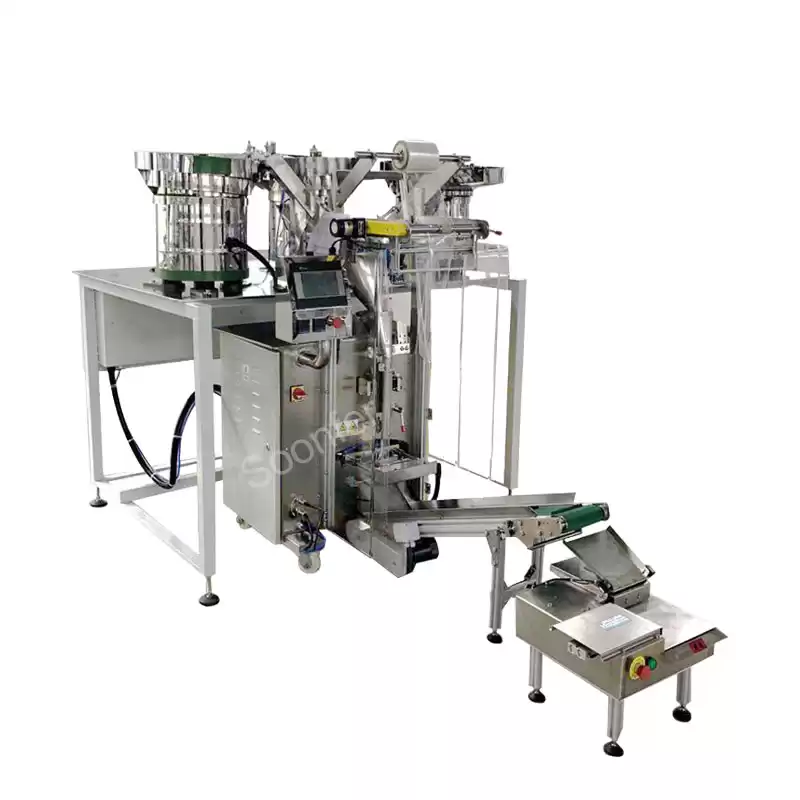

CE certificate automatic bolts nut hardware screw bag counting packing machine

This screw counting packaging machine has three vibrating plates, the same torsional vibrator can be used for certain products of various sizes and shapes, and the counting is accurate and fast.



CE certificate automatic bolts nut hardware screw bag counting packing machine

screw counting packing machine

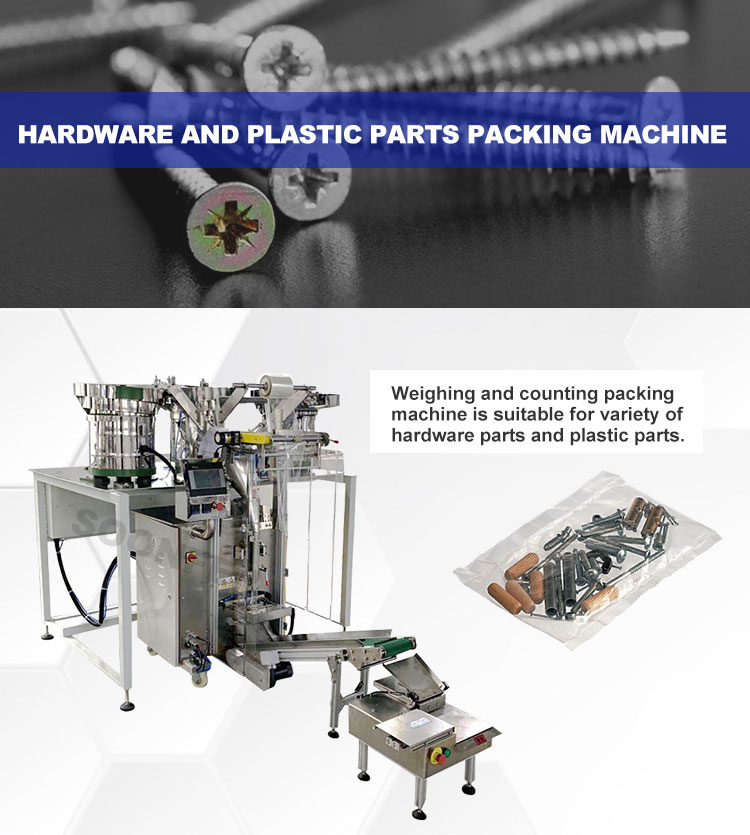

Application of hardware packing machine

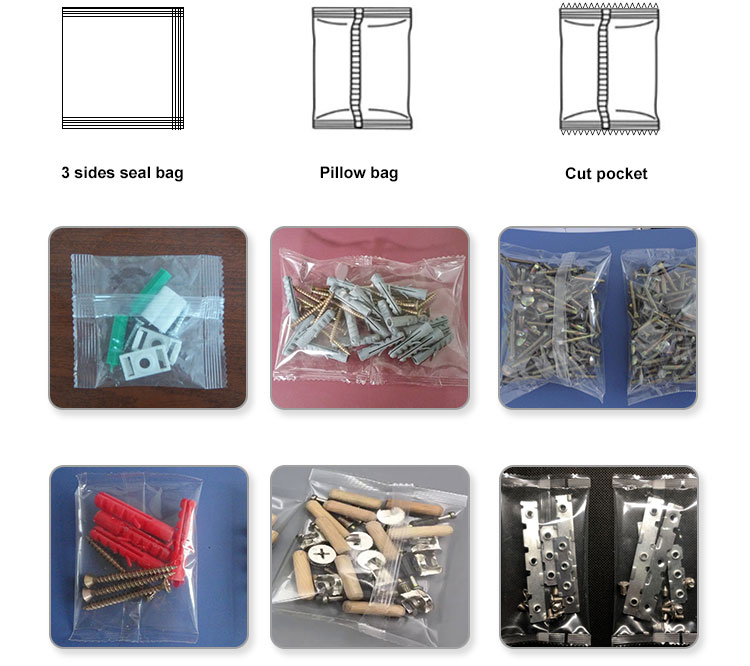

Weighing and counting packing machine is suitable for variery of hardware parts and plastic parts. For example hardware parts, nuts, bearing, bolts, plastic parts, screws, fasterner, bearings etc.

hardware packing machine

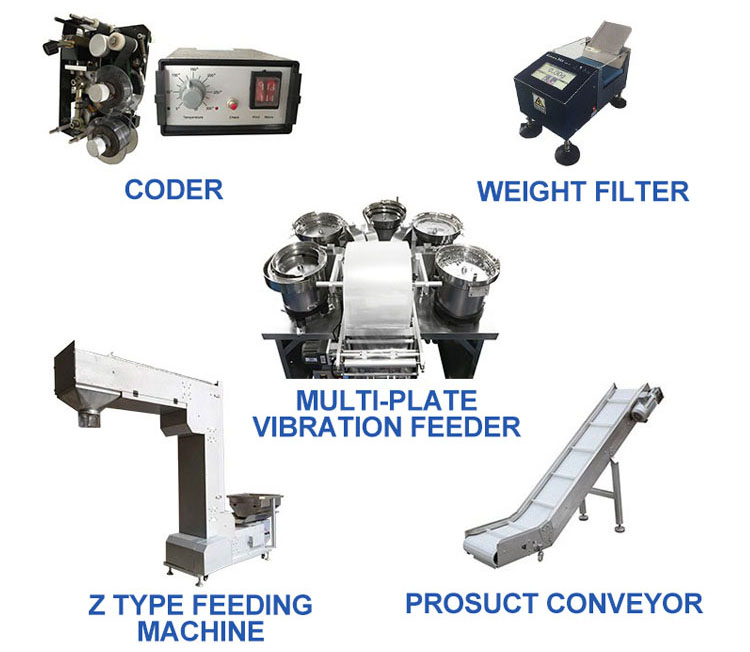

Optional device of hardware packing machine


screw counting machine


Specification of hardware packing machine

Model

SF-320LS
Film Width 60-260mm

Film Thickness

0.03-0.06mm

Packaging Speed

1-100bags/min

Bag Width

20-120mm

Bag Length

30-150mm

Machine Size

1150(L)*800(W)*1350(H)mm

Machine Power

220V, 50Hz, 1.5kw


Features of hardware packing machine

1. PLC control system, easy operation, applicable to single items packing and mixed 2-3kinds of items packing.

2. Smooth and elegant bag shape, high efficiency and durability.

3. Control by 7" industrial PC touch screen, easy operation and multiple language for choice.

4. A single species of single-dish measurement of screws, screw specifications for packaging the same time be supporting the use of multiple vibrating plate.

5. High-precision weighing module with light curtain points.
