CE constant voltage waterproof electronic led power supply 12v 30w led driver ip67 12v transformer

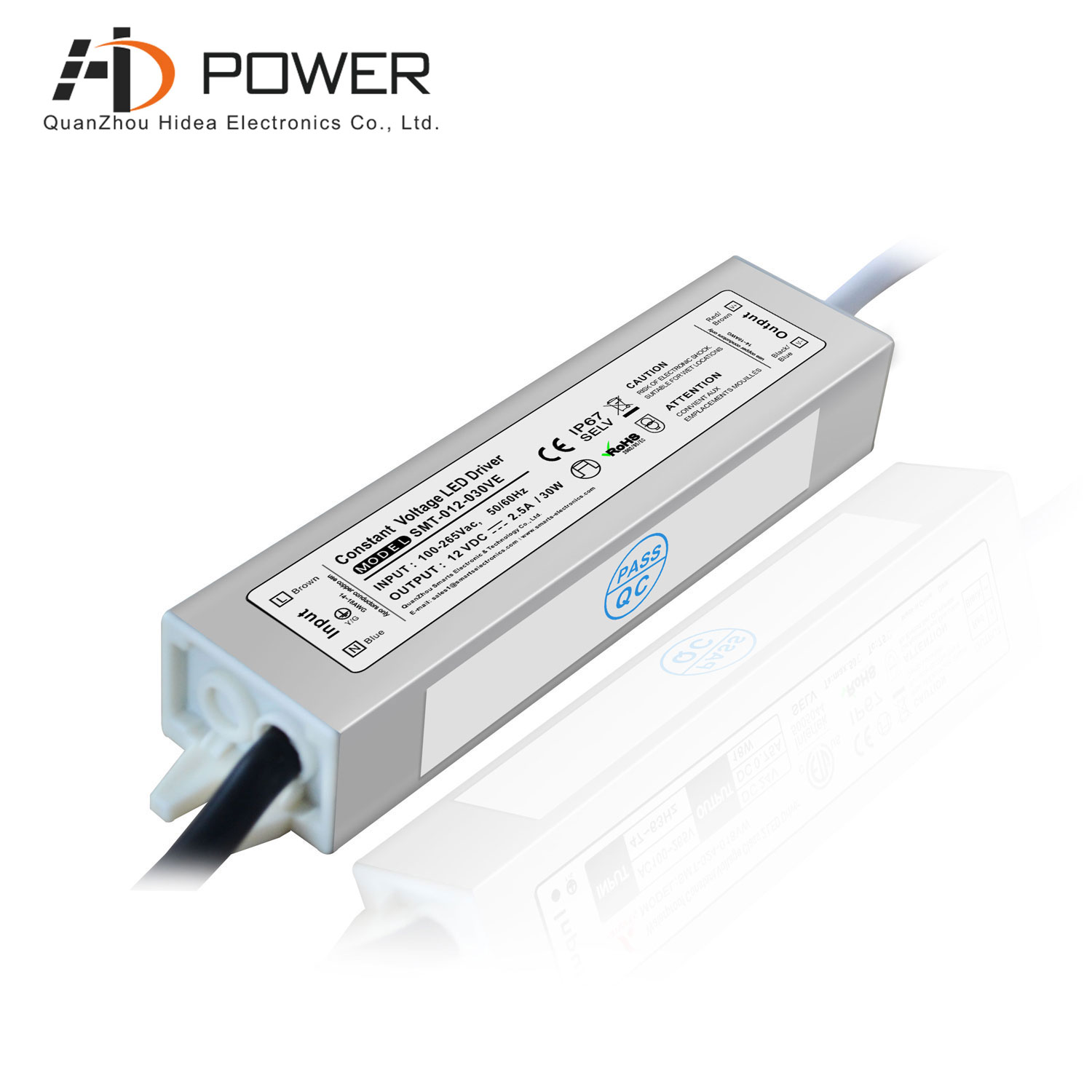

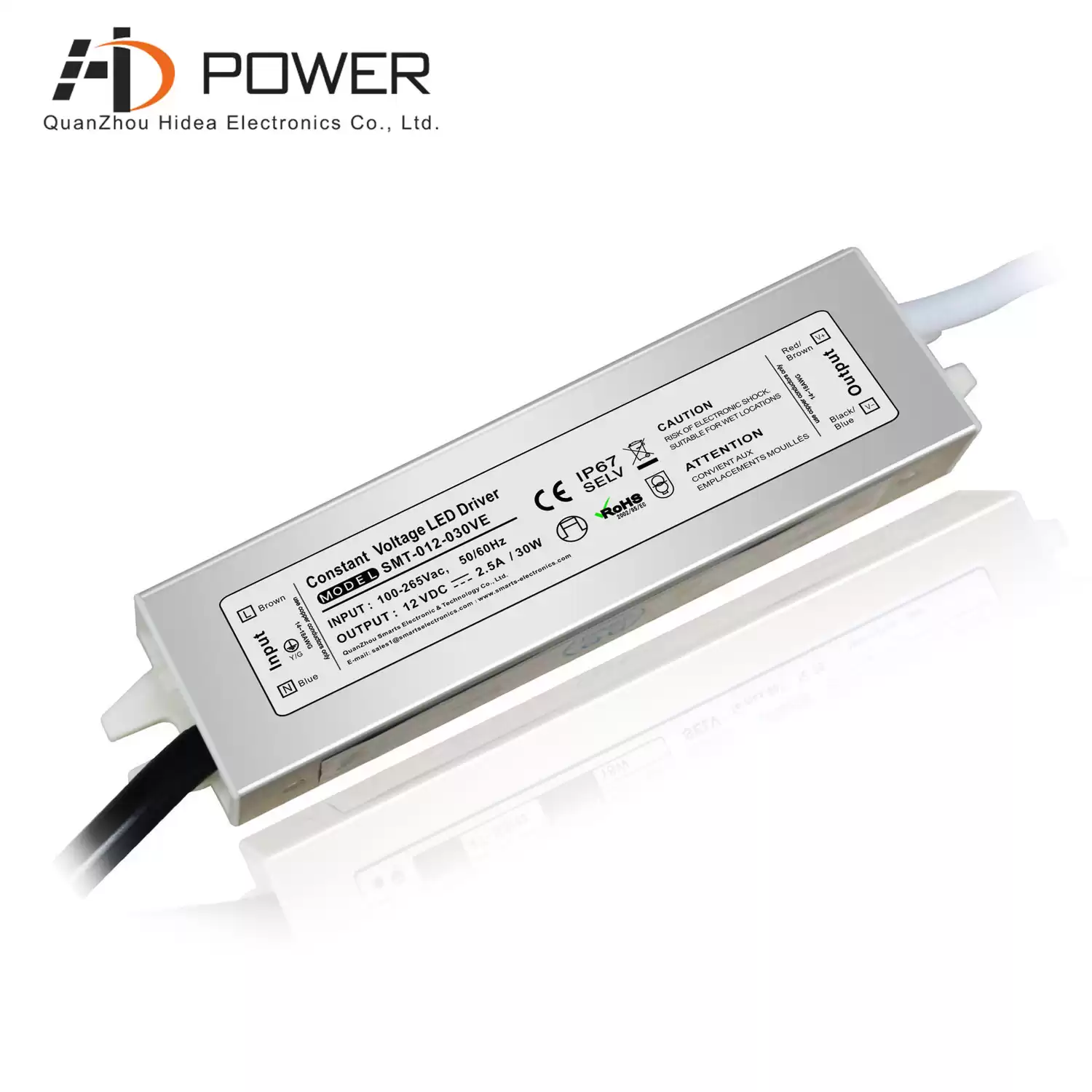

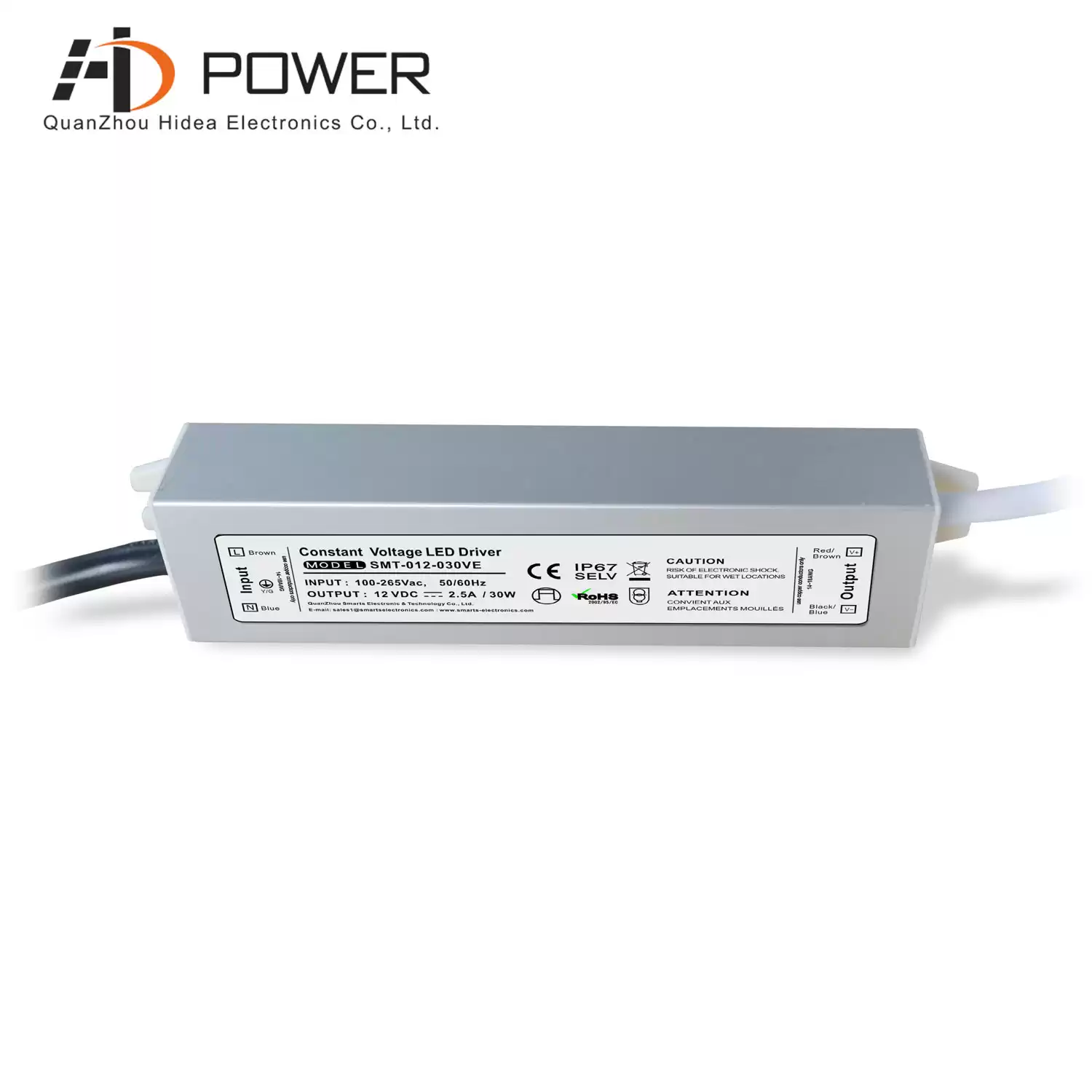

SMT-012-030VE is a waterproof constant voltage series 30W Non-dimming led driver 12v only 150g in weight, compact and easy to carry and install
Specification
|
MODEL
|
SMT-012-030VE
|
SMT-024-030VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
2.5A
|
1.25A
|
|
CURRENT RANGE
|
0-2.5A
|
0-1.25A
|
|
RATED POWER
|
30W
|
30W
|
|
RIPPLE&NOISE(max)
|
<400mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
》86%
|
|
AC CURRENT(Typ.)
|
0.3A/220VAC
|
|
PROTECTION
|
Short circuit
|
Hiccpe mode,recovers automatically after condition is removed
|
|
Overload
|
3.3A
|
1.8A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

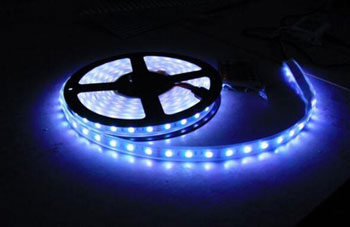

Compatible Low Voltage Device Type
CE certified constant voltage 30W 12V led driver has passed 100% full load burn-in test, and also has short circuit/overload/over temperature protection, which can be well matched with many lamps on the market
