30V 5A switching power supply single output open frame 150W SMPS
Description:
K26H-UP150S series 150W 30V 5A switching power supply is 90-264Vac input voltage,less than 120W free air convection and 150W with 20CFM forced air,LED indicator for power on,we can provide 2 years warranty serve.
Features:
1, 150W high efficiency 30V switching power supply;
2, Built-in active PFC function power supply;
3, Wide range of AC input voltage,30V 150W single output power supply;
4, It have short circuit, over load, over voltage protection;
5, 150W 30V power supply used in LED light,stage light etc.
Parameter
|
|
Item NO
|
K26H-UP150S12
|
K26H-UP150S24
|
K26H-UP150S30
|
K26H-UP150S36
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+30V
|
+36V
|
|
Rated Current
|
12.5A
|
6.3A
|
5A
|
4.2A
|
|
Current Range
|
0-12.5A
|
0-6.3A
|
0-5A
|
0-4.2A
|
|
Rated Power(20CFM Fan)
|
150W
|
151.2W
|
150W
|
151.2W
|
|
Rated Power(Convection)
|
＜75W
|
＜120W
|
＜120W
|
＜120W
|
|
Ripple & Noise
|
200mVp-p
|
240mVp-p
|
300mVp-p
|
360mVp-p
|
|
Adjustable Output Range
|
±10%（5V:-5%~+10%)
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC
|
|
Input Current
|
0.8A@220V AC
|
|
Input Frequency
|
47~63Hz
|
|
Power Factor
|
>0.99@110V;>0.95@220V
|
|
Efficiency
|
80%
|
85%
|
87%
|
87%
|
|
Inrush Current
|
Cold start 20A@115V,40A@230V
|
|
Leakage Current
|
<1mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
---
|
|
Over Temp., protection
|
---
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55022 CLASS A EN61000-3-2
|
|
Others
|
Dimension
|
115*59*35mm(L*W*H)
|
|
Weight
|
0.5kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives;
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
|

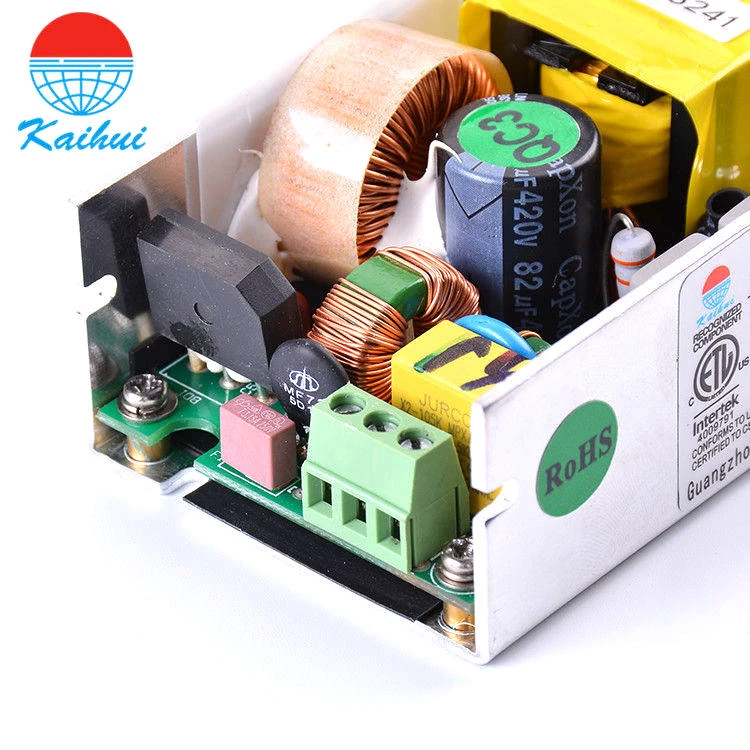

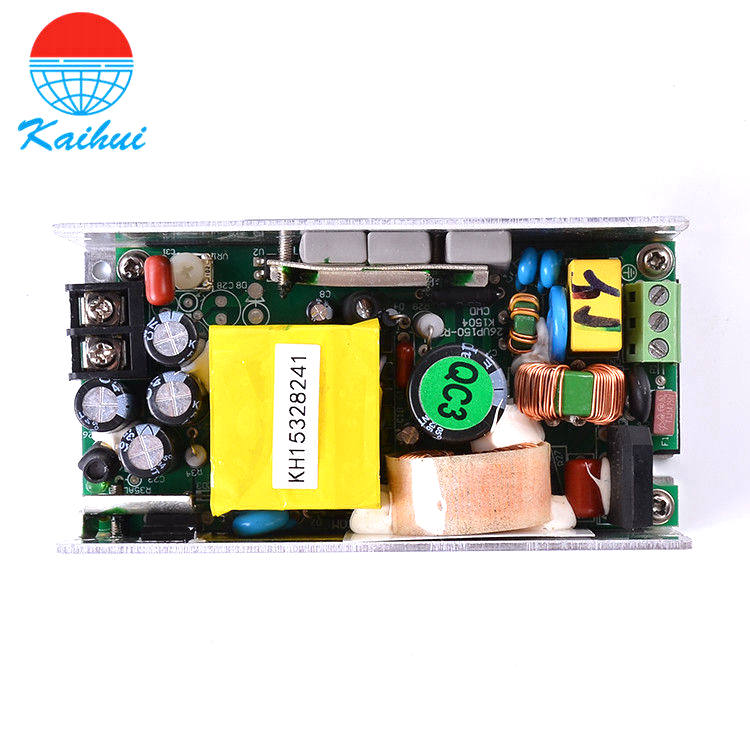

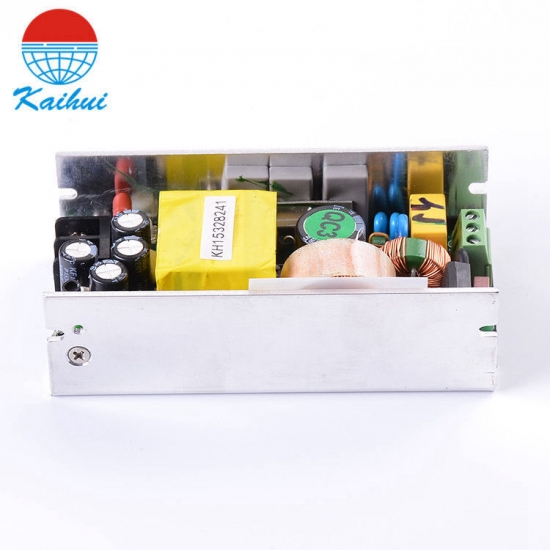

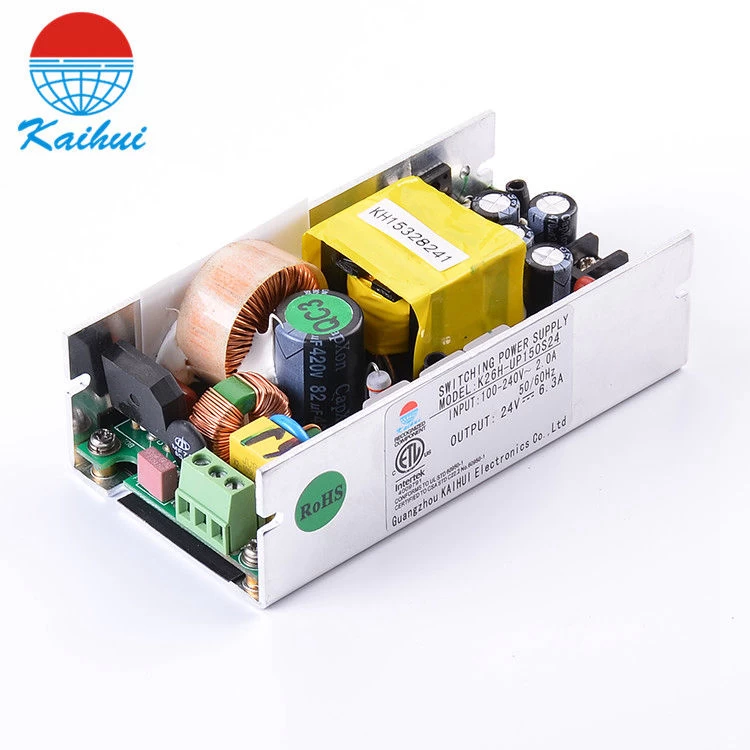

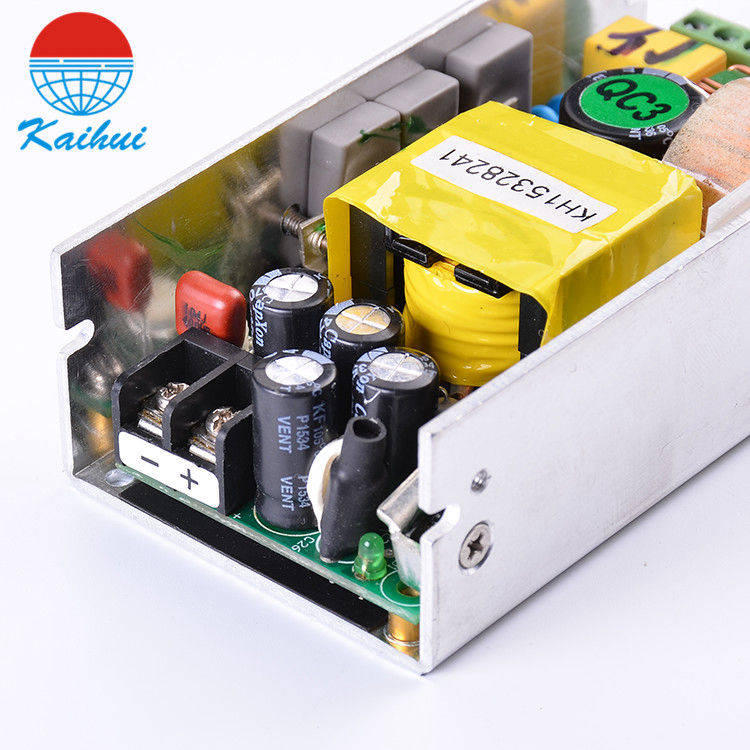

Product picture:
