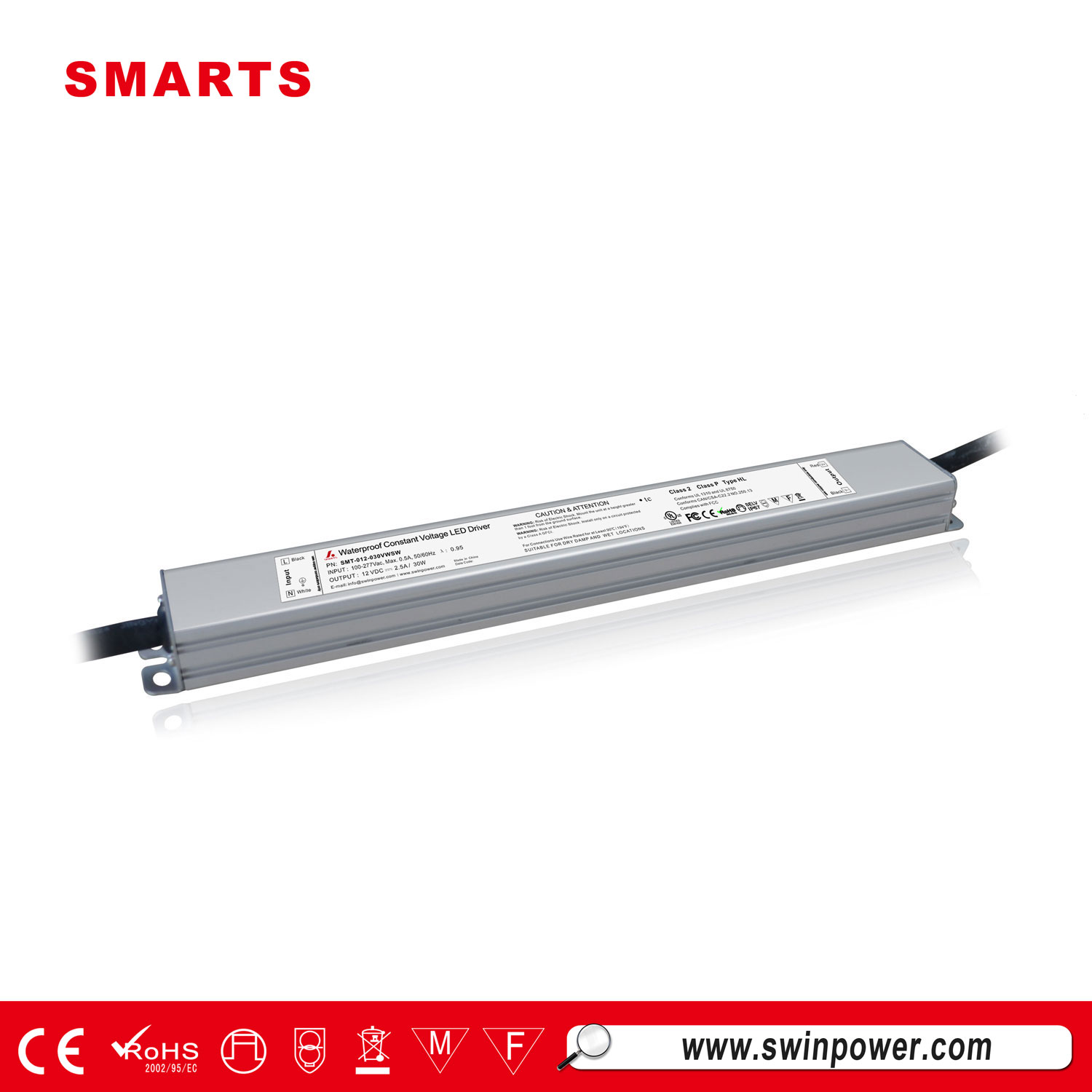

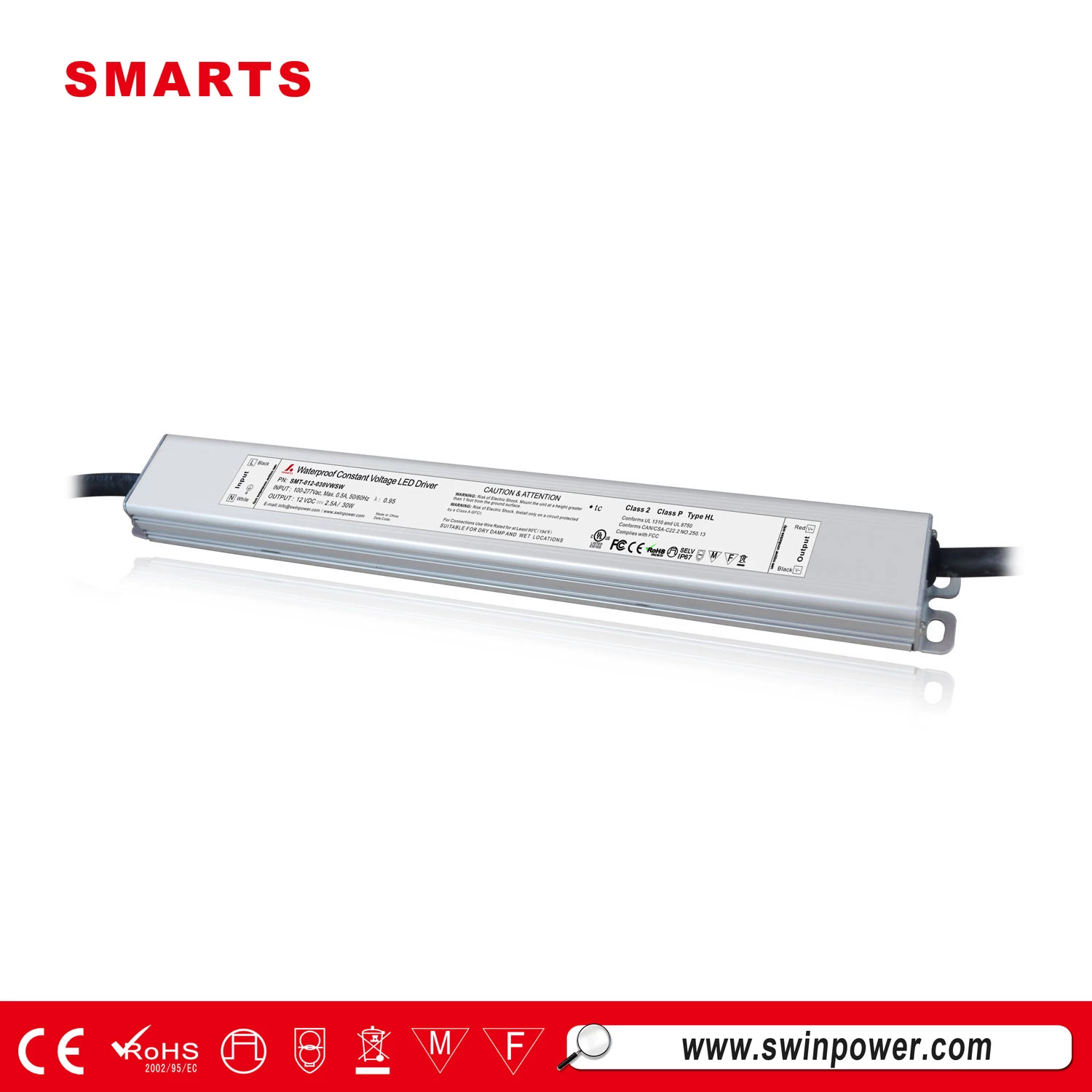

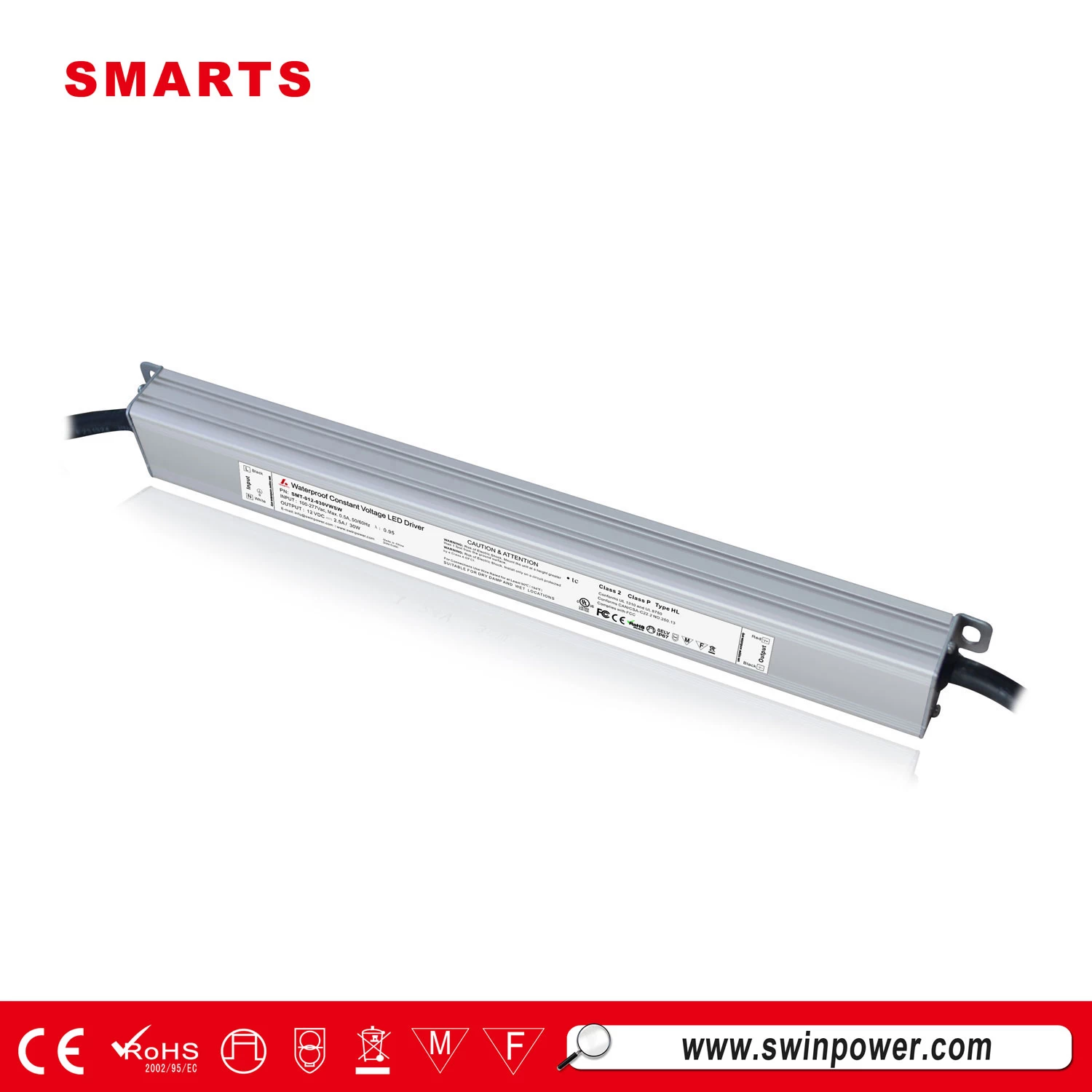

ce rohs 30w 36w 110V waterproof electronic led driver ip65 for panel mirror
30w 36w 110V waterproof electronic led driver with reliable Technical Data, cooling by free air, high reliability, 100% aging with full load Suitable for led lighting and moving sign applications. Compliance to DOE VI energy consumption requirements of America.
Feature:
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P approval
·Built-in PFC function / E fficiency > 84% / PF> 0.95
·Protections:short circuit/over voltage/over heat
·Cooling by free air convection
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·7 years warranty
Specification
|
model
|
SMT-012-036VWSW
|
SMT-024-036VWSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
|
Rated power
|
36W
|
36W
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.99@120VAC 0.97@230VAC 0.95@277VAC
|
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
82%@120VAC ; 83%@230VAC; 84%@ 277VAC
|
|
|
AC Current（Typ.）
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;
12A,50%480us@277VAC
12A,50%480us@277VAC
|
|
|
Leakage current
|
<0.50mA
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|

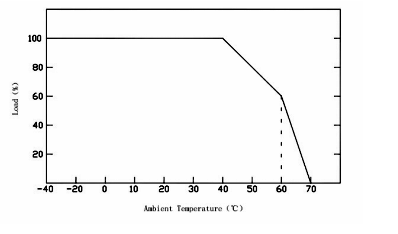

Derating Curve
What is the definition of Type HL driver power supply?
LED drive power for hazardous (grading) locations (power supply must be fully gummed)
LED drivers with "Type HL" markings can be used directly for installation of l terminal lamps in hazardous (graded)
locations without further evaluation
The Type HL of the actuator is defined in the UL8750, which, in a nutshell, can be installed in a Class I Division 2
Class of Hazardous Location lamps
