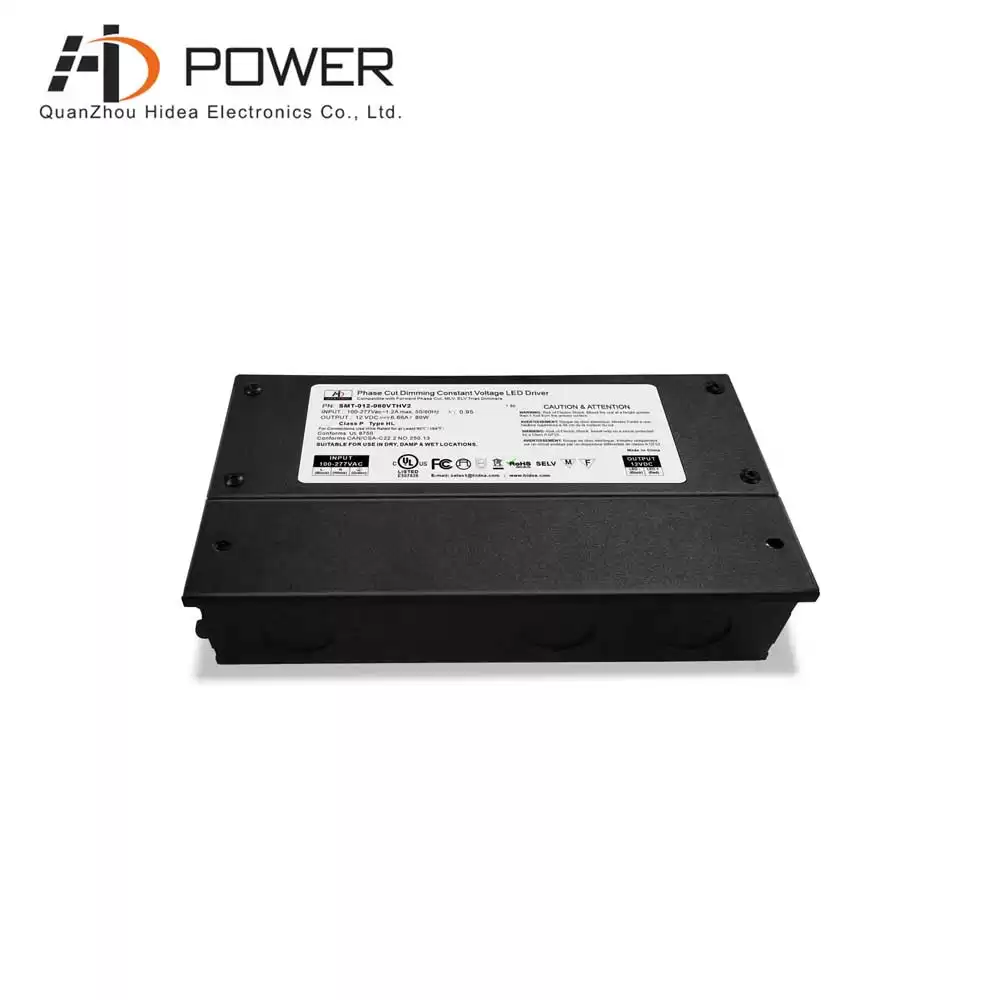

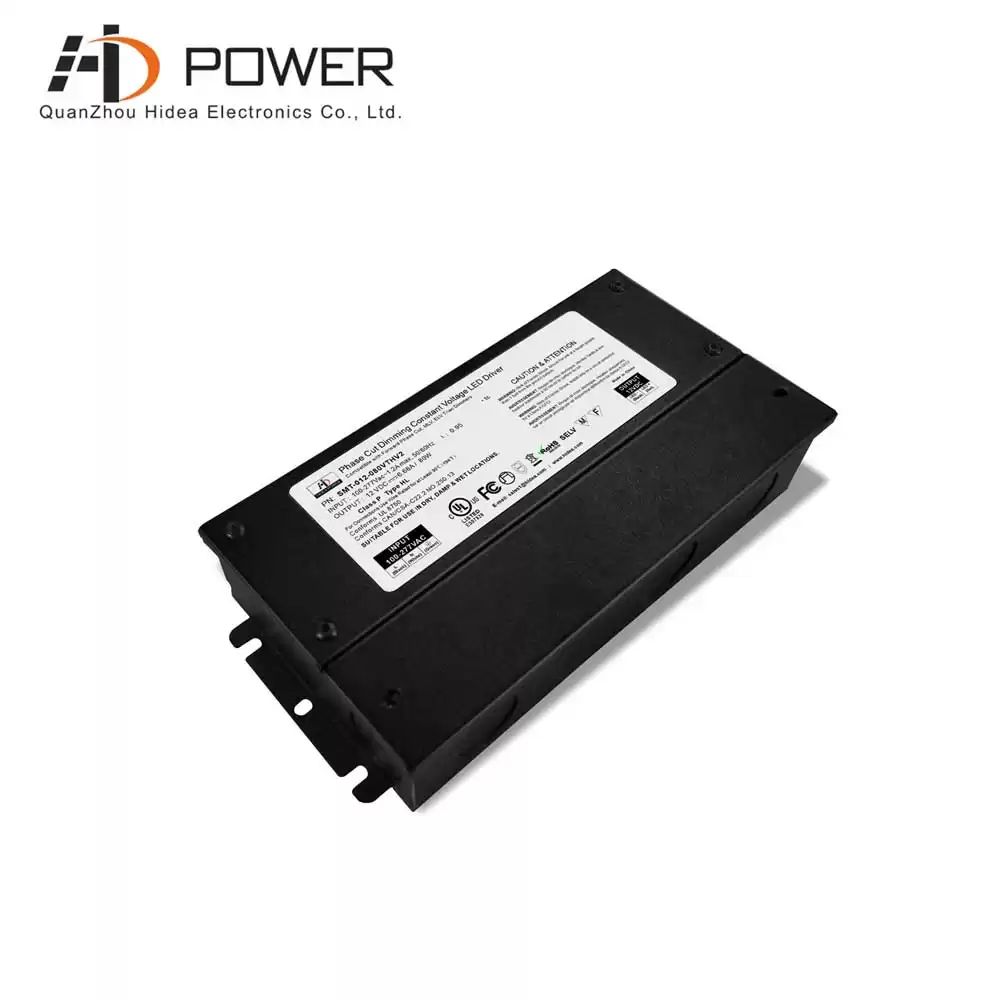

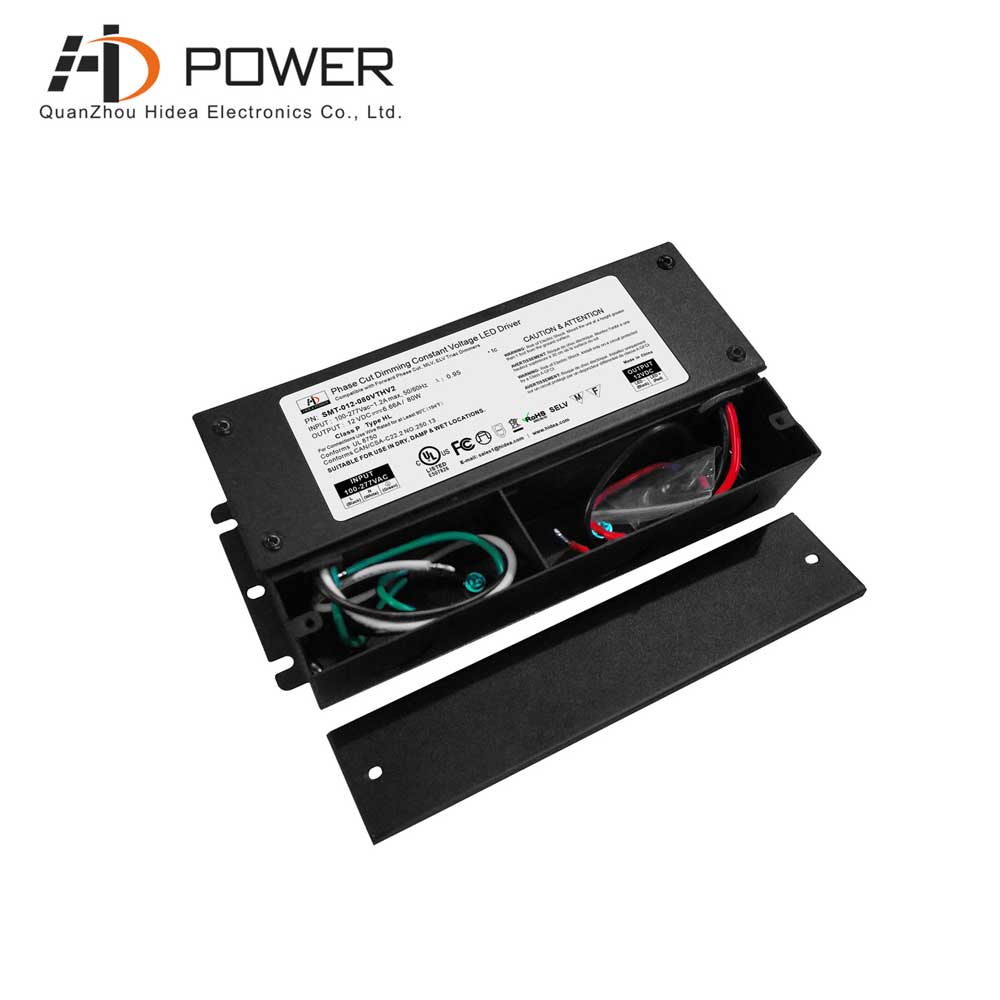

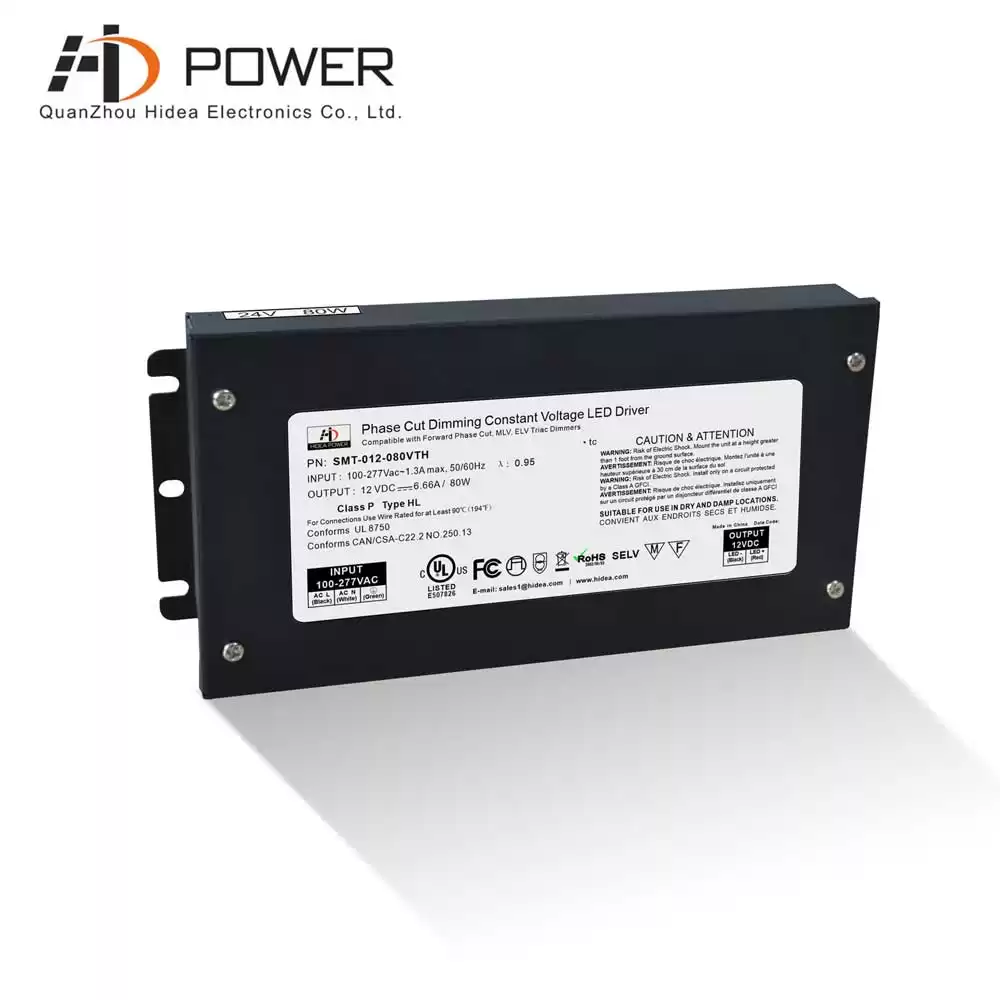

CE UL ROHS listed 12v 24v 80w triac dimmable led driver
There are led driver 80 watt based in Aylesbury is the newest leisure facility of the successful Rogue Leisure.
Specification
|
Model
|
SMT-012-080VTH (1.0 ver)
|
SMT-024-080VTH (1.0 ver)
|
|
SMT-012-080VTHV2 (2.0 ver)
|
SMT-024-080VTHV2 (2.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
6.66A
|
3.33A (class 2 type)
|
|
Load Regulation
|
±1%
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
82% 79%
|
|
AC Current(Max.)
|
1.2A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
1.0 ver: 220*93*41mm (L*W*H); 2.0 ver: 220*94.5*40mm(L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

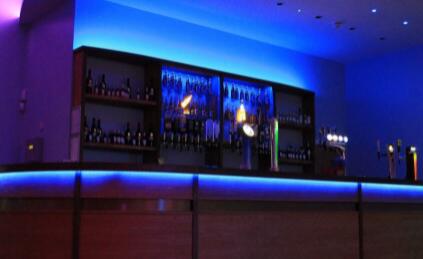

Rogue Bowling is a high quality install the triac dimmable led driver and there has been no expense spared on the full interior fit of the venue.
Related Products
|
The 12vdc 80w triac dimmable led driver series of low-voltage drivers are suitable for use to power your low-voltage lighting application.
Mode：SMT-012-080VTHW
Dimming Mode : Triac Dimming
Output Power : 80W
intput voltage：100~277V AC
Size：230*70*43MM （L*W*H）
|
