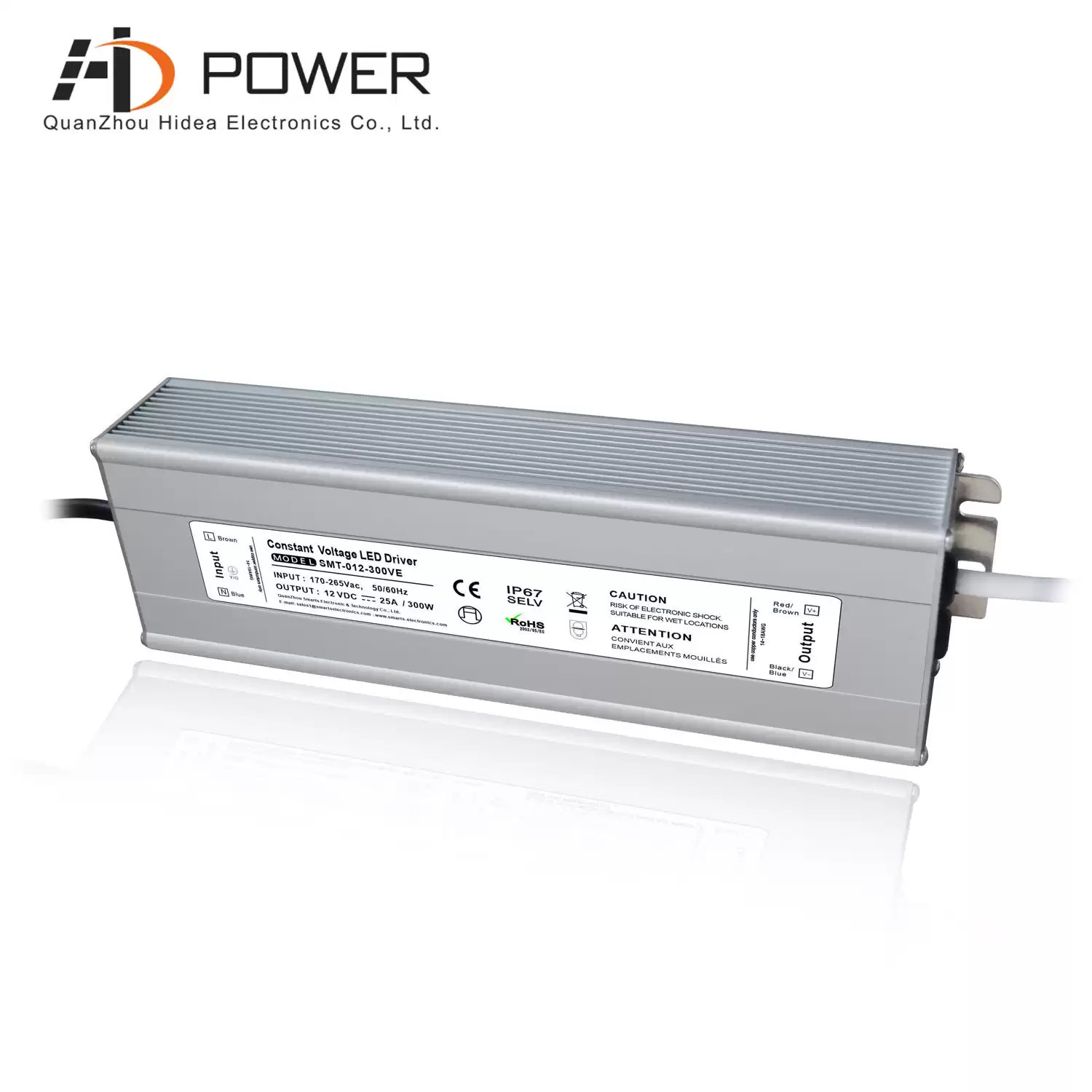

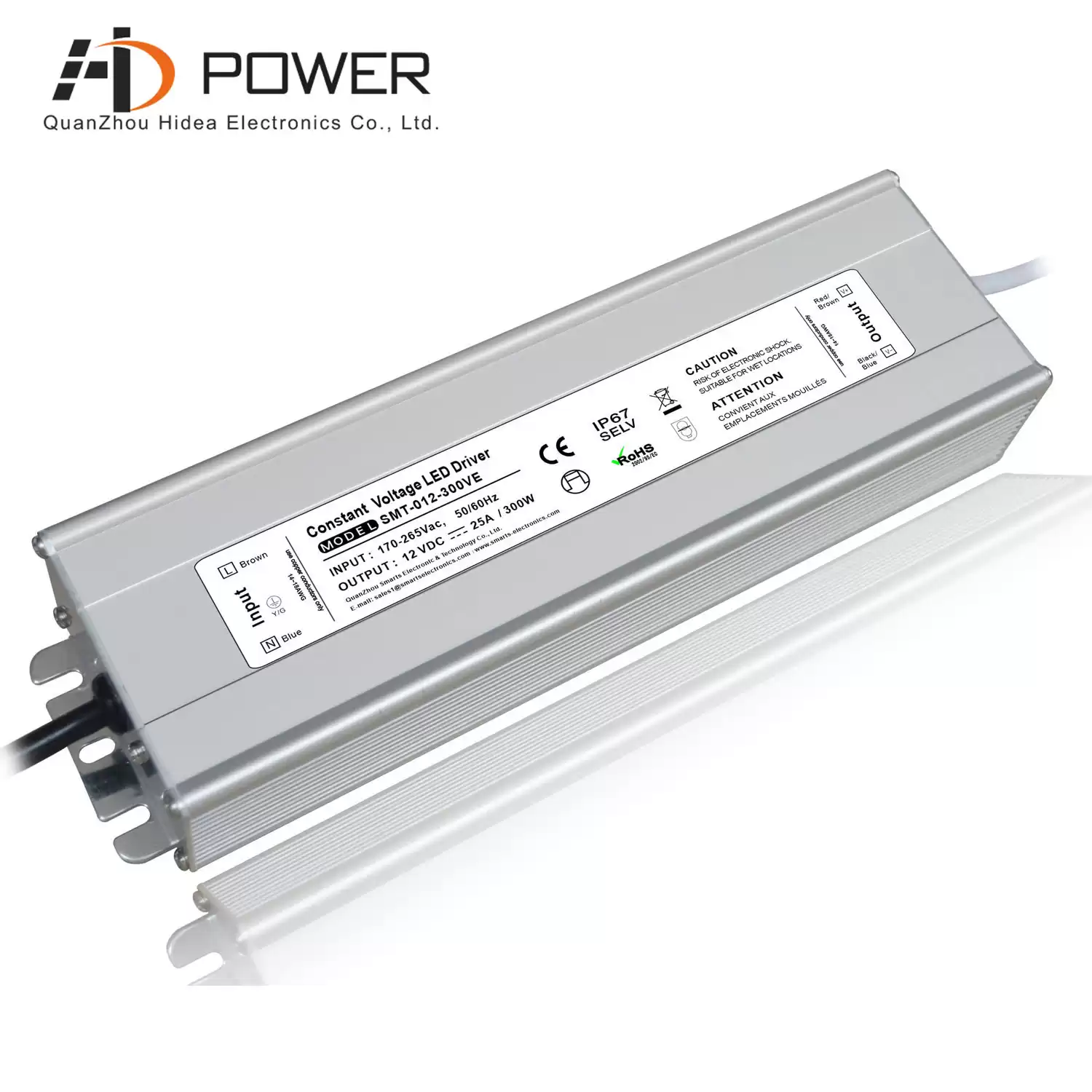

CE waterproof 300w high power 12v dc constant voltage led driver transformer
12V/24V constant voltage waterproof 300W High Power LED driver input voltage is 180-265VAC, which is suitable for indoor and outdoor lighting projects in European regions
Specification
|
MODEL
|
SMT-012-300VE
|
SMT-024-300VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
25.0A
|
12.50A
|
|
CURRENT RANGE
|
0-25.0A
|
0-12.50A
|
|
RATED POWER
|
300W
|
300W
|
|
RIPPLE&NOISE(max)
|
<600mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
180-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
>82%
|
>84%
|
|
AC CURRENT(Typ.)
|
2.59A/220VAC
|
2.57A/220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:shut down o/p voltage with re-power on to recovery
|
|
Overload
|
25-27A
|
12.5-14.5A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Low Voltage Device Type
The 300W LED Power Supply of the 100 % full load combustion test has short circuit/overload/high temperature protection, safe and reliable, and two -year warranty
Related Products
|

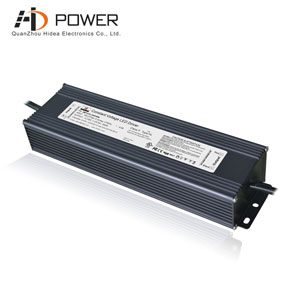

12V LED 300W driver waterproof level IP67 aluminum shell waterproof performance has been good. UL certification, it is mainly sold to North America
