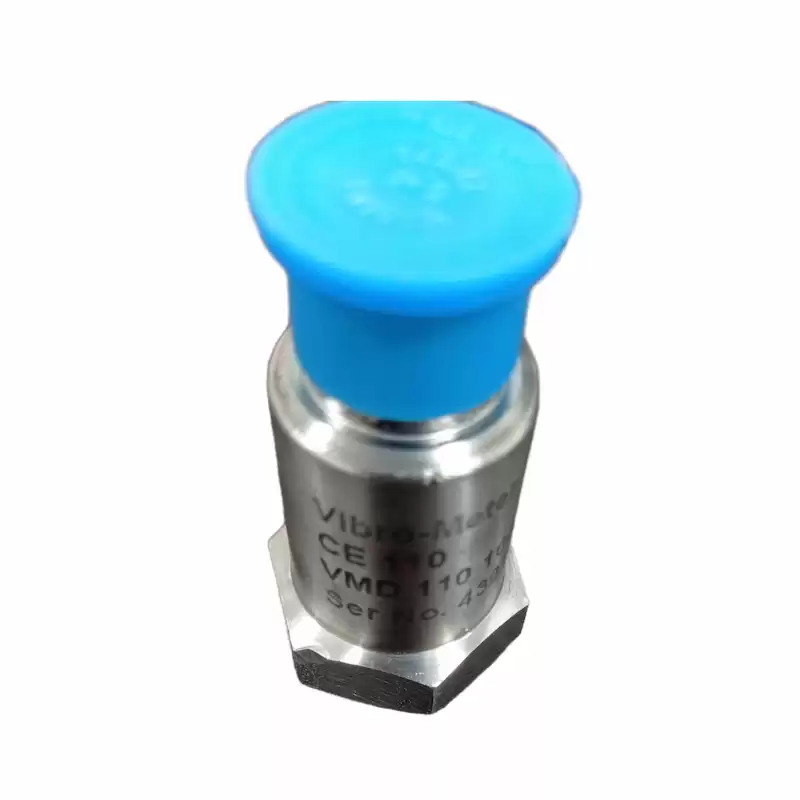

CE110 VMD-110-100-CT-VO Acceleration Sensor
Acceleration sensor
CE 110 General purpose sensor
Output 100 mV/g Constant Current Supply
Applications
· Data-collector
· Permanent monitoring
· Power generation
· Heavy industry
· Paper machinery
Technical Specification
| Standard Sensitivity |
100 mV/g ±5% (Nominal at 80 Hz) |
| Frequency Response |
2 Hz to 10 kHz ±5% (-3 dB at 0.8 Hz) |
| Mounted Base Resonance |
18 kHz (nominal) |
| Isolation |
Base isolated |
| Dynamic Range |
±80g |
| Transverse Sensitivity |
Less than 5% |
| Electrical Noise |
0.1 mg max |
| Current Range |
0.5 mA to 8 mA |
| Temperature Range |
-55°C to +140 ºC |
| Bias Voltage |
12 Volts DC (nominal) |
| Case Material |
Stainless steel |
| Mounting Torque |
8 Nm |
| Weight |
110 g (nominal) |
| Sealing |
IP67 |
| Maximum cable length |
1000 meters |
| Standard cable length |
5 meters for AT and EX versions, cable diameter 4mm |
| Mounting connector |
2 pin MS for CT versions |
| ATEX version |
Intrinsic safe accelerometer ATEX Group I & II Approved |
|

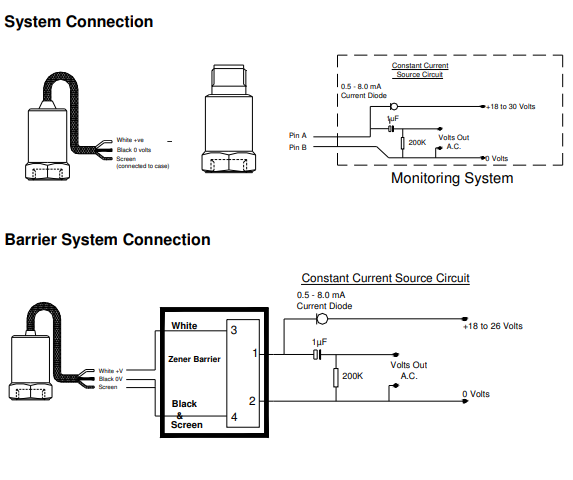

Barrier
|
MTL 728- BAS01ATEX7202, P&F Z728- BAS01ATEX7005 or any other Barrier that conforms to note 4 of ATX011 |
Ordering Information
VM 110
Sensitivity in mV Connection Output
010 AT ( Armed cable top) VO (Analogue mV)
030 CT (Connector top) ...
050 EX ( Intrinsic safe version) ( Armed cable ) ATEX ...
100 ... ...
500 ... ...
1V ... ...
