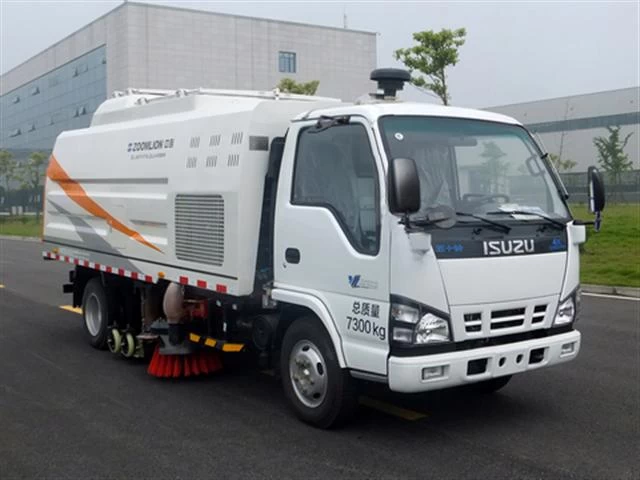

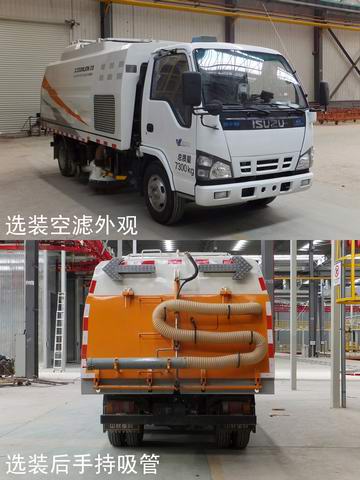

4KH1-TCG40 QL1070A1KAY ISUZU chassis sweeper truck
| Products Technical Specification |
| Brand-Series |
ISUZU-600P
|
| Chassis Model |
QL10703HARY |
| Emission Standard |
Euro 4 |
| Fuel type |
Diesel |
| Cabin |
600P Single row,with A/C |
Whole vehicle
main dimensions (mm) |
Overall dimensions (L×W×H) |
5960*1990*2380 |
| Wheel base |
3360 |
| Front overhang |
1015 |
| Rear overhang |
1585 |
| Min. ground clearance |
450 |
| Weight data (kg) |
G.V.W |
7300 |
| Curb weight (chassis) |
4700 |
| Max payload |
3000-6000 |
Whole vehicle
main performance |
Max. speed (km/h) |
95 |
| Max. slope of climb (%) |
30 |
| Engine |
Model |
4JB1CN |
| Maximum power |
72kw / 98hp |
| Number of cylinders |
4 |
| Displacement (L) |
2.771 |
| Engine Manufacturer |
ISUZU Motors Co., Ltd. |
| Transmission |
Brand and Model |
MSB |
| Number of gears |
5-speed |
| Axle |
Front Load capacity (ton) |
2.2T |
| Rear Load capacity (ton) |
4.8T |
| Suspension |
Front |
8- Leaf spring |
| Rear |
6+5 -leaf spring |
| Steering Wheel |
left/right hand drive |
LHD |
| Brake system |
Service brake |
Oil braking |
| Electric device |
Rated voltage |
24V |
| Tyres & Quantity |
7.00-16 & 6+1 |
| Special configuration |
| Water/garbage tank size |
1.5cbm/4cbm |
| Tank Material |
Carbon steel / Optional stainless steel |
| Deputy engine |
JMC,57kW/3600r/min |
| Max sweep capacity |
60000M2/h |
| Max sweep width |
3m |
| Road clean |
more than 96% |
| Scan disk speed |
Grade 110 ~ 115r/min, mid-range 80 ~ 85r/min, low 60 ~ 65r/min |
