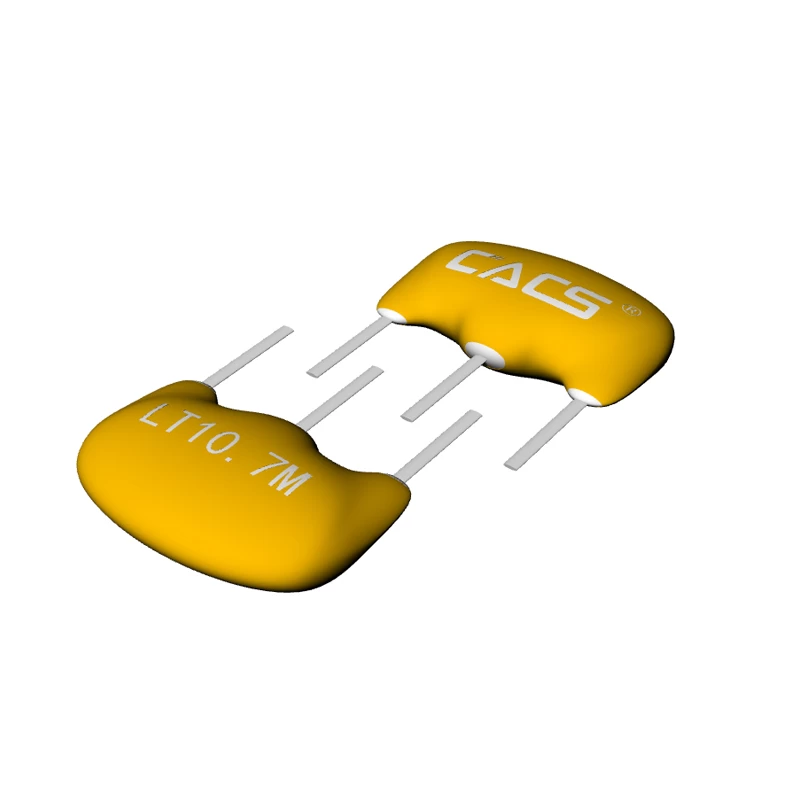

Wide/Narrow Band-Width LT10.7M Series of Ceramic Filter
ELECTRICAL
SPECIFICATIONS
|
Items
|
Requirement
|
|
Withstand DC Voltage
|
50V (1min max)
|
|
Insulation Resistance MΩ min.
|
100（10V，1min±5s）
|
|
Operating temperature
|
-40℃～85℃
|
|
Storage temperature
|
-40℃～85℃
|
|
Items
|
Requirement
|
|
Center
Frequency fo (MHz)
|
10.700±0.030
|
|
3dB Band
Width (kHz)
|
230±50
|
|
20dB Band
Width (kHz) max
|
600
|
|
Insertion
Loss (dB) max
|
6
|
|
Ripple
(within 3dB bandwidth) (dB) max
|
1
|
|
Spurious
Response (dB) min
|
40 (9—12MHz)
|
|
Input/Output
Impedance (Ω)
|
330
|
Temp. Coefficient of Frequency
ppm/℃ max℃
|
±50（Center Frequency drift，-40～85℃）
|

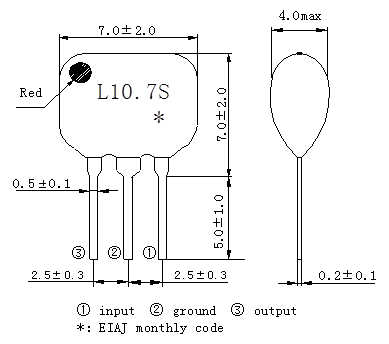

Dimension
