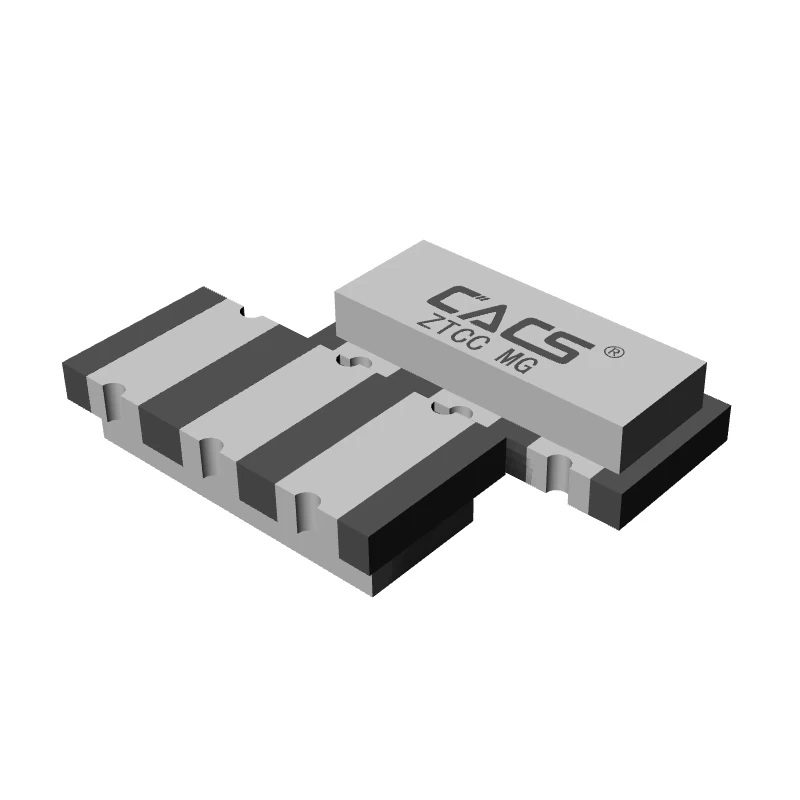

ZTACC/ZTTCC Series
The chip ceramic resonator is the miniature high profile frequency control product of surface mount package
ELECTRICAL SPECIFICATIONS
|
Items
|
Requirement
|
|
Oscillation Frequency Fosc（MHz）
|
4.000
|
|
Frequency Accuracy（%）
|
±0.5
|
|
Resonant Impedance Ro（Ω）max.
|
30
|
|
Temperature
Coefficient of Oscillation
Frequency（%）max.
|
±0.3（Oscillation
Frequency drift，-25℃～+85℃）
|
|
Oscillation Frequency
Aging Rate (%) max *1
|
±0.3(From initial value)
|

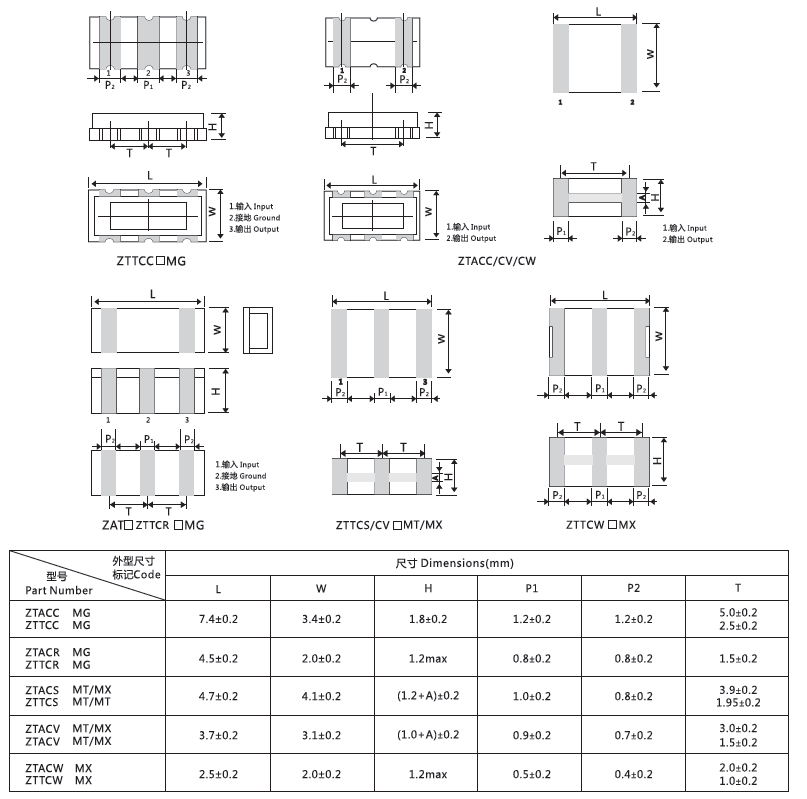

Dimensions
