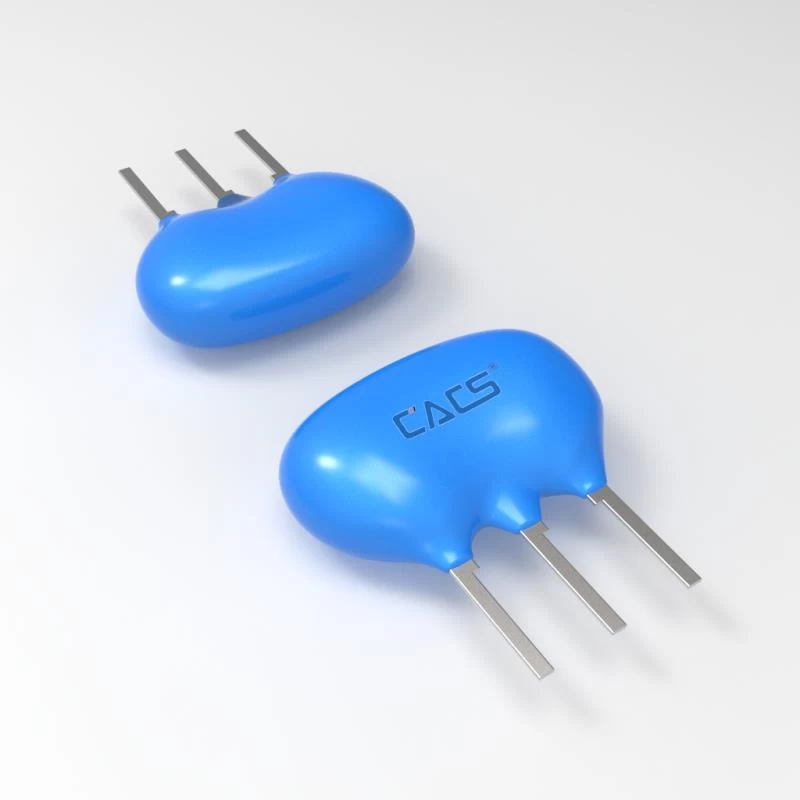

ZTT Series of ceramic resonator with built-in capacitor
ELECTRICAL SPECIFICATIONS
|
Items
|
Requirement
|
|
Oscillation Frequency Fosc（MHz）
|
12.000
|
|
Frequency Accuracy（%）
|
±0.5
|
|
Resonant Impedance Ro（Ω）max.
|
25
|
|
Temperature
Coefficient of Oscillation
Frequency（%）max.
|
±0.3（Oscillation
Frequency drift，-25℃～+85℃）
|
|
Oscillation Frequency
Aging Rate (10years) (%) max *
|
±0.3 (From
initial value)
|

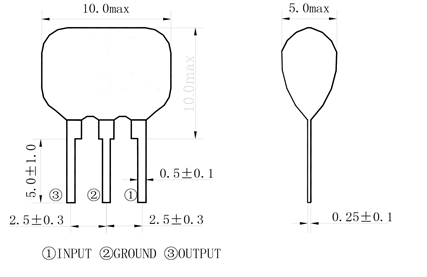

Dimensions
