Certificated prefab folding tiny container house

Certificated prefab office living folding container





Advantage:

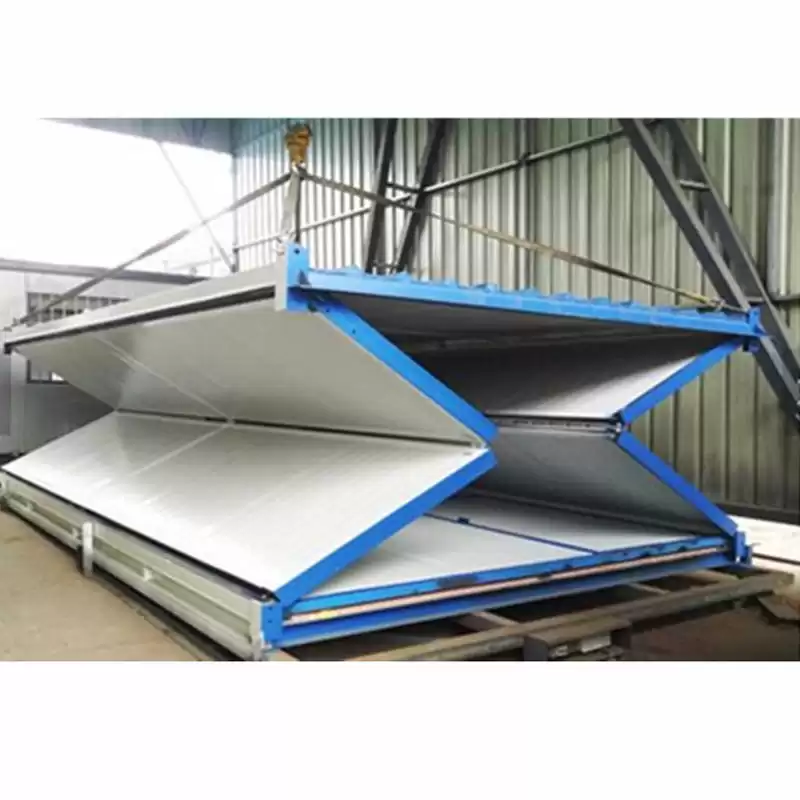

1.100% folding design.

2.Glavanized steel and 100% fire proof and water proof.

3.4 workers can install 1 set in only 4 minutes.

4.One 40 feet shipping container can load 12 sets.

5.It can save transportation, installation&storage cost.

6.We have sold a lot to Qatar, Oman, USA, Japan, Australia and South America.

7.This folding container house design, we have patent in China. Our factory is the biggest manufactured area in

    China.

8. It can used for container dormitory, container office and container apartment design.








SPECIFICATION
Density (kg/m3) : 20-50(25)
Thermal Conductivity (W/(m.:°C) : 0.032~0.036
Water Absorption Rate % : ≤1.5
Compressive Strength(MPa) : 0.15 Tensile Strength
0.15 Bending Rank:Stable
Panel-Cement Motar Adhesiveness Rank : Adhesive
Fire Resistance Rank (as ranked in GB8624-2012) : A / B Inflammable
System quality stability (as wall thermal insulation) Good bonding with cement-based materials,stable
For the folding container house we use 0.326mm(double sides)*40mm IEPS sandwich panel for wall   (950mm wide)and 0.6mm(double sides)IEPS sandwich panel for roof.

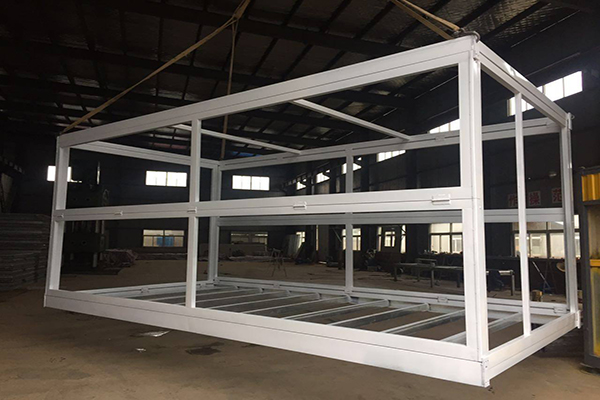

Steel Structure SPECIFICATION
A:Frame beam:2.3mm---2.5mm galvanized 160 beam.
B:Top strap beam:3.5mm bending parts
C:Under frame:1.6mm(4*8galvanized square tube)
D:Roof decoration sheet:2.00mm galvanized bending parts
E:Folding part:2.00mm galvanized bending parts
Floor SPECIFICATION
15mm cement board for floor
