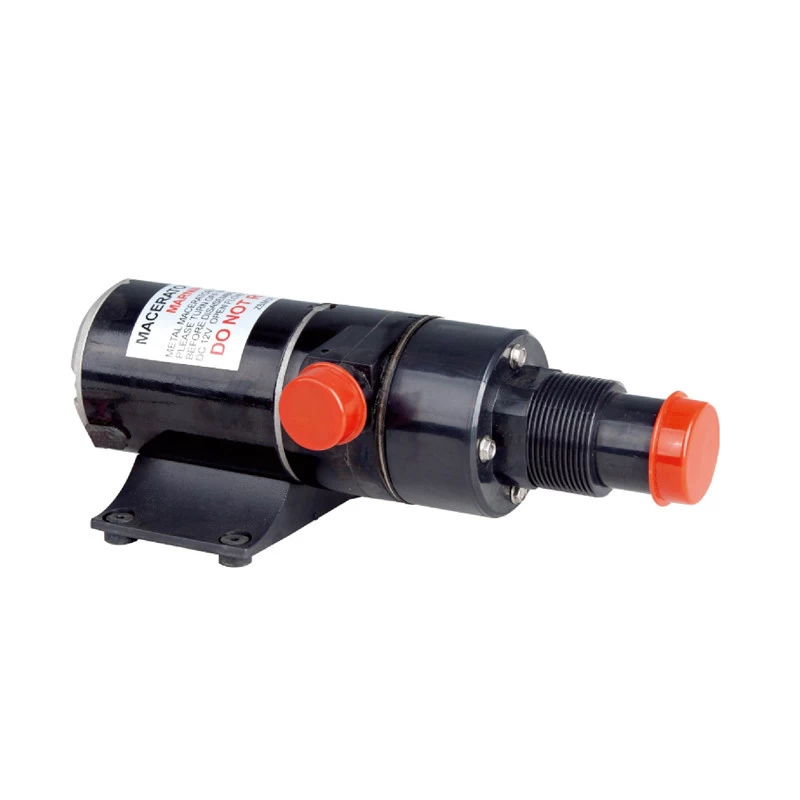

CF-65 Series DC Marine Macerator Pump 45LPM
Macerator Pump now has a fully sealed motor and a new more powerful chopper blade. The sealed motor consists of o-ring sealed end bells, sealed bearings and a hard durable powder coating to prevent corrosion occurring both internally and externally. A new four bladed chopper has been added to further reduce the possibility of clogging. The DC macerator pump unit is the ideal solution for the emptying of marine holding tanks, fish boxes and livewell receptacles.
FEATURES & BENEFITS
l Out-let:1” barb
l Self-priming to 4ft(1.2m) vertical lift
l Port size:inlet :1-1/2” bard:1-1/2”NPT
l 8MM impeller
l Four blade chopper reduce clogging
l Thermally protected sensor provides adequate run dry period to allow initial priming for the pump
l Triple sealed motor to prevent both internal and external motor corrosion
l Easy reach knob in case of time
l Ignition protected

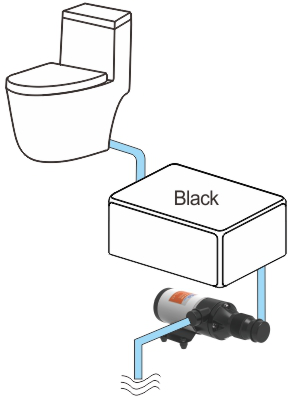

TYPICAL APPLICATIONS
Marine; RV; toilet

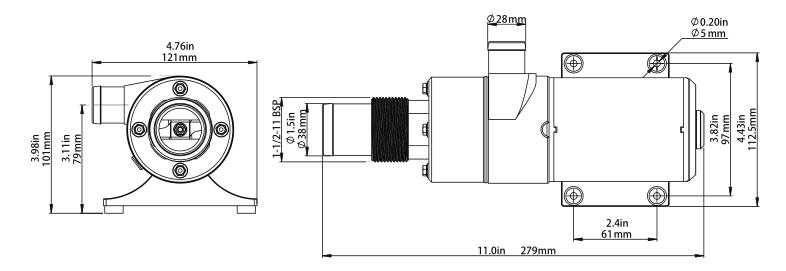

Demension
PUMP CONFIGURATIONS
|
Model
|
Voltage
|
Open flow (LPM/GPM)
|
Amp Draw(A)
|
Pressure off
|
N.W/G.W(KG)
|
|
CF-65A
|
12
|
45
|
10
|
NO
|
2.1/2.3
|
|
CF-65A
|
24
|
45
|
5
|
NO
|
2.1/2.3
|
|
Pressure
|
|
Flow
|
|
Current
|
|
Psi
|
Bar
|
Gpm
|
Lpm
|
Amps
|
|
0
|
0
|
10.8
|
40.8
|
12.0
|
|
4
|
0.28
|
7.93
|
30.0
|
12.8
|
|
8
|
0.55
|
6.08
|
23.0
|
13.5
|
|
12
|
0.83
|
3.96
|
15.0
|
14.3
|
|
16
|
1.1
|
0
|
0
|
0
|
Shipping information
|
Unit pump weight(N.W/G.W)
|
2.1/2.3 kg
|
|
Unit size
|
310*120*135mm
|
|
Mater carton size
|
65*31.5*29.5 cm
|
|
Mater carton quantity
|
10 pcs
|
|
Mater carton weight
|
24.5kgs
|
