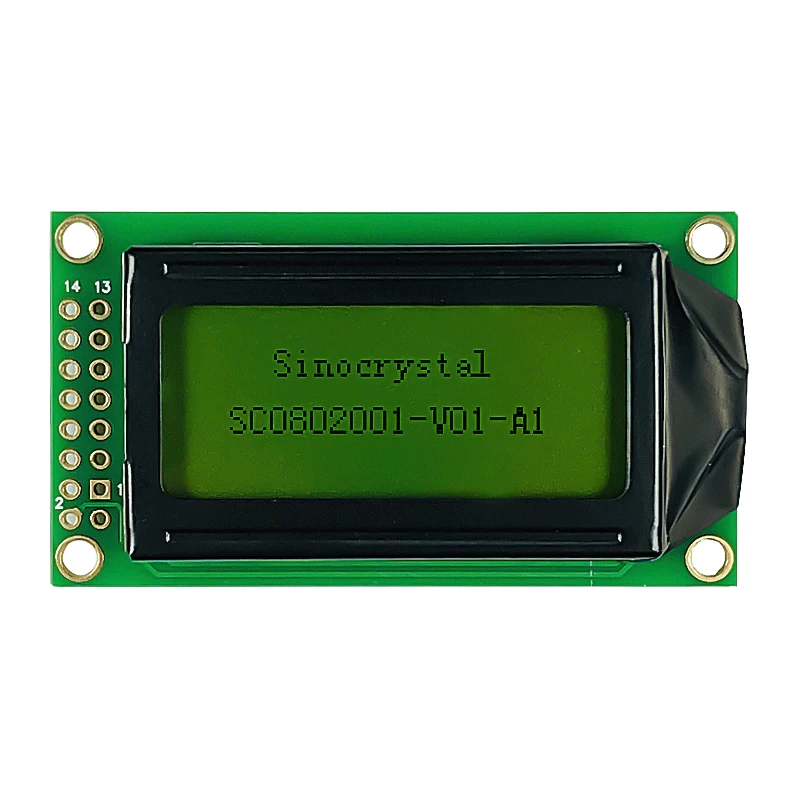

Basic Information
LCD Type: STN/Y-G/Positive/Transflective/COB
Resolution: 8*2
Outline Dimension: 58.00*32.00*13.65
Active Area: 27.45*11.50
View area: 38.00*16.00
Driver IC: SPLC780D
View Direction: 6 o'clock
PIN: 16
Backlight: Yellow-Green LED

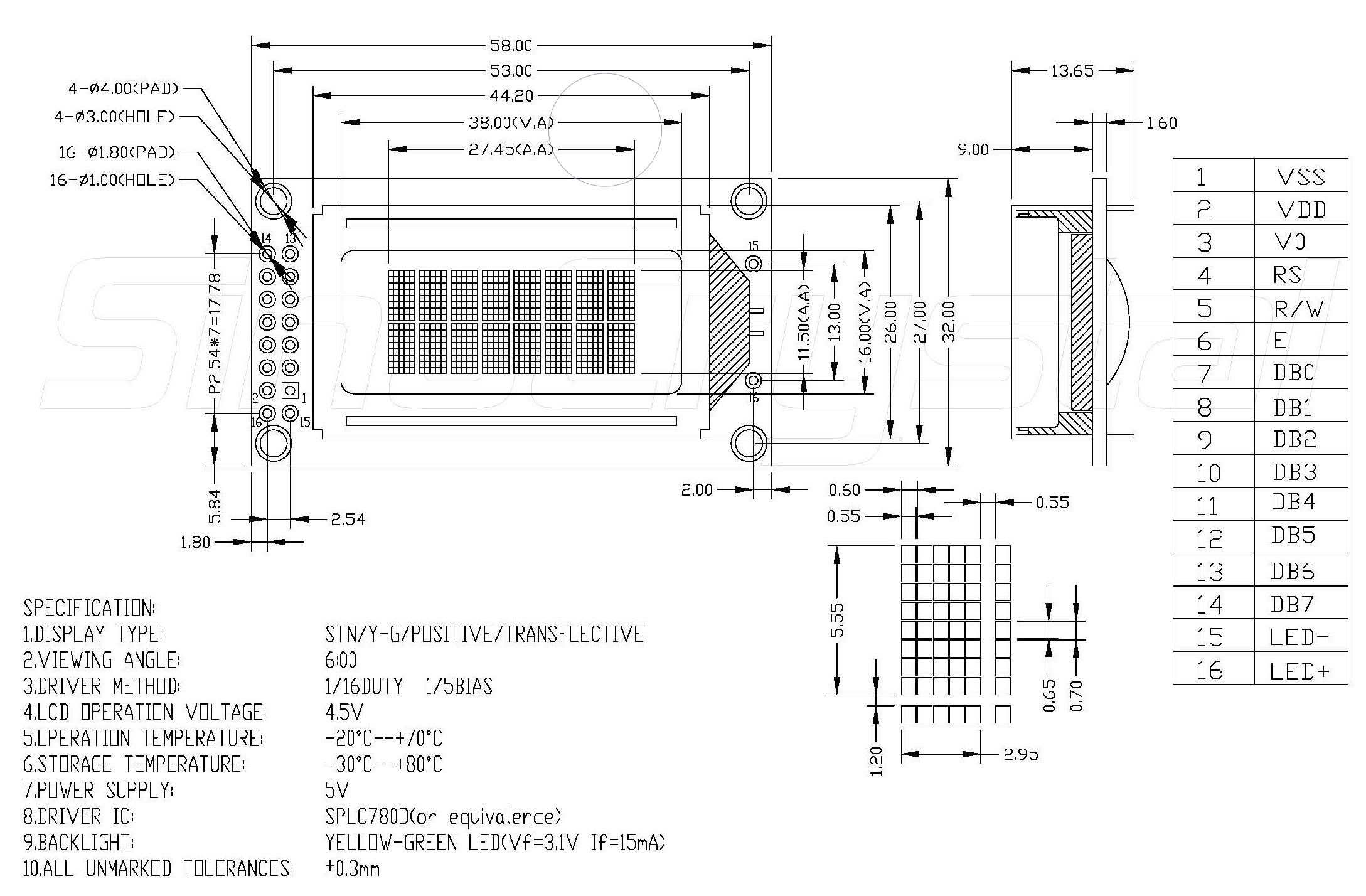

Drawing
General Specification
|
ITEM
|
STANDARD VALUE
|
UNIT
|
|
NUMBER OF CHARACTER
|
8×2
|
Mm
|
|
MODULE DIMENSION
|
58.0×32.0×13.65
|
Mm
|
|
VIEWING AREA
|
38.0×16.0
|
Mm
|
|
DOT SIZE
|
0.55×0.65
|
Mm
|
|
DOT PITCH
|
0.60×0.70
|
Mm
|
|
LCD TYPE
|
STN/YELLOW-GREEN/POSITIVE/REFLECTIVE
|
|
|
DUTY
|
1/16
|
|
|
VIEWING DIRECTION
|
0.25
|
o'clock
|
|
BACK LIGHT TYPE
|
SIDE LIT LED
|
|
|
BACK LIGHT COLOR
|
YELLOW-GREEN
|
|
|
APPROX. WEIGHT
|
TBD
|
G
|
Interface Definition
|
Pin No.
|
Symbol
|
Level
|
Description
|
|
1
|
VSS
|
--
|
Gound
|
|
2
|
VDD
|
--
|
Supply voltage for logic
|
|
3
|
V0
|
--
|
Supply voltage for LCD
|
|
4--11
|
|
|
Register selection input
H : Indicate that DB0 to DB7 are display data. L : Indicate that DB0 to DB7 are control data
|
|
12
|
RW
|
H/L
|
Read or Write signal
0 : Write
1 : Read
|
|
13
|
E
|
H/L
|
Enable signal
|
|
14
|
DB0-DB7
|
H/L
|
8-bit bi-directional data bus
|
|
15
|
LED-
|
---
|
LED backlight cathode
|
|
16
|
LED+
|
--
|
LED backlight anode
|
