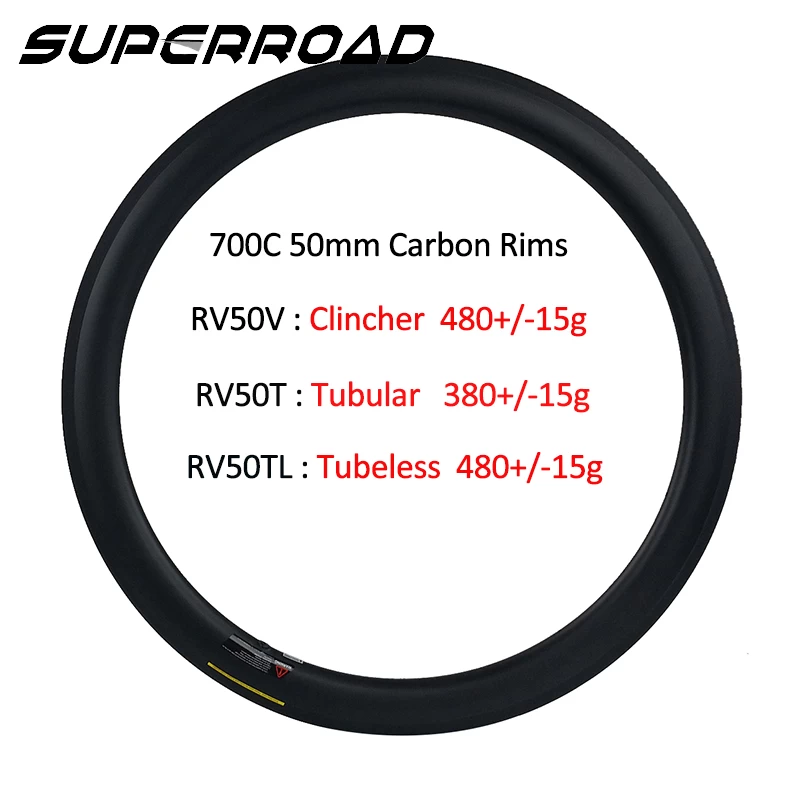

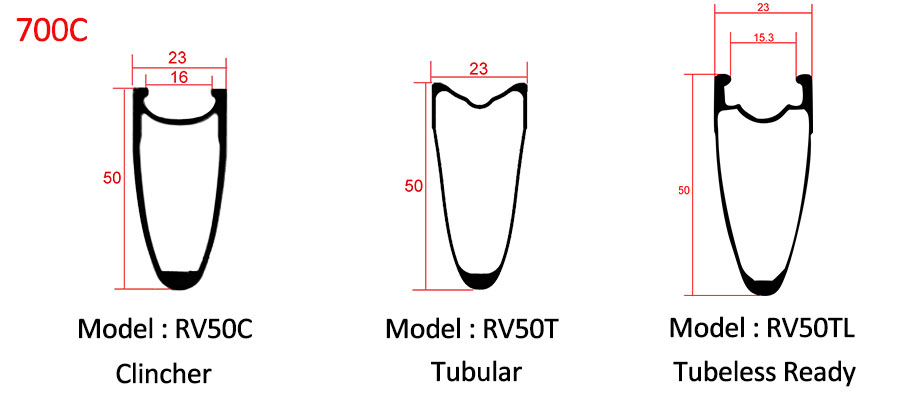

50mm carbon rims geometric:
|
Model
|
RV50C
|
RV50T
|
RV50TL
|
|
Material
|
Toray T700
|
Toray T700
|
Toray T700
|
|
Rim Width (Outer/Inner)
|
23/16mm
|
23/--mm
|
23/16mm
|
|
Rim Depth
|
50mm
|
50mm
|
50mm
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
Matte/Glossy
|
|
Rim Type
|
Clincher
|
Tubular
|
Tubeless Ready
|
|
Style
|
V Shape
|
V Shape
|
V Shape
|
|
Brake System
|
Rim Brake
|
Rim Brake
|
Rim Brake
|
|
ERD
|
546
|
546
|
546
|
|
Spoke Holes
|
16/18/20/21/24/28H
|
16/18/20/21/24/28H
|
16/18/20/21/24/28H
|
|
Rim Weight
|
480+/-15g
|
380+/-15g
|
480+/-15g
|
|
Max Spokes Tension
|
130kgf
|
130kgf
|
130kgf
|
|
Max Tyre Pressure
|
120 Psi
|
120 Psi
|
120 Psi
|
|
Max Rider Weight
|
120 Kg
|
110 Kg
|
120 Kg
|
|
Decals
|
Customized
|
Customized
|
Customized
|
|
Warranty
|
2 Years
|
2 Years
|
2 Years
|
23mm wide 50mm road bike rims ideas from classic version V shape design.As Superroad cheap road bike rims series,high quality with competitive price,keep in large stock of 50mm clincher rims.Enough deep rim design get more stiffer and aero edge.
