1.It can heat under constant temperature and form film in negative pressure;
2.It will evaporate hydrolytic enzymes to condense receiving;
3.Specially it is suitable for concentration, crystallization, separation and reclamation, etc;
4.It is an ideal device for biological pharmaceutical, chemical and food industry.
|
Model
|
OLT-RE-13
|
OLT-RE-14
|
OLT-RE-15
|
|
Evaporating Flask(L)
|
10
|
20
|
50
|
|
Receiving Flask(L)
|
5
|
10
|
20
|
|
Rotating Motor(W)
|
180
|
370
|
|
Rotating Speed(R/min)
|
0-120
|
0-90
|
|
Evaporation Speed (L/H2O)
|
>3L/h
|
>5L/h
|
>9L/h
|
|
Condenser Cooling Surface(sq.m.)
|
0.57
|
1
|
1.5
|
|
Vacuum Degree
|
0.098Mpa
|
|
Sealing Mode
|
PTFE Sealing System
|
|
Water Bath Configuration
|
Water Bath Lifting or Electric Hoist
|
|
Water(Oil) Bath Power(kw)
|
3
|
5
|
7|9
|
|
Temperature Control Range
|
0-99(250)℃
|
|
Temp Fluctuation/Resolution
|
±1/1℃
|
|
Condenser
|
Vertical Double Condenser
|
|
Voltage (V/Hz)
|
108V-220V 50/60
|
108V-220V 50/60
|
|
Note
|
Customized configuration is available.
|

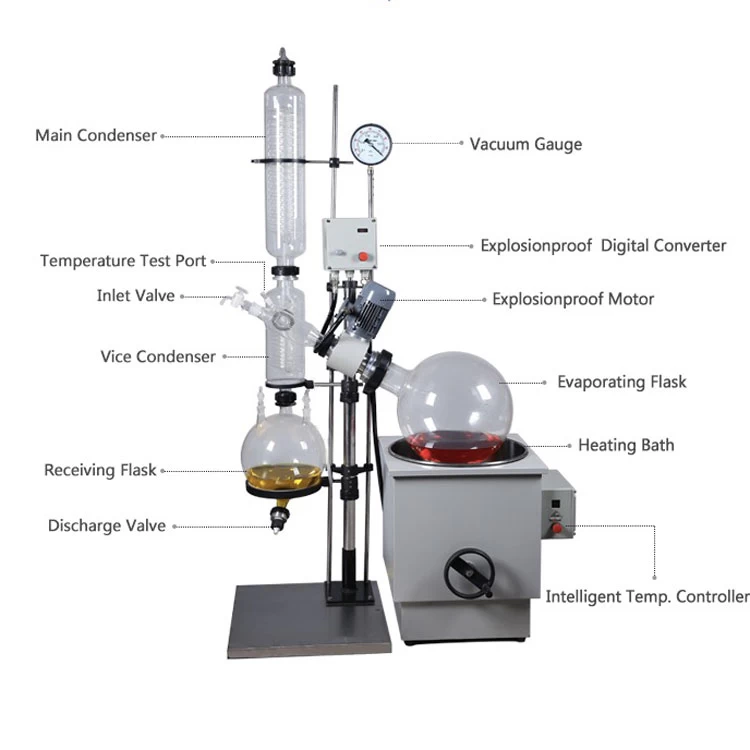

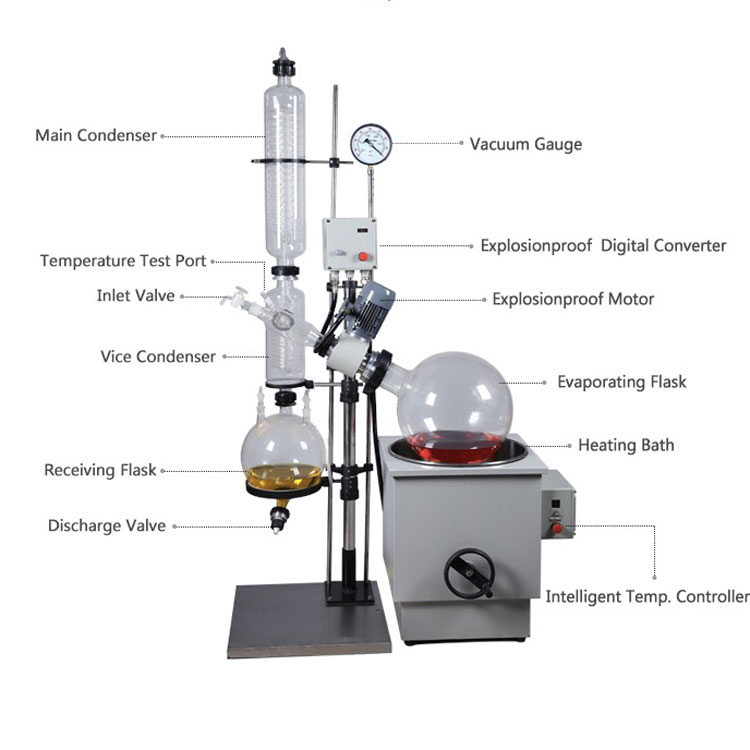

Chemical Lab Glass Distillation Rotary Evaporator Device Equipment works by heating liquids under low pressure, vaporizing them and condensing that gas in a separate vessel, just like many other distillation apparatus. However, Rotary Evaporator uses both temperature and pressure changes in its functionality. Our company's Evaporators have the volume from 0.25L to 50L and accept custimized volume.
1, Adopting international advanced EL gas-tight system can keep high vacuum degree. Gas-liquid separator, no reflux.

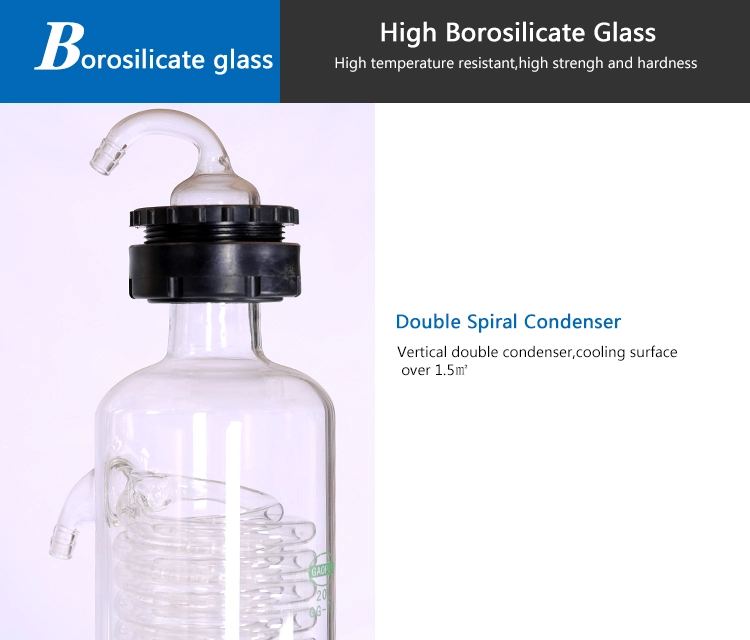

2, Host and vice highly effective double condenser, easy to install, good sealing, collection rate over 95%.
3, The rotating flask is connected by screw nut, easy to install and setup.

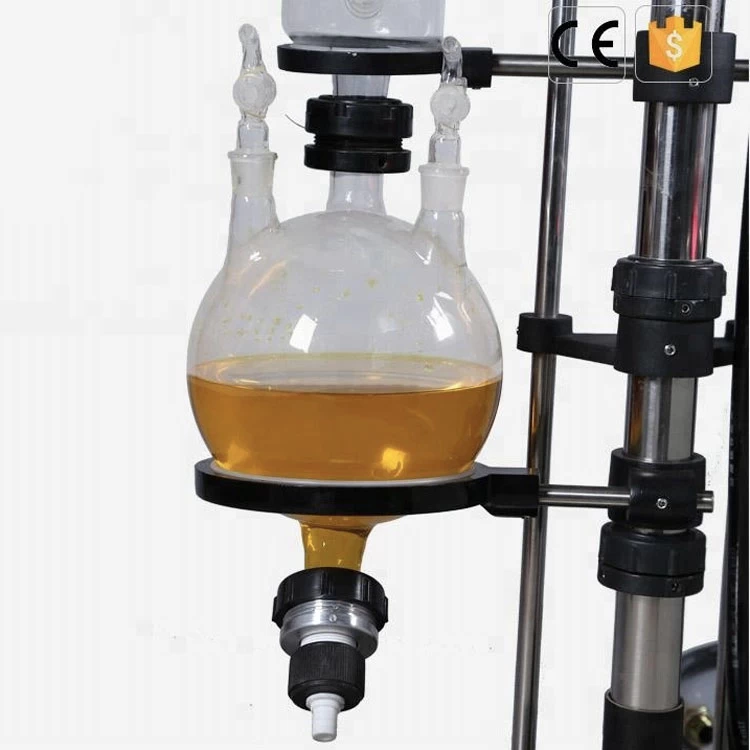

4, There is a discharge valve, fast to collect solvent.
5, Continuous feed are available.
6, The vacuum system is installed vacuum meter, and can adjust best vacuum degree for low boiling point material.

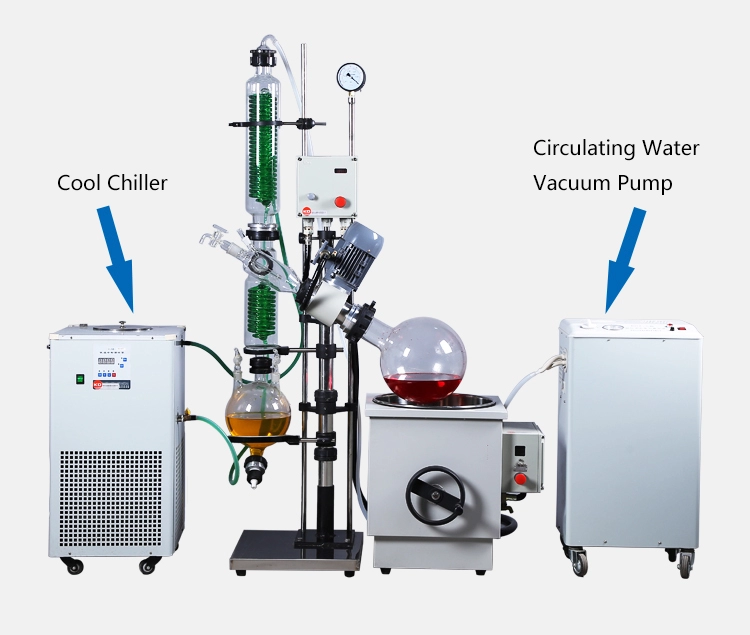

we also have ancillary equipment, for example:
Circulating water vacuum pump: To provide a vacuum source.
Cooling chiller: Low temperature reaction and re-flux, condensation.
