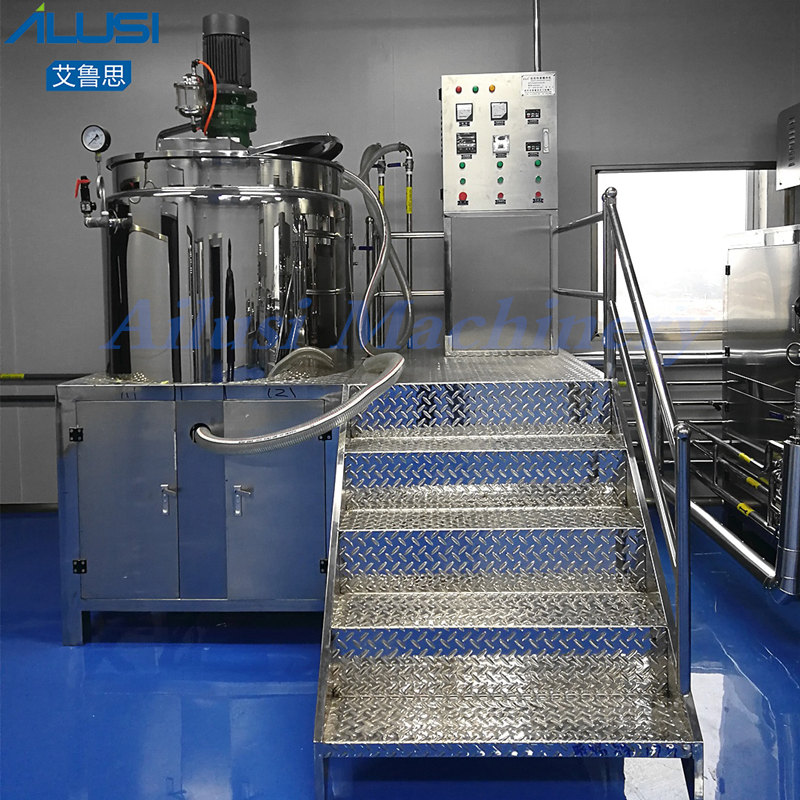

Chemicals Liquid Soap Mixing Making Machine

THe Soap Mixing Machine integrates Mixing, Homogenizing, Heating, Cooling, Pump discharging finished products and defoaming(option) functions, it is the ideal equipment for liquid products in domestic and international factories.





Main Features:

1. Liquid Mixer Machine is used for making shampoo, liquid soap, liquid detergent, liquid washing product and so on. It is with has high speed disperser. It is good for mixing and dispersing viscous liquid etc.

2. The Liquid Soap Making mixing system adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirements.

3. To speed up dissolution and emulsification of materials, bottom installation type dispersing head and pipeline type emulsifying head are optional.

4. Steam/ Electric heating with digital temperature control, When the Liquid Chemical Mixer Machine contents reach that temperature, we need the heating to automatically turn off.

Liquid Mixer Machine


Product Details:

1. Main Tank:

* Capacity: Working Volume: 50-5000L(can do customized)

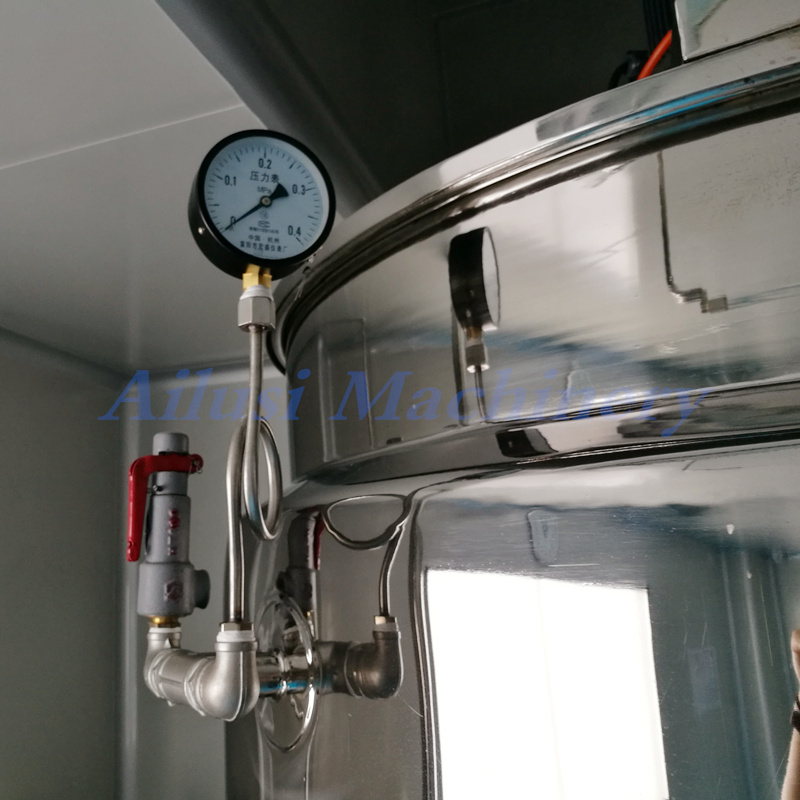

2. Jacket:It is jacketed for circulation or cold water and steam(can choose Single Layer Tank)

3. Lid Parts:Half open hinged lid and Man-hold are optional.

* GMP hygiene standards, made for SUS304(Can do cusotmized), Can open the lid at any time during the making products process, easy to cleaning

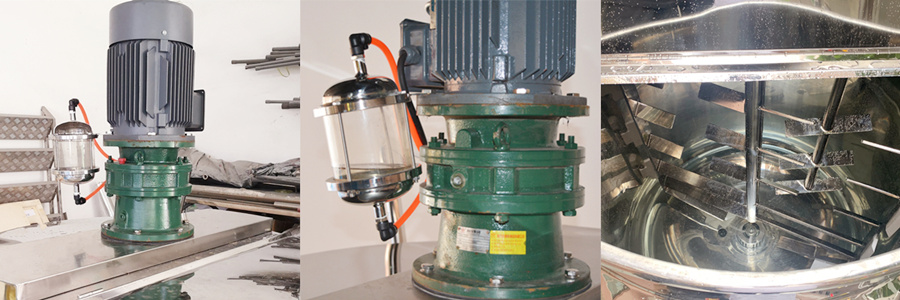

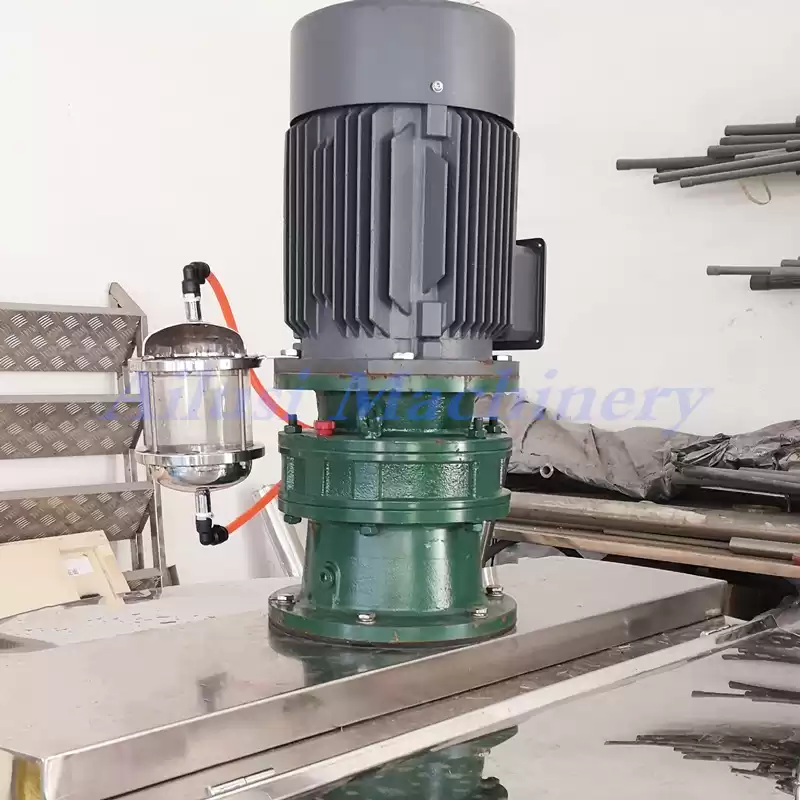

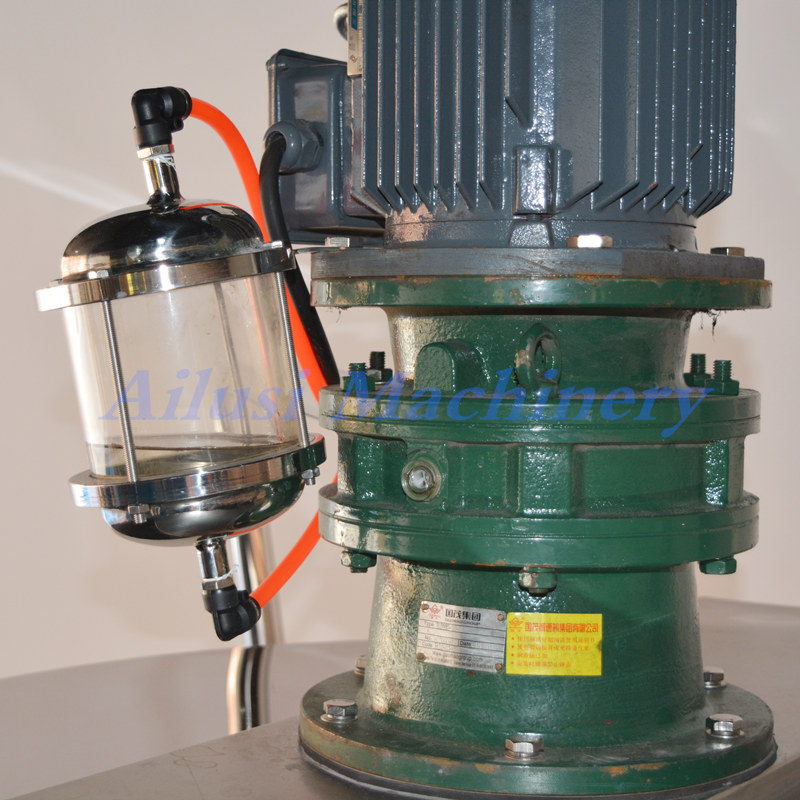

4. Agitator Motor:

* SIEMENS motor and reducer (can change to ABB motor)

5. Agitator:

* Mixing part: Frame oar scraping blender with one fixed oar.

* Stirrer paddle: Stir up and down, mixing more evenly.

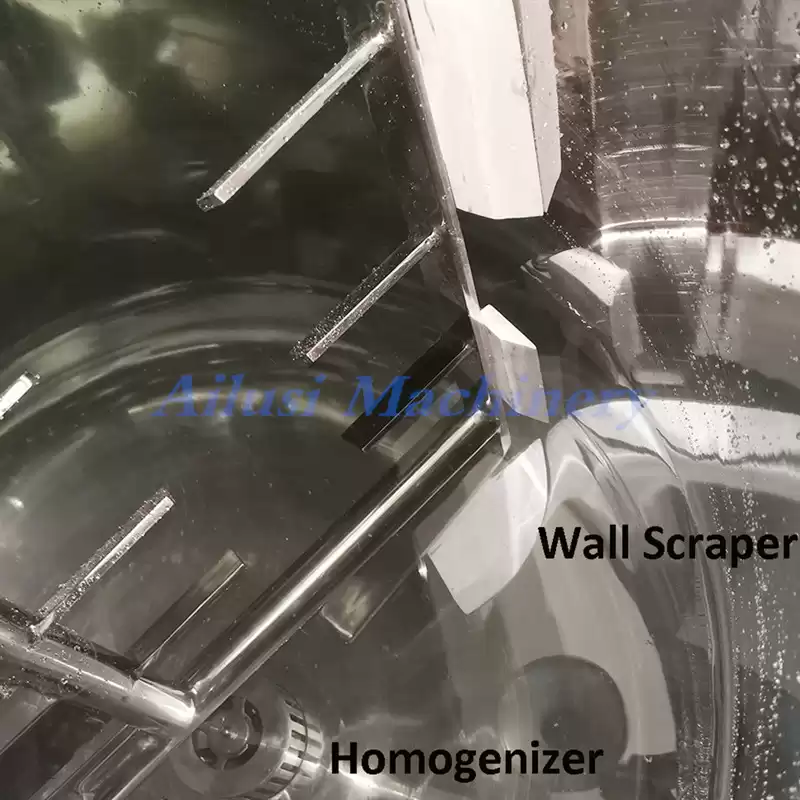

* Wall Scraper: PTFE material, Scraping off the materials that stick on pot wall, to make all materials mixing more evenly.

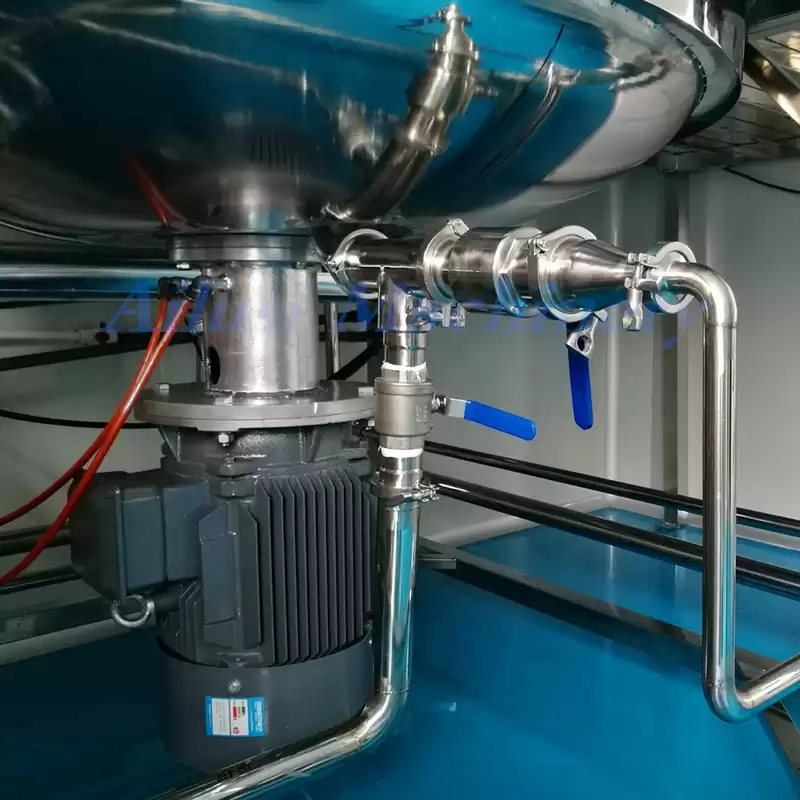

6. Bottom Homgenizer(can choose upper homogenizer or dispenser):

* SIEMENS motor

* Speed: 0-3600rpm

* Homogenizer part: Rotor and stator adopts wire-cutting finish machining high shearing homogenizer, smooth emulsion to 2μm.

7. Discharge part:Bottom discharge, dished bottom design and bottom flat valve to make discharge completely.

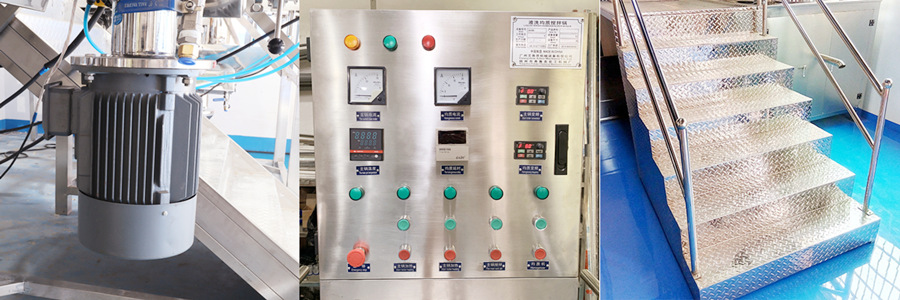

8. Electric control system & Platform(Optional)

* Shell material: SUS304, thickness: 2mm

* Standard Configuration: Instrument, button, appliance components

* All SUS and equipped with anti-skid plate

Liquid Chemical Mixing Machine

Soap Mixing Machine



Applicable Products:

1) Cosmetics

Skin cream, shaving cream, shampoo, cold cream, cold sun cream, cleanser, moisture cream, detergents, serums, moisturizers, hand cream and so on.

2) Daily chemical

Laundry detergent, hand sanitizer, toilet clean, automotive glass washer fluid and so on.

3) Pharmacy Industry

Latex, emulsions, salves (ointments), oral syrup, oral liquid and so on.

4) Food Industry

Sauce, Juice nutrient solution, infant food, chocolate, saccharides and so on.

5) Chemical Industry

Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and so on.


Our Servers:

Ailusi provide Turn-key Project Service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.

Company information for Liquid Chemical Mixer Machine
