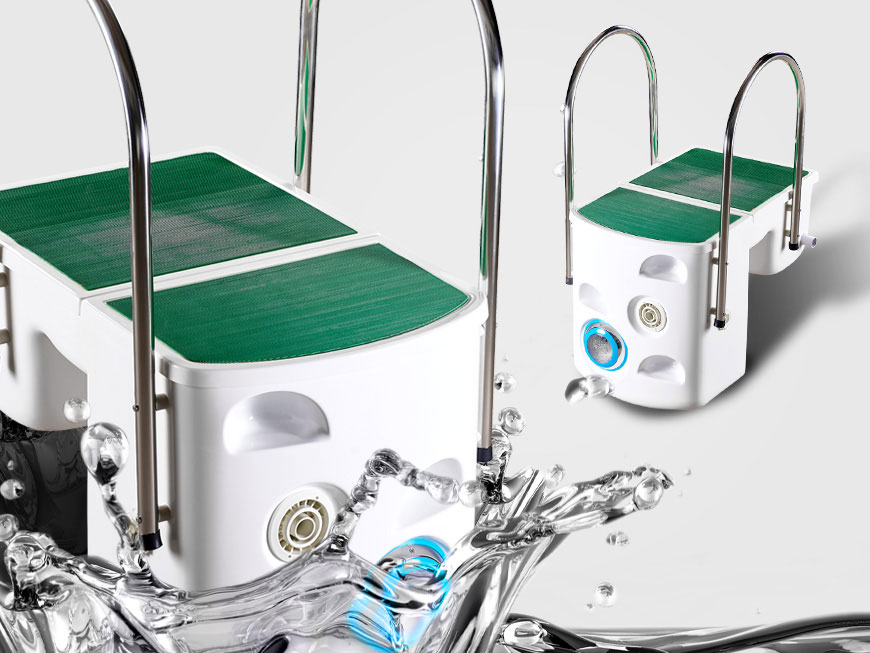

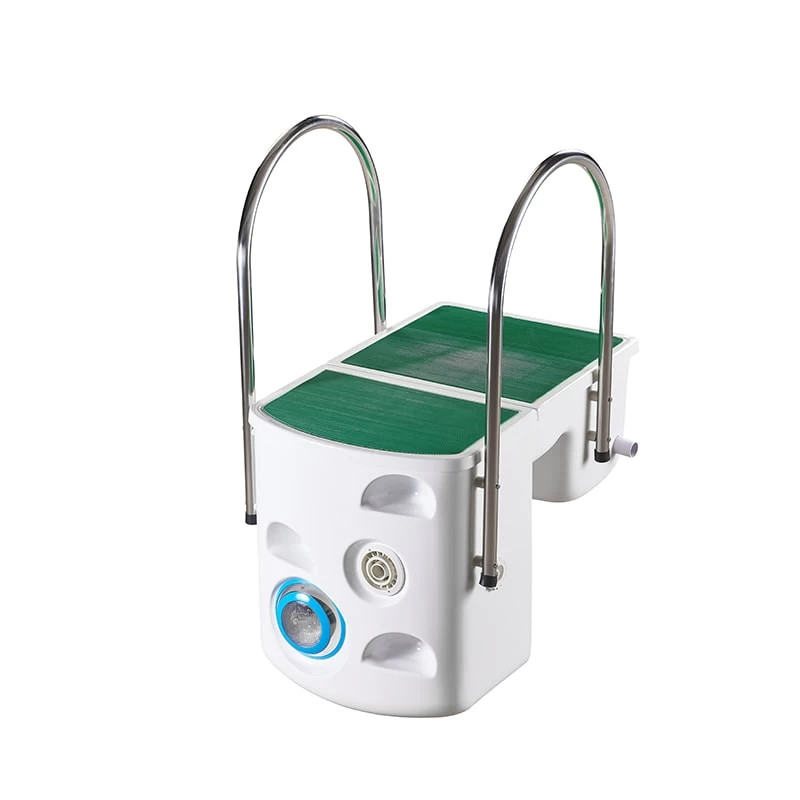

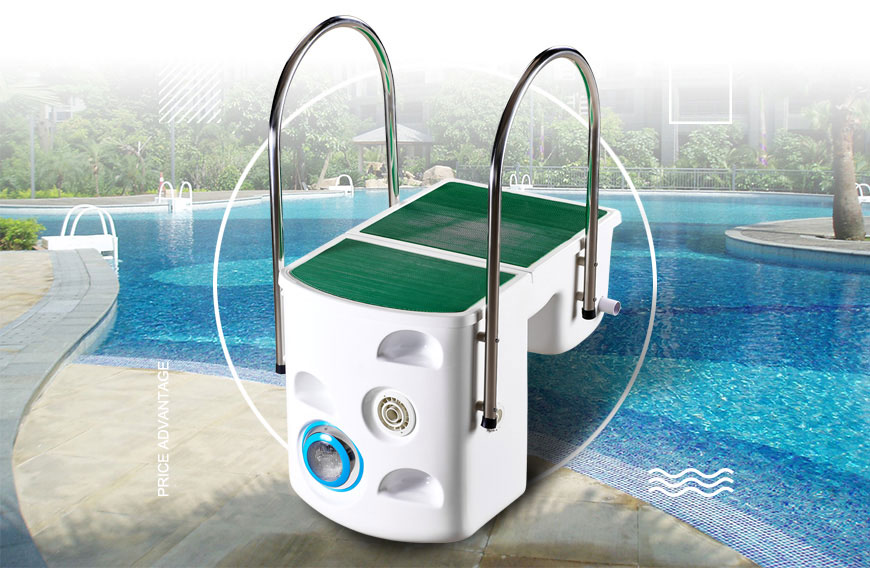

Children swimming pool complete filtration system wall mount filter PK8020

PK8020 shell is made of high quality acrylic,and is a complete pool water fitration system for children swimming pool,Easy installation and operation.



PK8020 complete filtration system wall mount filter for Children swimming pool


PK8020 is a complete pool water fitration system for children swimming pool , the shell is made of high quality acrylic, advantage is anti-acid, anti-fading, and easy to clean. Easy installation and operation.It is anti-acid,anti-fading,and easy to clean.Integrated filter no need machine room,excellent performance,thereby reducing the construction cost.


The swimming pool complete filtration system is made according to countries codes and standards.

small pool filter


small pool filter


TECHNICAL CHARACTERISTICS
Dimensions
1110x 670x 780mm
Flow rate
10m³/h     15m³/h
Voltage
220V / 50Hz  or 60Hz
Precision of filtration bag
≤5u
Operating noise
≤50Db
Material
Acrylic

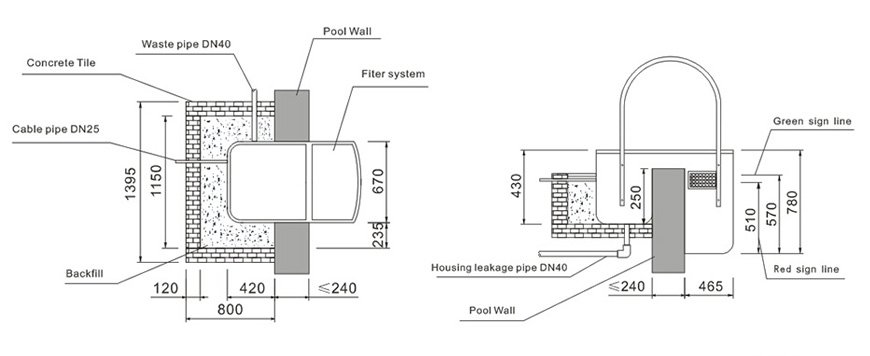

Installation
wall mounting
EQUIPMENT
Filtration Pump
1x1HP          1x1.5HP
Filtration basket with bag
           1pc
Chlorine feeder
1pc
Light
1x LED or 100W
Time controller
1pc
Swim jet
2pcs
Handle rail (S.S.)
2pcs
Heater (optional)
1pc
Ozone(optional)
1pc
SYSTEM
Filtration system
1pc
Disinfection system
1pc
Time control system
1pc
Circle system
1pc
Lighting system
1pc

small pool filter




small pool filter
