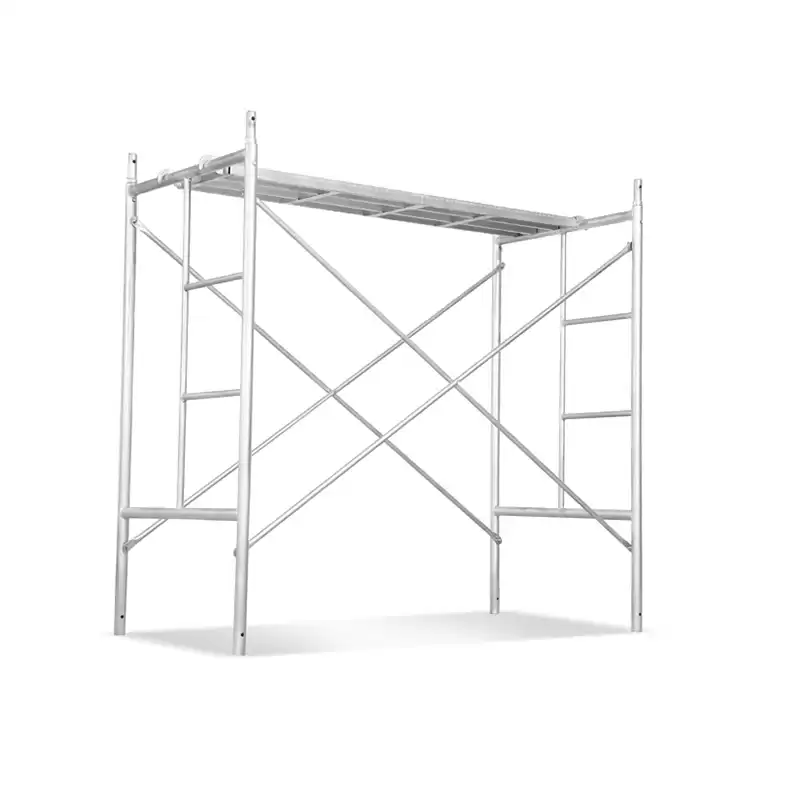

AJ Building's 5x5 Scaffold Frame
Our 5x5 scaffolding frame is made of high-quality Q235 Steel and complies with OSHA regulations, providing you with the highest safety standards, so that your project provides sufficient safety protection.
In order to meet your more needs, AJ Building, as the source factory, provides you with different specifications, surface treatments, colors and other customized options to meet your range of customized needs.
Features of 5x5 Scaffold Frame
-
Durability
The good quality of steel guarantees the strength and load-bearing capacity of the scaffolding system.
-
Safety
Our 5x5 scaffolding conforms to the international safety recommendations for worker safety.
-
Easy to Use
5-by-5 scaffolding works with most scaffolding systems and also has a fast, yet secure locking mechanism that allows easy installation and dismantling.
Specifications of 5x5 Scaffold Frame
|
Frame Height
|
5 ' (1524 mm)
|
|
Frame Width
|
5 ' (1524 mm)
|
|
Material
|
Steel
|
|
Weight
|
30-45 kg (66-99 lbs)
|
|
Interior Tubes Thickness
|
2.5 mm - 3 mm
|
|
Outer Diameter
|
48.3 mm (1.9 in)
|
|
Outside Diameter
|
5 feet (1524 mm) in height and 5 feet (1524 mm) in width
|
Surface Treatment of 5x5 Scaffold Frame
AJ Building offers a variety of surface treatment options for your 5x5 scaffold frame to meet your diverse color needs and performance requirements.
- Painted: Painted scaffold frames have a smooth and uniform surface, and you can choose from a variety of colors to enhance the aesthetics of the scaffold.
- Powder coating: Apply dry powder to the frame, making your scaffold highly resistant to chipping, scratching, fading and corrosion, effectively improving the durability and service life of the scaffold.
- Galvanized: The scaffold frame is coated with a layer of zinc through hot-dip galvanizing or electro-galvanizing, giving the scaffold a shiny metal appearance and extremely strong durability.
Application of 5x5 Scaffold Frame

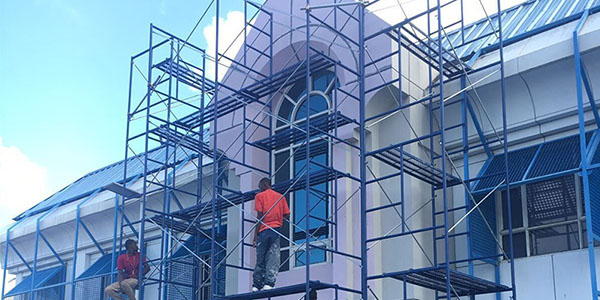

Our 5x5 scaffold frame can provide a stable and reliable support structure for various Construction Sites.
- Construction: AJ Building's 5x5 scaffold frame is used in residential construction projects to provide support for workers and materials when building larger projects such as multi-story homes, apartments or townhouses, office buildings, shopping malls or retail spaces.
- Bridge Construction and Maintenance: For bridge construction or repair, construction or maintenance of overpasses, tunnels and viaducts, scaffold frames provide reliable support for workers and equipment.
