China Best Arc Motor Supplier High Precision Slide Table Smooth Operated CNC Guide Motor Ball Screw Linear Module LSS135M

Ball Screw Linear Module Guide Rail Linear Motion CNC Linear Guide Rail With 400W Motor


Product description:

Effective Length:100-1050mm

Max. itinerary: 1050mm

Max. speed: 1600mm/s

Motor capacity: 400W

Balls crew: Φ16mm

Linear slide: W15*H12.5--two pieces


Features:

1. Semi-sealer structure, high stability, compact and versatility, suitable for normal working environment

2. It is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

3. Drive method: ball screw/ synchronous belt

4. High speed mute, high positioning accuracy with long service life



Products Name:       Linear Guides Ball Screw Modules Effective Stroke 100-1050mm Aluminum and stainless Steel for CNC milling machine



Product Specifications

Performance

Repeat positioning accuracy (mm)

±0.01

Screw lead (mm)

5

10

20

32

Max. velocity (mm/s)

250

500

1000

1600

Max. conveyable weight

horizontal (kg)

70

47

24

13

Vertical  (kg)

17

12

6

 -

Rated thrust (N)

1388

694

433

347

Standard stroke (mm)

100-1050mm

Parts

AC servo motor power (W)

400

Ball screw O.D mm)

C7 Φ16

Linear slide

W15*H12.5

Coupling

Motor Φ14 * screwΦ10

Original sensor

external hanging

EE-SX672 (NPN)

build-in

EE-SX674 (NPN)


Sensor Connection Diagram  <Origin and End Points>

CNC Ball Screw Module Linear Slide Module

 Allowable load torque table N.m

CNC Ball Screw Module Linear Slide Module



Installation method:

                                                                                                                       (Unit: mm)

Horizontal installation

A

B

C

Lead 5

40kg

795

63

225

55kg

558

43

155

70kg

422

32

115

Lead 10

25kg

588

95

276

35kg

410

65

190

47kg

295

46

135

Lead 20

6kg

1068

355

710

15kg

416

136

275

24kg

252

81

166

Lead 32

7kg

385

205

298

13kg

204

106

156

 -

 -

 -

 -



                                                                                                              (Unit: mm)

Hanging installation

A

B

C

Lead 5

30kg

310

88

1066

50kg

172

49

620

70kg

115

32

422

Lead 10

20kg

351

122

743

30kg

225

78

484

47kg

135

46

294

Lead 20

5kg

852

428

1227

12kg

345

173

522

24kg

166

81

253

Lead 32

6kg

350

240

453

13kg

155

106

204

 -

 -

 -

 -


                                                            (Unit: mm)

Vertical installation

A

C

Lead 5

5kg

580

580

11kg

264

264

17kg

170

170

Lead 10

4kg

644

644

8kg

322

322

12kg

215

215

Lead 20

3kg

667

667

6kg

335

335

 -

 -

 -


  Static allowable load inertia

CNC Ball Screw Module Linear Slide Module

                                (Unit: mm)

MY

174

MP

175

MR

153


 Matching with Servo Motor List

Brand

Motor Model

Brake or without brake

Power

Voltage

Servo motor Model

Servo driver model

Han's

H

without brake (Horizontal )

400

200

HSAL-A04FL-B0.2-C2

HANS-A-00323-P

Brake (Vertical )

400

200

HSAL-A04BL-B0.2-C2

HANS-A-00323-P

International

P

without brake (Horizontal )

400

200

MSMF042L1U2M

MBDLN25SE

Brake (Vertical )

400

200

MSMF042L1V2M

MBDLN25SE

Mitsubishi

M

without brake (Horizontal )

400

200

HF-KP43

MR-J3-40A

Brake (Vertical )

400

200

HF-KP43B

MR-J3-40A



Dimension

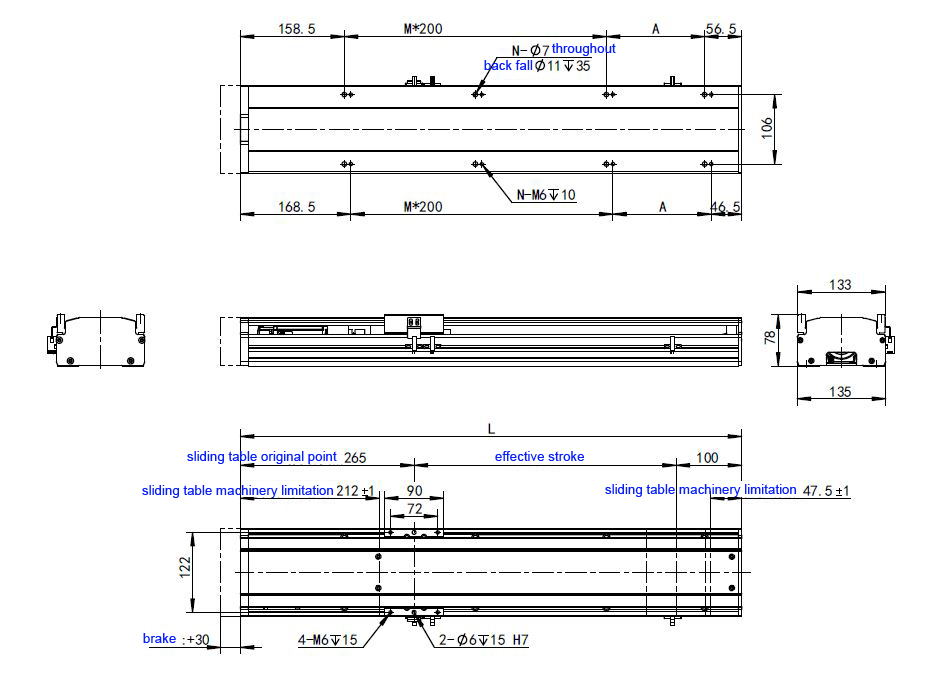

Motor Built-in

HAN'S MOTOR linear motor module


Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

1050

L

465

515

565

615

665

715

765

815

865

915

965

1015

1065

1115

1165

1215

1265

1315

1365

1415

A

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

M

1

1

1

1

2

2

2

2

3

3

3

3

4

4

4

4

5

5

5

5

N

6

6

6

6

8

8

8

8

10

10

10

10

12

12

12

12

14

14

14

14

KG

8.86

9.42

9.98

10.54

11.1

11.66

12.22

12.78

13.34

13.9

14.46

15.02

15.58

16.14

16.7

17.26

17.82

18.38

18.94

19.5

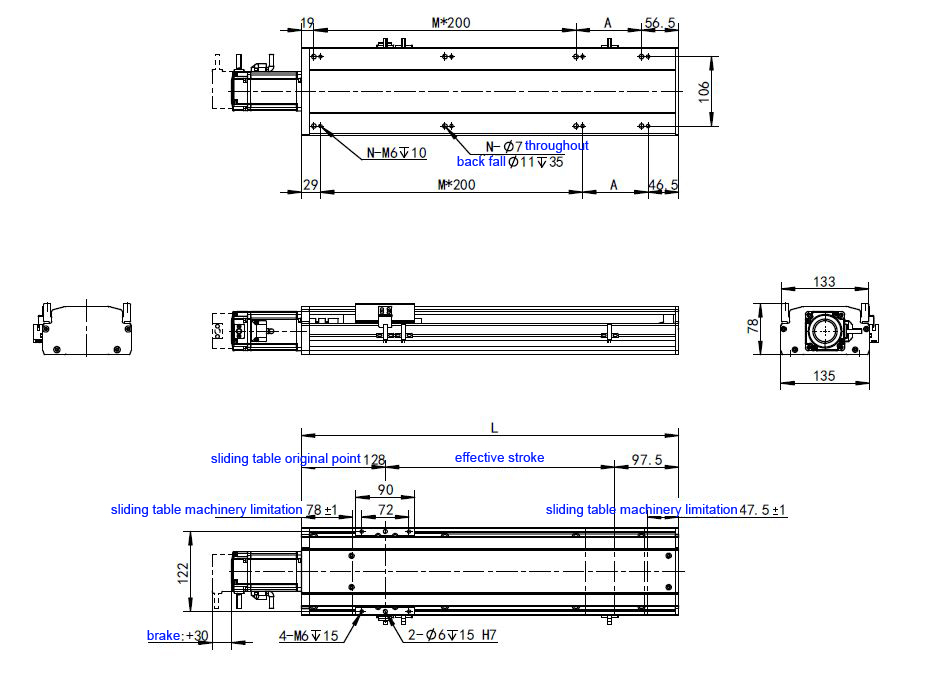

Motor Exposed

HAN'S MOTOR linear motor module



Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

1050

L

325.5

375.5

425.5

475.5

525.5

575.5

625.5

675.5

725.5

775.5

825.5

875.5

925.5

975.5

1025.5

1075.5

1125.5

1175.5

1225.5

1275.5

A

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

M

1

1

1

1

2

2

2

2

3

3

3

3

4

4

4

4

5

5

5

5

N

6

6

6

6

8

8

8

8

10

10

10

10

12

12

12

12

14

14

14

14

KG

7.96

8.52

9.08

9.64

10.2

10.76

11.32

11.88

12.44

13

13.56

14.12

14.68

15.24

15.8

16.36

16.92

17.48

18.04

18.6

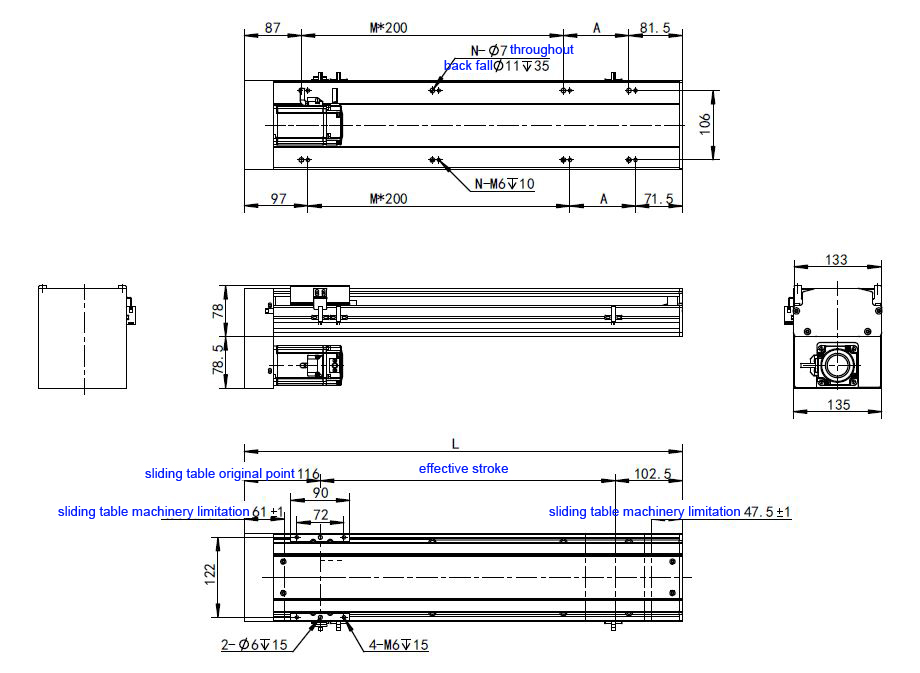

Motor Fold Down

linear motion guide rail


Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

1050

L

318.5

368.5

418.5

468.5

518.5

568.5

618.5

668.5

718.5

768.5

818.5

868.5

918.5

968.5

1018.5

1068.5

1118.5

1168.5

1218.5

1268.5

A

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

M

0

0

1

1

1

1

2

2

2

2

3

3

3

3

4

4

4

4

5

5

N

4

4

6

6

6

6

8

8

8

8

10

10

10

10

12

12

12

12

14

14

KG

8.5

9.06

9.62

10.18

10.74

11.3

11.86

12.42

12.95

13.54

14.1

14.66

15.22

15.78

16.34

16.9

17.46

18.02

18.58

19.14

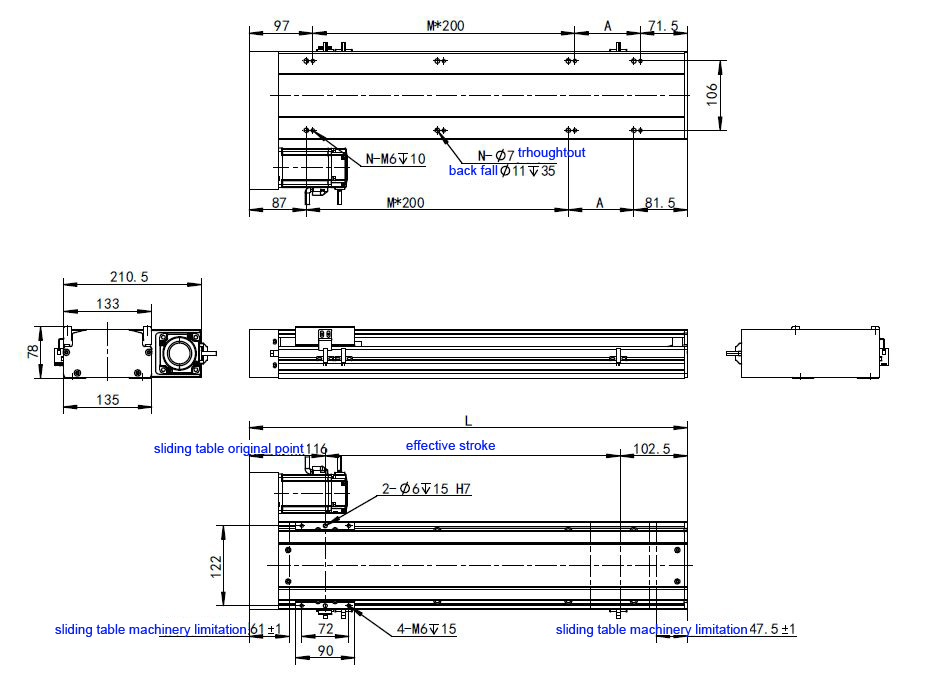

Motor Left Fold

linear motion guide rail



Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

1050

L

318.5

368.5

418.5

468.5

518.5

568.5

618.5

668.5

718.5

768.5

818.5

868.5

918.5

968.5

1018.5

1068.5

1118.5

1168.5

1218.5

1268.5

A

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

M

0

0

1

1

1

1

2

2

2

2

3

3

3

3

4

4

4

4

5

5

N

4

4

6

6

6

6

8

8

8

8

10

10

10

10

12

12

12

12

14

14

KG

8.5

9.06

9.62

10.18

10.74

11.3

11.86

12.42

12.95

13.54

14.1

14.66

15.22

15.78

16.34

16.9

17.46

18.02

18.58

19.14

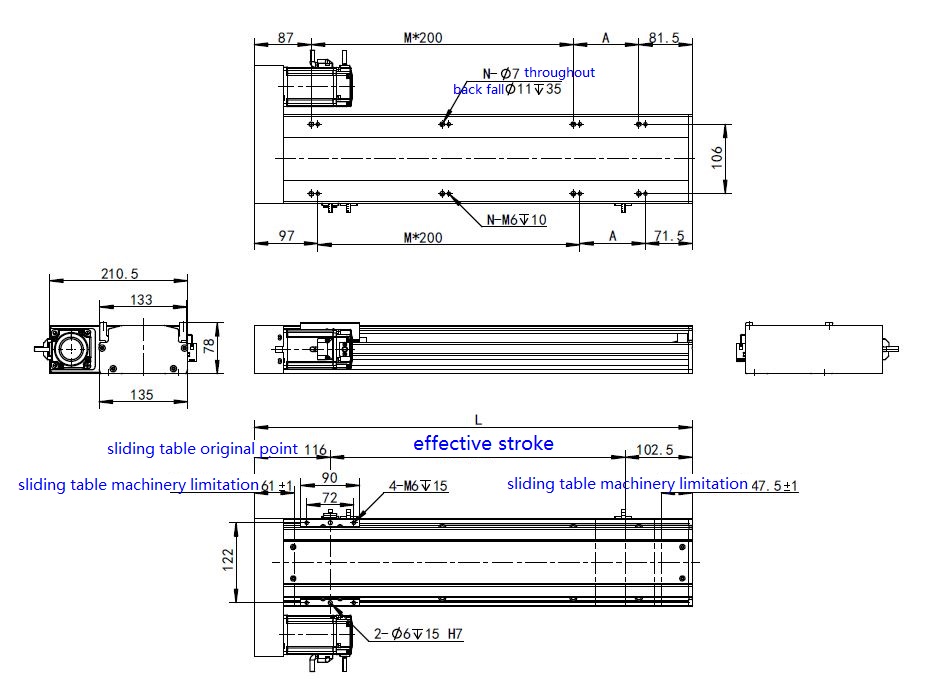

Motor Right Fold

linear motion guide rail


Effective stroke

100

150

200

250

300

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

1050

L

318.5

368.5

418.5

468.5

518.5

568.5

618.5

668.5

718.5

768.5

818.5

868.5

918.5

968.5

1018.5

1068.5

1118.5

1168.5

1218.5

1268.5

A

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

150

200

50

100

M

0

0

1

1

1

1

2

2

2

2

3

3

3

3

4

4

4

4

5

5

N

4

4

6

6

6

6

8

8

8

8

10

10

10

10

12

12

12

12

14

14

KG

8.5

9.06

9.62

10.18

10.74

11.3

11.86

12.42

12.95

13.54

14.1

14.66

15.22

15.78

16.34

16.9

17.46

18.02

18.58

19.14



Characteristics:

(1) Ball screw slide module: Including motor, coupling, mounting nut;

(2)  High hardness, not easy to rust, not easy to deformed, wear-resistant and anti-corrosion

(3)  Built-in aluminum mounting plate for excellent heat dissipation and lighter weight

(4)  Fully covered by metal shielding for eliminating EMI to nearby encoder head;

(5) Solutions: Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc.


HAN'S MOTOR Linear Motor Module Related Products.:

China Best DDR Motor Supplier


Company Advantages.:


1. We have independent functional departments of software and hardware design, PCB design and SMT,

self-developed & produced precision linear motor and motion stage, assembling, debugging and laboratory

2. High-quality market sales group in direct drive assembly field, linear motor, linear motion stage and servo module etc.

3. Stronger engineer team and 12 hours -6 days Online service, 16 years of design and manufacturing experience.
We can provide 2D and 3D design drawings, which can be customized.

4. Professional technicians guide customers in installation and usage, one-year quality warranty and strong after-sales team.

China Best DDR Motor Supplier HAN'S LASER


Our services.

One-stop Service:  Custom Design, Fabrication, Assembly And Delivery

Pre-sale service:  Free technical training, Quality assurance, Efficient service

HAN'S LASER China Best DDR motor Supplier

Applications:


Precision Machining, CNC Milling, CNC Lathe Turning, Tapping, Drilling, Grinding, Wie EDM, Stamping, Deep Drawing, CNC Punching, Laser Cutting, CNC Bending, Die Casting, Welding etc



HAN'S MOTOR China Best DDR motor Supplier


CNC Ball Screw Module Linear Slide Module



Packaging & Delivery:


Packaging Details.: plywood packing

Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity,

samples in stock will be delivered within 15 days and customized model will be delivered within 30 days.
