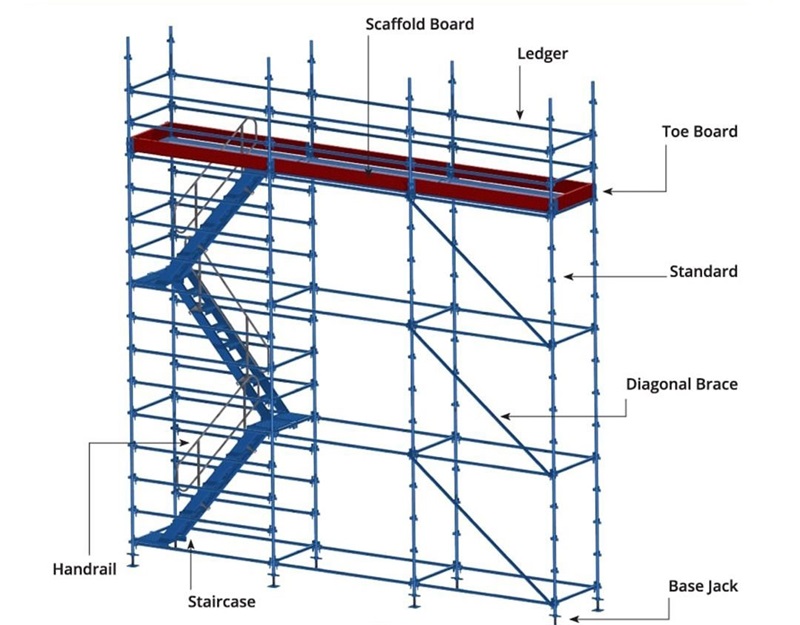

Ledgers - Horizontal components which link between the standards, offering lateral support to the framework.
Transoms - Placed across the ledgers to support the scaffold boards or platforms. Provides additional support and strength to the working platform.
Base Plates - which are utilized to ensure the load is evenly spread out across the floor. Adjustable jack bases are used for achieving level scaffolding on irregular surfaces and ground.
Diagonal Braces - Employed for bracing the scaffold construction to avoid swaying, and to boost the tower's all around structural strength.
Scaffolding Boards/Planks - Constructed of wood or metal, providing workers with a sturdy and level surface.
Toe Boards - Found at the edge of the working platform to help avoid items or tools from dropping off.

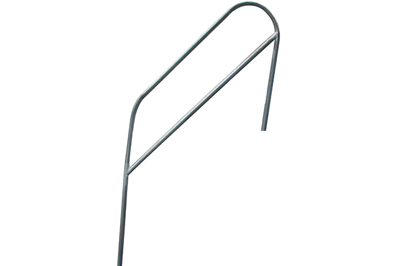

Guard Rails and Safety Barriers - Set up around the working platforms during scaffold installation to protect against falls.

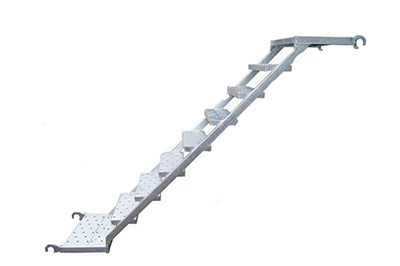

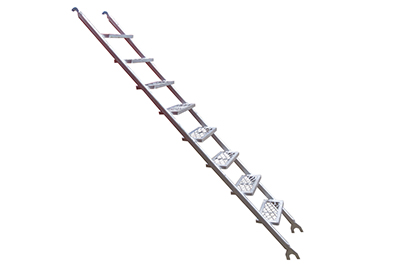

Access Ladders - Securely fixed ladders which provide safe access to the several floors of the scaffolding.

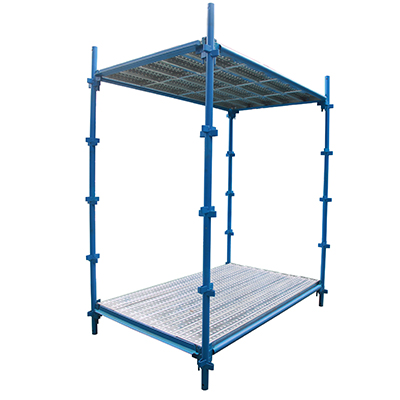

Kwikstage Scaffolding Standard Size

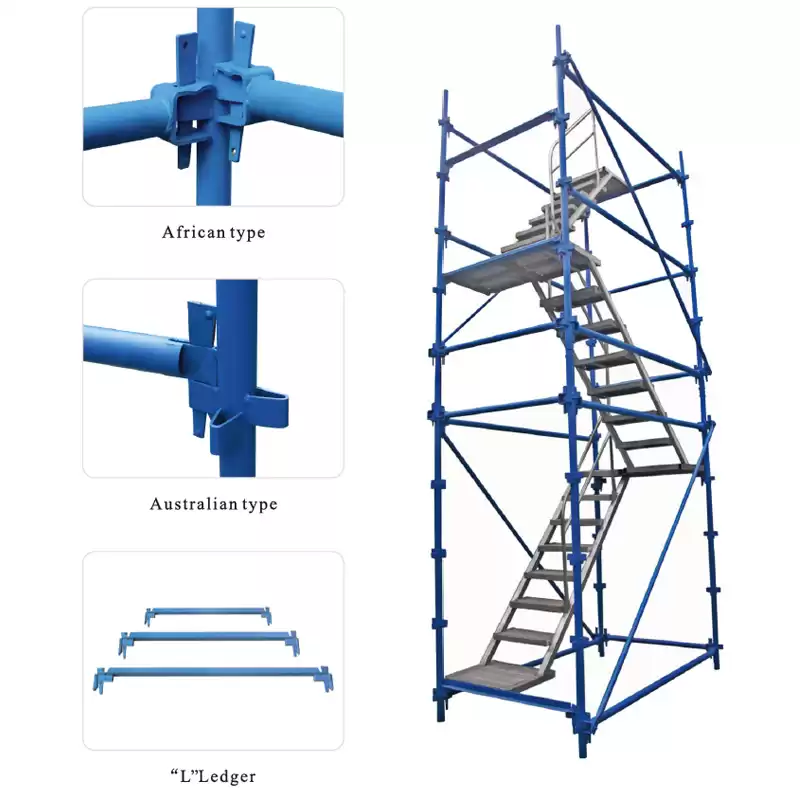

There is no standard size for Kwikstage scaffold systems, but Kwikstage scaffolding components are manufactured in standard sizes that are easy to be assembled to develop the right system. Kwikstage Scaffolding Standard Size Some of the key components of the Kwikstage scaffold include:

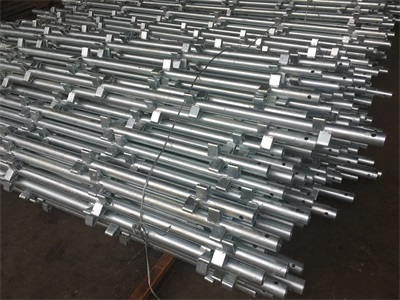

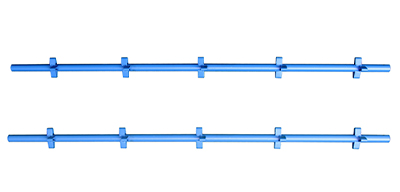

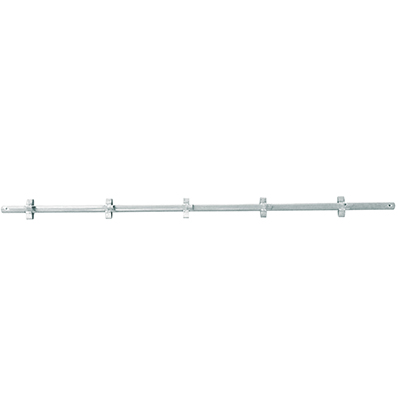

Standards
- The standards are the vertical and come in various lengths. They will be of different scaffolding heights. The common sizes are 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, and 3.00m. Each vertical length has a series of V-pressings at 500mm centers to accept the ledgers and transoms.

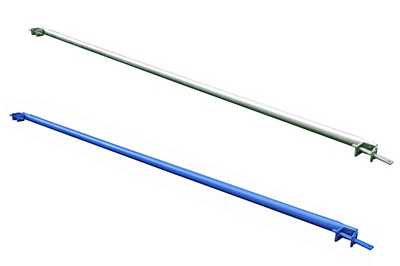

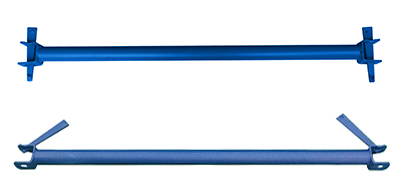

Ledgers
- The horizontal members or ledgers distribute the load. The ledgers come in four standard lengths and will create a scaffold bay width when used in multiples. The standard lengths are 0.7m, 1.2m, 1.8m, and 2.4m.

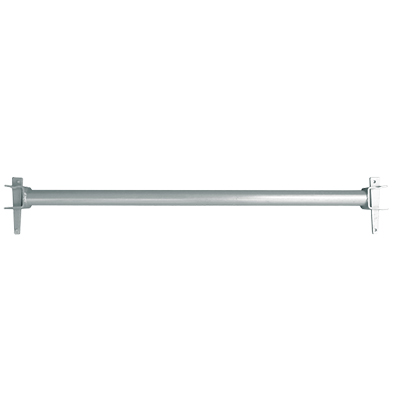

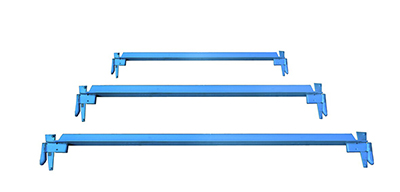

Transoms
- Transoms support the scaffolding boards and are also available in various lengths to match the scaffold width. Common sizes are similar to those of ledgers, ensuring compatibility.

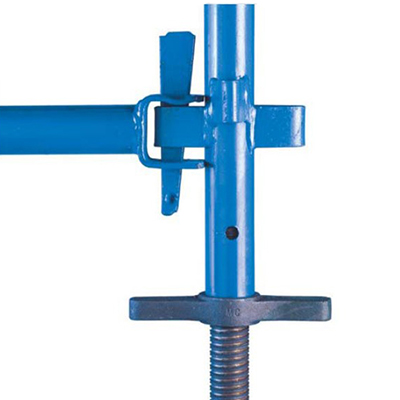

Base Jacks
- The base jacks are usually 36.5mm in diameter. They are used to allow for height adjustment and leveling of the scaffold, and the length can vary.
Diagonal Braces
- The lengths will be as required for the specific bay dimension they are bracing.
Boards/Planks
- Scaffolding boards are typically 38mm thick, 225mm wide, and lengths will align with the scaffold length (1.2m, 1.8m, 2.4m, etc.)

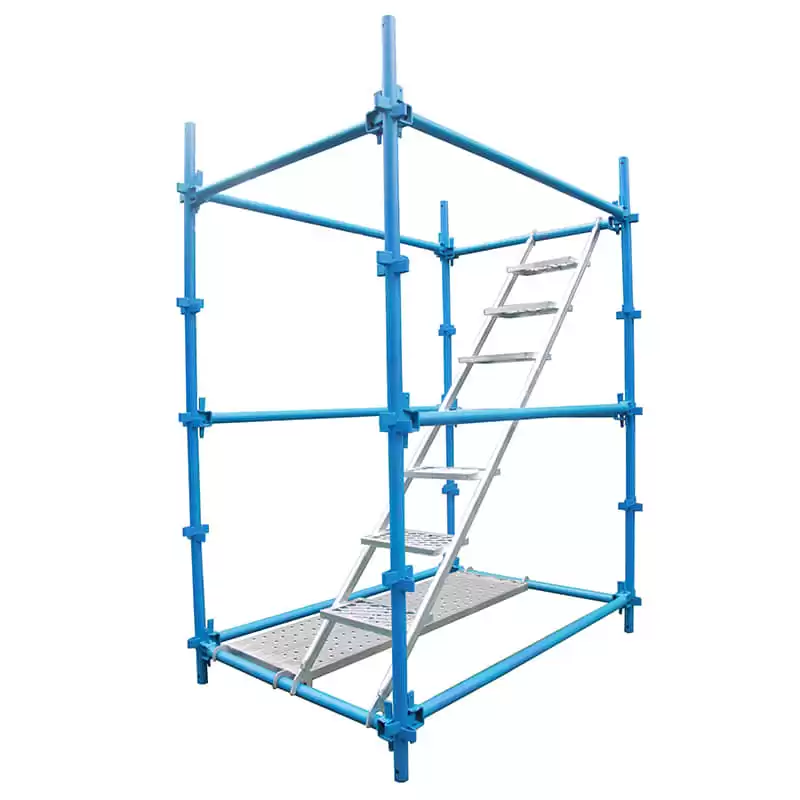

How to install Kwikstage Scaffolding
Installing Kwikstage scaffolding involves a systematic process to ensure safety and structural integrity. Below is a general guide on how to install Kwikstage scaffolding.
1.Position the base jacks accurately.
2.Install the Kwikstage standards onto the positioned base jacks.
3.Link the Kwikstage standards using Kwikstage ledgers.
4.Insert Kwikstage transoms amidst the Kwikstage standards.
5.Lay down Kwikstage battens atop the scaffold transoms.
6.Fine-tune the base jack to align the Kwikstage ledgers and transoms evenly.
7.Affix Kwikstage diagonal braces throughout the Kwikstage bays.
8.Add a second tier of Kwikstage ledgers and transoms.
9.Deploy a second tier of Kwikstage boards.
10.Install Kwikstage toe boards around the four edges of the scaffold board platform.
11.Construct additional Kwikstage uprights and interconnect them with horizontals, transoms, and boards.
Project Experience Of Kwikstage Scaffolding

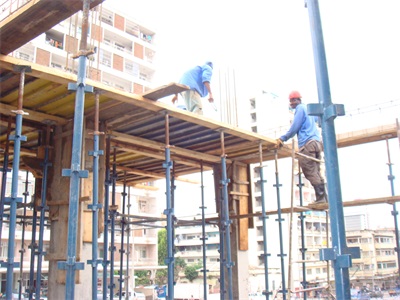

1. Construction Sites

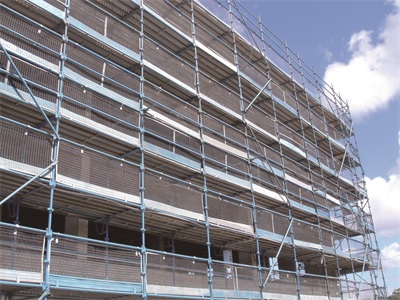

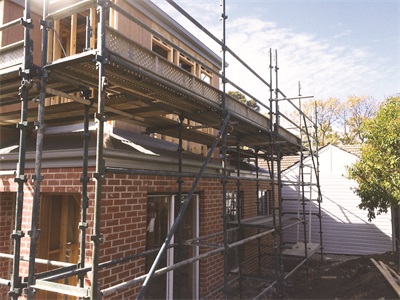

Building Construction - Kwikstage scaffolding is often used by construction workers on buildings of all sorts for work at different heights. It is appropriate for both residential and commercial projects.
Maintenance and Repairs - For buildings being repaired, maintained, or refurbished, Kwikstage scaffolding offers safe access to the parts of both the interior and exterior of a structure that need work.
Facade Work - Kwikstage scaffolding can be extensively modified to fit a building or portion of a building's facade. This could be for exterior finishes, plastering, or painting, providing access for workers.
2. Industrial Applications

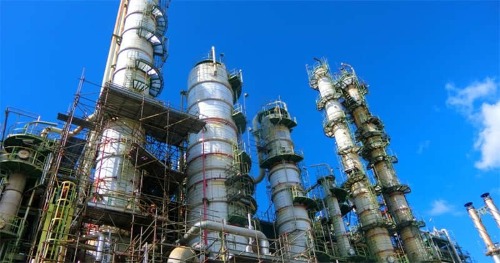

Refineries and Factories - Maintenance and installation are common in industrial environments, and Kwikstage scaffolding is used where structural elements are frequently serviced or altered.
Power Plants - In power generation (and other) plants, scaffolding is required to complete maintenance on boilers, machinery, and many other pieces of equipment.
3. Infrastructure Projects

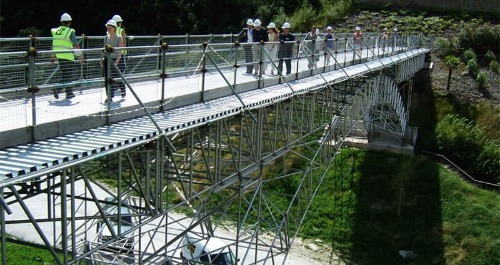

Bridge Construction and Maintenance - It is often necessary for the scaffolding to be able to fit around complex geometries, and as Kwikstage can be easily assembled in various configurations it is often used for bridge building.
Roadworks and Tunnels - It is a regular sight to find Kwikstage scaffolding used in the construction and maintenance of roads. It is also essential in tunnel building where the space can be limited.
