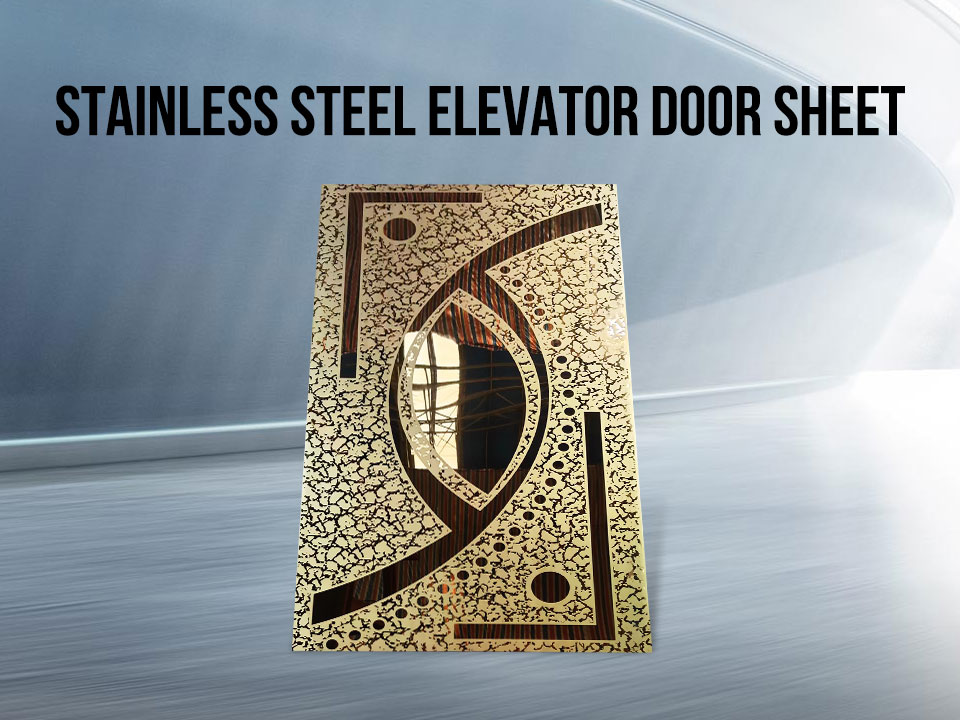

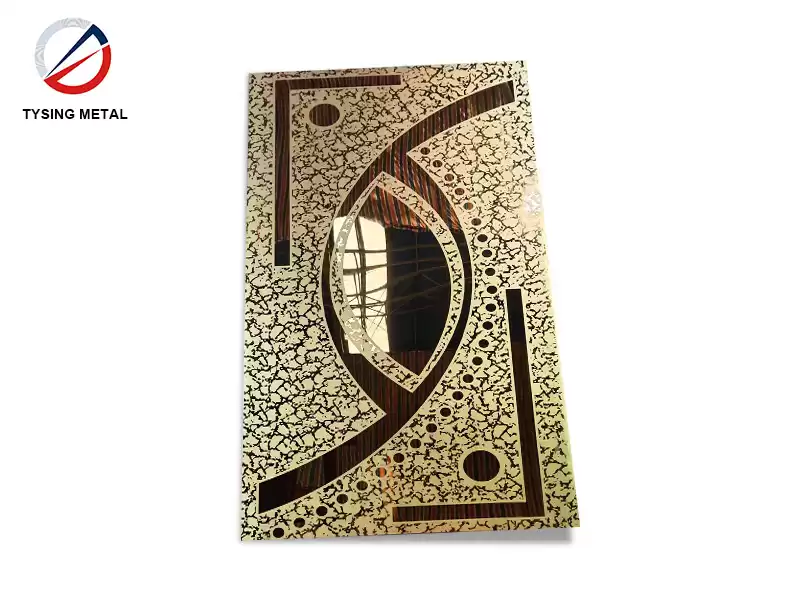

China Etching 304 Stainless Steel Sheet for Lift
Etching is a technique in which a material is removed using a chemical reaction or a physical impact.
Usually Etching Stainless Steel Sheet can be divided into two types: one is called exposure etching, commonly known as photosensitive etching. The other is screen printing etching, commonly known as silk screen printing.
| Name |
China Etching 304 Stainless Steel Sheet for Lift |
| Material Grade |
Stainless Steel 201/304/316 |
| Thickness |
0.5-3.0mm |
| Size |
1000*2000mm 1219*2240mm,1219*2438mm,1500*3000mm |
| Color |
Gold,Rose Gold,Bronze,Black,Champagne,White Gold,Brass,Etc |
| MOQ |
30pcs |
| Packing |
PVC+ waterproof paper + strong sea-worthy wooden package |
| Payment Term |
T/T, L/C at sight |
|
Chemical composition and mechanical properties of stainless steel coils
|
|
Grade
|
Chemical Composition (%)
|
Mechanieal Performece
|
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
Hardness
|
|
201
|
≤0.15
|
≤1.00
|
5.5/7.5
|
≤0.060
|
≤0.030
|
3.5/5.5
|
16.0/18.0
|
-
|
HB≤241,HRB≤100, HV≤240
|
|
304
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
8.0/11.0
|
18.00/20.00
|
-
|
HB≤187,HRB≤90,HV≤200
|
|
316
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.00
|
HB≤187, HRB≤90 HV≤200
|
|
316L
|
≤0.03
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.00
|
HB≤187, HRB≤90 HV≤200
|
|
410
|
≤0.15
|
≤1.00
|
≤1.25
|
≤0.060
|
≤0.030
|
≤0.060
|
11.5/13.5
|
-
|
HB≤183, HRB≤88 HV≤200
|
|
430
|
≤0.12
|
≤1.00
|
≤1.25
|
≤0.040
|
≤0.03
|
-
|
16.00/18.00
|
-
|
HB≤183, HRB≤88 HV≤200
|
The two printing processes are as follows:

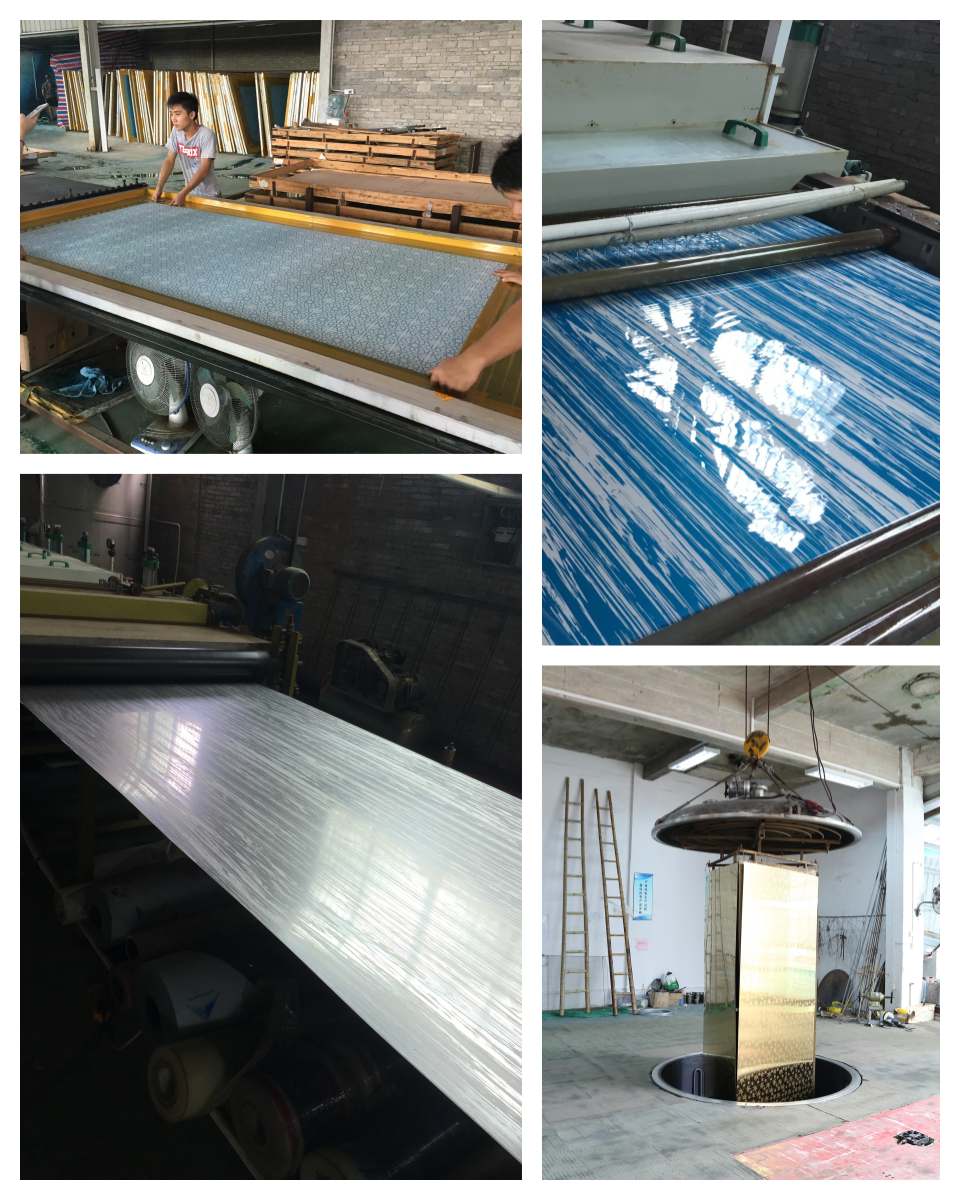

Exposure method: the project is based on the pattern to prepare the material size - material preparation - material cleaning - drying → film or coating → drying → exposure → development → drying - etching → stripping → OK
Screen printing method: cutting material → cleaning sheet (stainless steel other metal materials) → screen printing → etching → stripping → OK

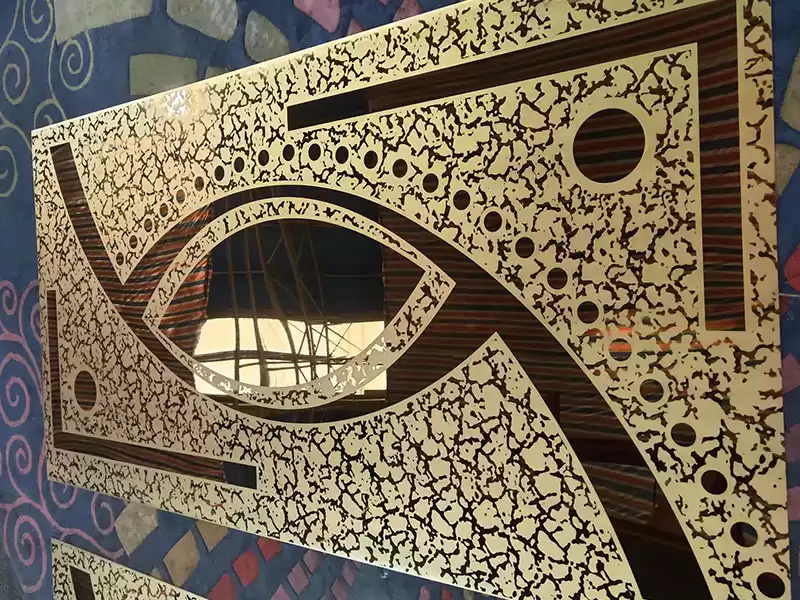

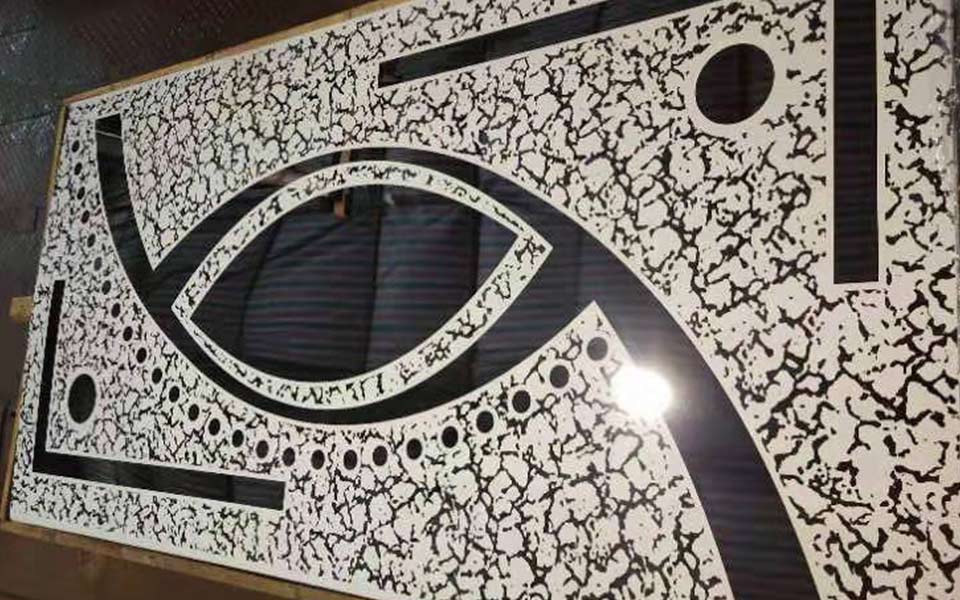

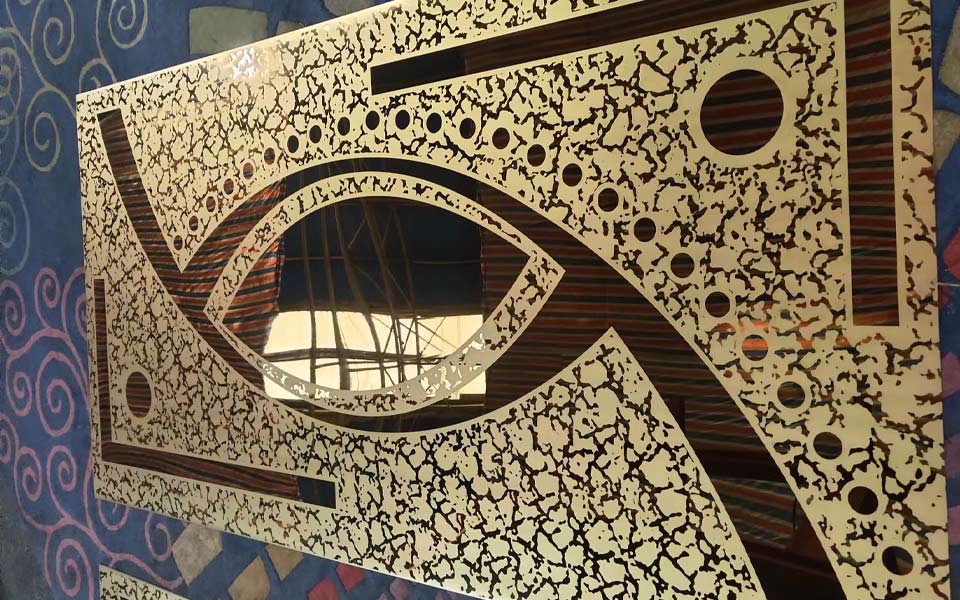

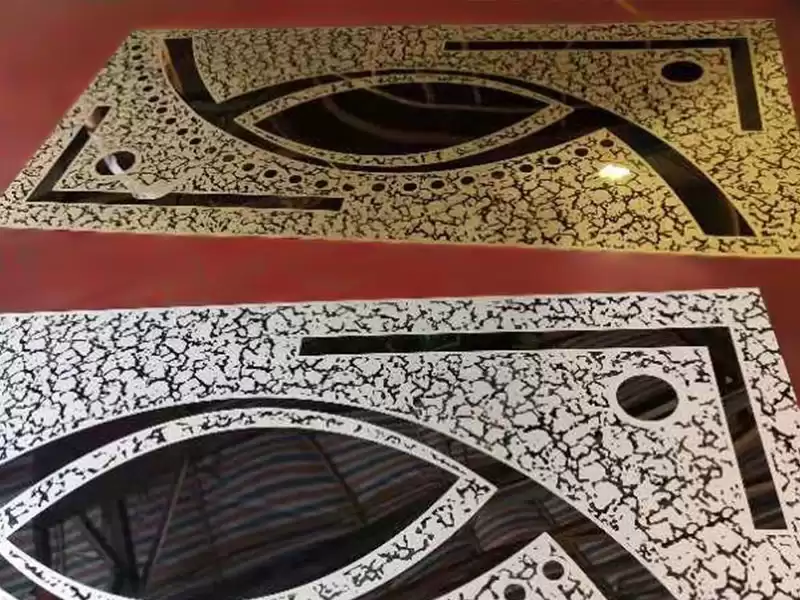

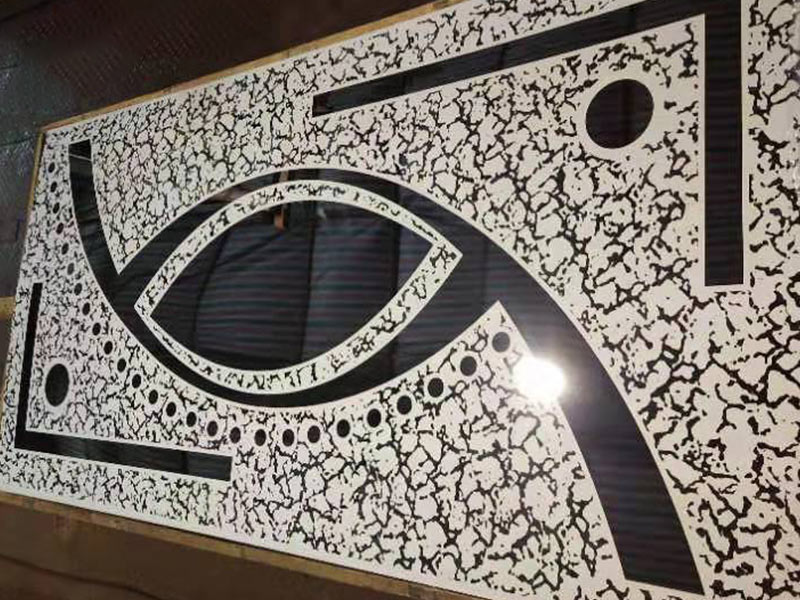

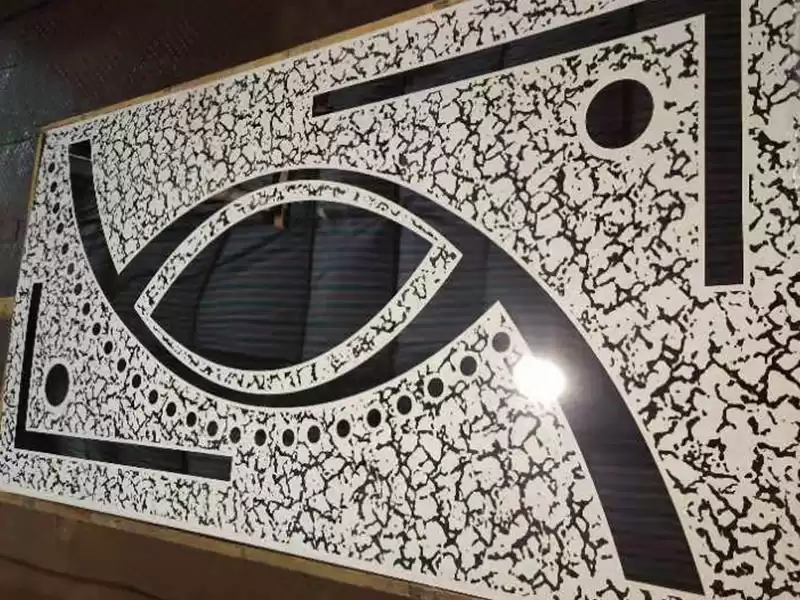

Etching Stainless Steel 304 patterns are created by selectively coating polished or brushed surfaces with an acid-resistant protective film and acid-etching the unprotected areas. The acid-resistant protective film can be pasted by hand-painting, silk screen printing or other methods. Improper etching can weaken the protective film and cause rough edges. Etching removes a thin layer of stainless steel, changing the color to a dull silvery gray and roughening the surface to create the desired pattern. The etched pattern can be left as is or made more reflective, and both custom and stock patterns are available.

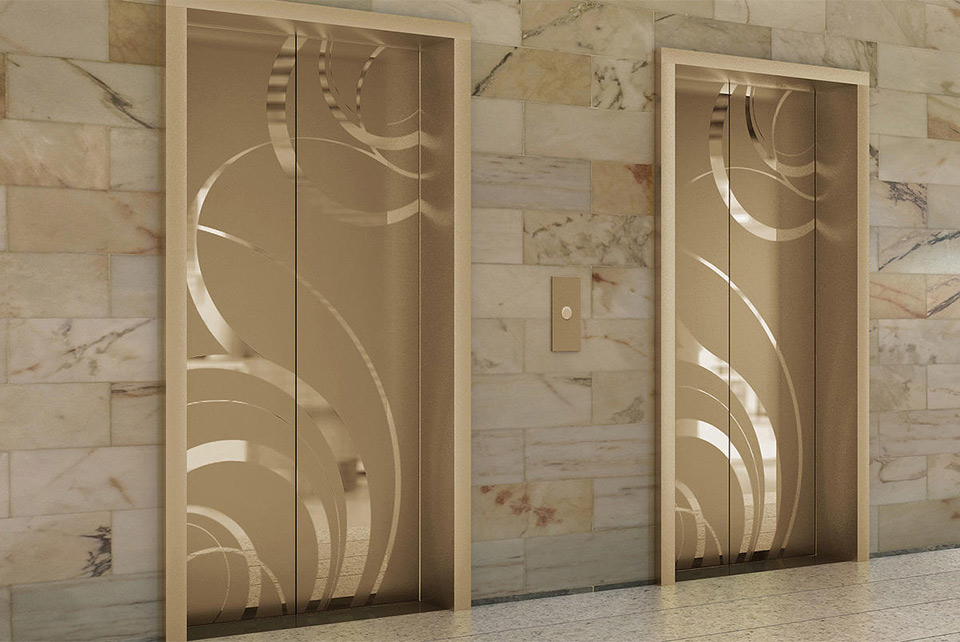

APPLICATION
Etched stainless steel sheets have different patterns and colors,and can be customized,which enriches the choices of elevator decoration.Because of the characteristics of stainless steel,it can be corrosion-resistant and high-strength.It has a long service life when used on elevators,is easy to maintain,and reduces the cost of use.Moreover,stainless steel is easy to process,and can be bent and welded into different sizes and shapes,which is convenient for the production of elevators.
FOSHAN TYSING MEATAL PRODUCTS CO.,LTD has more than 16 years experience in decorative stainless steel industry.We begin from mirror polishing factory,then supply color decorative stainless steel sheet to elevator factory and other interior decor company.And now we have Stainless Steel Etching Techniques to make Elevator Ethcing Stainless Steel Sheet
FAQ:
1. How to get quotation?
Confirm the stainless steel grade 201/304/316/43.
The stainless steel sheet size,standard size is 1219*2438mm
The thickness 03-3.0mm
The quantity
The surface finish and color.
Better let us know what is the usage.
Then we can know quote best price for you.
2. What is the Minimal Order Quantity(MOQ)?
Usually our MOQ is 50pcs.If have special request,we can check the quantity together.
3. Can you OEM or ODM?
Yes we can.We can make stainless steel sheet following you sample.And make right package for you.
4. What is your lead time?
7 Days for sample.
25-30 Days for bulk production.
