LED Poster Display has the feature of lightweight, frameless design, easy operation,
easy placement, portable, movable and easy operation via Network or USB, etc.
Mykas LED delivers the various digital LED Poster Sign to different applications including
shopping malls, showrooms, exhibitions and so on.

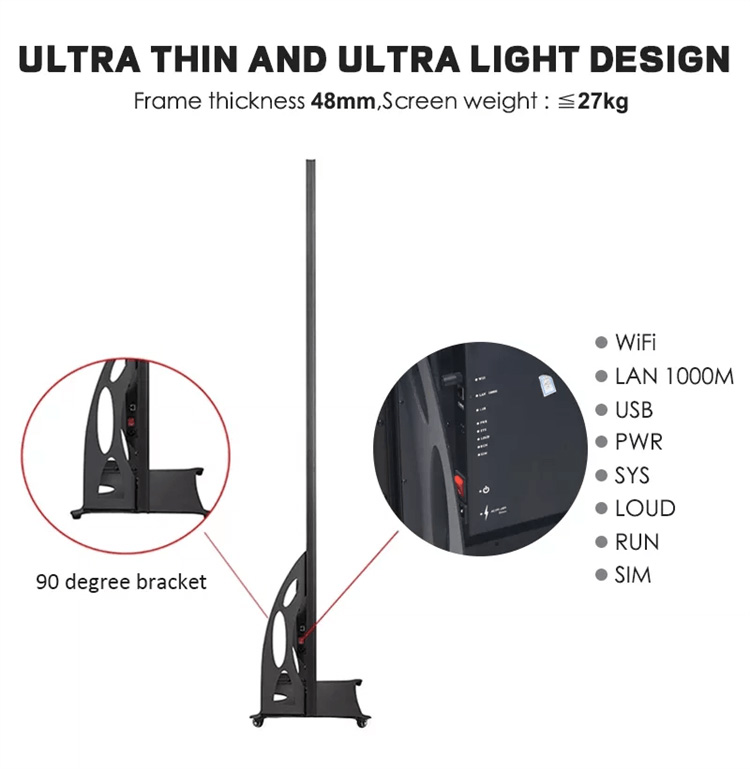

1. UUltra thin
45mm thickness, slim &stylish design
Flexible installation way
Meet various installation environments
2. Light Weight
Easy transport, portable & movable
Less than 35kg per panel, easy to move
Save labor cost & time
3. Excellent Visual Display
Gemdragon LED Poster Screens are equipped with high-quality LEDs and Driving IC to ensure high refresh rate and high contrast ratio.
The Refresh rate is up to 2880Hz and high definition image quality with 5000:1. The brightness reaches to 1000 Nits that provide the viewers with perfect display effect.
4. Unique Base-Standing Bracket
The base-standing bracket can make the LED poster stand on the ground stably. The bracket is movable with 4 wheels,
which makes the poster can rotate freely and allow free movement in all directions.
5.Multi-installation Method
LED Poster Display supports multi-installation ways. For example, bracket standing installation, base-standing installation, lifting or hanging installation,
multi cascade installation and creative installation. There is no need for the steel structure so is convenient and effective.

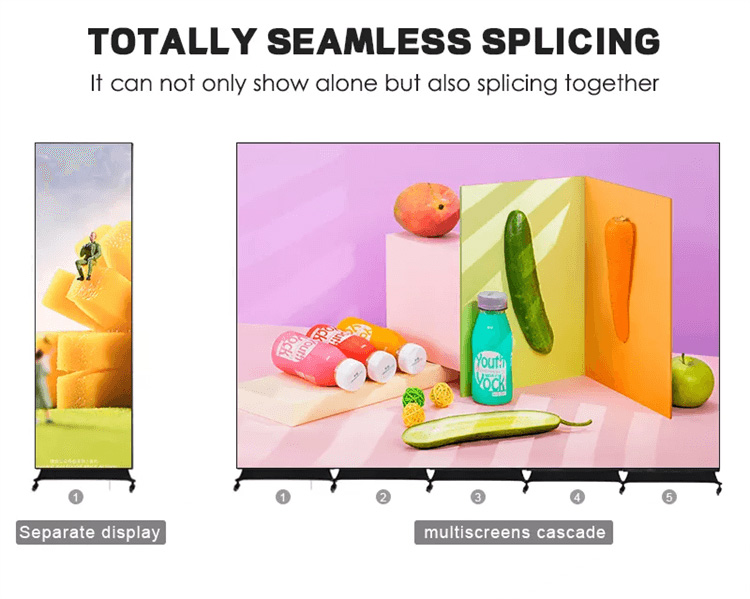

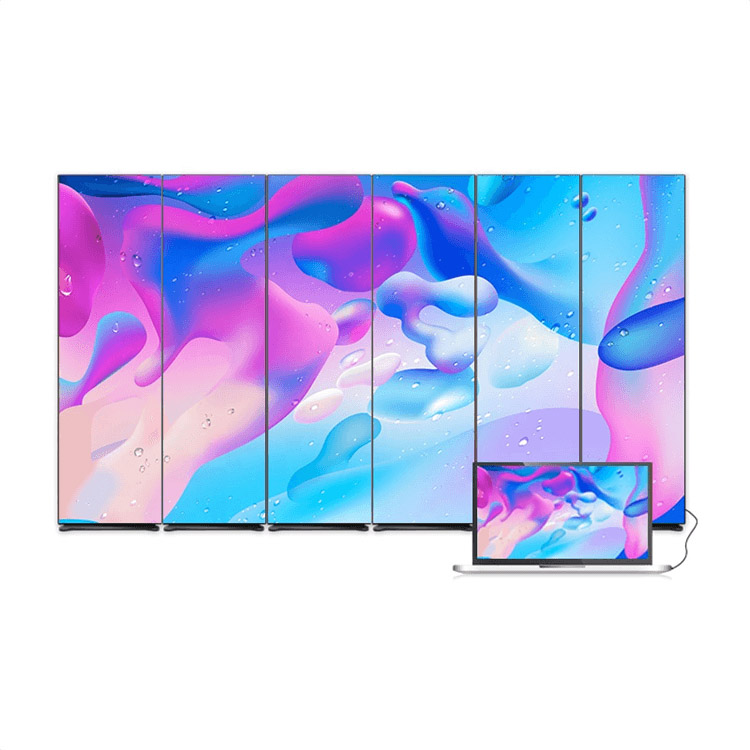

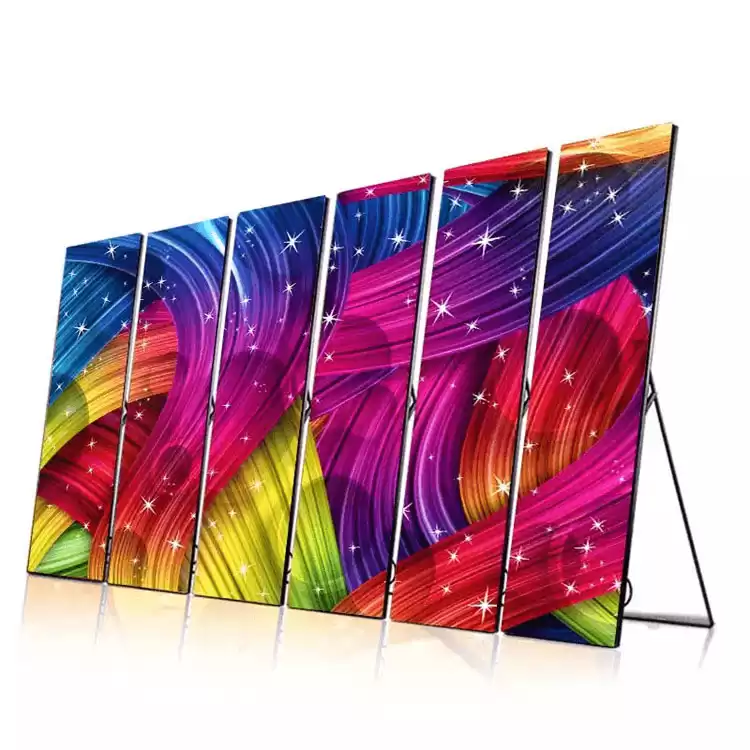

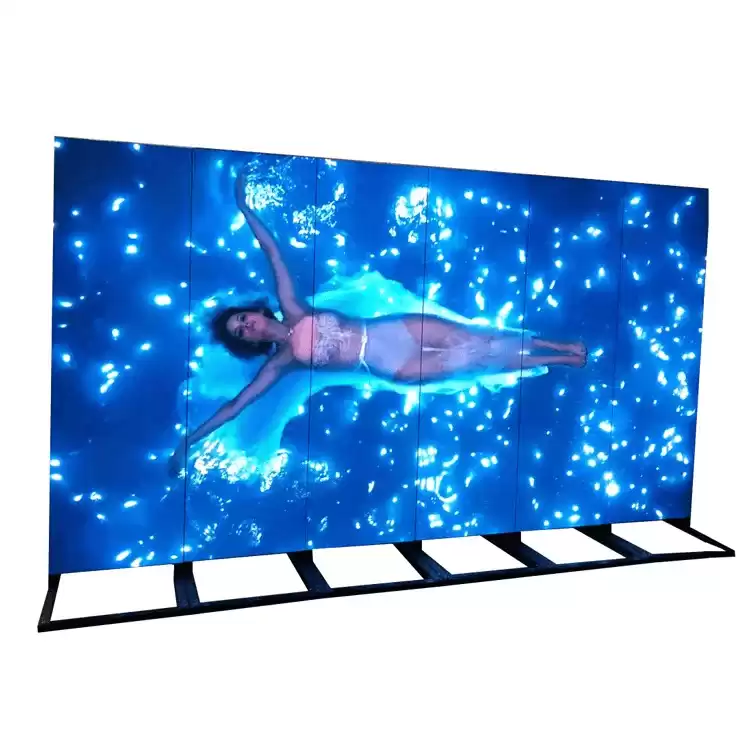

6.Seamless Splicing
Gemdragon LED Poster Screen is designed with quick connectors, and can be connected
with other screens to form a large one seamlessly to play as one big screen,
offering seamless display performance for better visual effect.
7.Smart Cloud Management
Poster LED Display supports both synchronous & asynchronous control system, and the contents can be updated via iPad, Phone or Notebook.
Real-time play, cross-platform information delivering, USB or WIFI supporting and IOS or Android multi-devices. Besides,
it can support the built-in media player to store and play videos and images in all formats.
Specifications：
| Model Number |
P1.86 |
P2 |
P2.5 |
| Pixel Pitch(MM) |
1.86 |
2 |
2.5 |
| LED Standard |
SMD1010 |
SMD1515 |
SMD2121 |
| Module Size(MM) |
320X160 |
320X160 |
320X160 |
| Module Resolution(Dots/m²) |
172X298 |
160X80 |
128X64 |
| Display Dimension(MM) |
1920X640 |
1920X640 |
1920X640 |
| Cabinet Density(Dot/set) |
355008 |
307200 |
196608 |
| Pixel Composition |
RGB |
RGB |
RGB |
| Cabinet Size(MM) |
1936X652X50 |
1936X652X50 |
1936X652X50 |
| Cabinet Weight |
45kg |
45kg |
45kg |
| Cabinet Thickness(MM) |
50 |
50 |
50 |
| Brightness(CD/m²) |
600-1000CD/m² |
600-1000CD/m² |
600-1000CD/m² |
| Best viewing distance(M) |
1.86-50 |
2-50 |
2.5-50 |
| Refresh Rate |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
| Power Consumption(Ave/W) |
500 |
500 |
500 |
| Power Consumption (Max/W) |
1200 |
1200 |
1200 |
| Viewing Angle |
160/160(H/V) |
160/160(H/V) |
160/160(H/V) |
| Protection Lever |
IP31 |
IP31 |
IP31 |
| Scan |
1/32 |
1/32 |
1/32 |
| Gray scale |
16bit |
16bit |
16bit |
| Input Voltage (V) |
AC 240/110 ± 10%,50Hz/60Hz |
AC 240/110 ± 10%,50Hz/60Hz |
AC 240/110 ± 10%,50Hz/60Hz |
| Working Temperature (℃) |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
| Support Video Formate |
HDMI, SDI, S-Videom, MP4 |
HDMI, SDI, S-Videom, MP4 |
HDMI, SDI, S-Videom, MP4 |
| Control Input |
USB, WiFi,4G,Cable |
USB, WiFi,4G,Cable |
USB, WiFi,4G,Cable |
| Life Span |
≥100000Hours |
≥100000Hours |
≥100000Hours |
FAQ:
Q1. Can I have a sample order?
A: A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 12-25 days.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ,1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by express (DHL, UPS, FedEx ). lt usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking project size, rental or fixed installation.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the order and places deposit for formal order.
Fourthly We arrange the finished display cabinet.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 -5 years warranty to our products
lf you have more questions, pls write mail to us or call us, we will reply you ASAP
