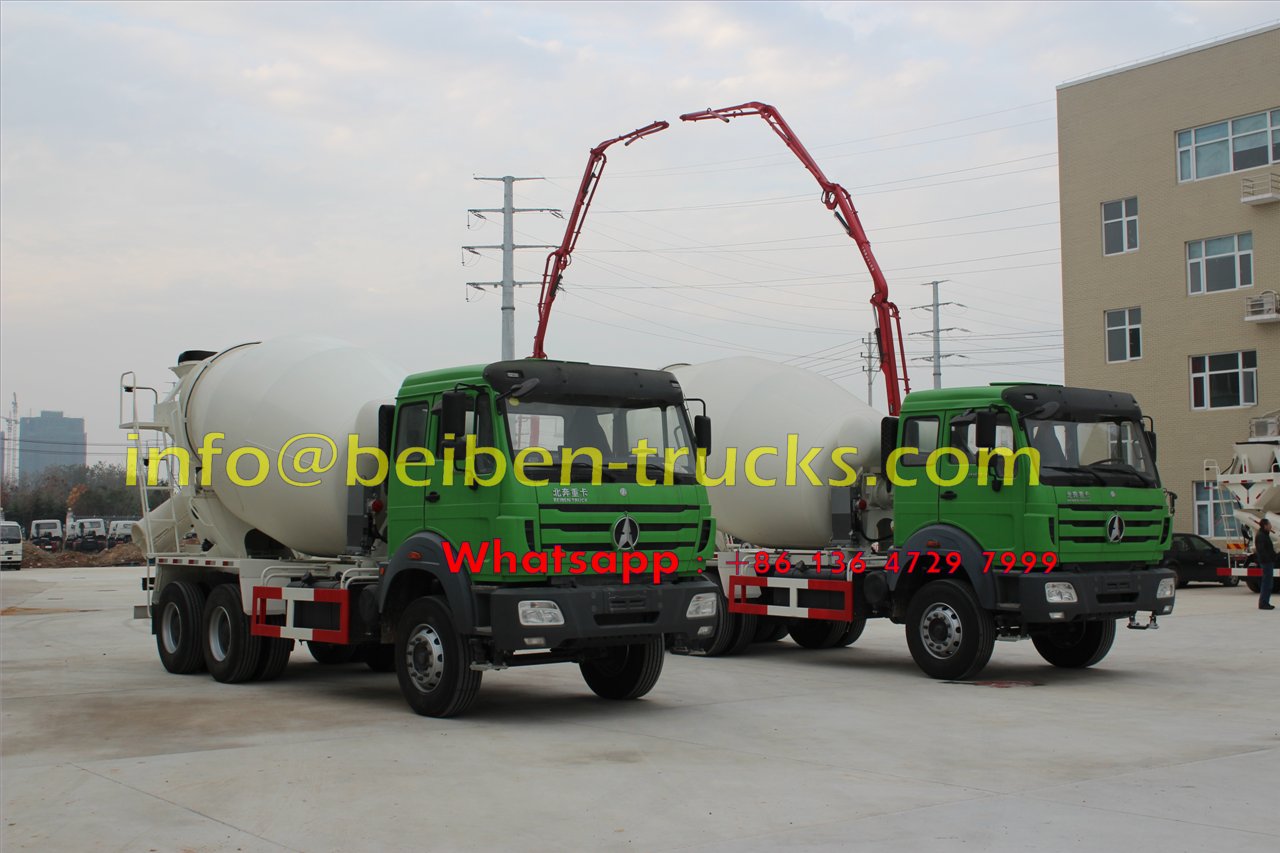

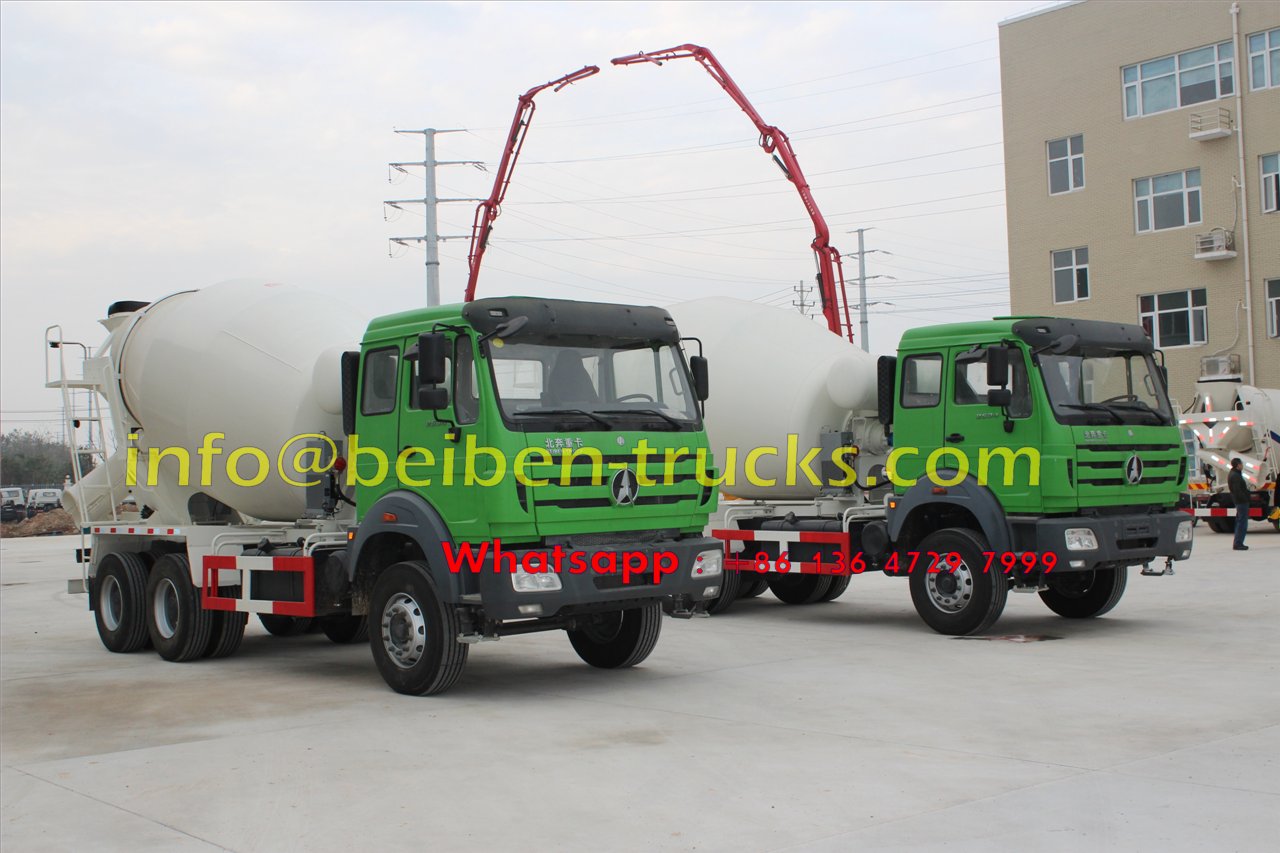

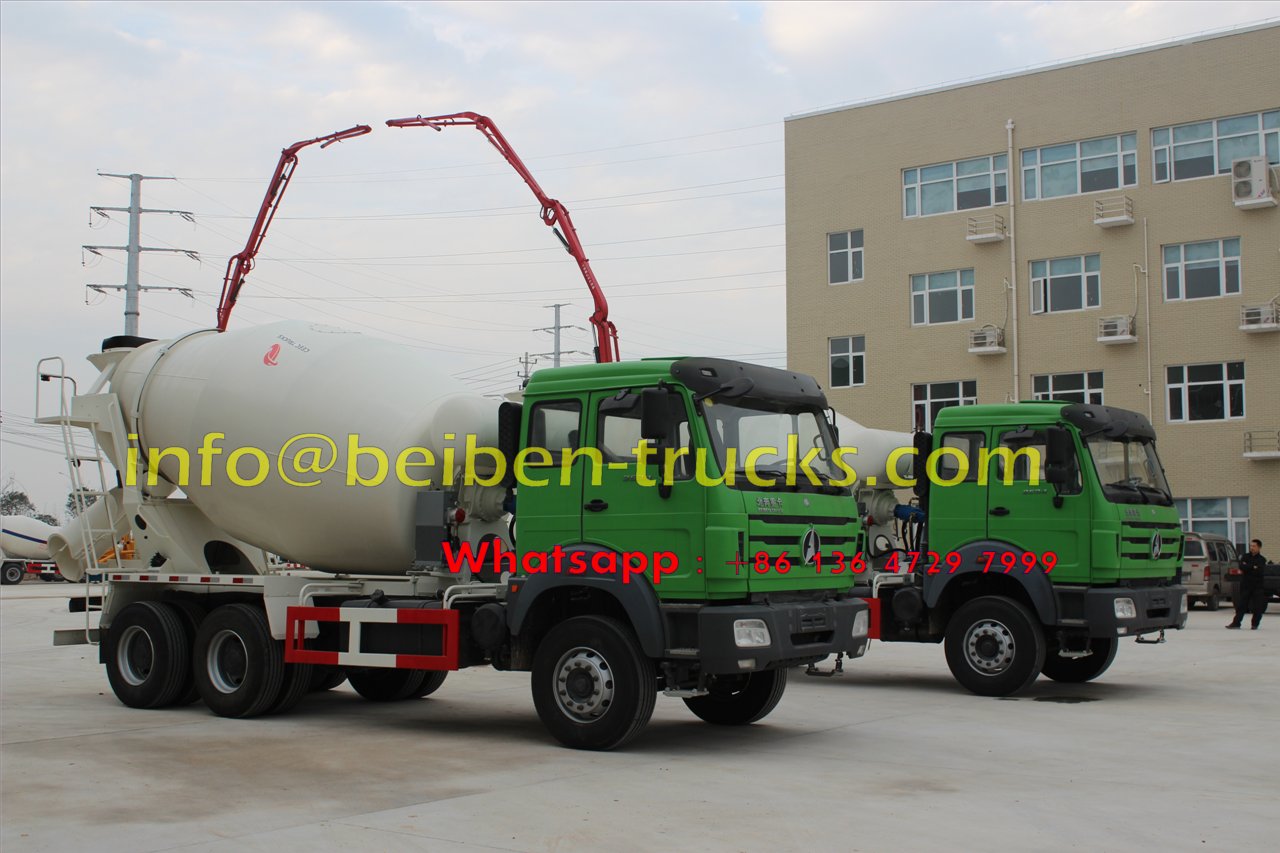

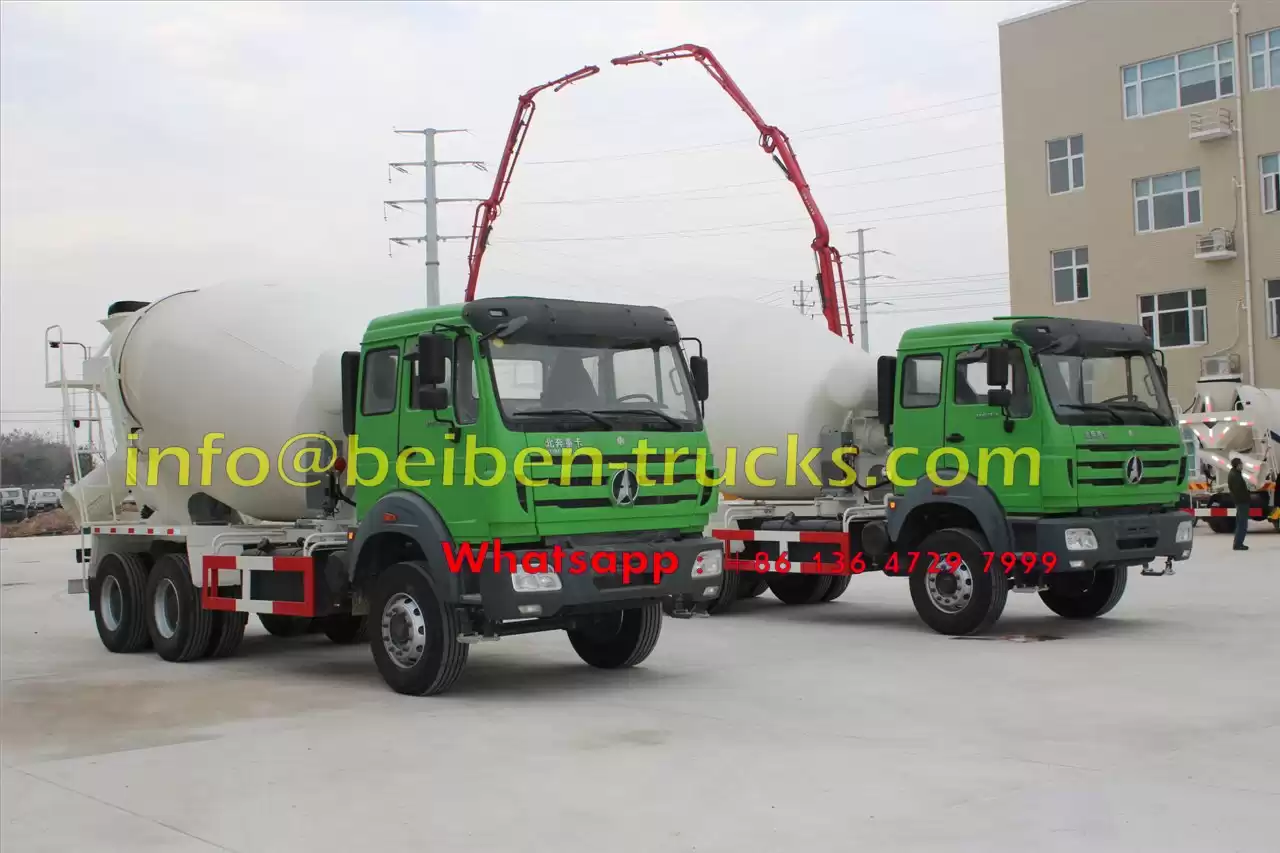

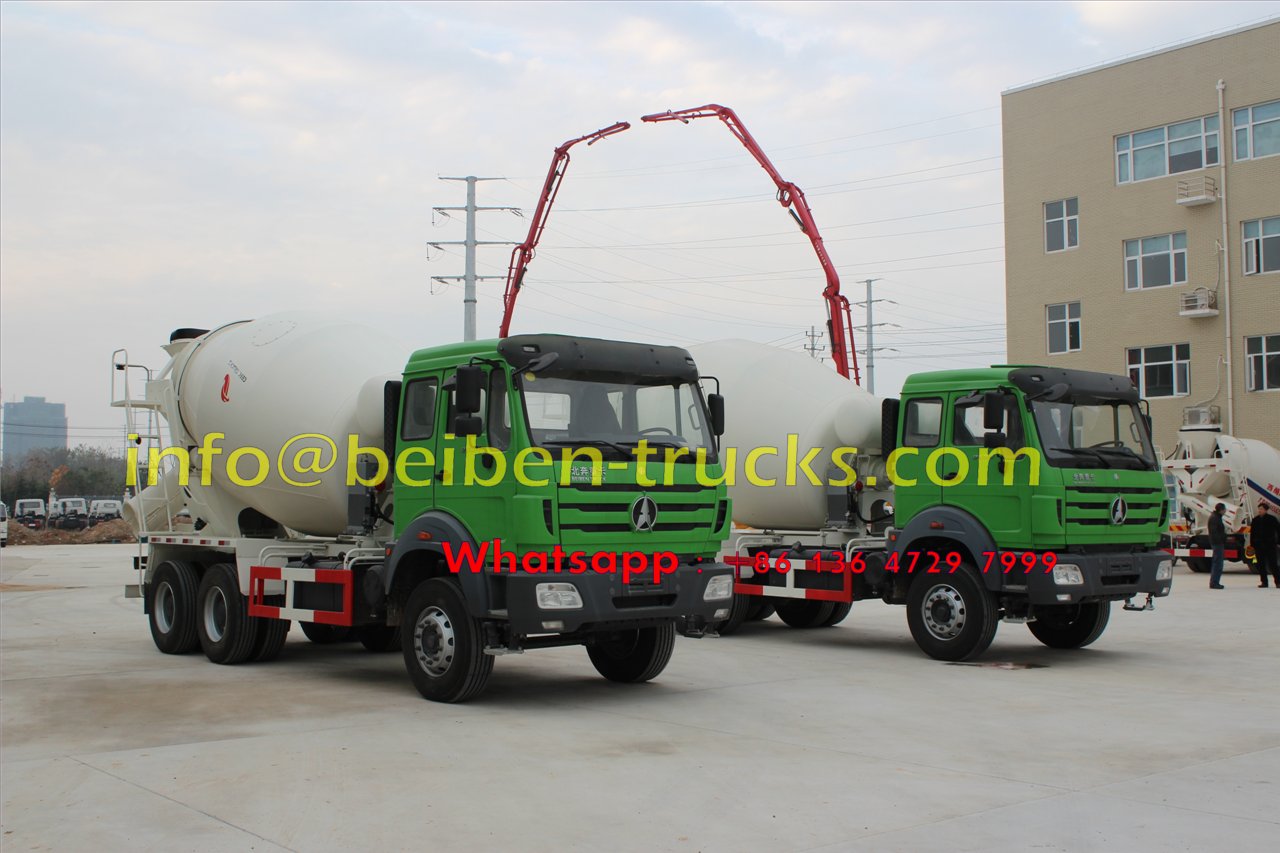

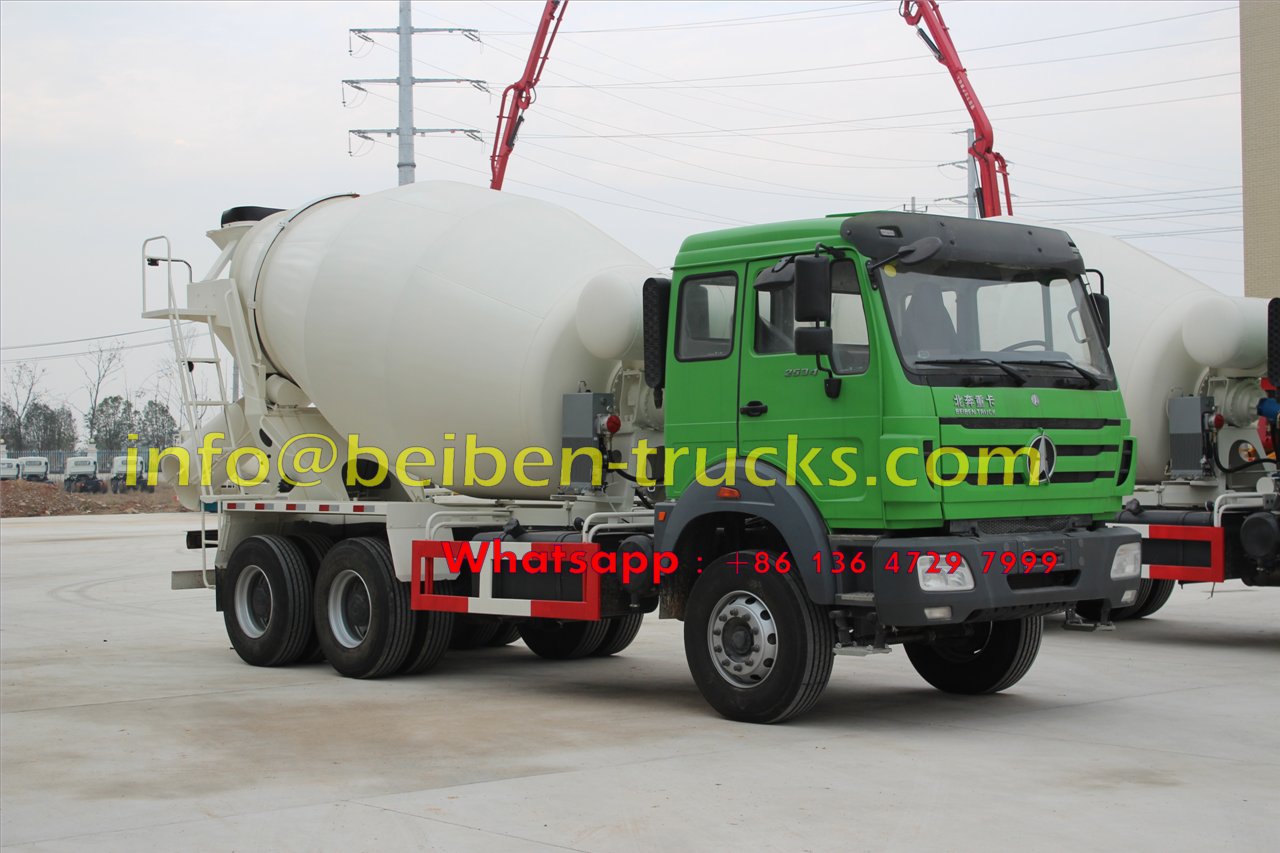

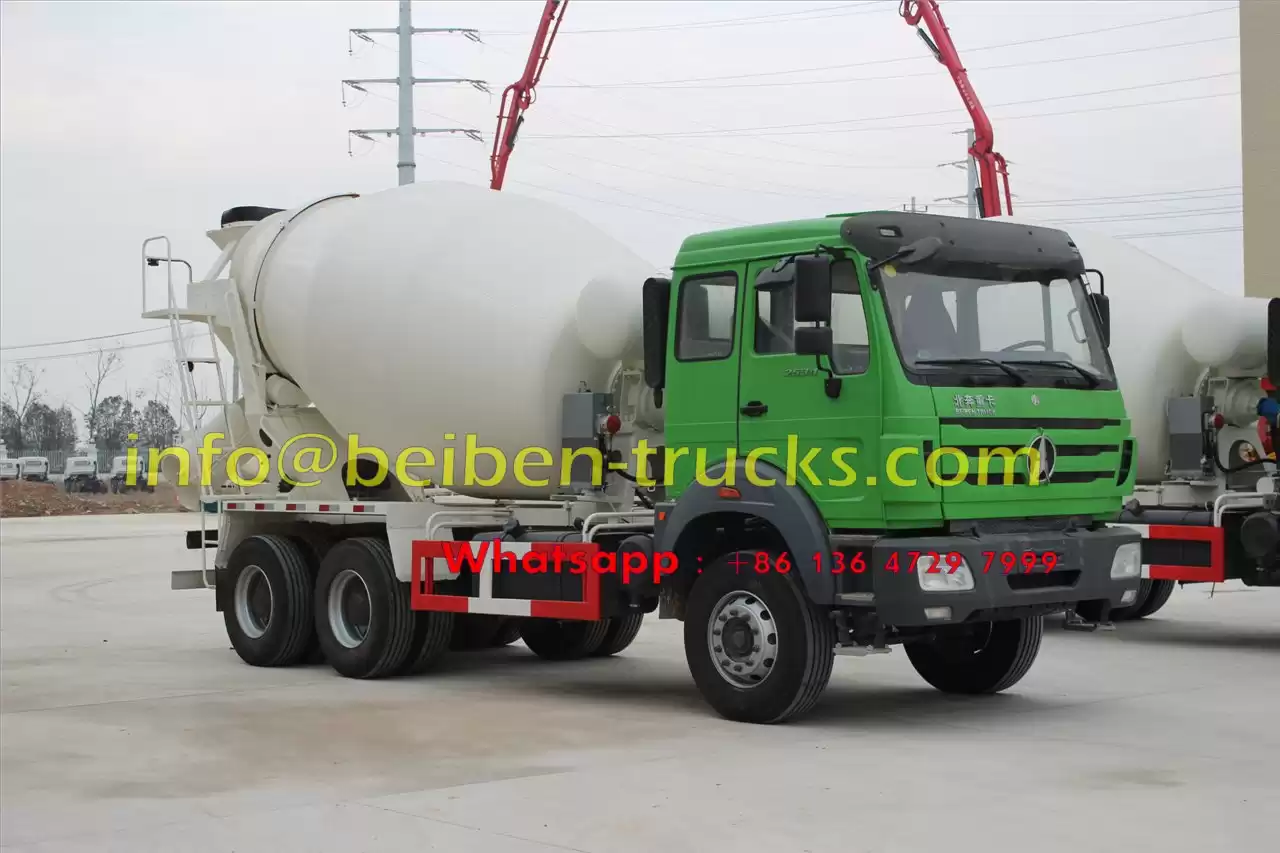

China famous brand Beiben 8 cubic meters concrete mixer truck
| Chassis Model |
ND52500GJBZ |
| Drive type |
6X4 |
| Cubic meter |
|
8-12 |
| Weight |
Complete kerb mass(kg) |
13785 |
| GVW(kg) |
25000 |
| Dimensions |
LxWxH(mm) |
9405X2500X3980 |
| Front/Rear overhang(Chassis) |
1515/2640 |
| Wheel base (mm) |
3800+1450 |
| Track width(mm) |
1995/1800/1800 |
| Performance |
Max.speed(km/h) |
90 |
| Approach/Departure angle(°) |
23/20 |
| Engine |
Brand |
WEI CHAI |
| Model |
WP10.336 |
| Power(KW/HP) |
213/290 |
| Max.Torque(N.M)/rpm |
1250N.M/1200-1600rpm |
| Displacement(L) |
9.726 |
| Emission Standards |
Euro III |
| Transmission |
Brand |
Beiben |
| Model |
9T-160 |
| Control type |
Manual |
| Gear shift |
9-forward and 1 reverse speeds |
| Clutch |
Type |
Single plate,diaphragm spring |
| Diameter(mm) |
φ430 |
| Action |
Mechanical type,hydraulic and pneumatic operation |
| Braking |
Service brake |
With dual-circuit compressed air brake |
| Park brake |
Spring-powered Air-cut-off Brake |
| Auxiliary |
Engine Exhaust Brake |
| Steering |
Type |
TAS85 |
| Frame |
Dimensions(mm) |
300X90X8+6+8 |
| Suspension |
the number of leaf spring |
10/13 |
| Axles |
Front axle |
7500kg |
| Rear axle |
13000kg double reduction driving axles |
| Ratio |
5.263 |
| Tyres |
Type(Standard) |
12.00-20 |
| Fueltank |
Tank capacity(L) |
300 |
| Material |
Aluminum |
| Cab |
Equipments |
Long flat head, 1sleeper, 2-3 persons |
| Mixing tank |
Mixing volume |
9CBM |
