High Quality unclad 3240 g10 fr4 material epoxy glass fiber sheet


G10/FR4 Machining:

Fr4/G10 Sheets are electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric properties, good electric strength properties and fine heat and humidity resistance. In addition, it has anti-fire property.

JY Machinery offers Composite Insulating Materials, including 3240, FR4, FR5, G10, G11 epoxy fiberglass sheet, GPO-3, SMC Unsaturated polyester sheet, bakelite sheet,phenolic cloth/paper sheet and various deep processing products. The company has various types of gluding machines, dryers, presses, laser cutters and sanders. Introducing advanced Korean engraving machins and automatic CNC machines. We carry out deep processing of different non-metallic materials according to customers’ pictures, CAD drawing or samples.

Request a Quote today.

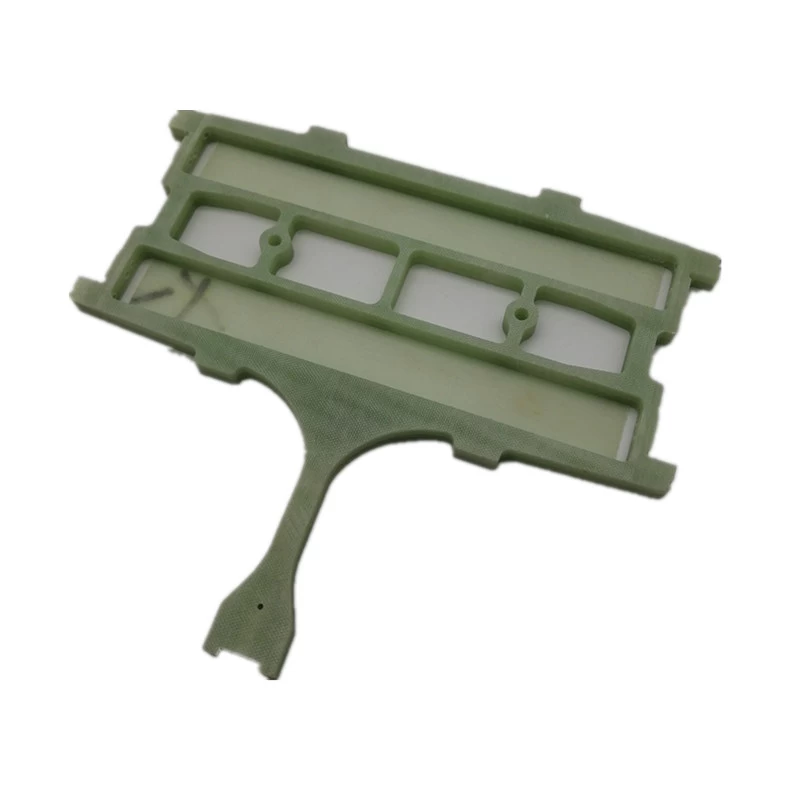

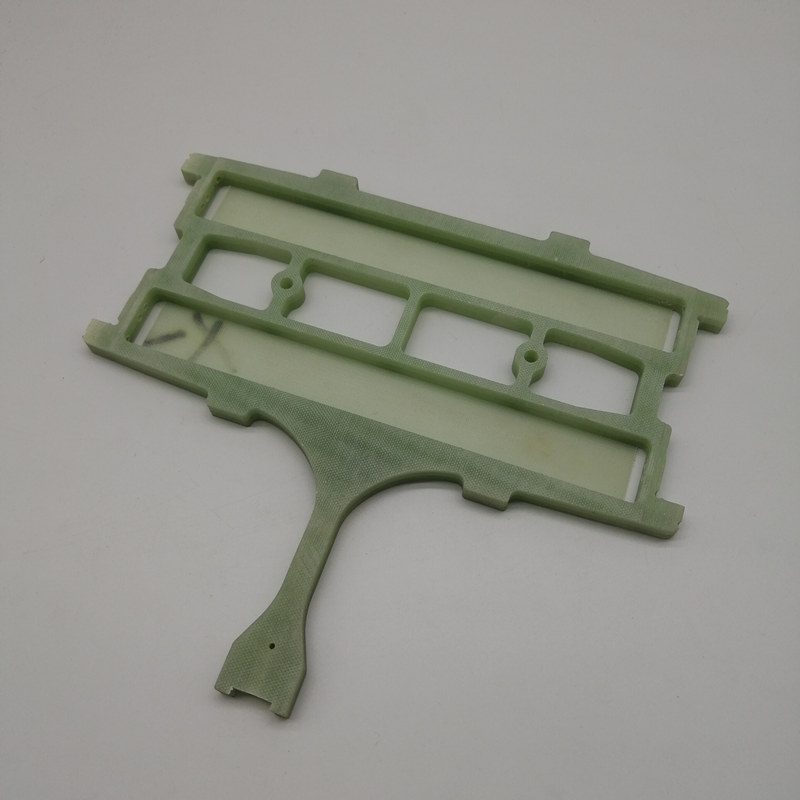

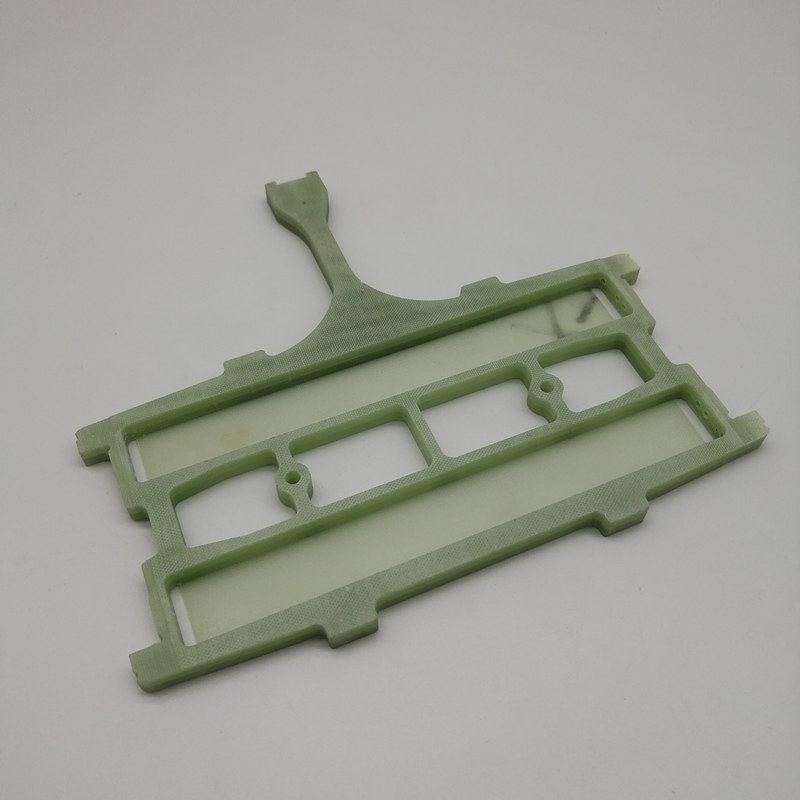

PRODUCT SHOW:


Product Parameter:

Material

Epoxy resin + Glass fiber cloth

Fire Resistance

UL94 V-0

Size

1020x1220mm, 1220x2440mm, 1020x2040mm

Thickness

0.1-135mm

Temperature resistance

≥130℃

Color

green,yellow,black,orange,white

Warpage

0.3% mm

ODM

 √

Item

Unit

Result

Voltage Resistance(penetrating)

KV/mm

18

Voltage Resistance

KV/mm

12

Volume resistivity

Ω*cm

10 ^6

Surface resitance

Ω*cm

10 ^6

Compressive Strength(Vertical)

MPA

≥350

Compressive Strength

MPA

≥300

Dielectric constant(50HZ)

/

≤5.5

Bending strength

kg/mm2

≥340

Anti-impact intensity

KJ/ m2

≥33

Density

g/cm³

1.8 - 2.1


OUR INSULATION PROUCTS RANGE:


•Epoxy Glass Fiber cloth laminated sheet series环氧玻璃布层压板系列

•Phenolic laminated sheet series酚醛层压板系列

•Polyester Laminated sheets series聚酯板材系列

•SMC/BMC/DMC Molded Parts团状模塑料

•Insulation Rods&Tubes绝缘管棒

•Pultruded Profiles拉挤型材

•Engineering Plastics Parts工程塑胶制品



OUR COMPANY:


JY Machinery has strong technical strength and adhere to“Technical Innovation as the guide”. After more than 10 years of development, our company
has a full range of insulated products. Sheets & Rods from thin to extra-thick to meet different needs of the customers. With the excellent quality and
service, we are the supplier of the well-known ernterprices like ABB, Siemens, etc and provide technical support and insulation material supply for many
big metro projects, like Doha, Beijing, Hanghzou, Ningbo metros. Our products are widely used in rail transit, power transmission and transformation, new
energy, aerospace, shipbuilding, military, electronics, etc. At present, the products has been exported to many countries and has won high praise of
customers at home and abroad.

We strive to create the most professional manufacturers of insulating materials and non-metal materials processing enterprise. Find the best solution for
your various applications. Welcome to speak with JY MACHINERY for setting up win-win partnership.


Our Services:

1. Your inquiry related to our products or prices will be replied within 24hours.
2. Experienced staffs to answer all your enquires in fluent English with professional knowledge.
3. What we supplied for you is not only the products but also the best service and confidence.
4. Protection of all your private business information.
5. One time cooperation, long time partners.
6. In case of any quality problem, we will firstly compenstate customer and not let the customer has any lost.
7. We will provide you any update news about your order status.
