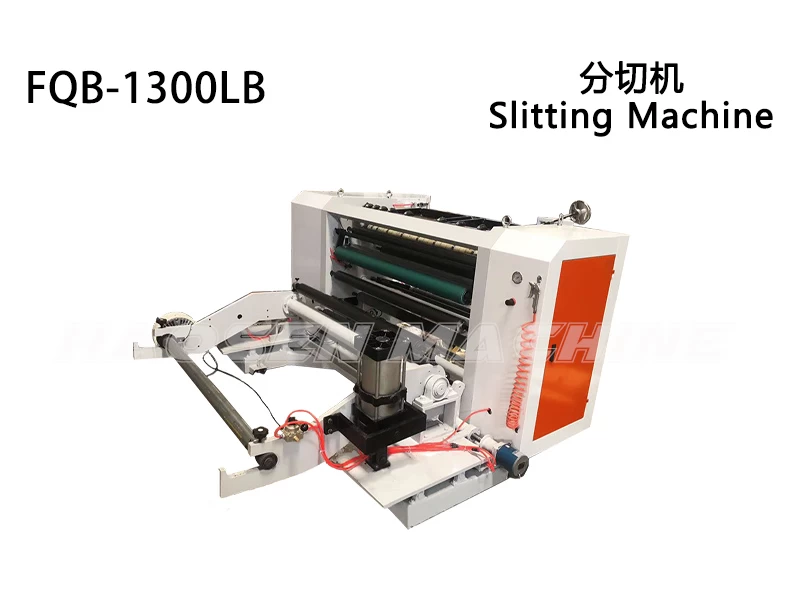

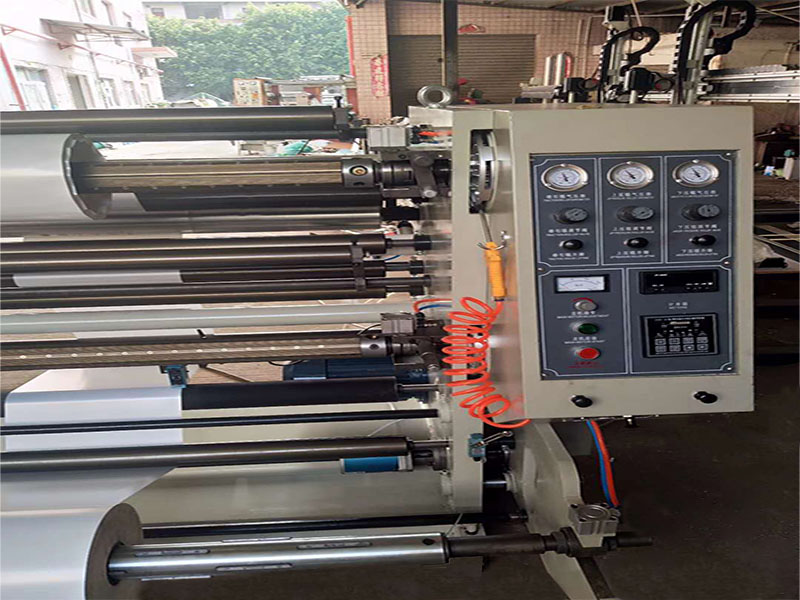

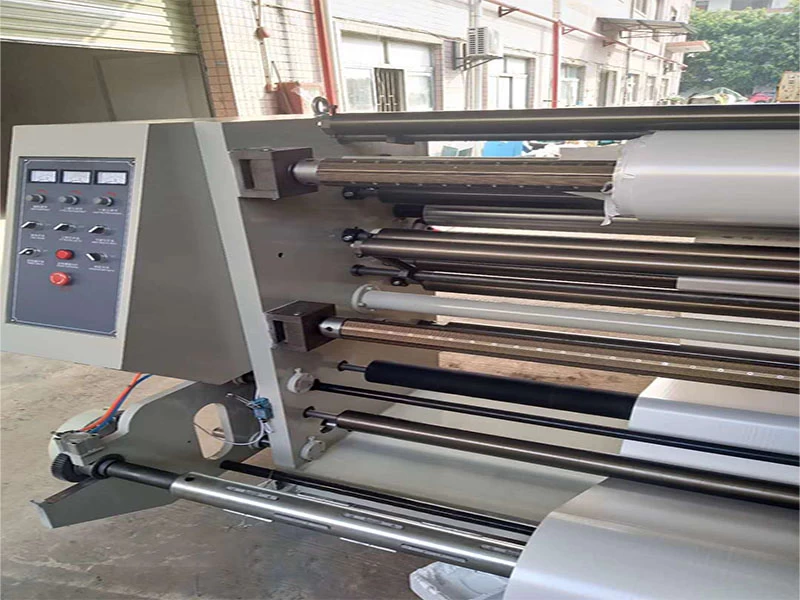

High Speed FQB-1300LB Vertical Slitting Machine
I Main technical parameters
|
Max unwinding diameter
|
Φ600mm
|
(tube filler Φ76*Φ95 )
|
|
Max unwinding width
|
1300mm
|
/
|
|
Max rewinding diameter
|
Φ450mm
|
(tube filler Φ76*Φ95)
|
|
Rewinding width
|
30-1300mm
|
/
|
|
Max slitting speed
|
200m/min
|
(speed depends on materials)
|
|
Slitting thickness
|
10-75μm
|
(material is cut by flat blade)
|
|
Slitting precision
|
±0.3mm
|
/
|
|
Power
|
around 5kw
|
/
|
|
Weight
|
around 1800kg
|
/
|
|
Dimension
|
1370*2540*1460mm(L*W*H)
|
/
|
II Instruction on Main Parts
1. Unwinding Part
(1) Structure
1) Unwinding part is designed with passive unwinding mode in magnetic powder brake.
2) Material roll is installed by air shaft.
3) Deviation correction for discharging is equipped with photoelectric deviation correction system (with precision of±0.3mm).
(2) Specification
1) Max width of material roll: 1300mm
2) Max diameter of material roll:Φ600mm
3) Specification of magnetic powder brake: 50N.M
4) Motor for deviation correction: 110TDY115-1 PM low speed synchronous motor
2. Traction Part
(1) Structure
1) Slit material is driven by pressing from upper steel roller and lower rubber roller.
2) Traction motor drives traction roller to turn around and cutter as well as rewinding shaft is driven by synchronous pulleys.
(2) Specification
1) Diameter of traction roller and pressing roller:Φ120mm
2) Main motor: Y100L2-3w three phase asynchronous motor
3) Frequency converter: 4kw
3. Slitting Part
(1) Structure
1) Cut by flat blade: blade carrier is moved by worm gears.
(2) Specification
1) Diameter of lower flat blade:Φ80
2) Upper flat blade: standard one-side blade
4. Rewinding Part
(1) Structure
1) Rewinding shaft is air shaft with double stations
2) Rewinding shaft is driven to turn around by synchronous pulley and magnetic powder clutch powered by main motor.
3) Rewinding press roll is designed with sectional pressing roll to ensure neat rewinding effect.
(2) Specification
1) Max rewinding diameter:Φ450mm
2) Range of rewinding width: 30-1300mm
3) Tube filler for rewinding :Φ76*Φ95
III Main Control Element
|
Microcomputer control system
|
/
|
1 set
|
|
Unwinding tension
|
50N.M/500N.M
|
1 set
|
|
Main motor
|
4kw 3-phas asynchronous motor
|
1 set
|
|
Frequency converter
|
/
|
1 set
|
|
Rewinding tension
|
50N.M
|
2 pcs
|
|
Deviation correction controller
|
/
|
1 set
|
|
Length measurer
|
/
|
1 set
|
|
Pneumatic components
|
/
|
Full set
|
|
Air shaft
|
/
|
3 sets
|
|
Fan
|
0.75kw
|
1 set
|
|
Aluminum rod
|
/
|
7 units
|
