China Laser Tube Cutting Machine With Shuttle Table

Sheet & tube laser cutting machine with shuttle table 3000*1500mm is a  highly practical laser.For one thing,it is dual use laser machine capable of cutting sheet metal and pipes right in the same machine ,which saves shop floor space and cost for two separated laser machine.

And the open shuttle table can improve processing efficiency.It is State-of-the-art flying optics laser cutting machines.






China Laser Tube Cutting Machine With Shuttle Table

F3015HBE shuttle table Laser with pipe cutter is a feasible metal processing tool,fabricator is able to cut both sheet metal and pipe or tube on one machine.The laser can save job shop floor space. Furthermore fabricator can process both materials with less investment .

The 3M or 6M pipe cutter  is equipped with  advanced pneumatic control chuck ,effectively clamp  round pipe ,square tube ,rectangle tube or a few profiles .

The whole machine can be packed and loaded in a 40 flat rack container.


Applicable: cutting pipes tubes and metal plates
Warranty: 2 years for laser source.One year for machine .

Packaging & Delivery: Plastic film inside, export wooden case with iron tube outside.

Port: Shenzhen

Lead Time: 45 days after payment


China Laser Tube Cutting Machine Product Description


Parameters of Baisheng Fiber Laser cutting Machine:

Brand and manufacturer

Baisheng, Guangzhou Baisheng Electron co.,ltd

Machine Model

F3015HBE

Dimension

8640*3680*1900mm

Laser power

Laser source powers:700W 750W 1000w 1500w 2KW

Machine net weight

9500KG

Fiber laser Generator

Raycus,IPG Brand,options

Laser wavelength

1080nm

Laser Beam quality

<0.373mrad

Worktable

Sawtooth with pneumatic easy moving attachment

Fiber Laser cutting head

WSX Worthing or Raytools. Precitec cutting head

Focus lens

Worthing (WSX)  Raytools...Precitec

Working life of fiber module

More than 100000 hours

Motors & Drivers

YASKAWA/Schneider..... servo motor world famous

Reducer

Imported  high precision and  output torque, low noise

Guide Rails

High accuracy linear from Taiwan

Transmit system

DUAL drive  rack and pinion  4 servo motors .

Chain system

Enclosed high quality

Water Chiller

TEYU( S&A) brand

Control system

Professional laser control system--Cypcut


Position type

Red Dot pointer

Cutting thickness

≤7mm(stainless steel)

≤16mm(carbon steel)

Max. Idle Running Speed

100M/min

Max Cutting Speed

32m/Min

Geometric Position Accuracy

within ±0.08mm/M

Reorientation accuracy

within ±0.05mm/M

Lubrication system

Auto Electrical motored,wholly and sound

Min. Line Width

±0.02mm

Power Consumption

12-14KW total

Auxiliary gas system

Japan SMC series components, dual air inlets, low pressure piercing , automatic pressure adjustment and switching

Power supply Voltage

380V/50Hz/60Hz

Auxiliary Gas for cutting

Oxygen, Nitrogen, Air

Compatible software

Autocad, Coreldraw, etc

Graphic format

AI, BMP, DST, DWG, DXF, DXP, PLT

Working method

Industrial PC control with console desk and romote

Total power protection rating

IP54

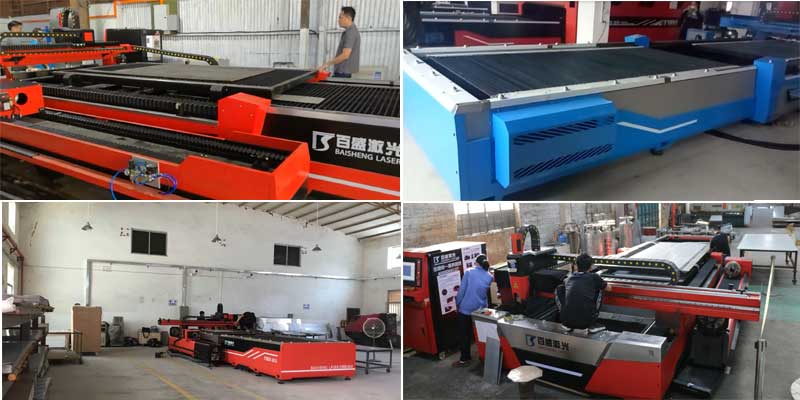

Machine photos from factory :

Some Users:



Fiber Laser Advantages:

Fiber laser is a time saver and enegy saver for metal fabrication and the main stream for now and the future .


Baisheng Laser Features:

Our fiber laser cutting machines offers an unbeatable high production level and excellent cutting quality for thin and medium thickness sheets. The maximum sheet thickness depends on the chosen output power.

The high energy efficiency of the fiber laser ensures a significant reduction in energy consumption. The machines are available with output power ranging from 700 watts to 2000 watts.
