Product Details

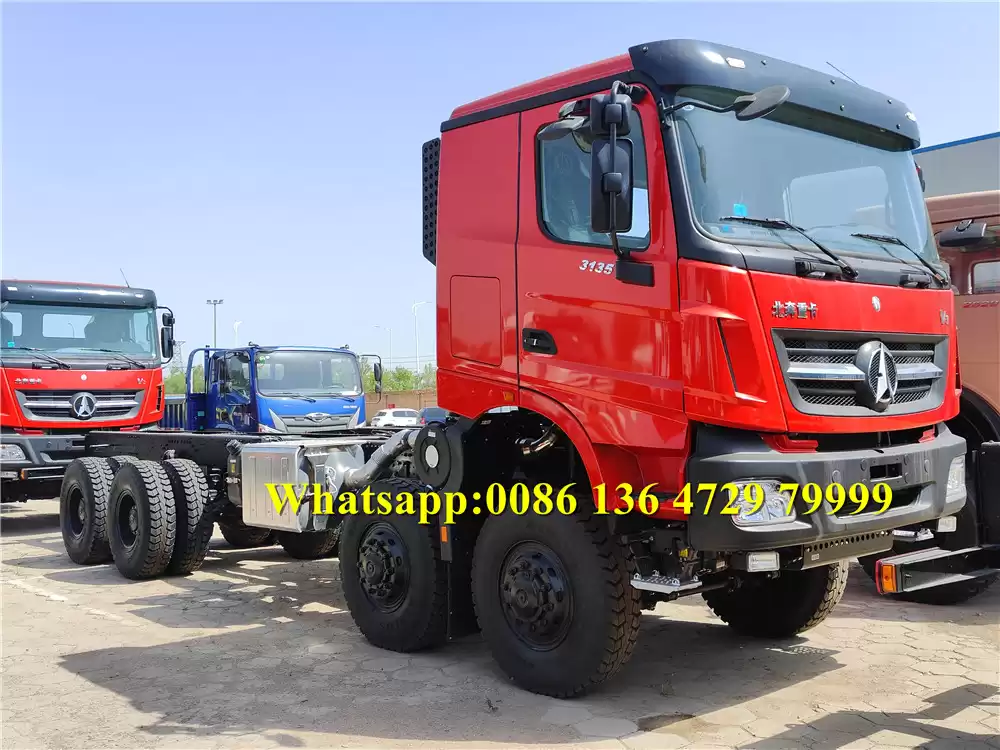

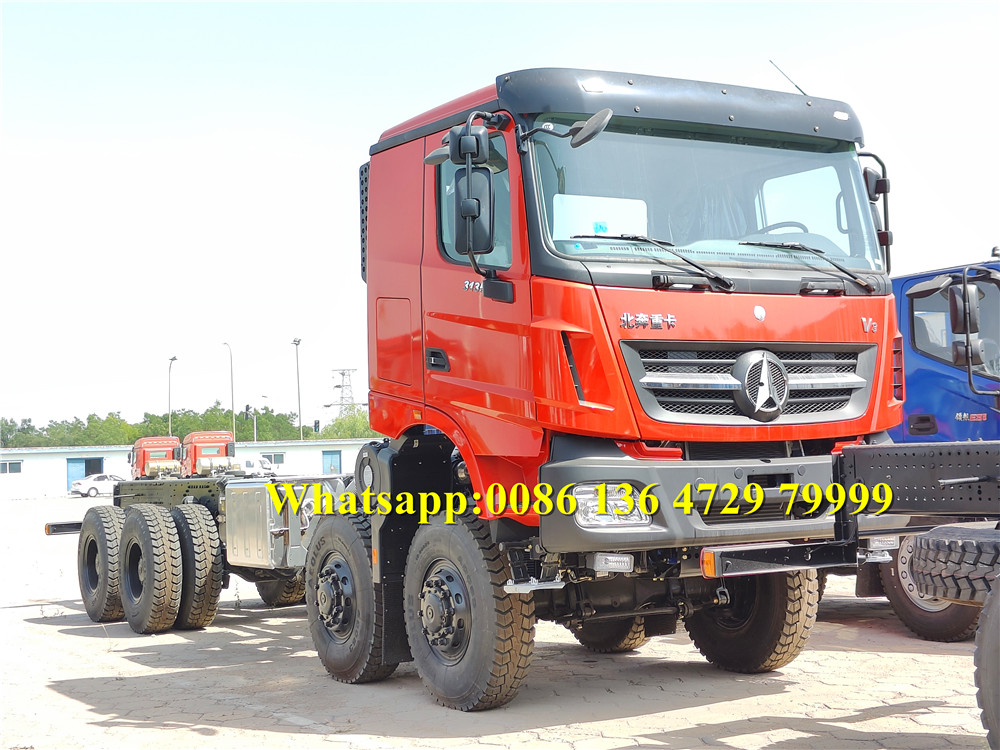

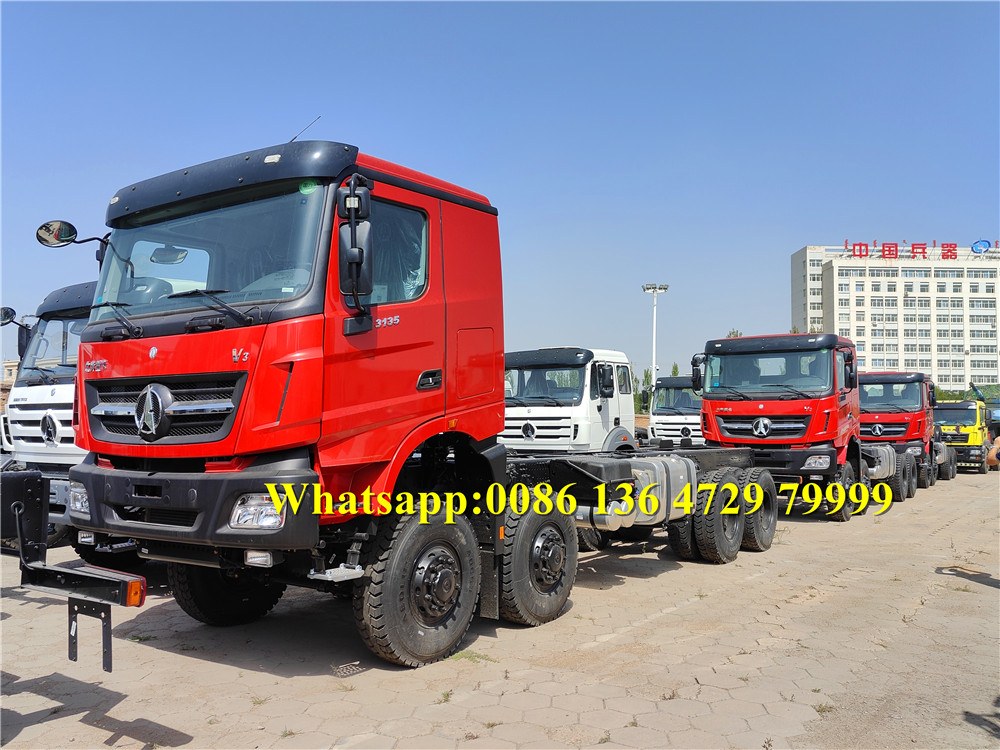

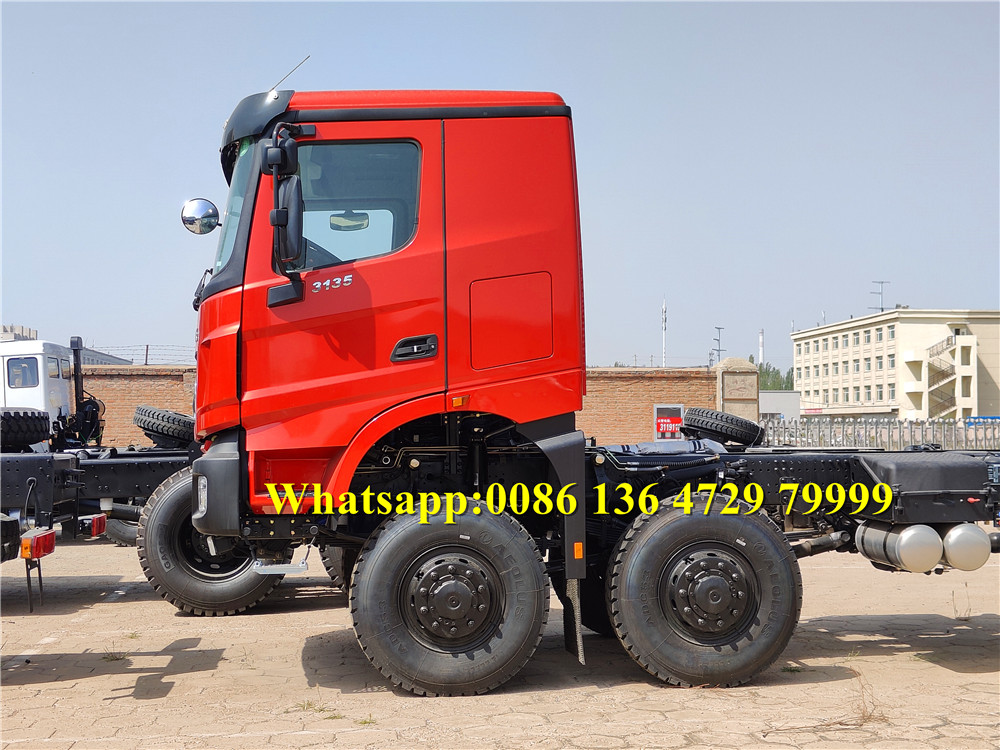

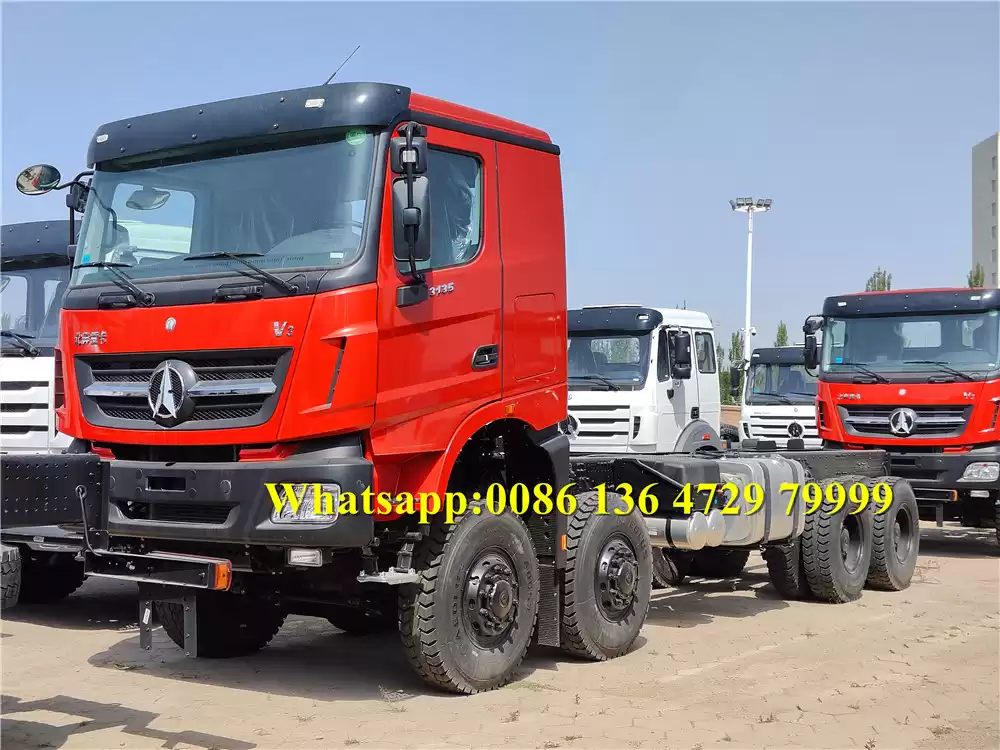

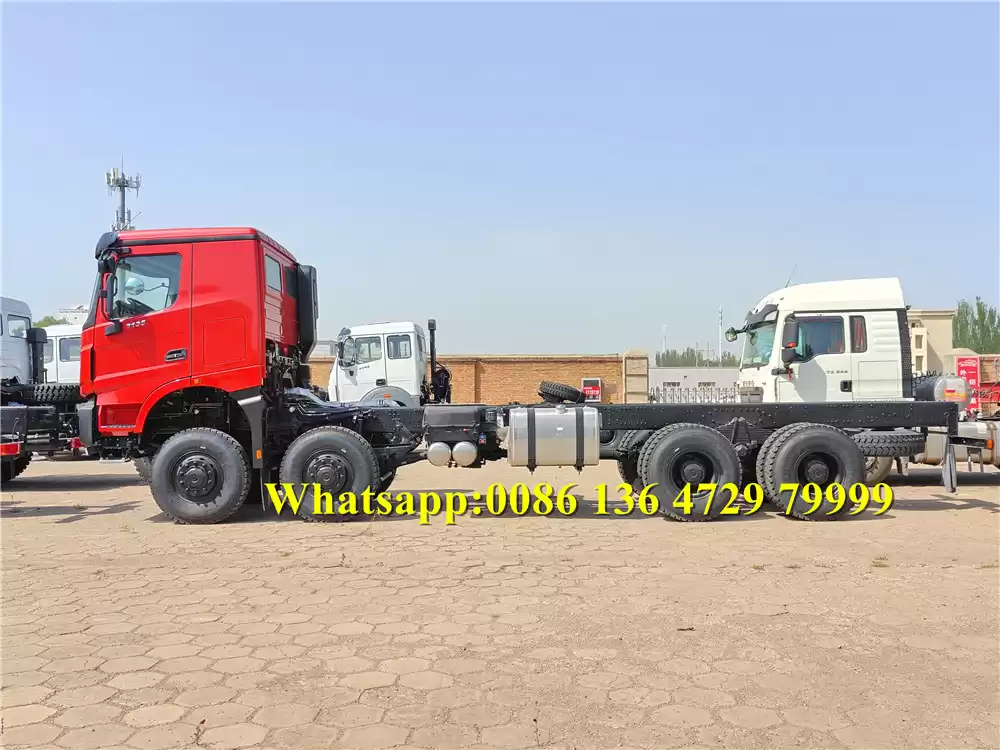

Beiben 3135 off road cargo truck chassis
Applications:
The Beiben 8*8 drive trucks are commonly used for tough off-road transportation, especially in the fields of africa mining, africa construction, and africa military operations. These china beiben 8*8 drive off road trucks are built with high-quality materials and advanced technology to withstand rough terrains, steep slopes, and muddy roads.
Some of the key features of the china Beiben 8*8 drive trucks include:
1. High-performance engine: These Beiben 8*8 drive trucks come with powerful engines that ensure efficient and reliable performance, even on rough terrains.
2. Spacious and comfortable cabin: The driver's cabin is designed to provide maximum comfort and convenience to the driver, with a range of features like air conditioning, ergonomic seats, and advanced instrumentation.
3. Superior suspension system: The beiben 8*8 drive trucks are designed with advanced suspension systems that provide maximum stability and support in challenging conditions.
4. Advanced safety features: These off road trucks are equipped with advanced safety features, such as anti-lock brake systems (ABS), traction control, and electronic stability control (ESC), to ensure the safety of the driver and passengers.
Overall, the Beiben 8*8 drive truck is a reliable and powerful vehicle that is ideal for off-road transportation and heavy-duty operations. Africa customer first choice of china 8*8 drive off road truck chassis.
Key Features:
---- BEIBEN V3 cabin, Benz actros technology.
---- 8x8 drive off road system, military assurance.
----Germany mercedes benz axle technology, with wheel reducer.
----Weichai 350 hp diesel engine, 300,000 kilometers after sale service.
---- Congo customer first choice, 100% suitable for hot weather and rain forest
Specifications:
|
Required Technical Specification 参数
|
|
Basic parameter
基础参数
|
Model 型号
|
3135PZ/8×8
|
|
Length×width×height(mm) 长×宽×高
|
11526×2500×3385
|
|
Wheel-base(mm) 轴距
|
1900+3800+1450
|
|
Curb weight(kg) 底盘整备质量
|
12400
|
|
Engine parameter
发动机参数
|
Model (six cylinder in line) 型号（六缸）
|
WP10.350E32
|
|
Max. Power (HP/rpm) 最大马力
|
350
|
|
Max. Torque(Nm/rpm) 最大扭矩
|
1600/1400～1600
|
|
Displacement(lit) 排量
|
9.726 L
|
|
Fuel tank capacity 油箱容量
|
400L Iron oil tanker 400L铁
|
|
Transmission system
传动系统
|
Clutch 离合器
|
430 Single disc, dry type, friction clutch；
430单片，干式摩擦离合器，液压辅助可调式；
|
|
Gearbox 变速箱
|
Mechanical, 9JS150A
|
|
Steering system
转向系统
|
Steering gear 转向机
|
8098 Circulating ball steering gear, hydraulic booster；循环球式，液压助力；
|
|
Brake system
制动系统
|
Service brake 行车制动器
|
Double circulation air brake system equipped；
双回路气压制动；
|
|
Parking brake 驻车制动器
|
Energy storage spring brake 弹簧储能制动；
|
|
Assisted brake 辅助制动
|
Engine exhaust brake 发动机排气制动；
|
|
Chassis parameter
底盘参数
|

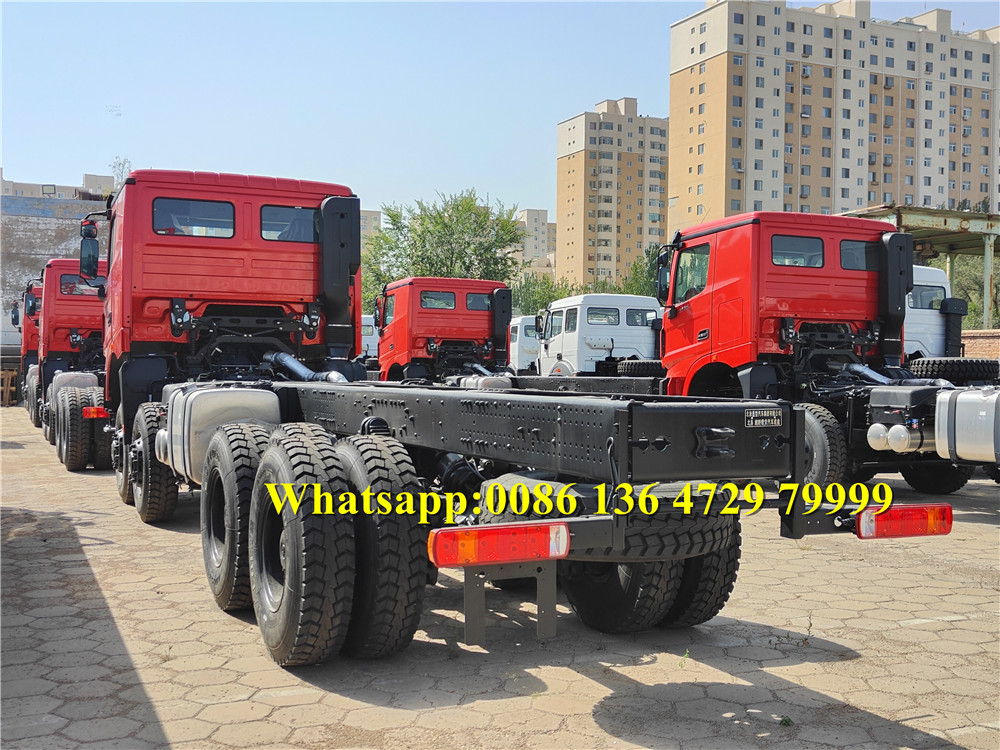

Frame 车架
|
Variable width and section 317×70×8.5+7+8.5 mm；
不等宽，变截面 317×70×8.5+7+8.5 mm；
|
|

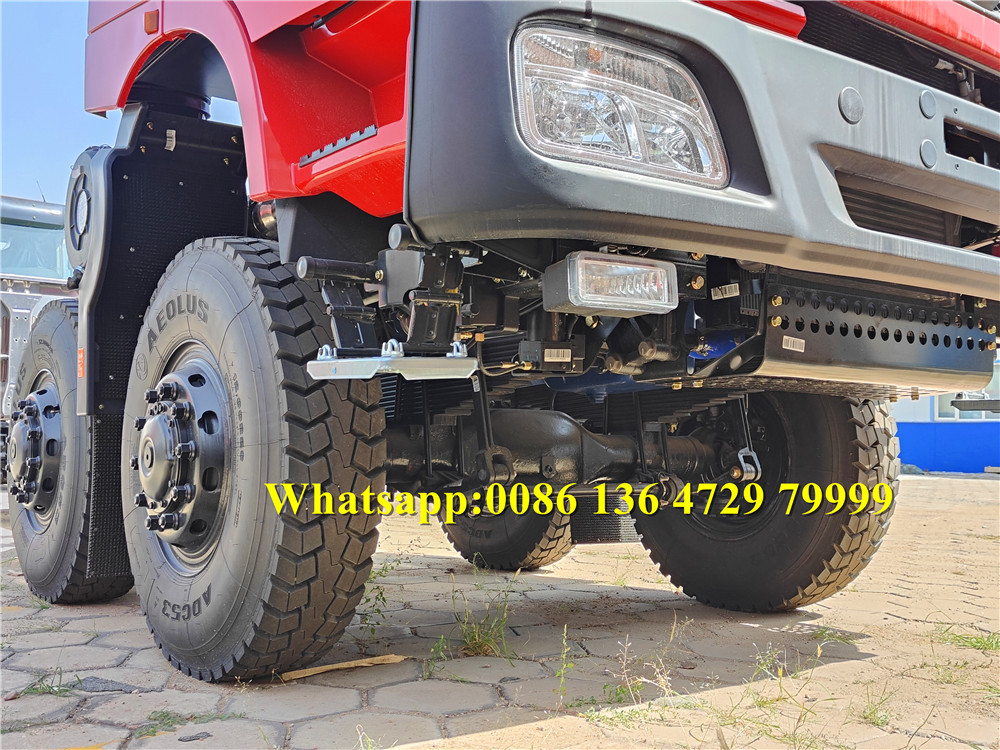

Front axle 前桥
|
7.5 T, no-driving steering axle, drum brake；
7.5吨驱动转向桥，鼓式制动；
|
|

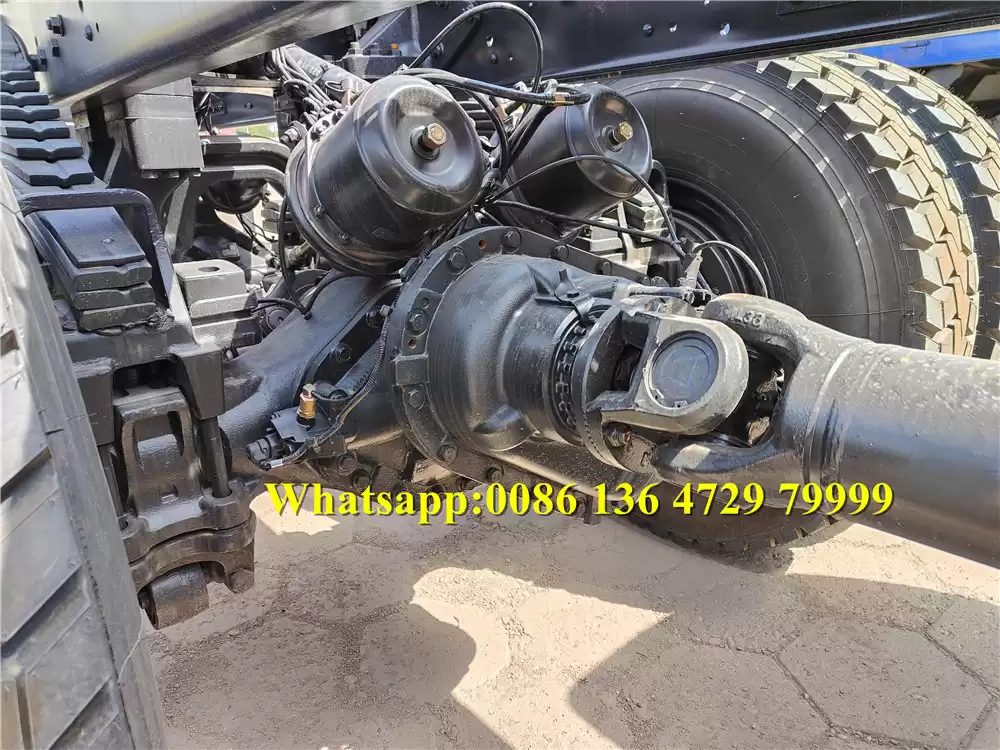

Middle & Rear axle 中后桥
|

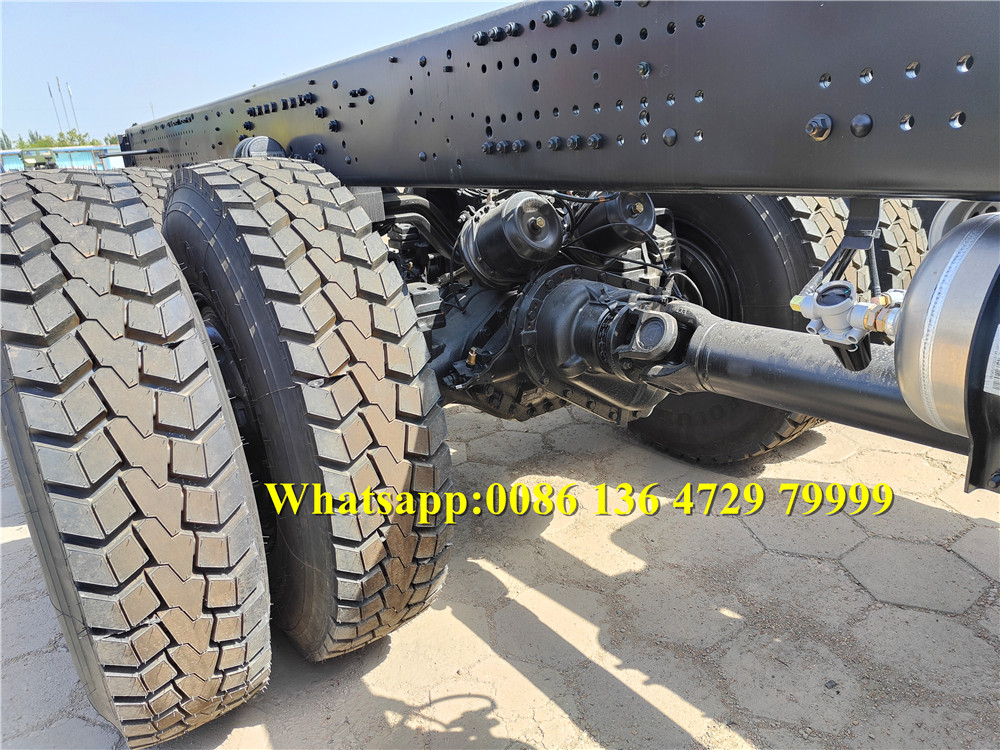

13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263；
双蹄片式气压制动，双减速驱动桥，差速锁，速比5.263
|
|

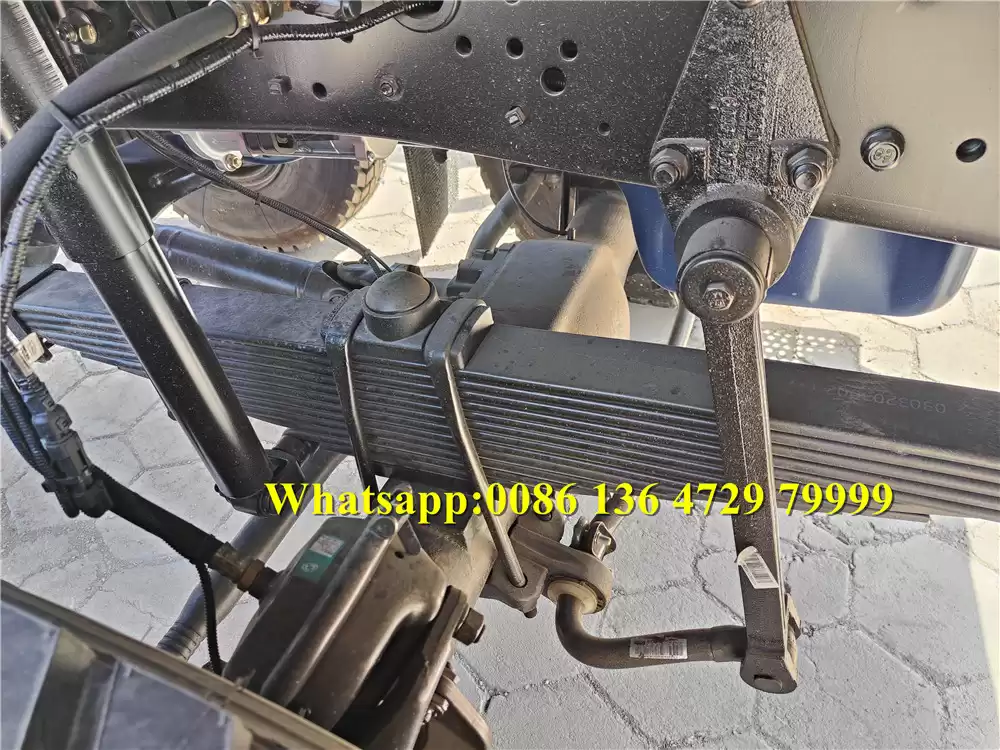

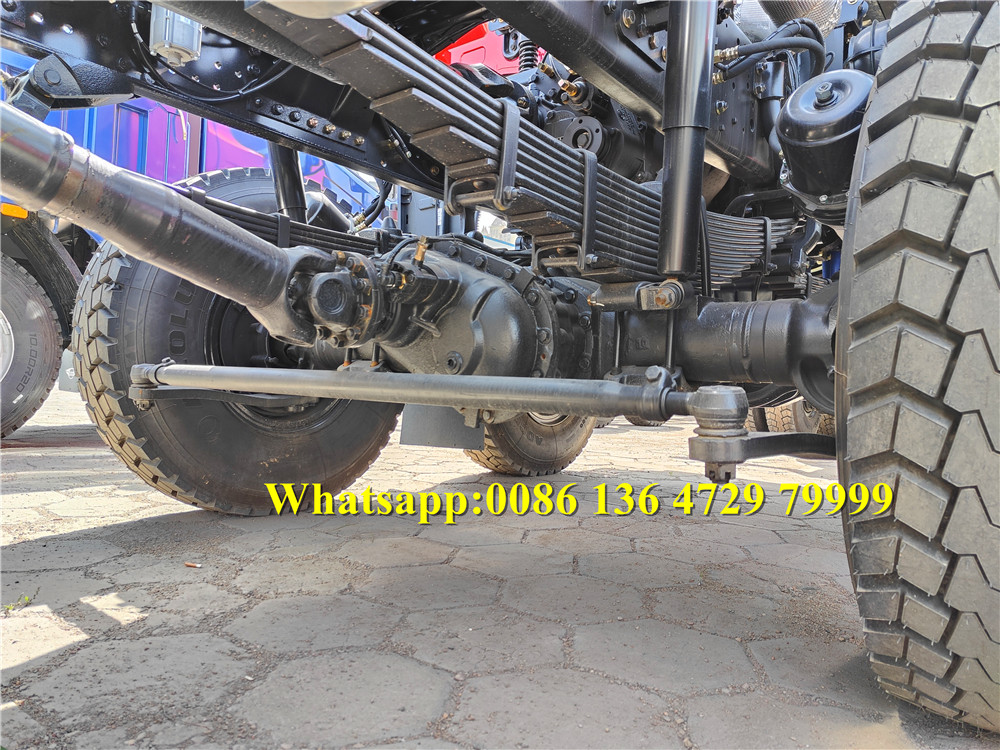

Front and rear suspension 前悬挂/后悬挂
|

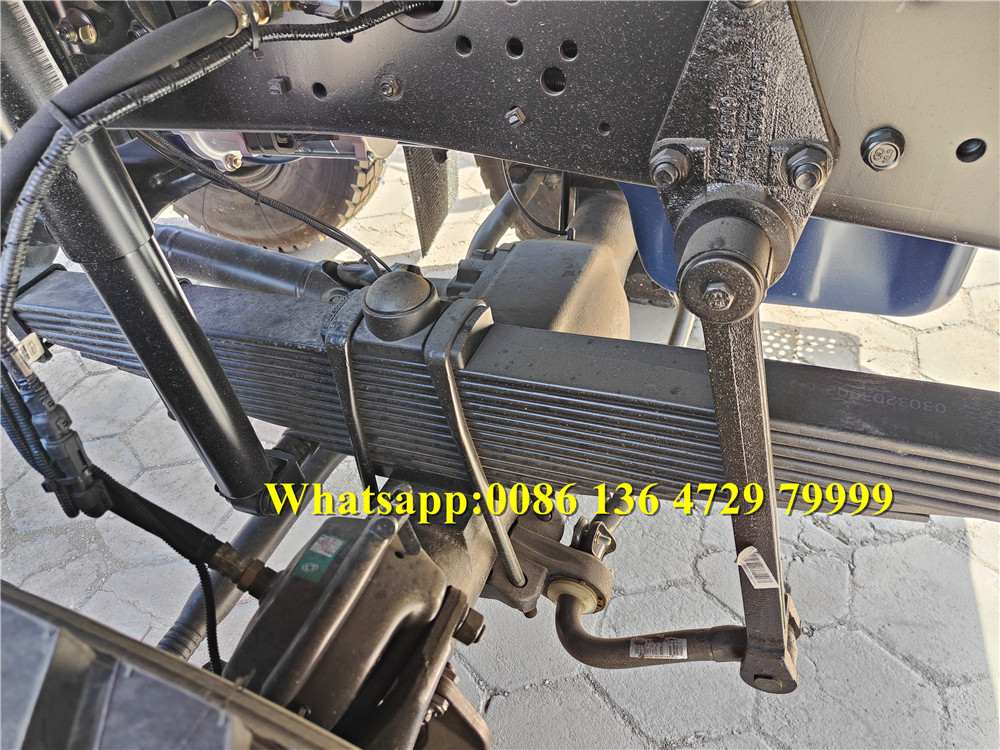

Front/rear: Leaf spring, 13/13 pieces；
前/后板簧：13/13片簧；
|
|
Tire 轮胎
|
12.00R24
|
|
Cab
驾驶室
|
V3 Long Cabin/ Flat roof/Left drive
Exterior trimming:
Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).
NG80B长驾平顶/左驾带双卧
外饰：金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。
|
|
Interior trimming:
Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument
内饰：气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机（带MP3功能）、数字仪表。
|
|
Offer
报价
|
1.工厂自提含税价格：以具体核算为准。
2.支付方式：30%现金定金，70%现金尾款，款到发车。
3.交货期：收到30%定金后，正常交货期为45天交付货物。交货期需要在签订合同前再次确认。
4.报价有效期：1个月 。有效期过后，需要重新报价。
5.该车辆不含质保，如需质保，需要另行商议。
|
Super reliable transfer box with germany mercedes benz technology, military quality assurance.
