China Oem Drop Forged Putlog Coupler Scaffolding

China Putlog Coupler Scaffolding Supplier

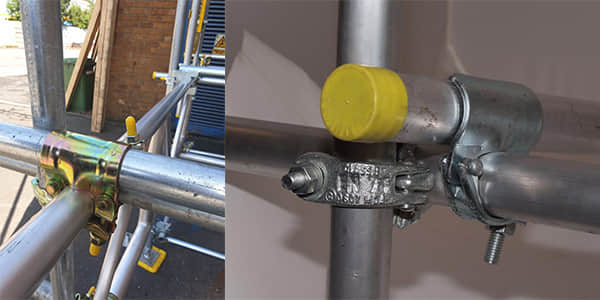

The putlog coupler is a scaffolding connector that connects scaffolding tubes and crossbars. It enables scaffolding guardrails and center rails to be placed at 90 degrees to standard scaffolding tubes. The putlog coupler wraps around two vertical scaffolding tubes leaving no gap. It enables scaffolding boards and battens to be placed on top of the scaffolding tubes.

AJ Building is a well-known scaffolding supplier in China, providing you with putlog coupler scaffolding of different types, sizes, and surface treatments, and you can customize it according to your needs.

Putlog Coupler Scaffolding Advantages

Material Options

The Putlog coupler is made of high-quality Q235 carbon steel, with excellent durability and load-bearing capacity. We can provide you with products made by Drop Forged and Pressed manufacturing processes.

Putlog Coupler Type

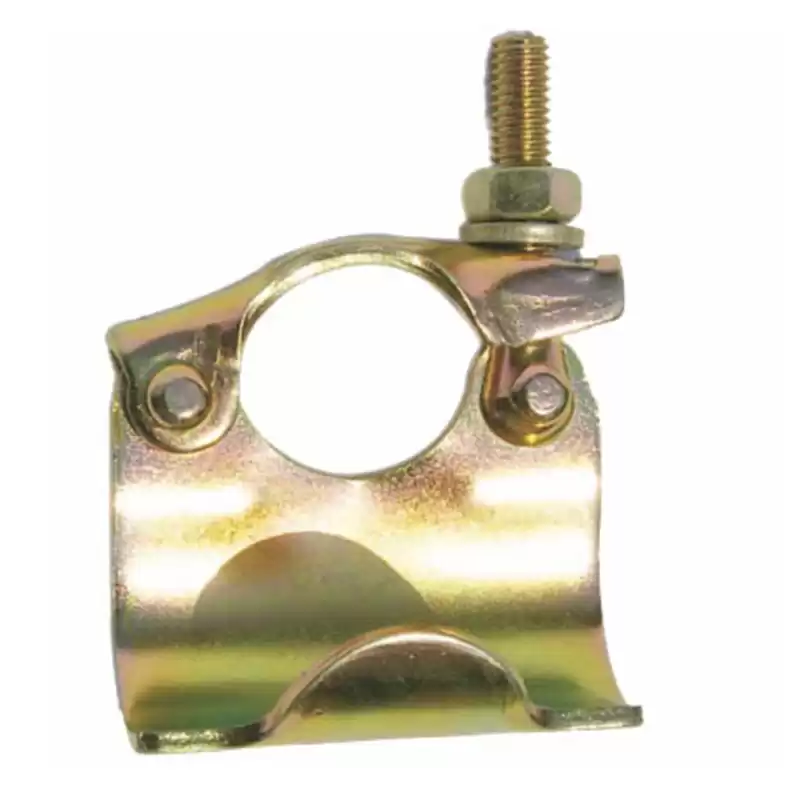

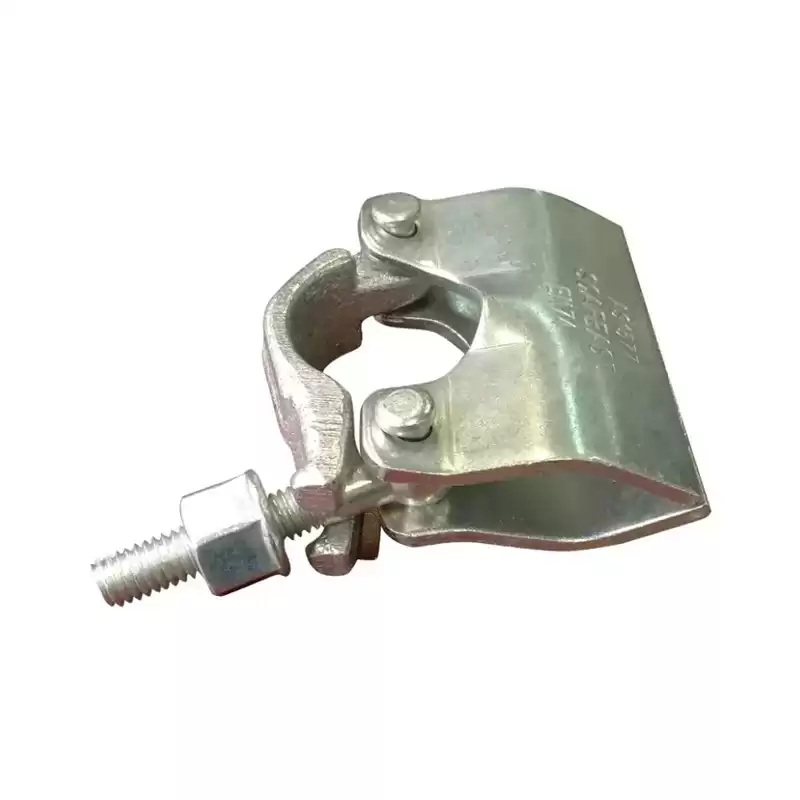

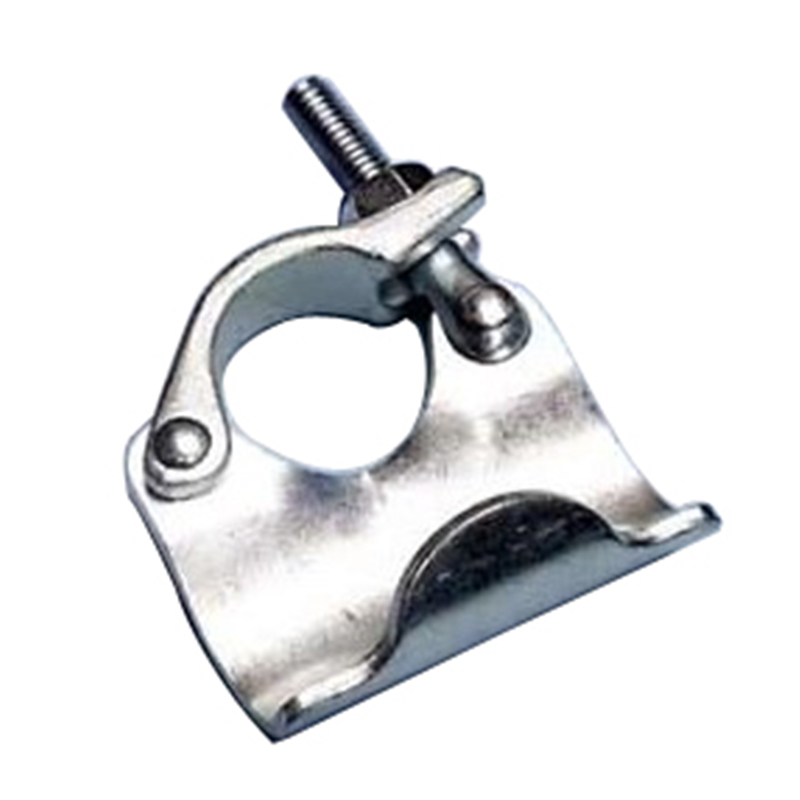

Putlog Coupler Scaffolding: single putlog coupler scaffold and wrapover putlog coupler. Both of them meet EN74-1/BS1139 standards and have an anti-slip resistance of 0.62 kN when the tightening torque is 54 Nm.

Customization Options



Putlog coupler scaffolding is generally suitable for pipes with an outer diameter of 48.3mm. In order to meet the needs of different projects, we also provide fasteners with a size range of 38mm, 42mm, 60mm, 64mm, 76mm, etc. You can also choose products with hot-dip galvanizing, electro-galvanizing, and powder-coating surface treatment processes. Therefore, the specifications and colors of the putlog coupler can be customized.
