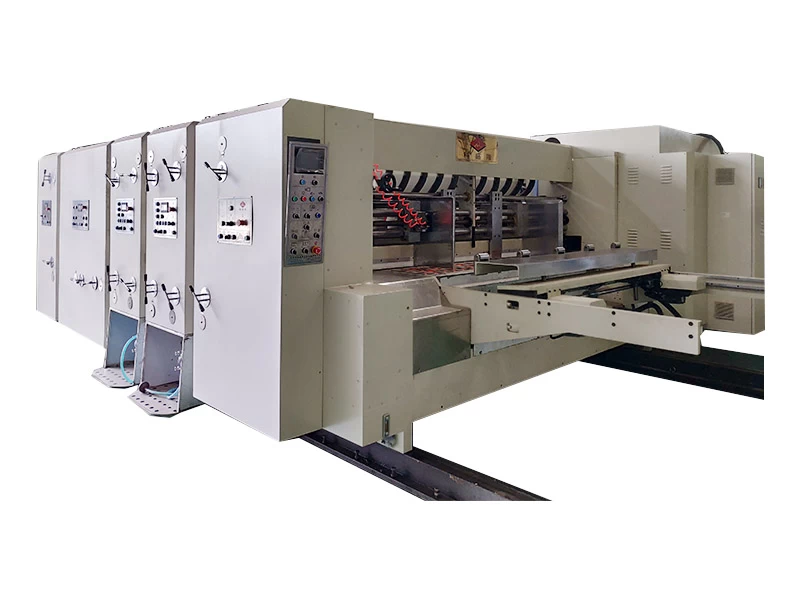

China Semi-Automatic Flexo Printer Slotter Die-cutter

Semi automatic flexo printer slotter die cutter with gluer bundler machine of Model K4, economical and professional.



China Semi-Automatic Flexo Printer Slotter Die-cutter


Double Colour Printer Slotter Features:

·Corrugated carton flexo printing slotting die-cutting machine is designed and made to high quality and safety   standard,with the advantages of high speed, auto control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Auto zero return and auto reset.

·All gaps between cylinders and rollers are manual adjusted,squagging after adjustment.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·All cylinders and rollers are chromed plated for ideal hardness.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to facilitate the production management.


Printer for Cardboard Specification:

Data/Model 900*2000 1200*2000 1200*2400

1200*2800

1400*2400 1400*2800 1600*2800 1600*3200
Printing Speed(m/min)

200

200 200 200 200 200 200 200
Max. Machine Speed(pcs/min) 300 250 250 220 220 220 200 180
Max.Feeding Size(mm) 880x2000
1180x2000
1180x2400
1180x2800
1380x2400
1380x2800
1540x2800
1570x3200
Min.Feeding Size(mm) 280x640 320x700 320x700
320x700
350x700 350x700 420x760 420x760
Skip Feeding(mm) 1100x2000 1500x2000 1500x2400 1500x2800 1700x2400 1700x2800 1900x2800 1900x3200
Max. Printing Area(mm) 800x2000 1150x2000 1150x2400 1150x2800 1350x2400 1320x2800 1540x2800 1540x3200
Thickness of Printing Plate(mm) 7.2 7.2
7.2 7.2 7.2 7.2 7.2 7.2
Min.Panel(mm) Slot Type L. 240x80x240x80 260x90x260x90 260x90x260x90
260x90x260x90 260x90x260x90 260x90x260x90 280x100x280x100 280x100x280x100
Max Slotting Depth(mm) 250 320 320 320 320 320 560 560
Max. Thickness of Sheet(mm) 8 12 12 12 12 12 12 12

Dimension(LxWxH)

T

F

T:11659x4240x3200

F:12079X4240X3200

T:13015x4400x3500

F:13550x4400x3500

T:13015x4800x3500

F:13550x4800x3500

T:13015x5220x3500

F:13550x5220x3500

T:13570x4830x3500

F:14028x4820x3500

T:13570x5220x3500

F:14028x5220x3500

T:14021x5220x3500

F:14071x5220x3500

T:14021x5719x3500

F:14071x5719x3500



Why Choose Us?

1.More than 23 years professional experience in designing and manufacturing Automatic Flexo Printing Slotting Die-Cutting Machine.
2.Accept customized design according to customers' requirements.
3.High levels of performance,quality and reliability of all equipment.
4.Reliable quality proven by customers both at home and abroad.
5.Reasonable prices.
6.Promptness in both equipment delivery and technical support.
