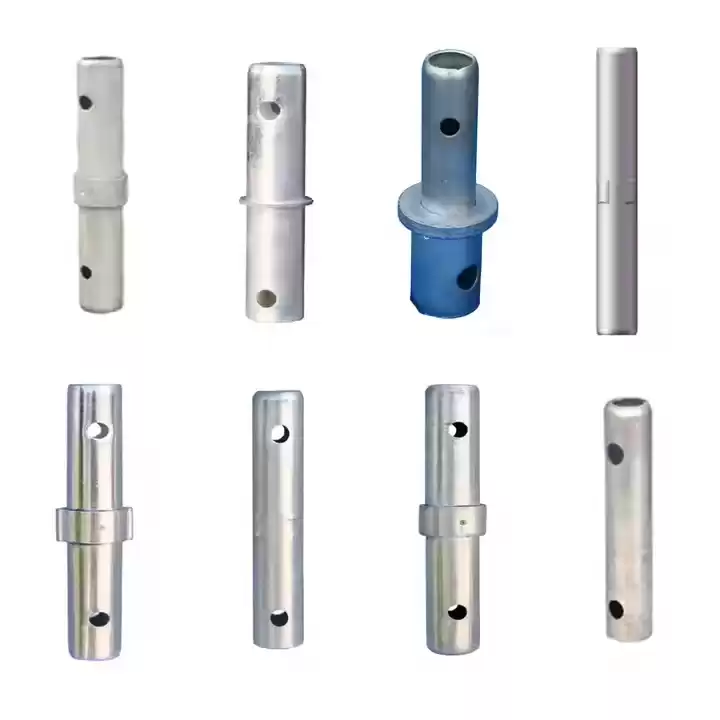

Scaffolding Join Pin Manufacturer
Scaffolding Join Pin is a key connecting component in the scaffolding system, mainly used to quickly and firmly connect scaffolding pipes (such as vertical poles, horizontal poles, diagonal poles, etc.).
As a manufacturer of scaffolding Join Pins, AJ Building's products all meet the BS1139.2 standard and are galvanized or powder-coated. And provide you with product sizes that meet different scaffolding systems, or customize them. If you are looking for high-quality scaffolding Join Pins, please contact us!
Feature Of Scaffolding Join Pin
-
-
Load bearing
The connecting pin can withstand the overall weight of the scaffolding and the dynamic load during construction.
-
Strong Compatibility
Applicable to various types of scaffolding systems, ensuring its versatility and flexibility in different scenarios.
Compatible Scaffolding Systems
Scaffolding Join Pin is widely used in the following common scaffolding systems:
Ringlock Scaffolding
- In the Ringlock system, the scaffolding Join Pin is used to connect the vertical pole with the horizontal or diagonal pole to ensure the support and load-bearing capacity at the node.
Frame Scaffolding
- Frame Scaffolding consists of frame units and connectors. Scaffolding Join Pins are used to connect frame units to enhance the strength and stability of the overall structure.
Cuplock Scaffolding
- Cuplock Scaffolding is known for its modular design and high load-bearing capacity. Scaffolding Join Pins are used to connect vertical poles and horizontal poles to ensure the stability of the structure.
Kwikstage Scaffolding
- Kwikstage Scaffolding is a fast-building scaffolding system. Scaffolding Join Pins are used to connect vertical poles and horizontal poles to ensure the rapid assembly and disassembly of the structure.
Quicklock Scaffolding
- In the Quicklock system, the Scaffolding Join Pin is used to strengthen the node connection to ensure the stability and safety of the structure.
Scaffolding Coupling & Join Pin Sizes
| NO. |
Scaffold System |
Join Pin Size |
Thickness |
Join Pin Length |
| 1 |
Ringlock Scaffold |
OD38mm |
3mm |
300-500mm |
| 2 |
OD60mm Ring Shore System |
OD52mm |
3mm |
300mm |
| 3 |
Cuplock Scaffold |
OD38mm/30x30mm |
3mm |
300mm |
| 4 |
Kwikstage Scaffold |
OD38mm |
3.0mm/4.0mm |
215mm |
| 5 |
OD42mm Frame Scaffold |
OD36mm |
1.8-2.5mm |
225mm |
| 6 |
OD48mm Frame Scaffold |
OD38mm |
3.0mm/4.0mm |
198mm – 250mm |
| 7 |
OD57mm Frame Scaffold |
OD48mm |
3.0mm/4.0mm |
198mm – 250mm |
| 8 |
OD60mm Frame Scaffold |
OD52mm |
3.0mm/4.0mm |
198mm – 250mm |
