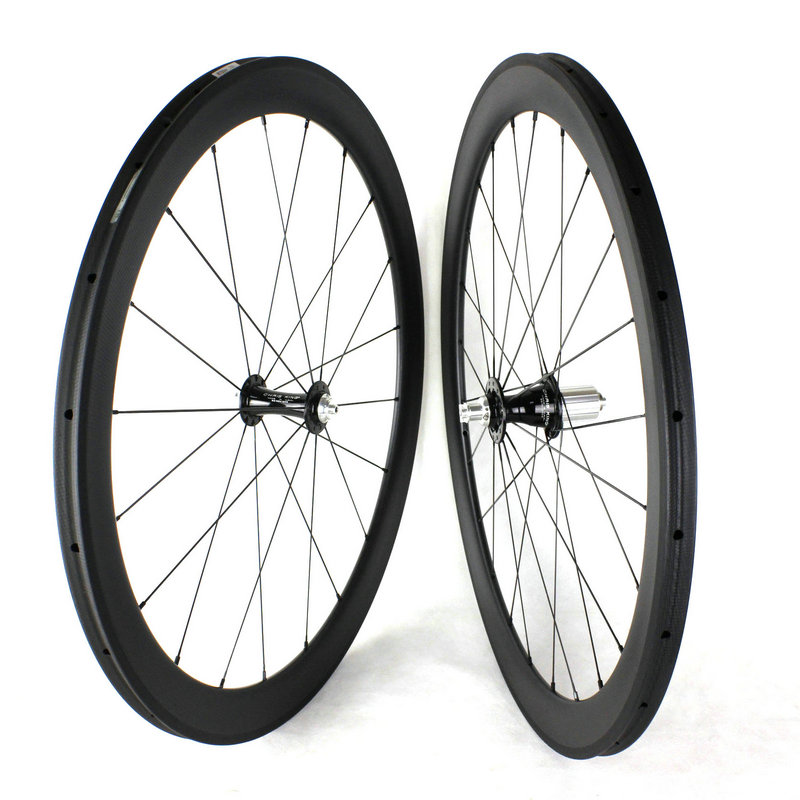

Chris King R45 hub + Sapim CX-Ray spoke custom road carbon wheels

[Rim Brake] Custom build road bicycle carbon wheel with Chris King R45 hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, lightweight, performance, will get your power to the ground fast, provide unmatched engagement.


  • StandardEN standard
  • LevelPro Racing
  • HoleFront 20, Rear 24
  • BrakeRim brake
  • LacingF - radial, R - drive side 2 cross, non-drive side radial.
  • RimCarbonal rim brake carbon rims
  • SpokeSapim CX-Ray, black
  • NippleSapim alloy, black or red
  • HubChris King R45 stainless steel or ceramic hub

Product Item: Chris King R45 hub + Sapim CX-Ray spoke custom road carbon wheels


Rim:

Carbonal rim brake 700c road bike carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.

5 years warranty.


*Rim brake surface available: 3k twill brake track (recommended why?) and basalt brake track.

carbon rim with basalt & 3k twill brake track

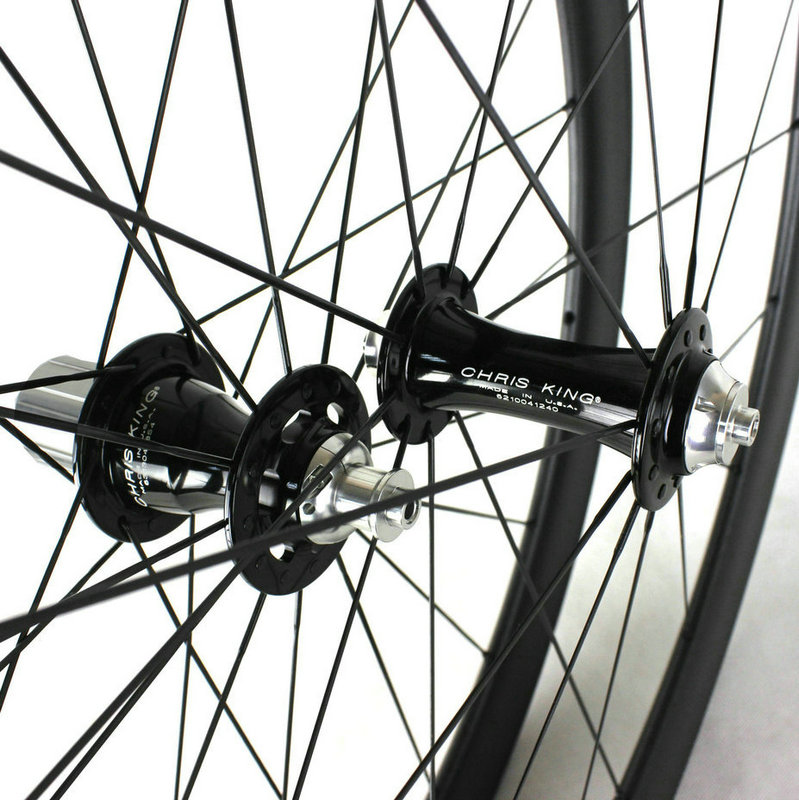

Hub:

Chris King R45 stainless steel or ceramic hub;

Size-axle: Front - 100x9mm QR, Rear - 130x10mm QR;

Driveshell: Shimano road 11S or Campy 11SP;

Brake system: non disc, rim brake;

Hole: Front 20, Rear 24;

Color: black or red.


Spoke:

Sapim CX-Ray aero bladed spoke, J bend, black;


Nipple:

Sapim alloy, black or red.


Lacing:

Front wheel - radial;

Rear wheel - drive side 2 cross, non-drive side radial.


Weight:

Hub: 323g/set;

Spokes + nipples: 200g;

Weight without rims: 523g.


Rim model vs Complete wheel weight:

Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max weight limit
RX30SH
700c clincher 30x25mm
430g
1383g
115kgs
RX38SH
700c clincher 38x25mm
470g
1463g
120kgs
RX38DH
700c clincher 38x25mm- asymmetric
470g
1463g
120kgs
RX45SH
700c clincher 45x25mm
480g
1483g

125kgs

RX50SH
700c clincher 50x25mm
500g
1523g
125kgs
RX50DH
700c clincher 50x25mm - asymmetric
500g
1523g
125kgs
RX60SH
700c clincher 60x25mm
560g
1643g
130kgs
RX88SH
700c clincher 88x25mm
720g
1963g
135kgs
RX38L
700c clincher 38x28mm
480g
1483g
120kgs
RX50L
700c clincher 50x28mm
510g
1543g
125kgs
RT30S
700c tubular 30x25mm
310g
1143g
115kgs
RT38S
700c tubular 38x25mm
360g
1243g
120kgs
RT38D
700c tubular 38x25mm- asymmetric
360g
1243g
120kgs
RT50S
700c tubular 50x25mm
410g
1343g
125kgs
RT50D
700c tubular 50x25mm- asymmetric
410g
1343g
125kgs
RT60S
700c tubular 60x25mm
470g
1463g
130kgs
RT88S
700c tubular 88x25mm
530g
1583g
135kgs


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; pair of quick-release skewers; carbon-specific brake pads; freehub spacer for 10 speed cassettes.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.


Choose your favorite carbon rim model, leave a message below to get a best quote for your next carbon road bike wheelset!
