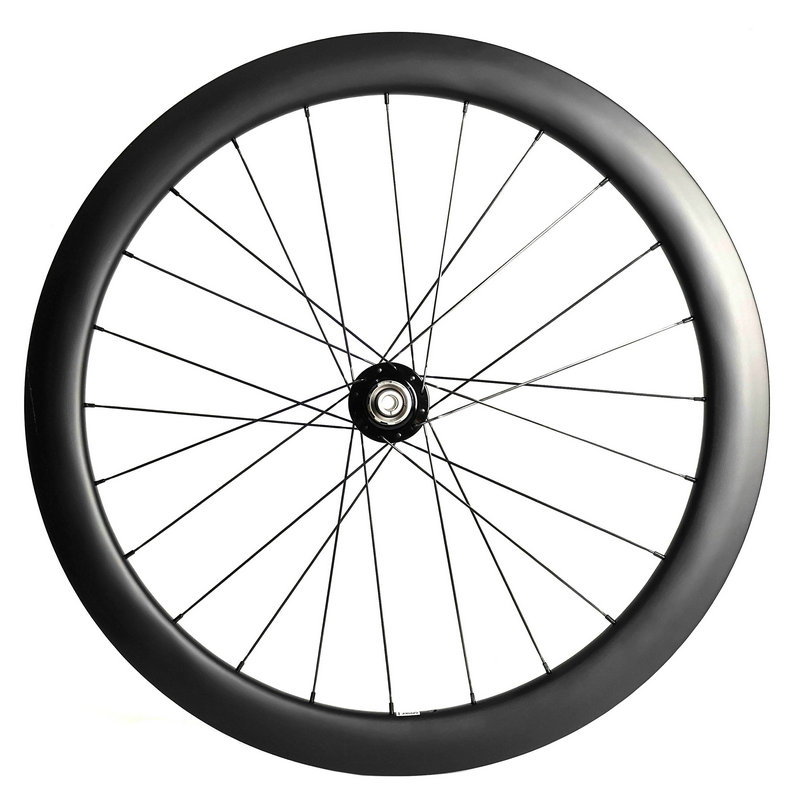

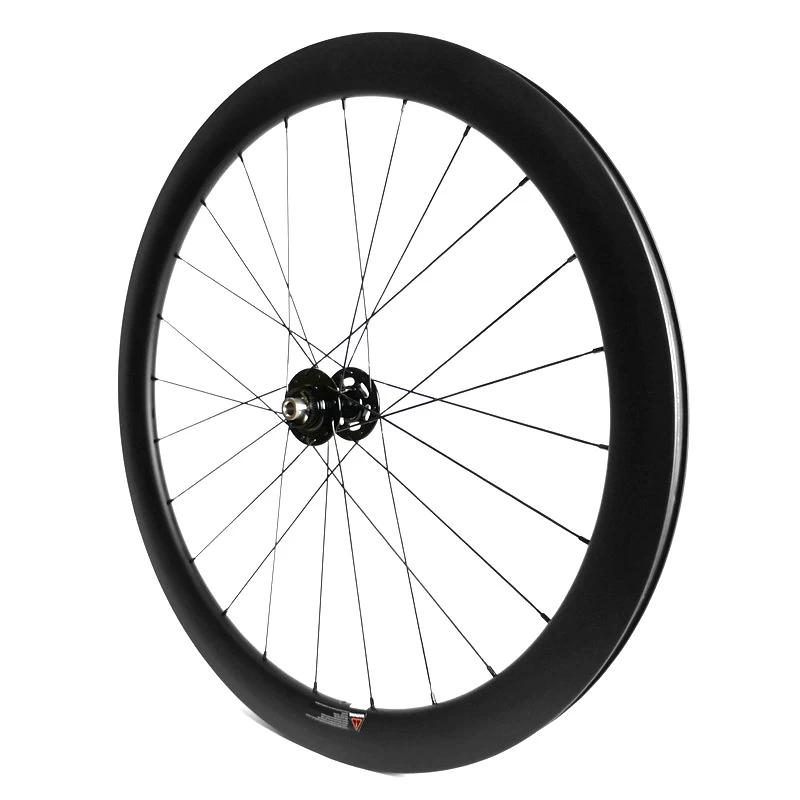

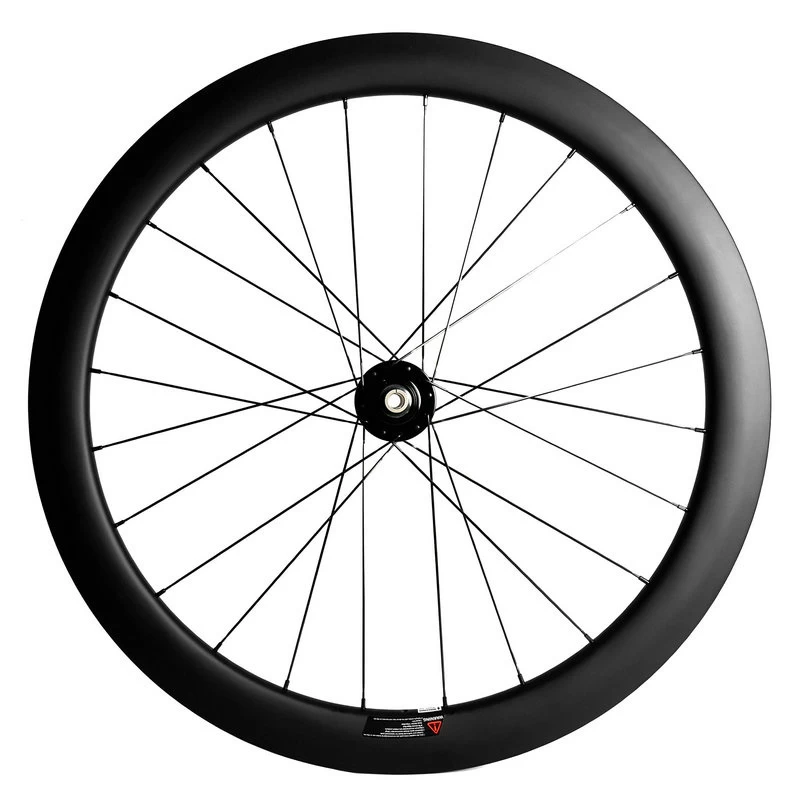

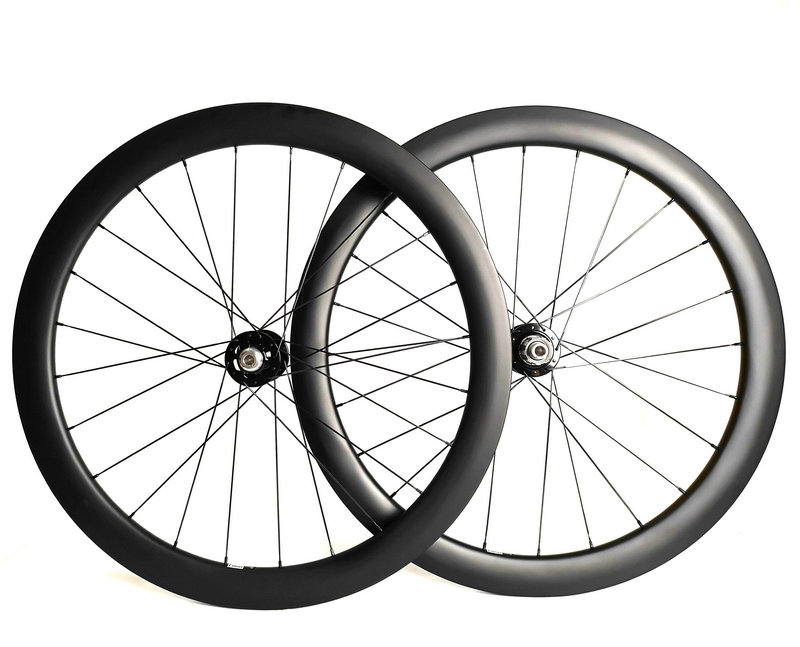

Product Item: Chris King R45D hub + Sapim CX-Ray spoke custom disc road carbon wheels

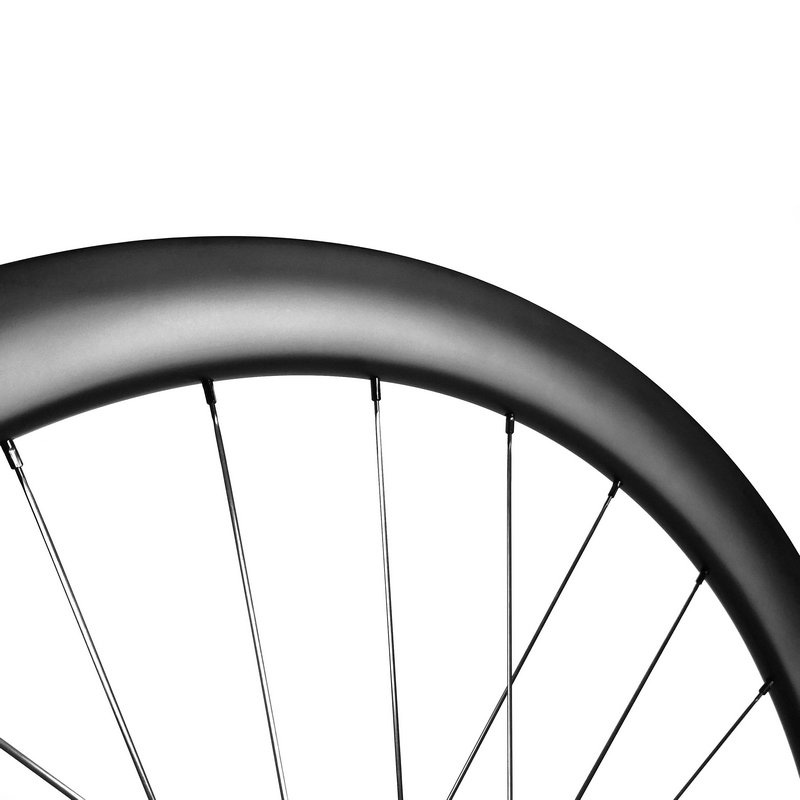

Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With
the best blend of lightweight, aerodynamic, high stiffness and great
strength to deliver the highest possible efficiency.
Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.
5 years warranty.

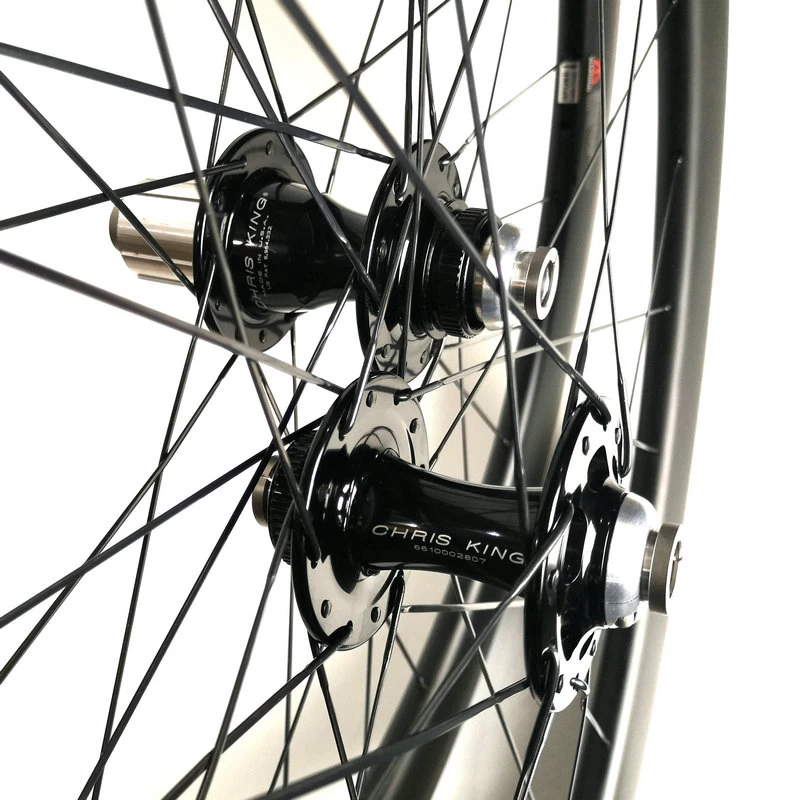

Hub:
Chris King R45D stainless steel or ceramic hub;
Size-axle: Front - 100x12mm, Rear - 142x12mm;
Driveshell: Shimano Road 11S / Campy 10/11SP;
Brake system: Disc center lock;
Hole: Front 24, Rear 24;
Color: black.
Spoke:
Sapim CX-Ray spoke, J bend;
Nipple:
Sapim alloy, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 408g/set;
Spokes + nipples: 218g;
Weight without rims: 626g.
Rim model vs Complete wheel weight:
Model
|
Rim type - depth x width
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max rider weight
|
DT30S
|
700c tubular - 30 x 25mm
|
290g
|
1206g
|
120kgs
|
DT38S
|
700c tubular - 38 x 25mm
|
330g
|
1286g
|
120kgs
|
DT38D
|
700c tubular - 38 x 25mm- asymmetric
|
330g
|
1286g
|
120kgs
|
DT50S
|
700c tubular - 50 x 25mm
|
360g
|
1346g
|
125kgs
|
DT50D
|
700c tubular - 50 x 25mm - asymmetric
|
360g
|
1346g
|
125kgs
|
DT60S
|
700c tubular - 60 x 25mm
|
430g
|
1486g
|
130kgs
|
DT88S
|
700c tubular - 88 x 25mm
|
530g
|
1686g
|
135kgs
|
DX30S
|
700c clincher - 30 x 25/18mm
|
370g
|
1366g
|
120kgs
|
DX38S
|
700c clincher - 38 x 25/18mm
|
400g
|
1426g
|
120kgs
|
DX38D
|
700c clincher - 38 x 25/18mm - asymmetric
|
400g
|
1426g
|
120kgs
|
DX45S
|
700c clincher - 45 x 25/18mm
|
430g
|
1486g
|
125kgs
|
DX50S
|
700c clincher - 50 x 25/18mm
|
450g
|
1526g
|
125kgs
|
DX50D
|
700c clincher - 50 x 25/18mm- asymmetric
|
450g
|
1526g
|
125kgs
|
DX60S
|
700c clincher - 60 x 25/18mm
|
500g
|
1626g
|
130kgs
|
DX88S
|
700c clincher - 88 x 25/18mm
|
720g
|
2066g
|
135kgs
|
DX38L
|
700c clincher - 38 x 28/21mm
|
410g
|
1446g
|
120kgs
|
DX50L
|
700c clincher - 50 x 28/21mm
|
460g
|
1546g
|
125kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below to get a best quote for your next carbon road disc wheelset!
