Chrome Steel Bearing Insert With Adapter Sleeve Locking UK2


UK  Standard duty, Tapered bore, Adapter sleeve locking




Facebook Twitter Pinterest LinkedIn 分享

Ball Bearing Inserts UK211

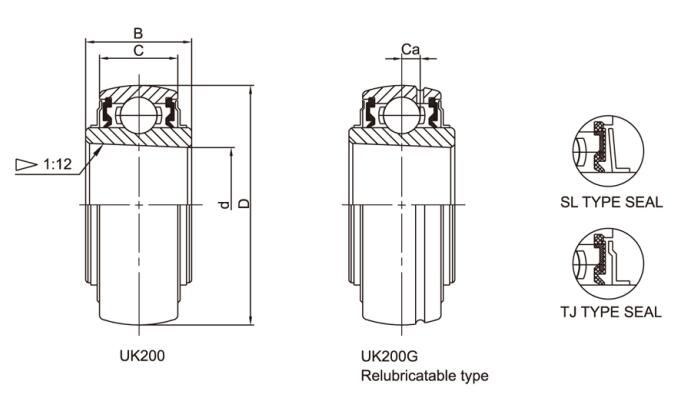

Bearing No. Dimensions(mm)
Basic Load Rating
( KN )
Weight
d1 d D B C Ca Dvnamic Cr Static Cor (kg)
UK205 20 25 52 23 17 4 14.03 8.05 0.21
UK206 25 30 62 26 19 5.3 19.47 11.43 0.31
UK207 30 35 72 28 20 5.8 25.69 15.55 0.46
UK208 35 40 80 29 21 6.2 29.51 18.14 0.63
UK209 40 45 85 30 22 6.5 31.85 20.8 0.68
UK210 45 50 90 32 24 7 34.99 23.7 0.78
UK211 50 55 100 36 25 7.4 43.34 29.39 1.07
UK212 55 60 110 38 27 7.6 47.68 33.43 1.51
UK213 60 65 120 40 28 8.5 57.2 40.01 1.86
UK215 65 75 130 43 30 9.2 62.08 44.82 2.21
UK216 70 80 140 45 33 9.5 72.62 53.34 2.79
UK217 75 85 150 46 35 11.1 83.15 65.54 3.38
UK218 80 90 160 47 37 11.8 95.84 72.64 4.46
