Chromoly Rod Ends JFX..T



Ball: AISI 52100 bearing Steel, Heat treated, HRC56 min;

Precision ground polished hard chromium plated

Body: Steel alloy, Heat treated, Zinc plated, Chromate treated

Race: Steel alloy, Heat treated, Zinc plated, Chromate treated

Sliding contact surfaces: Steel/PTFE composite



Facebook Twitter Pinterest LinkedIn 分享

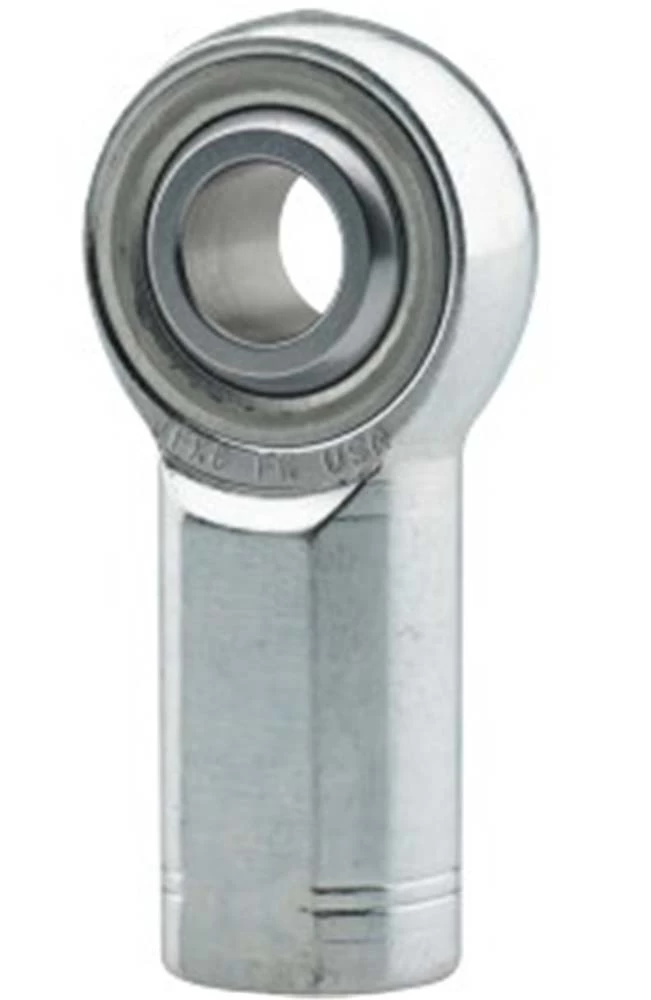

JF16T Chromoly Steel Rod Ends

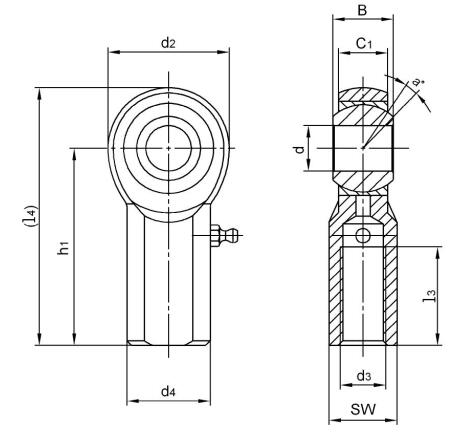

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈ kg
d+0.038
  -0.012
B C1 d2
d3
UNF-2B
h1 L3 (L4) d4 sw
JFX3T 4.826 7.92 6.35 15.88 10-32 26.97 11.11 34.91 10.31 7.92 11.11 10 16.6 0.018
JFX3T 0.1900 0.312 0.250 0.625 10-32 1.062 0.437 1.375 0.406 0.312 0.437 10 16.6 0.018
JFX4T 6.35 9.53 7.14 19.05 1/4-28 33.32 14.28 42.85 11.89 9.52 12.7 13 27.5 0.027
JFX4T 0.2500 0.375 0.281 0.750 1/4-28 1.312 0.562 1.687 0.468 0.375 0.500 13 27.5 0.027
JFX5T 7 938 11.10 8 74 22.23 5/16-24 34 92 15 88 46 03 12 7 11.1 1588 10 33.9 0.040
JFX5T 0.3125 0.437 0.344 0.875 5/16-24 1.375 0.625 1.812 0.500 0.437 0.625 10 33.9 0.040
JFX6T 9.525 12.7 10.31 25.4 3/8-24 41.28 19.05 53.98 17.45 14.27 18.26 9 42.4 0.068
JFX6T 0.3750 0.500 0.406 1.000 3/8-24 1.625 0.750 2.125 0.687 0.562 0.719 9 42.4 0.068
JFX7T 11.112 14.27 11.1 28.58 7/16-20 46.02 22.22 60.3 19.05 15.88 20.62 11 45.7 0.090
JFX7T 0.4375 0.562 0.437 1.125 7/16-20 1.812 0.875 2.375 0.750 0.625 0.812 11 45.7 0.090
JFX8T 12.7 15.88 12.7 33.32 1/2-20 53.98 25.4 70.64 22.22 19.05 23.8 9 68.2 0.149
JFX8T 0.5000 0.625 0.500 1.312 1/2-20 2.125 1.000 2.781 0.875 0.750 0.937 9 68.2 0.149
JFX10T 15.875 19.05 14.27 38.1 5/8-18 63.5 31.75 82.55 25.4 22.22 28.58 11 79.8 0.217
JFX10T 0.6250 0.750 0.562 1.500 5/8-18 2.5 1.250 3.250 1.000 0.875 1.125 11 79.8 0.217
JFX12T 19.05 22.23 17.45 44.45 3/4-16 73.03 38.1 95.25 28.58 25.4 33.33 10 124.9 0.326
JFX12T 0.7500 0.875 0.687 1.750 3/4-16 2.875 1.500 3.75 1.125 1.000 1.312 10 124.9 0.326
JFX16T 25.4 34.93 25.4 69.85 5/4-12 104.78 53.98 139.7 41.28 38.1 47.62 14 338.9 0.963
JFX16T 1.0000 1.375 1.000 2.750 5/4-12 4.125 2.125 5.5 1.625 1.500 1.875 14 338.9 0.963
JFX16-1T 25.4 34.93 25.4 69.85 1-14 104.78 53.98 139.7 41.28 38.1 47.62 14 338.9 1.093
JFX16-1T 1.0000 1.375 1.000 2.750 1-14 4.125 2.125 5.5 1.625 1.500 1.875 14 338.9 1.093


Notes: For grease fittings add "Z" to suffix. Example:JFX6Z

          For studs add "Y" to suffix.         Example: JFX5Y

Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:JFXL12T 3/4-16L
